AIM-P, AIM-PT series is ergonomically designed to enhance operational efficiency. This powerful instrument helps you to stay focused for longer by reducing the strain on your body. It is the new standard in microscopes, expanding the possibilities of exploring the micro world.
Key Features:
-
It has been developed with the primary goal of reducing fatigue during microscope usage.
-
Excellent image flatness and chromatic aberration correction.
-
It has three kinds of objectives—Achromatic, Plan Achromatic, and Infinity Plan Achromatic, , which feature flat, sharp images up to the periphery of the field of view. Infinity-corrected optical system, which achieves both high resolution and long working distances.
-
Low stage for effortless slide replacement, Enables natural posture to be maintained throughout the entire microscope workflow.
-
Capture specimen images for documentation or for real-time sharing with others by configuring the trinocular version with a digital camera.
-
Equipped with a powerful 3W LED lamp, offering excellent visibility and a long lifespan for reliable performance.
Viewing head
|
Articulated free binocular head, 30° inclined, interpupillary distance 50-75mm
|
໐
|
Articulated free trinocular head, 30° inclined, interpupillary distance 50-75mm
|
●
|
Eyepiece
|
PL10X/22mm high eyepoint eyepiece, diopter adjustment ±5, tube Ø30mm
|
●
|
Achromatic objective
|
4X/0.1, 160/0.17
|
໐
|
10X/0.25, 160/0.17
|
໐
|
40X/0.65(S), 160/0.17
|
໐
|
100Xs/0.1(S, Oil), 160/0.17
|
໐
|
Plan achromatic objectives
|
4X/0.10, 160/0.17
|
໐
|
10X/0.25, 160/0.17
|
໐
|
40X/0.65(S), 160/0.17
|
໐
|
100X/1.25(S, Oil), 160/0.17
|
໐
|
Infinity plan achromatic objectives
|
4X/0.10, ∞/0.17
|
●
|
10X/0.25, ∞/0.17
|
●
|
40X/0.65(S), ∞/0.17
|
●
|
100X/1.25(S, Oil), ∞/0.17
|
●
|
Nosepiece
|
Backward quintuple or quadruple objective nosepiece
|
●
|
Condenser
|
Abbe condenser set
|
●
|
Dry darkfield condenser
|
໐
|
Oil-darkfield condenser
|
໐
|
Swing abbe condenser
|
໐
|
Stage
|
220x148mm X-aris low hand position double mechanical stage(steel wire transmission): 76x50mm, precision 0.1mm, damped double slide clamp
|
●
|
Focusing system
|
Coaxial coarse and fine focus knobs, precision 0.002mm
|
●
|
Illumination
|
3W LED lamp with kohler illumination system
|
●
|
5W LED
|
໐
|
Optional
|
Insert phase contrast apparatus
|
໐
|
|
Polarizing device
|
໐
|
''●'' = Standard configuration ''○''= Option
-

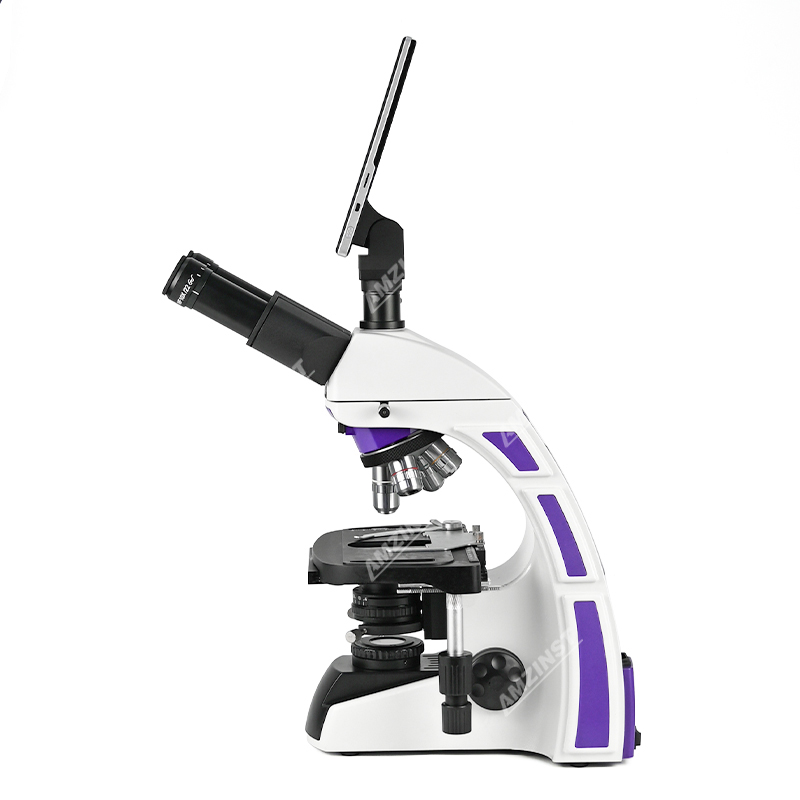

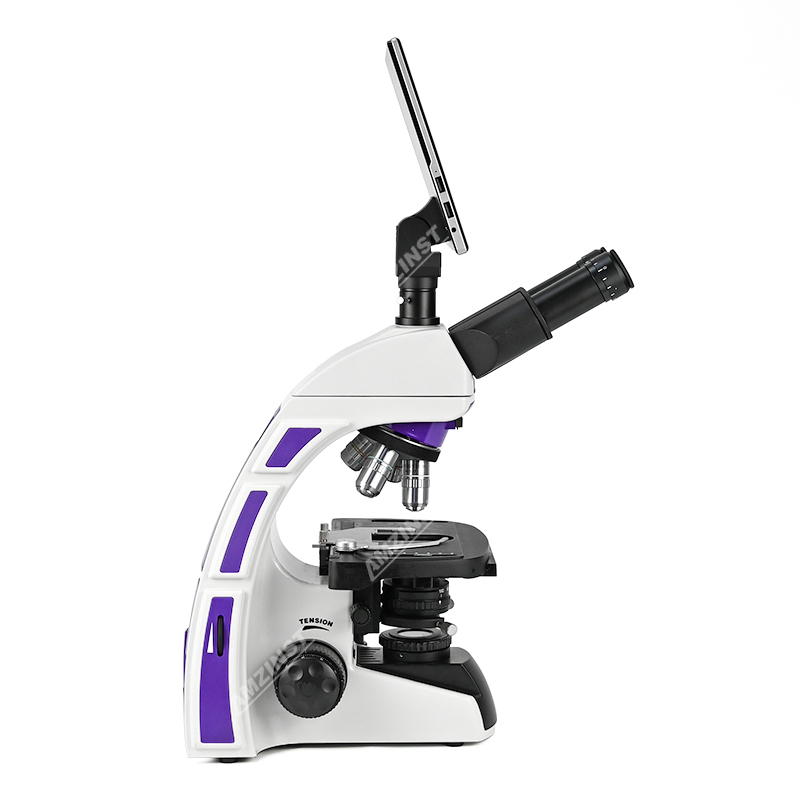

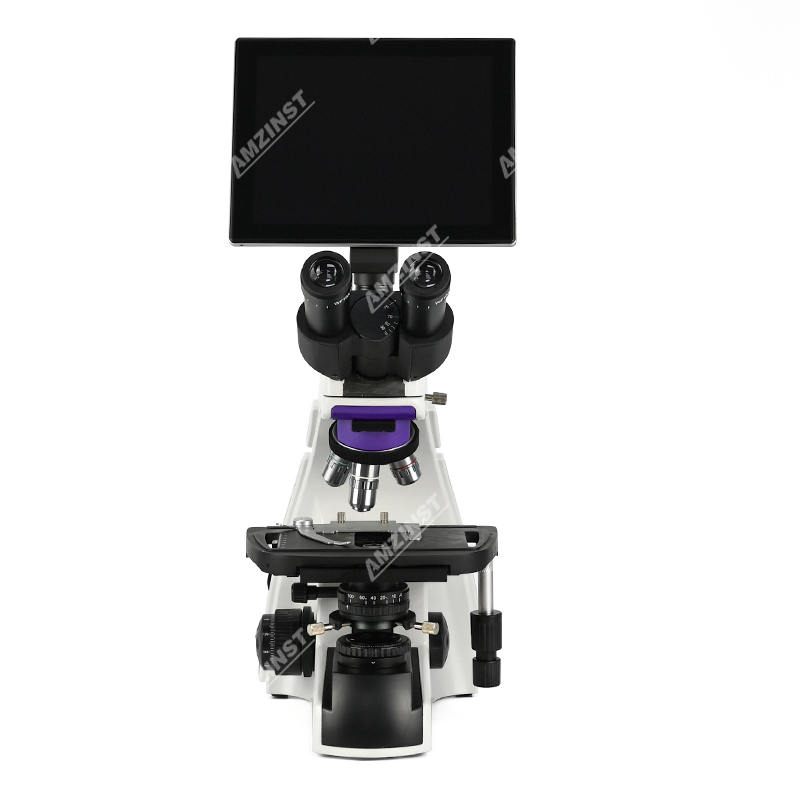

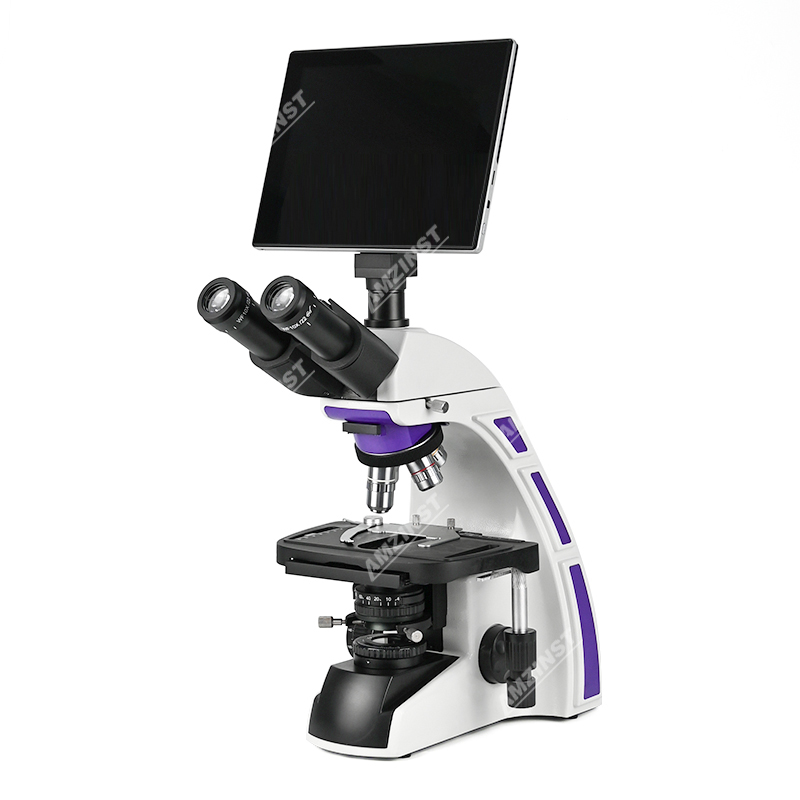

This is a 9.7" high-resolution (2048*1536) Color LCD digital imaging system.
-
Offering great color, smooth images, and a multi-touch screen, this system is ideal for educational and industrial applications.
-
It reduces eye fatigue and can be used for multiple users of the same microscope, demonstrations, and teaching purposes with ease. You can adjust white balance, exposure time, and other features easily.
-
You can save your pictures to internal memory or an external storage device, like a mini SD Card or USB Flash Drive (optional accessories).
-
This system has an integrated 5MP camera which allows for high-speed, high-quality image capture.
-
You can also focus through the screen instead of the microscope eyepieces when needed.
-
The TouchPad also utilizes a specially-designed image-processing chip which allows for dynamic-range improvement and high image-detail quality.
-
It provides solid results for microscopy imaging applications.
-
It comes with a one-year full-coverage warranty and a lifetime of free software upgrades.
-
We have no doubt you will be impressed by the superb resolution and quality this imaging system offers.
5.0MP LCD Touch Pad Screen Specifications
Series
|
Integrated display camera
|
Sensor size
|
1/2.5"
|
Effective pixels
|
5 million pixels
|
Resolution
|
2048x1536@15FPS
|
Screen resolution
|
2048x1536 retinal screen
|
Output
|
USB2.0, HDMI, TF card, WIFI
|
Output ports
|
1x HDMI Port; 1x USB 2.0 Port; 1x Mini USB 2.0 Port
|
Pixel size
|
2.2x2.2|ìm
|
Power
|
DC-12V/2A
|
UI
|
Easy mouse control, Android5.1 operation system
|
Mark function
|
Point coordinates, reticle, coordinates, text annotation
|
Length measuring
|
Straight length, broken line length, curve line length, distance between parallel lines, point-line distance
|
Center distance of circles
|
Center distance of circles
|
Geometry measurement
|
Line length, radius setting circle, two points setting circle, three points setting circle, concentric circles
|
Image capture
|
Support 16 million static image capture
|
Video record
|
Support 1080P video
|
Measuring tool
|
S-EYE
|
Packing list
|
1x 9.7'' touch screen built-in 5.0MP camera (C-Mount thread)
|
1x Power adapter
|
|
