Model outfit
|

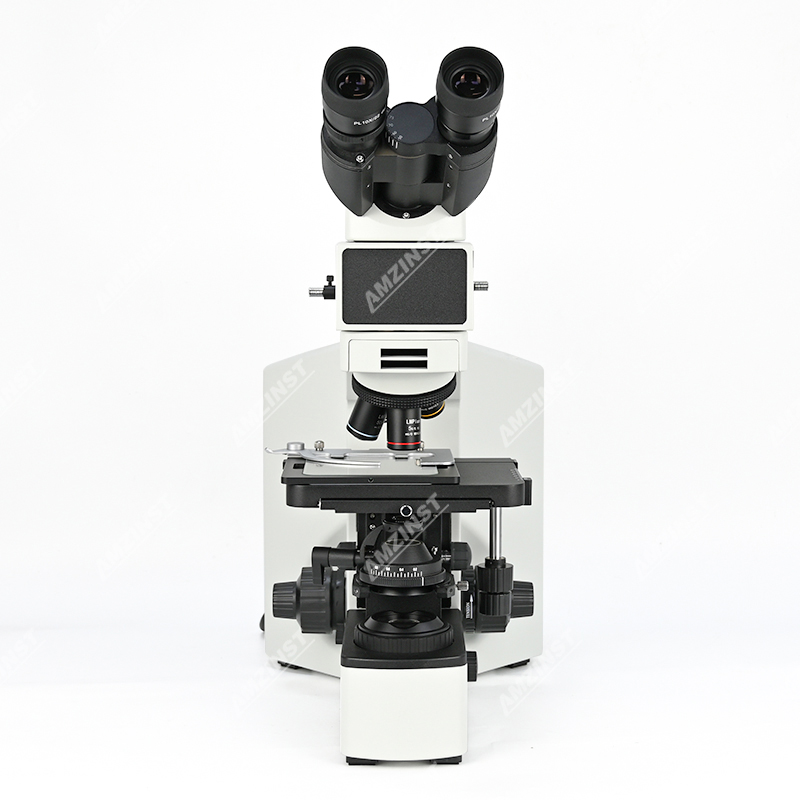

AJX-40MB
|
Eyepieces
|
High Eye-point Wide Field Plan Eyepiece PL10X/22mm
|
●●
|
High Eye-point Wide Field Plan Eyepiece PL10X/22mm, with reticle
|
|
High Eye-point Wide Field Plan Eyepiece PL10X/22mm, Diopter adjustable
|
|
High Eye-point Wide Field Plan Eyepiece PL10X/22mm, Diopter adjustable, with reticle
|
|
High Eye-point Wide Field Plan Eyepiece PL15X/16mm
|
|
Head
|
Compensation Binocular Head 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Diopter +/-5 Adjustable
|
●
|
Compensation Trinocular Head 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Light spliting ratio: 100:0 or 50:50, Diopter +/-5 Adjustable
|
|
Objective
|
LWD Infinity Plan Achromatic Metallurgical Objectives 5X LMPL5X/0.15 WD= 0.8MM
|
●
|
LWD Infinity Plan Achromatic Metallurgical Objectives 10X LMPL10X/0.3 WD=10MM
|
●
|
LWD Infinity Plan Achromatic Metallurgical Objectives 20X LMPL20X/0.45 WD= 4MM
|
●
|
LWD Infinity Plan Achromatic Metallurgical Objectives 50X LMPL50X/0.55 WD= 7.9MM
|
●
|
LWD Infinity Plan Achromatic Metallurgical Objectives 100X LMPL100X/0.8 WD=2.1MM
|
|
Infinity Semi-aprochromatic metallurgical objectivewith correction ring 50X/0.70, WD=2.3-2.9mm
|
|
|
Nosepiece
|
Back-Forward, 5 Holes Revolving Nosepiece, Inward
|
●
|
Stage
|
For Transmit & Reflect Light,
--Double Layer Mechanical Stage 175x145mm, Moving Range 76*42mm, X/Y Moving Coaxial Adjustment With Glass Plate,
--Coase Moving range:28mm; Max Sample height:28mm, Division:0.002mm
--with Tension adjustment loc,Top limit Kit.
|
●
|
For Reflect Light,
--Double Layer Mechanical Stage 175x145mm, Moving Range 76*42mm, X/Y Moving Coaxial Adjustment
With Metal Plate
--Coase Moving range:28mm; Max Sample height: 78mm, Division:0.002mm
|
|
Glass Plate (for Transmit & reflect light)
|
●
|
Metal work plate (for reflect light)
|
|
Light Source
|
Reflected Light, Lamp House With Single 5W LED, Warm Color, Koehler Illuminator WIth Oblique Light Device, Center Adjustable Field And Aperture Diaphragm, Universal Voltage: 100-240V
|
●
|
Transmitted Light, Lamp House With Single 5W LED, Warm Color, Universal Voltage: 100-240V
|
●
|
|
Condensor
|
N.A. 0.9 Swing-out Achromatic Condenser For Transmit Light, With Center Adjustable Aperture Iris Diaphragm
|
●
|
IF Filter
|
Blue IF Filter, (for reflection): ≤480nm
|
|
Green IF Filter, (for reflection): 520-570nm
|
|
Red IF Filter, (for reflection): 630-750nm
|
|
Natural IF Filter, (for reflection)
|
|
Filter
|
Yellow Filter Φ45
|
|
Green Filter Φ45
|
|
Blue Filter Φ45
|
|
Naturel Filter Φ45
|
|
Polarizing kits
|
30 Polarizer (for reflection)
|
|
40 Polarizer (for transmitted)
|
|
360° Rrotatable, Can Be Out Of Light Path
|
|
Camera adapter
|
0.35x adapter, adjustable
|
|
0.5x adapter, adjustable
|
|
0.65x adapter, adjustable
|
|
Micrometer
accessories
|
High-precision micrometer, grid value 0.01mm
|
|
Standard micrometer, grid value 0.01mm
|
|
