APM-30T
|
APM-30TR
|
APM-30TRF
|
Eyepiece
|
WF10X/22mm (adjustable)
|
●
|
|
|
WF10X/22mm (adjustable，reticule 0.1mm)
|
●
|
|
|
WF10X/20mm (adjustable)
|
|
●
|
●
|
WF10X/20mm (adjustable，reticule 0.1mm)
|
|
●
|
●
|
Professional polarizing seidentopf binocular head
|
Inclined 30°, rotatable 360°
Interpupillary distance: 48mm-76mm
|
໐
|
໐
|
໐
|

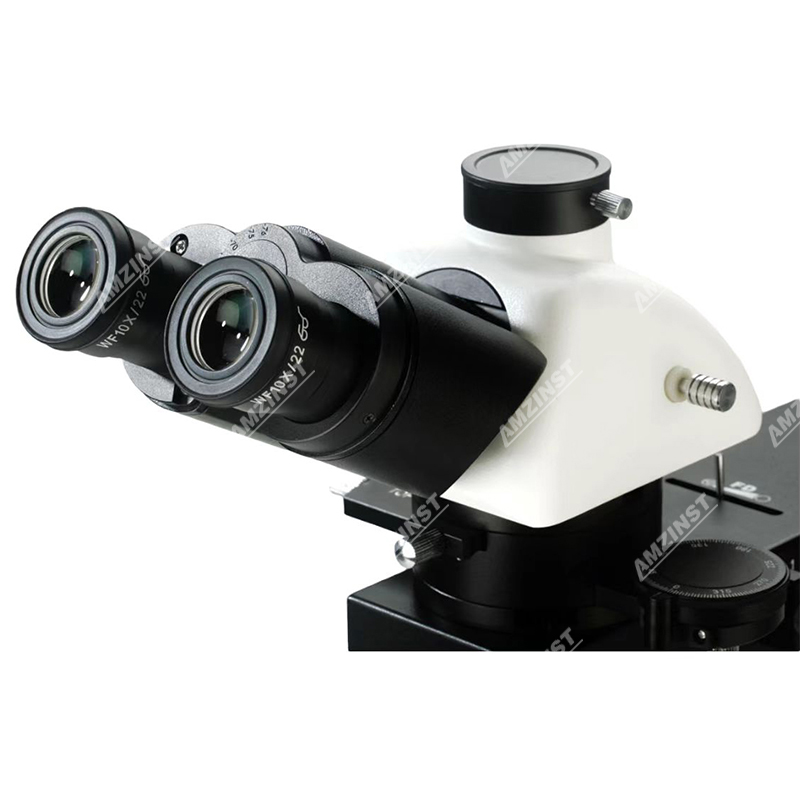

Professional polarizing seidentopf trinocular head
|
Inclined 30°, rotatable 360°,
Interpupillary distance: 48mm-76mm, light distribution(both) 100: 0 (100% for eyepiece) 80:20 (80% for trinocular head and 20% for eyepiece)
|
●
|
●
|
●
|
Non-stress infinity plan objective(transmitting)
|
PLAN 4X/0.10 W.D.= 12.1mm
|
●
|
|
●
|
PLAN 10X/0.25 W.D.= 4.64mm
|
●
|
|
●
|
PLAN 20X/0.40(S) W.D.=2.41mm
|
●
|
|
●
|
PLAN 40X/0.66(S) W.D.=0.65mm
|
●
|
|
●
|
PLAN 60X/0.80(S) W.D.=0.33mm
|
໐
|
|
|
PLAN 100X/1.25(S, Oil) W.D.=0.12mm
|
໐
|
|
|
Non-stress LWD infinity plan objective(reflecting)
|
LMPlan FL 5×/0.15(semi apochromatic objective) W.D=21.00mm
|
|
●
|
໐
|
LMPlan FL 10×/0.30(semi apochromatic objective) W.D.= 20.00mm
|
|
●
|
໐
|
LMPlan FL 20×/0.40(semi apochromatic objective) W.D.= 15.00mm
|
|
●
|
໐
|
LMPlan FL 50×/0.55(semi apochromatic objective) W.D.= 10.00mm
|
|
●
|
●
|
LMPlan 100×/0.85(Dry)(semi apochromatic objective) W.D.= 3.00mm
|
|
໐
|
໐
|
Nosepiece
|
Quintuple (center adjustable)
|
●
|
●
|
●
|

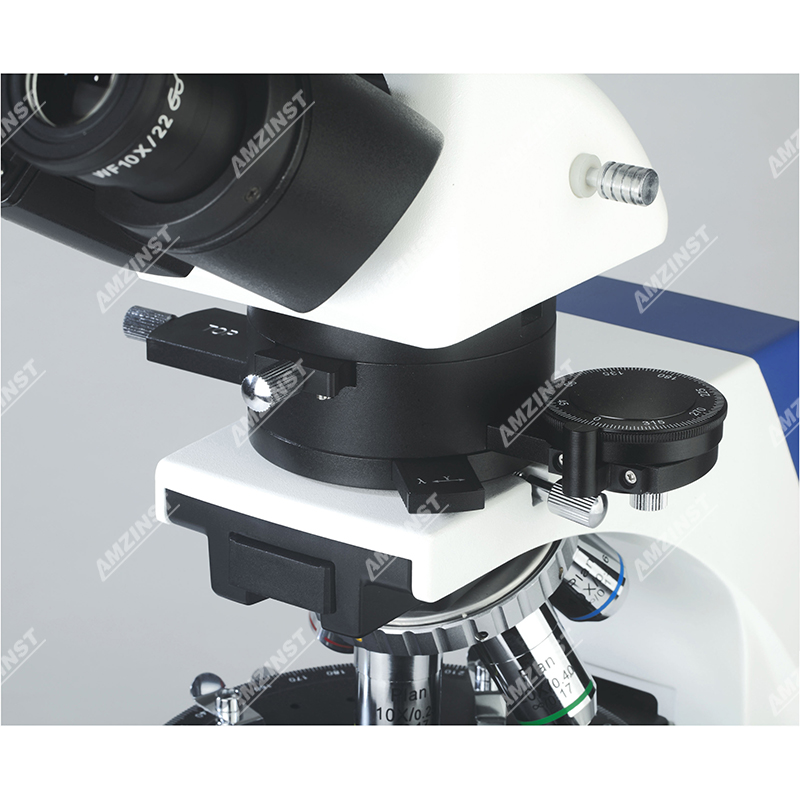

POL media
|
Analyzer rotatable 360°, module type, can be locked
|
●
|
●
|
●
|
Bertrand lens, built In, focus adjustable
|
●
|
●
|
●
|

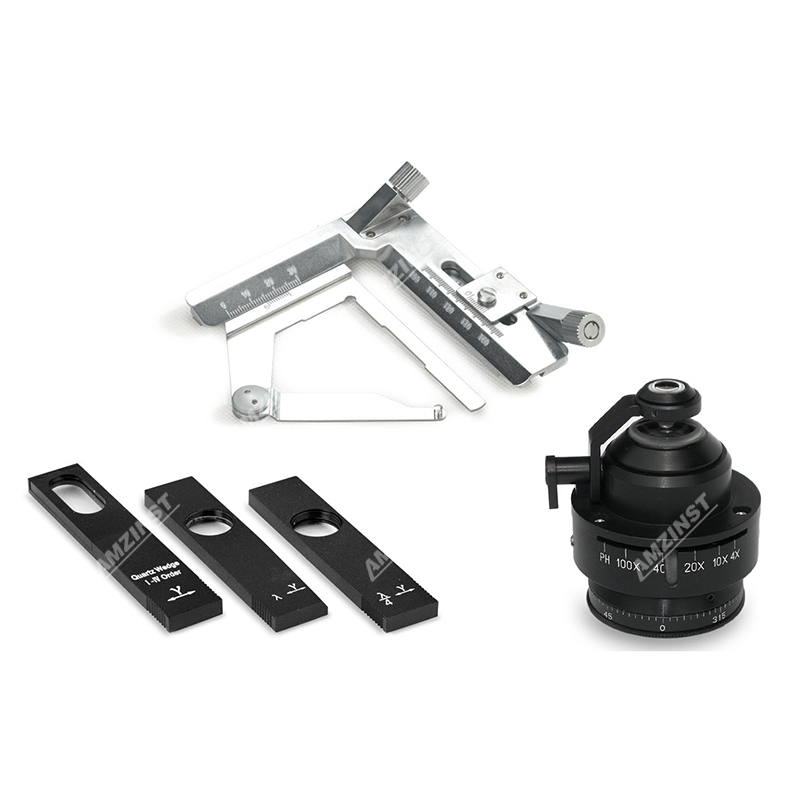

Slip
|
λslip(First class red)
|
●
|
●
|
●
|
λ/4 slip
|
●
|
●
|
●
|
Quartz wedge(Ⅰ～ Ⅳ)
|
●
|
●
|
●
|

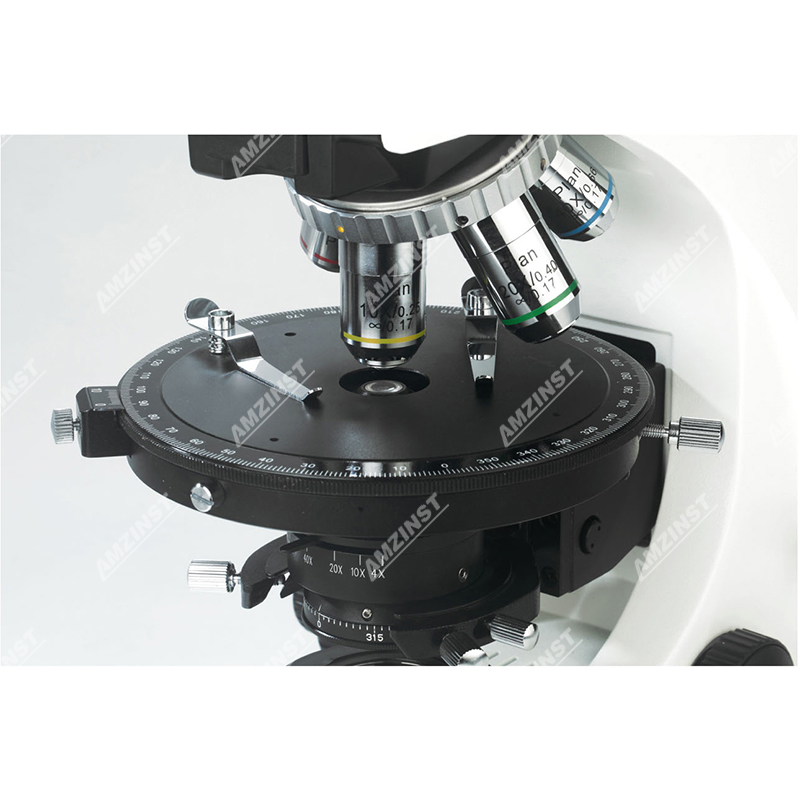

Revolving round stage
|
Rotatable 360°, center adjustable, can be locked.division 1°, vernier division 6'. diameter Φ174mm
|
●
|
●
|
●
|
Swing-out condenser
|
N.A.0.9/0.13, polarizing unit ( with scale, rotatable 360°, can be locked)
|
●
|
|
●
|
Coaxial coarse and fine focusing unit
|
Coarse stroke 25mm,fine stroke per rotation: 0.2mm, fine division 2 μm
|
●
|
●
|
●
|
Transmitting illumination
|
6V/30W halogen lamp（input voltage:100V～240V）
|
●
|
|
໐
|
Reflecting illumination
|
With field diaphragm, aperture diaphragm, polarizer,
12V/50W halogen lamp（Input voltage:100V～240V）
|
|
●
|
໐
|
Transmitting/ reflecting illumination
|
5WLED lamp（Input voltage:100V～240V）
|
໐
|
໐
|
●
|
Filter
|
Blue
|
໐
|
໐
|
໐
|
Amber
|
໐
|
໐
|
໐
|
Green
|
໐
|
໐
|
໐
|
Neutral
|
໐
|
໐
|
໐
|
Attached polarizing mechanical stage
|
|
໐
|
໐
|
໐
|
C-Mount
|
1X (Focus adjustable)
|
໐
|
໐
|
໐
|
0.75X (Focus adjustable)
|
໐
|
໐
|
໐
|
0.5 X (Focus adjustable)
|
໐
|
໐
|
໐
|
