APM-50 Series Polarizing Microscope
  • Specifications
  • Accessories
  • Products Catalog

  		•
    		APM-50RT
    		 APM-50TT
    		 APM-50RFT
    Optical system
    		 Infinite optical system
    		 ●
    		 ●
    		 ●
    Viewing head
    		 Seidentopf trinocular head inclined at 30°, interpupillary 48-75mm
    		 ●
    		 ●
    		 ●
    Eyepieces
    		 Plan eyepiece EW10X/22mm
    		 ●
    		 ●
    		 ●

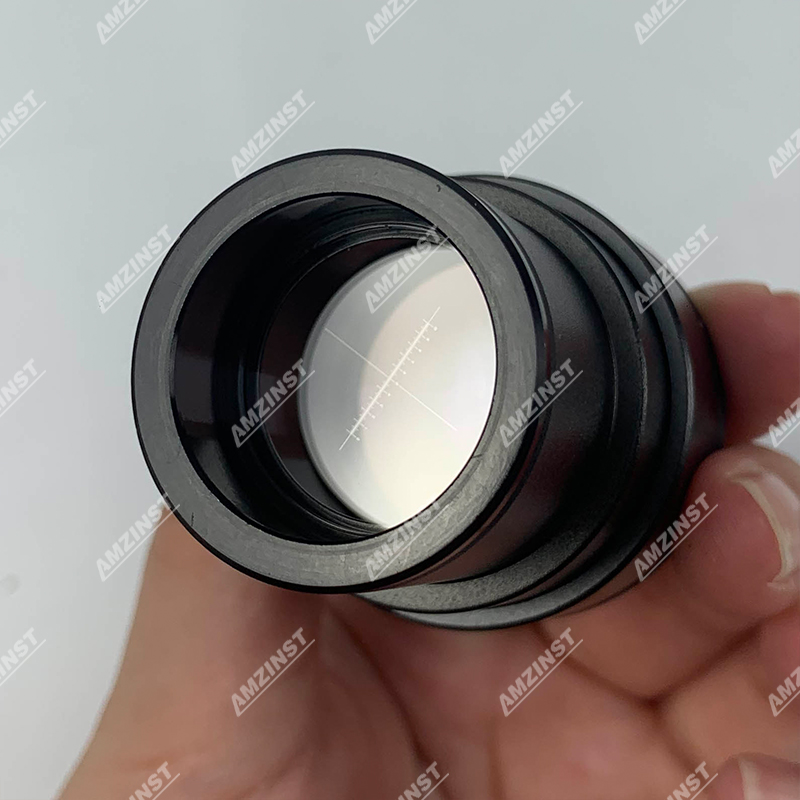

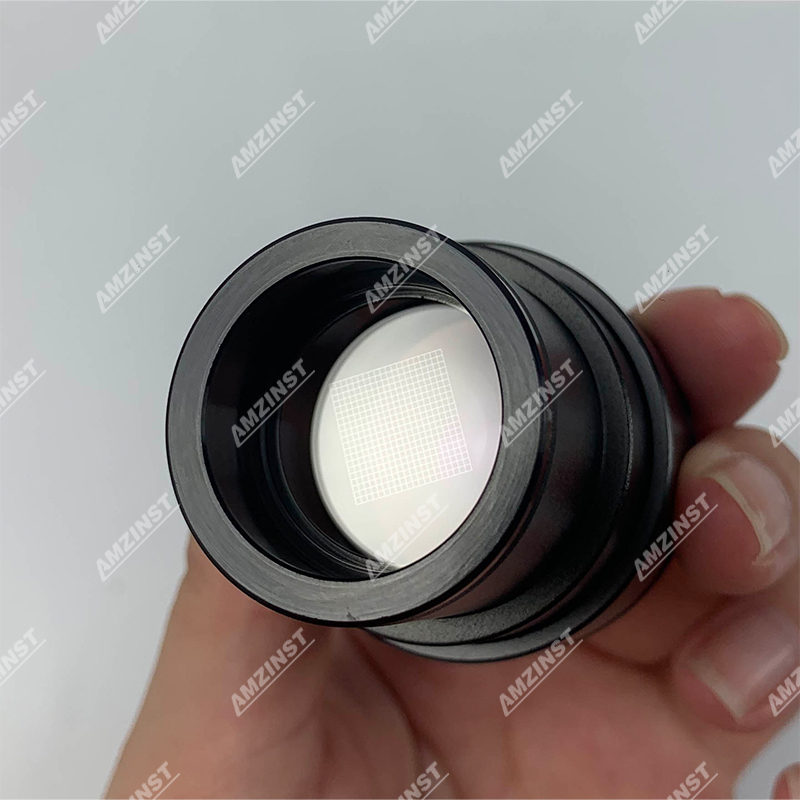

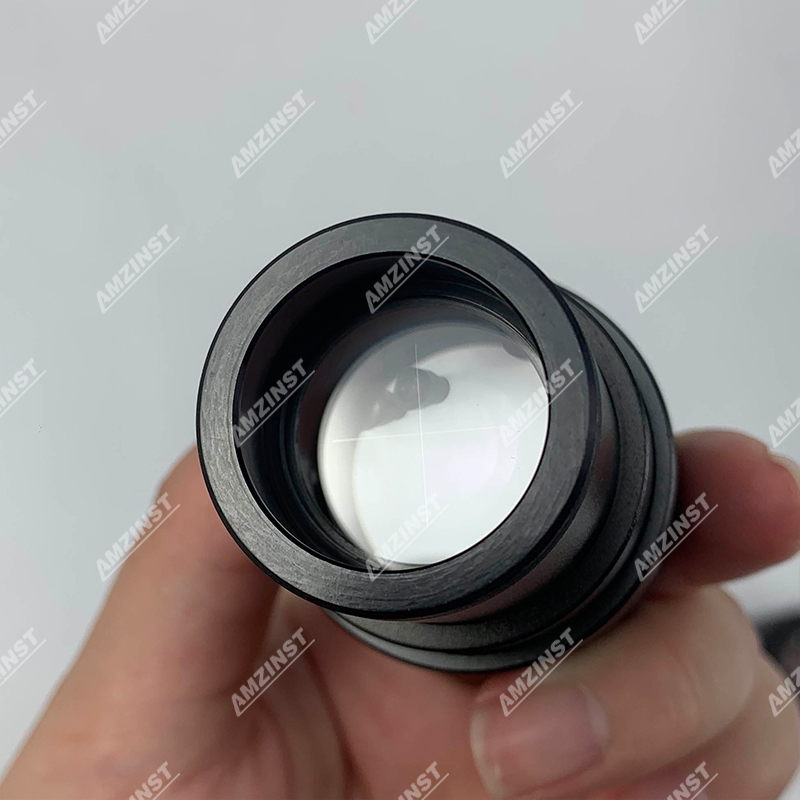

    Plan eyepiece with scale of the crosshair, Plan eyepiece with a cross, Plan eyepiece with gridding
    		 ●
    		 ●
    		 ●
    Strain-Free Plan
    Achromatic Objective
    		 5X/0.12/∞/-  WD 15.5mm
    		 ●
    		 ●
    		 ●
    10X/0.25/∞/-  WD 10.0mm
    		 ●
    		 ●
    		 ●
    20X/0.4/∞/0  WD 5.80mm
    		 ●
    		 ●
    		 ●
    50X/0.75/∞/0  WD 0.32mm
    		 ●
    		 ●
    		 ●
    100X/0.8/∞/0  WD 2.00mm
    		 ●
    		 ●
    		 ●
    40X/0.65/∞/0.17       WD 0.35mm
    		 ໐
    		 ໐
    		 ●
    100X/1.25/∞/0.17      WD 0.13mm
    		 ໐
    		 ໐
    		 ●
    Nosepiece
    		 Backward quintuple nosepiece, center adjustable
    		 ●
    		 ●
    		 ●
    Analyzer
    		 360° dial rotation minimum scale reading：0.1°（vernier scale）
    		 ●
    		 ●
    		 ●
    Conoscopic observation attachment
    		 Switch between orthoscopic and conoscopic observation, Bertrand lens position adjustable
    		 ●
    		 ●
    		 ●
    Optical Compensator
    		 λFirst-order red plate, guarter-wave plate, quartz wedge
    		 ●
    		 ●
    		 ●
    Polarizing rotatable stage
    		 Diameter Φ170mm, center adjustable, 360° scale, minimum divison 1°, minimum reading 6' by means of vernier scale, 45° Click stop knob
    		 ●
    		 ●
    		 ●
    Attachable stage
    		 Moving range 30mmx40mm
    		 ໐
    		 ໐
    		 ໐
    Condenser
    		 Strain-free swing condenser NA0.9/0.25
    		 ໐
    		 ●
    		 ●
    Focusing
    		 Coaxial coarse & fine adjustment, range 32mm, fine division 0.001mm, coarse stroke 37.7mm per rotation, fine stroke 0.1mm per rotation
    		 ●
    		 ●
    		 ●
    Polarizer
    		 Transmitted: 360° rotatable 0° position adjustable
    		 /
    		 ●
    		 ●
    Reflected: fixed
    		 ●
    		 /
    		 ●
    Illumination
    		 Reflected light: 24V/100W Halogen lamp, brightness adjustable
    		 ●
    		 /
    		 ●
    Transmitted light: 24V/100W Halogen lamp, brightness adjustable
    		 /
    		 ●
    		 ●
    Filter
    		 Blue filter Φ45mm
    		 ໐
    		 ໐
    		 ●
    ND6 Neutral density filter Φ45mm
    		 ໐
    		 ໐
    		 ໐
    ND25 Neutral density filter Φ45mm
    		 ໐
    		 ໐
    		 ໐
    Blue filter Φ25mm
    		 ໐
    		 ໐
    		 ໐
    ND6 Neutral density filter Φ25mm
    		 ໐
    		 ໐
    		 ໐
    ND25 Neutral density 25 filter Φ25mm
    		 ໐
    		 ໐
    		 ໐
    C-mount adapter
    		 1X C-mount
    		 ໐
    		 ໐
    		 ໐
    0.5X C-mount
    		 ●
    		 ●
    		 ●
    Attachment
    		 Video attachment
    		 ໐
    		 ໐
    		 ໐
    0.01mm micrometer
    		 ໐
    		 ໐
    		 ໐
    Note: ● Standard outfit     ໐ optional outfit
