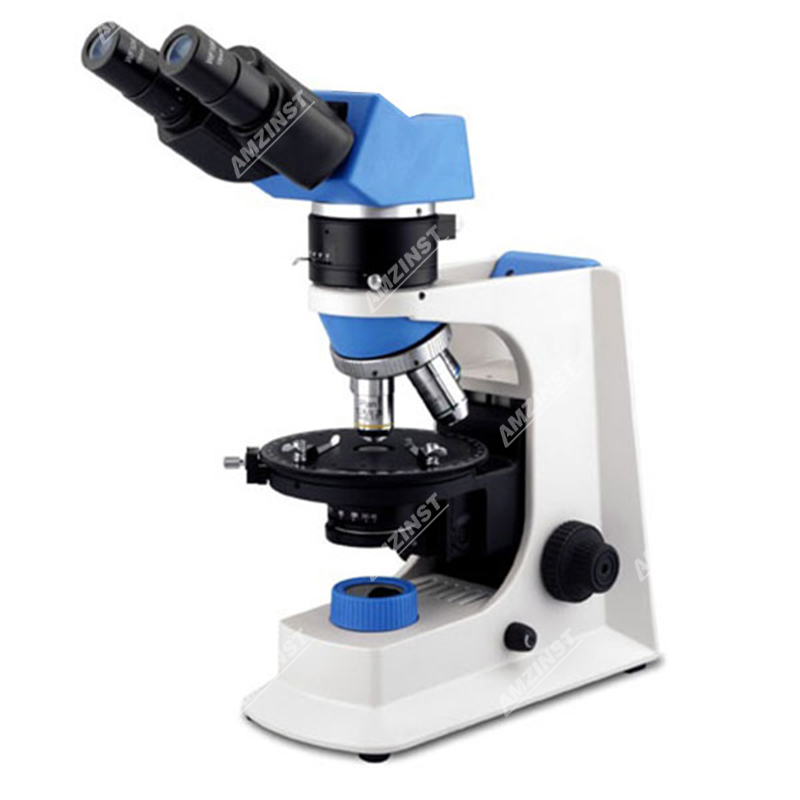

APM-230B Binocular Polarizing Microscope_Ningbo AMZ Instruments Co.,Ltd

APM-230B

APM-230T

Butterfly seidentopf binocular head

Inclined 30°, rotatable 360°, interpupillary distance: 48-75mm

●

/

Butterfly seidentopf trinocular head

Inclined 30°, rotatable 360°, interpupillary distance: 48-75mm. light distribution 20:80

/

●

Eyepiece

WF 10X-18mm

●

WF 10×-18mm (reticule 0.1mm)

●

Non-stress infinity plan objective

2.5X N.A.0.07，W.D.=8.47mm

໐

4X N.A.0.10，W.D.=12.1mm

●

10X N.A.0.25，W.D.=4.64mm

●

20X N.A.0.40，W.D.=2.41mm

●

40X N.A.0.66，W.D.=0.65mm

●

60X N.A.0.80，W.D.=0.33mm

໐

100X N.A.1.25，W.D.=0.12mm

໐

Nosepiece

Quadplex, center adjustable

●

Analyzer unit

0-90°, It can be moved out of the optical path for a single polarizing observation

●

Bertrand lens

It can be moved out of the optical path.

●

λ Slip

First class red

●

1/4λSlip

First class red

●

Quartz wedge

(-Ⅳ class)

●

Revolving round stage

Rotatable 360°, division 1°, vernier division 6', can be locked.

●

Polarizing attached mechanical stage

/

໐

Condenser

Abbe N.A. 1.25 Non-stress

Polarizing unit

It can be moved out of the optical path

Illumination

6V/20W halogen lamp

●

6V/30W halogen lamp

໐

3W-LED lamp

໐

Filter

Blue(Built-in)

●

Amber

໐

Green

໐

Neutral

໐

C-Mount

1X(Focus adjustable)

໐

0.47X(Focus adjustable)

໐
