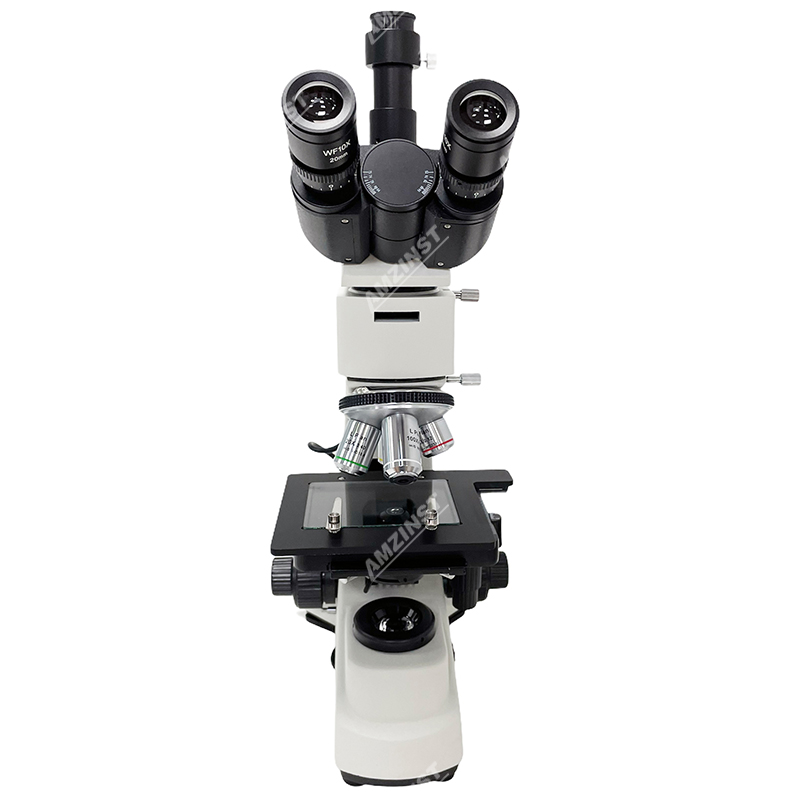

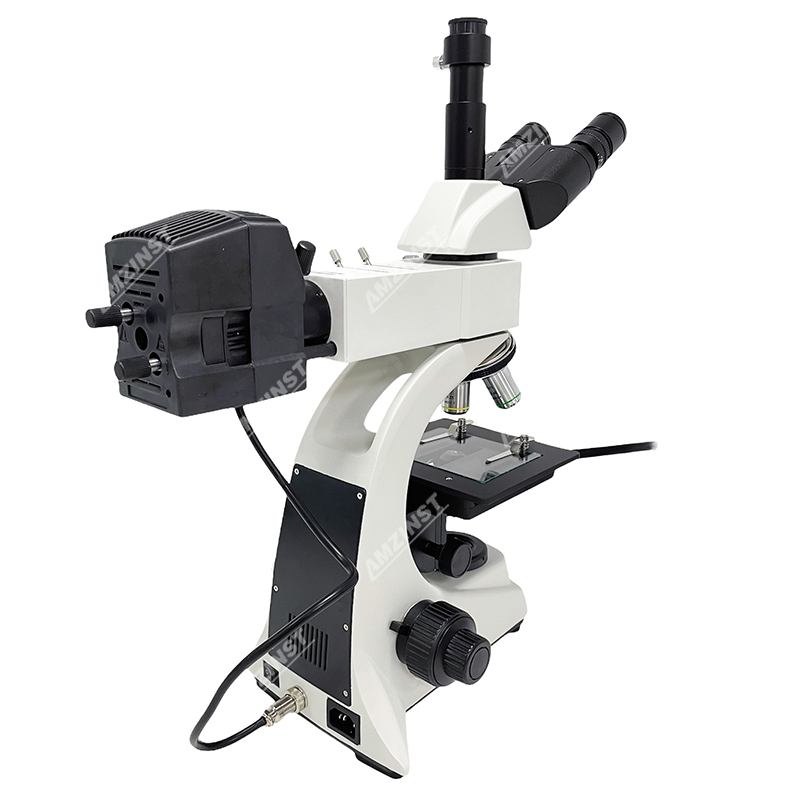

AJX-20TR 50x-1000x Trinocular Metallographic Microscope With Polarization Attachment
  • Specifications
  • Accessories
  • Products Catalog

  • AJX-20TN AJX-20TR AJX-20TRY
    Head Trinocular head ● ● ●
    Eyepiece
         		WF10X/18mm
         		●●
         		●●
         		●●
    WF10X/18mm with 0.1mm micrometer & cross hair
         		๐
         		๐
         		๐
    Infinitive plan Achromatic Objective
         		4X/0.10/∞/, WD=25.4mm
         		●
         		๐
         		๐
    5X/0.12/∞/, WD=23.6mm
         		๐
         		●
         		●
    10X/0.25/∞/, WD=17.8mm
         		●
         		●
         		●
    20X/0.40/∞/, WD=10.4mm
         		๐
         		●
         		●
    40X/0.60/∞/, WD=3.70mm
         		●
         		๐
         		๐
    50X/0.55/∞/, WD=7.00mm
         		๐
         		●
         		๐
    80X/0.90/∞/, WD=0.20mm
         		๐
         		๐
         		๐
    100X/0.8/∞/, WD=3.20mm
         		๐
         		๐
         		●
    Nosepiece

    Quadruple nosepiece

    		● ● ●

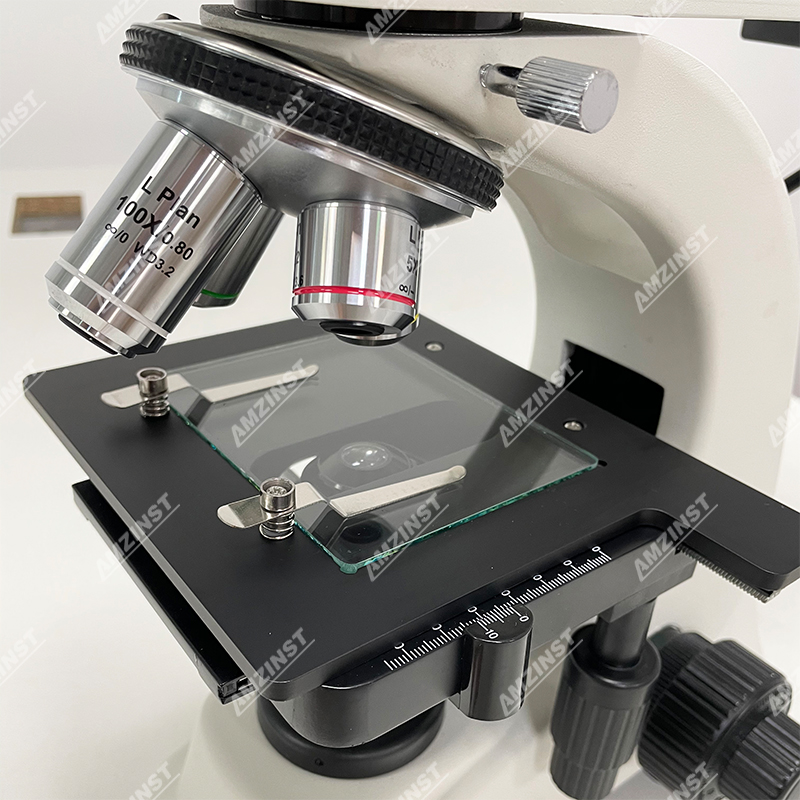

    Stage

    Double layer mechanical stage, size 150x140m, movement 75x50mm, with specimen holder

    		● ● ●
    Focusing

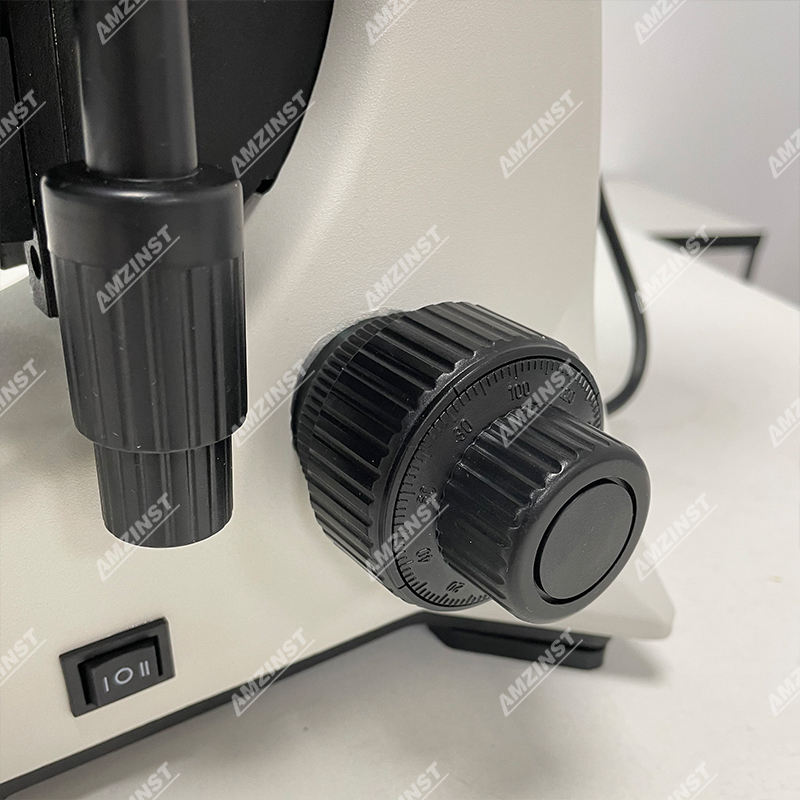

    Coaxial fine and coarse adjustment, fine adjustment 0.002mm

    		● ● ●
    Illuminator

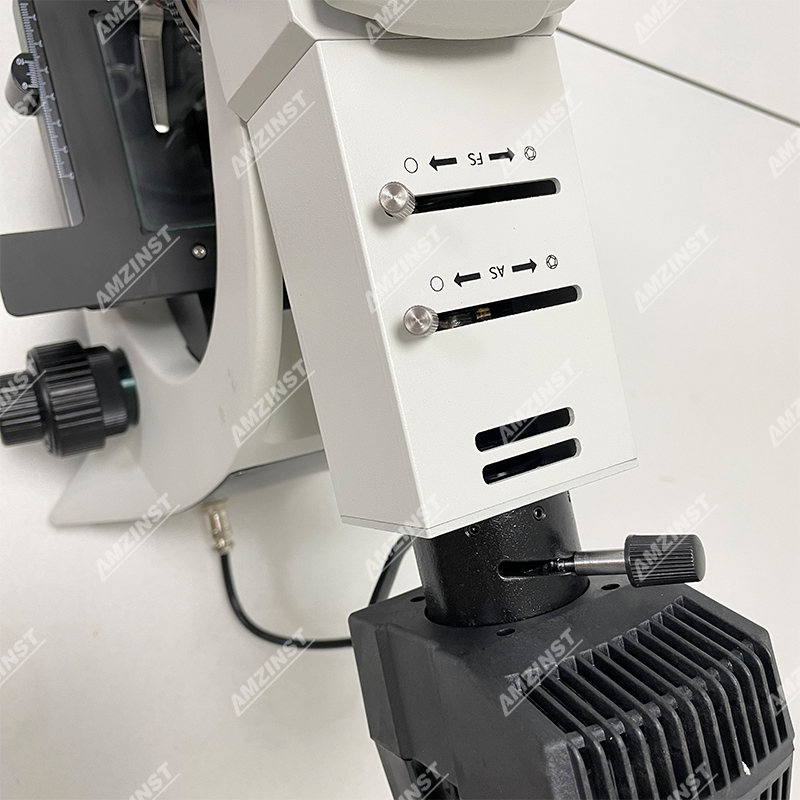

    Kohler illumination, Epi-illuminator with Iris aperture diaphragm and iris field diaphragm

    		● ● ●
    Illumination

    6V/20W halogen lamp. brightness adjustment

    110V or 220V

    		● ● ●
    Filter

    Blue, green yellow, ground glass

    		● ● ●
    Polarization Set Polarizer ● ● ●
    ''●'' = Standard configuration ''○''= Option
