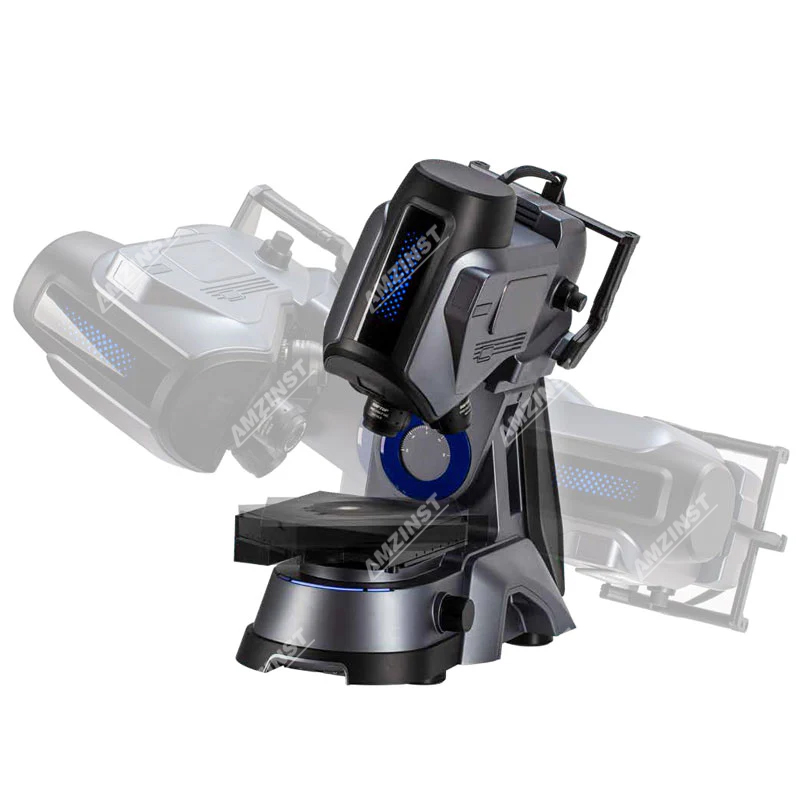

MS-3D Super Depth Of Field Measurement Microscope
  • Specifications
  • Accessories
  • Products Catalog

  • Pioneer of digital microscopy systems. With the concept of "seeing the invisible", through high-quality lenses, CMOS sensors acquire high-precision images, drive new image processing technology and lighting technology, and provide new observation methods for university research laboratories and corporate research institutes.

    Specification:

    Optic System Telecentric continuous zoom system
    Comprehensive magnification 20x-7500x
    Magnification switching method Electric switching
    Camera

    1/1.8''，3.2MP，50fps（Max）

    1/1.8''，12MP，30fps（Max）

    Work Stage

    - Size: 230*245mm,

    - Travel distance 100*100mm,

    - Rotation angle ±90° (with angle recognition)

    - Maximum load 50kg

    Frame

    - Up Z-axis travel 51mm

    - Upper Z-axis movement method: Electric, handwheel, controller, software control

    - Down Z-axis travel 50mm

    - Electric, hand wheel control

    - Rotation angle ±90° (with angle recognition)

    Controller Control each component for functional linkage
    Software - Image 2D image, 3D image, Image Processing, Stitching imaging, Multi-area shooting
    Software - Measurement Quick measurement, Measurement across fields of view, Plane measurement, Point height measurement, Automatic measurement, 3D measurement, Contour measurement, particle counting
    Power 100-240V AC 50/60HZ
    Dimension 602*346*692 mm



    Full range of objective lens configurations
    ●The continuous zoom system cooperates with a variety of APO lens shooting to
    provide the best magnification, resolution and working distance.
    ● Users can quickly switch from macro overview to fine detail observation with one click.
    ●Five objective lenses are available to meet the differentiated needs of different users.
    Objective SKU PLAPO-F100 PLAPO-F2 PLAPO-F10 PLAPO-F4 PLAPO-F2
    Max Total Mag. 100x 500x 1000x 2500x 7500x
    Max Field of view 3.8mm 0.76mm

    0.38mm

    		0.152mm 0.076mm
