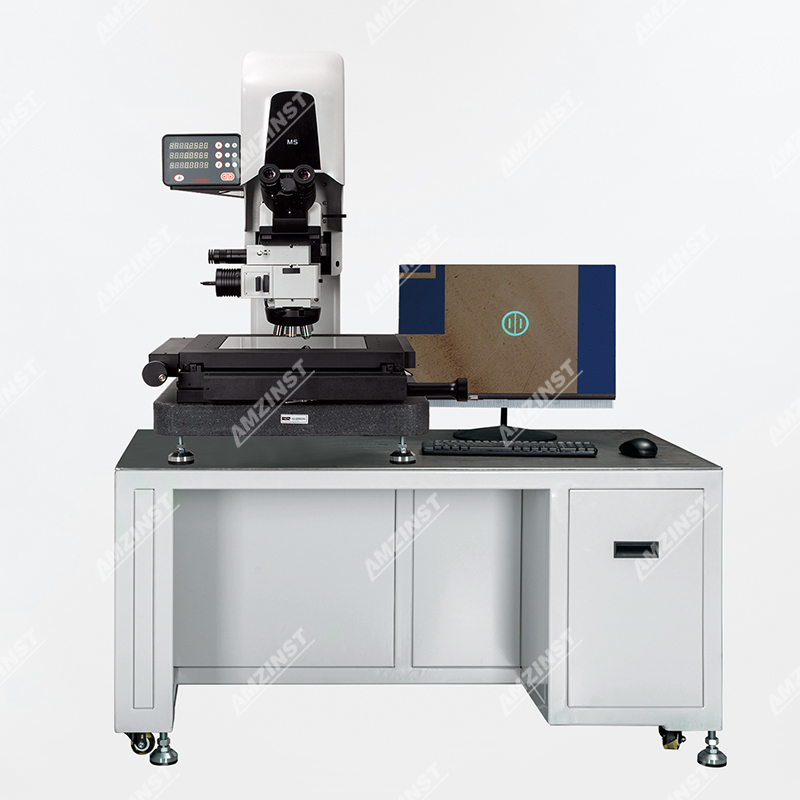

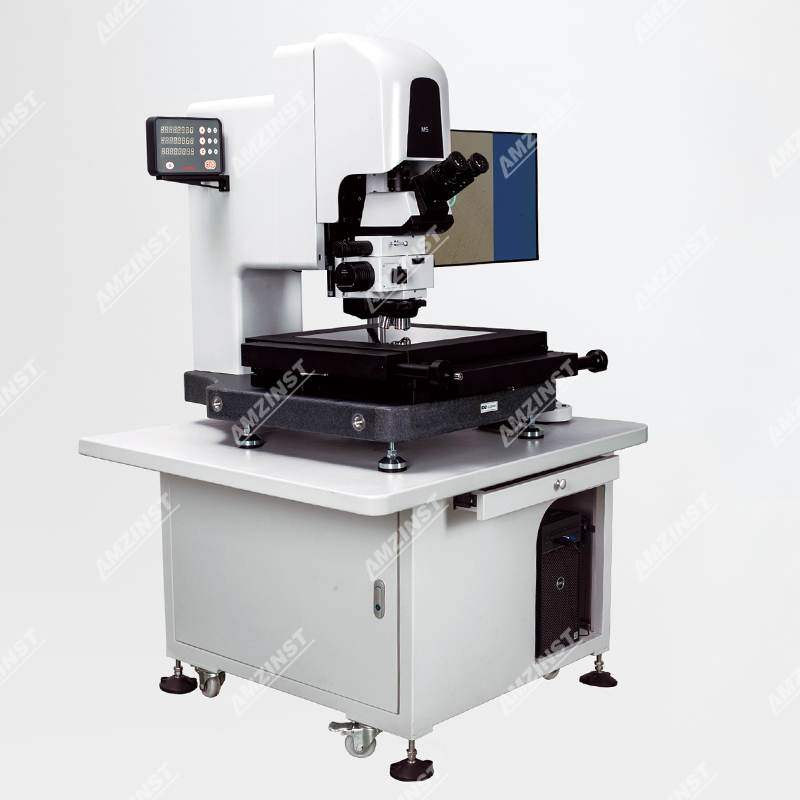

MS Measuring Microscopes

inquire

Specifications
Accessories
Products Catalog

A Microscope that Measures Up to
Individual Needs
Whether samples are small or large, simple or complex, or measurements are being taken by a novice or an expert, the AMZINST MS series features measuring microscopes tailored to fit your needs.

ACCESSORIES ORDER NUMBER	ITEM	SPECIFICATION	MS-21A	MS-32A	MS-33A	MS-43A
MS-10EX22 MS-10EX22R MS-10EX22T MS-10EX22TR	Eyepieces	Hight eyepoint plan eyepiece PL10X/22mm Hight eyepoint plan eyepiece PL10X/22mm, with reticle Hight eyepoint plan eyepiece PL10X/22mm, diopter adjustable Hight eyepoint plan eyepiece PL10X/22mm, diopter adjustable, with reticle	● ● ໐ ໐ ໐	● ● ໐ ໐ ໐	● ● ໐ ໐ ໐	● ● ໐ ໐ ໐

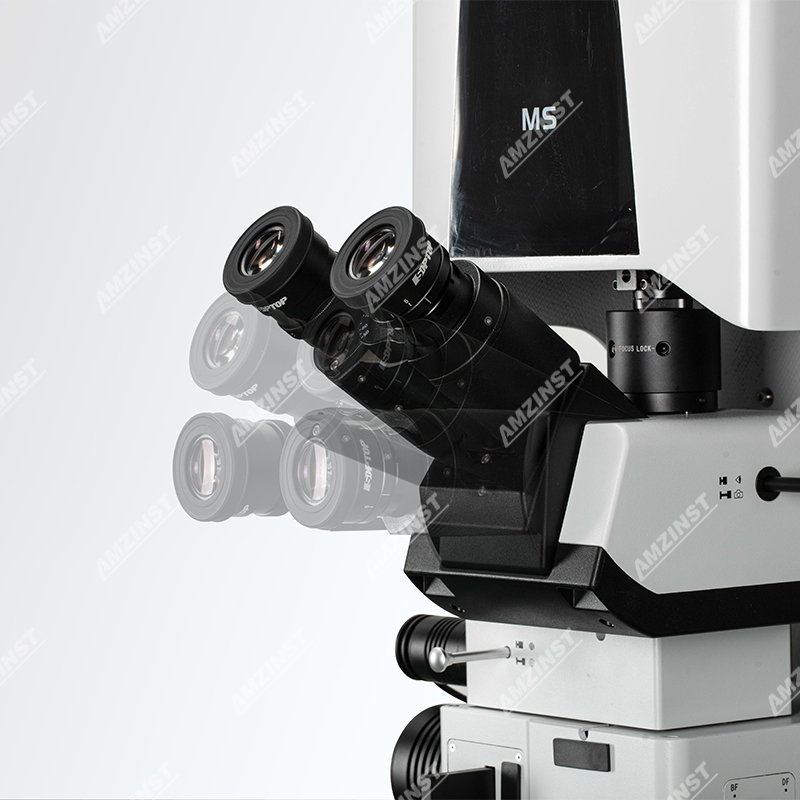

MS-35TTR		5-35° tilt angle adjustable, erect image, compensation free trinocular, interpupillary distance: 50- 76mm, splitting ratio R:T=100 : 0 or 0 : 100	●	●	●	●
MS-5XLA MS-10XLA MS-20XLA MS-50XLA	LWD Infinity Plan Achromatic Metallurgical Objectives	5X/0.15, W.D.= 10.8 mm 10X/0.30, W.D.= 12.2 mm 20X/0.4, W.D.= 8.8 mm 50X/0.55, W.D.= 7.9 mm 100X/0.8, W.D.= 2.1mm	● ● ● ● ໐	● ● ● ● ໐	● ● ● ● ໐	● ● ● ● ໐
MS-BD5XLA MS-BD10XLA MS-BD20XLA MS-BD50XLA MS-BD100XLA	LWD Infinity Plan B&D Achromatic Metallurgical Objectives	5X/0.15, W.D.= 9.0 mm 10X/0.30, W.D.= 9.0 mm 20X/0.45, W.D.= 3.4 mm 50X/0.55, W.D.=7.5 mm 100X/0.8, W.D.=2.1 mm	໐ ໐ ໐ ໐ ໐	໐ ໐ ໐ ໐ ໐	໐ ໐ ໐ ໐ ໐	໐ ໐ ໐ ໐ ໐
MS-DICF	DIC	DIC Slider	໐	໐	໐	໐
MS-NSMOT MS-NSMOTBD	Nosepiece	Electronic motorised sextuple nosepiece ( with DIC slot) Electronic motorised BD sextuple nosepiece (with DIC slot)	● ໐	● ໐	● ໐	● ໐
MS-155F MS-200F	Marble base	With Z-axis electric focus, electric controller, Z-axis travel 150mm, Z-axis repeatable positioning accuracy ±2um, with 5W LED transmitted lighting, adjustable brightness, appearance size 500x770x960mm, weight 155kg With Z-axis electric focus, electric controller, Z-axis travel 150mm, Z-axis repeat positioning accuracy ±2um, with 5W LED transmitted lighting, adjustable brightness, appearance size 670x940x960mm, weight 200kg	● ໐	● ໐	● ໐	● ໐
MS3000	Digital display	Three-axis display accuracy is 0.1um, optional mm/inch	●	●	●	●
MS-210MF	Electric controller	With automatic/manual Z-axis adjustment, independent control of three light sources, upper/lower/auxiliary focus, supports brightness adjustment, including X/Y/Z clearing individually, or all clearing with one click, electric control converter, equipped with Z-axis motion Emergency stop button	●	●	●	●

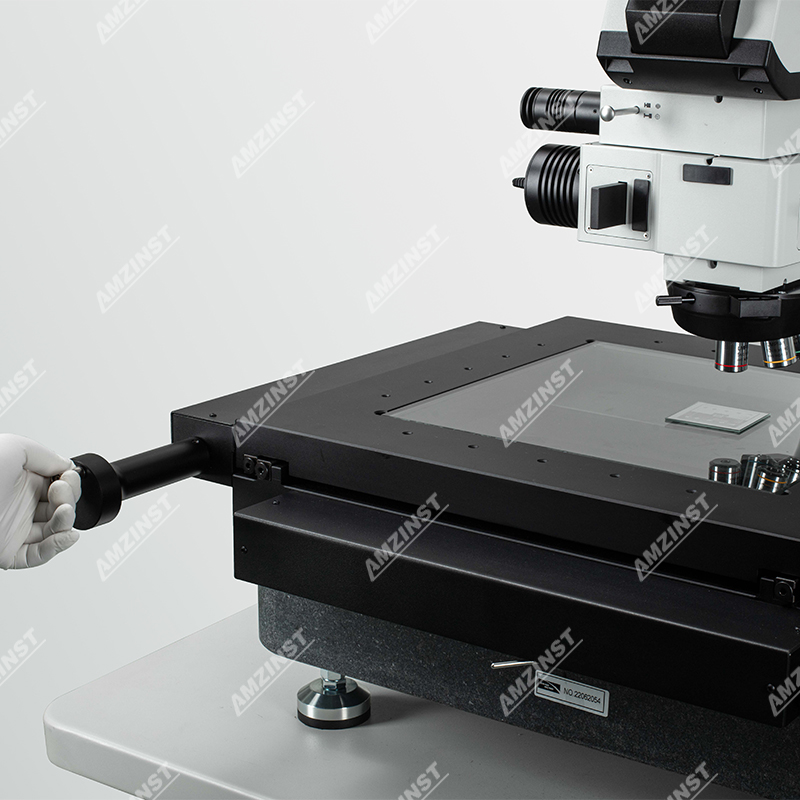

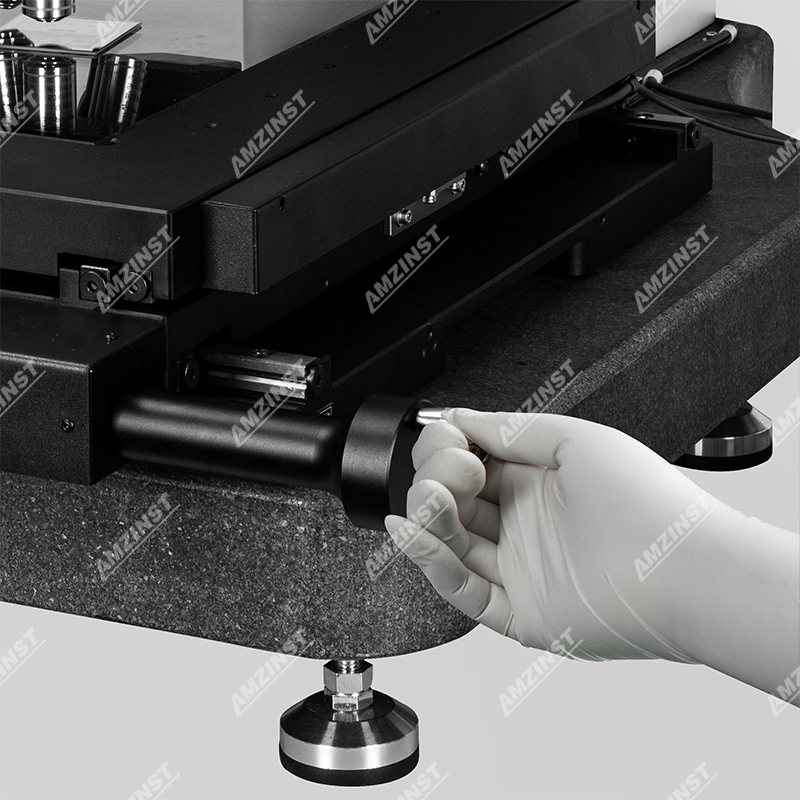

MS-MSG210 MS-MSG320 MS-MSG330 MS-MSG430	Manual measurement platform	Travel distance 200(x) mm X 100(Y) mm, X/Y measurement accuracy: (2+L/100) um, The platform includes a fast moving device and a fine adjustment function, maximum load capacity 10kg, platform size 258mm X 358mm, weight 25kg Travel distance 300(x) mm X 200(Y) mm, X/Y measurement accuracy: (3+L/100) um, The platform includes a fast moving device and a fine adjustment function, maximum load capacity 15kg, platform size 350mm X 500mm, weight 45kg Travel distance 300(x) mm X 300(Y) mm, X/Y measurement accuracy: (3+L/100) um, The platform includes a fast moving device and a fine adjustment function, maximum load capacity 20kg, platform size 500mm X 500mm, weight 60kg Travel distance 400(x) mm X 300(Y) mm, X/Y measurement accuracy: (3+L/100) um, The platform includes a fast moving device and a fine adjustment function, maximum load capacity 20kg, platform size 458mm X 600mm, weight 70kg	● ໐ ໐ ໐	໐ ● ໐ ໐	໐ ໐ ● ໐	໐ ໐ ໐ ●
MS-desk	Desk	Desk size 1075 x 995 x 685mm, weight 120kg	໐	໐	໐	໐
MS-MSRL MS-MSLX	Illumination	B&D reflect illumination, with light and dark field illuminator switching device, with color filter slot and polarizing slot, with 5W LED light source, adjustable brightness Auxiliary focus module, with light and dark field wedge switching device, with green 5W LED lightsource, adjustable brightness	● ●	● ●	● ●	● ●
MS-TIFB MS-TIFG MS-TIFR	IF Filter	Blue IF filter, (for reflection): ≤ 480nm Green IF filter, (for reflection): 520-570nm Red IF filter, (for reflection): 630-750nm	໐ ໐ ໐	໐ ໐ ໐	໐ ໐ ໐	໐ ໐ ໐
MS-MPS MS-AP360	Polarizing kits	Polarizer (for reflection) 360° rotatable analyzer	໐ ໐	໐ ໐	໐ ໐	໐ ໐
MS-05C MS-065C	Camera adapter	0.5X camera adapter, C-type interface, adjustable 0.65X camera adapter, C-type interface, adjustable	໐ ●	໐ ●	໐ ●	໐ ●
DFK23U274	Camera	USB 3.0 Imaging Source 3.0MP CCD camer, sensor size 1/1.8 inch, resolution 1600x1200 (1.9MP), 20fps	●	●	●	●
MS-VW80	Software	Real-time display of three-dimensional coordinate data on a digital display, equipped with a picture measurement module, supporting functions such as automatic edge finding, automatic magnification recognition	●	●	●	●
PC-T4900	PC	Lenovo computer T4900k I5-10400/8G/1T/21.5	໐	໐	໐	໐
MS-MR1	/	Micrometer Division 0.01mm	໐	໐	໐	໐
MS-CT63X63	/	Calibration film	●	●	●	●

''●'' = Standard configuration ''○''= Option
