LMP Series LWD Infinity Plan Semi Apochromatic Metallurgical Objective
  • Specifications
  • Accessories
  • Products Catalog
  • Order NO. Mag. Numerical aperture W D (mm) Focal Length (mm) Resolution (μm) Image field of view (mm) Screw Size

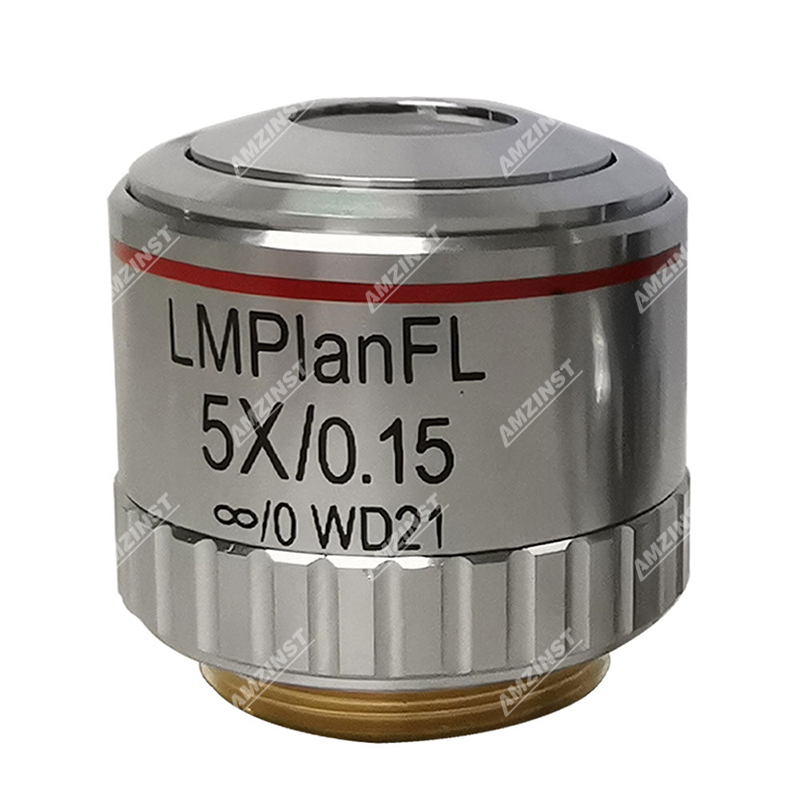

    LMP-X5 5x 0.15 21 36 2.23 22 WJ4/5×1/36″

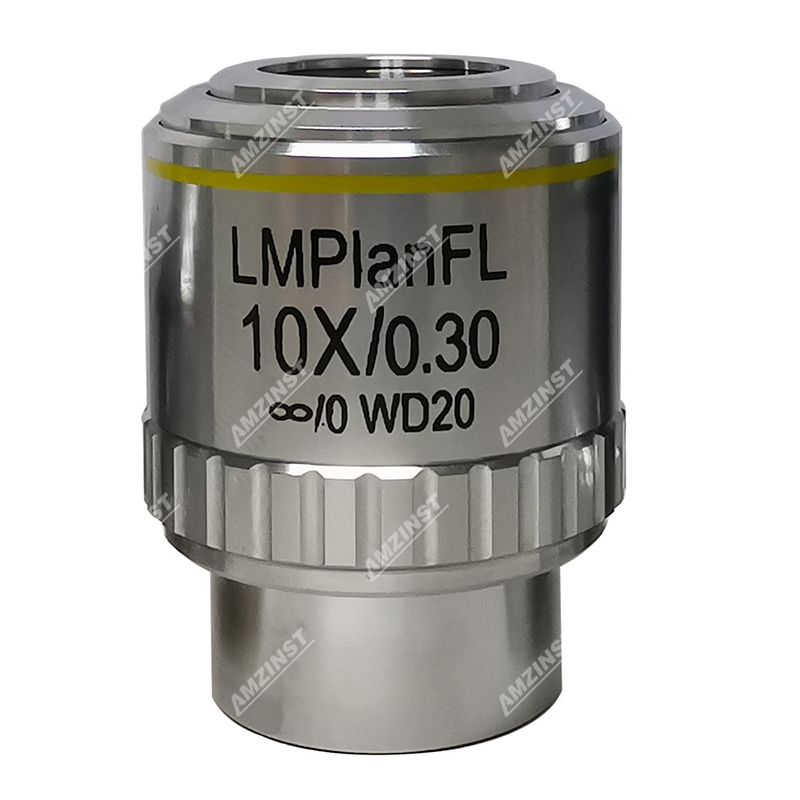

    LMP-X10 10x 0.3 20 18 1.1 22 WJ4/5×1/36″

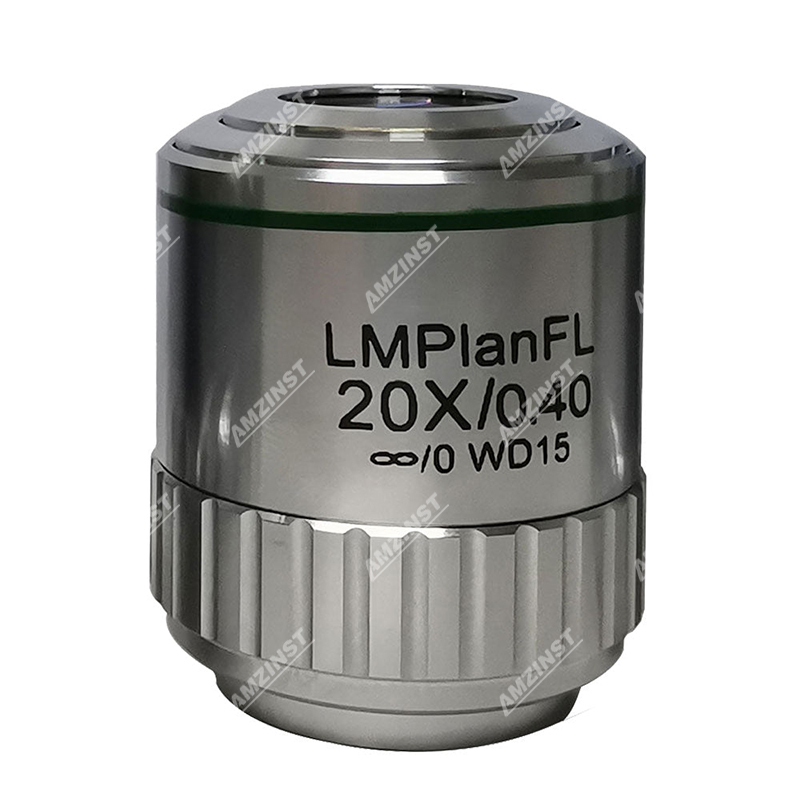

    LMP-X20 20x 0.4 15 9 0.87 22 WJ4/5×1/36″

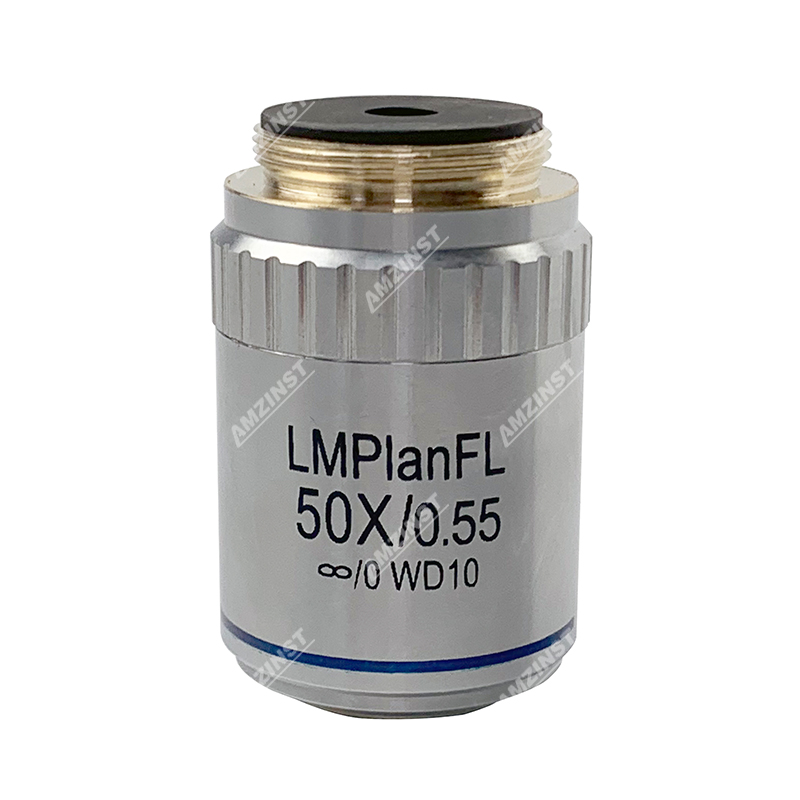

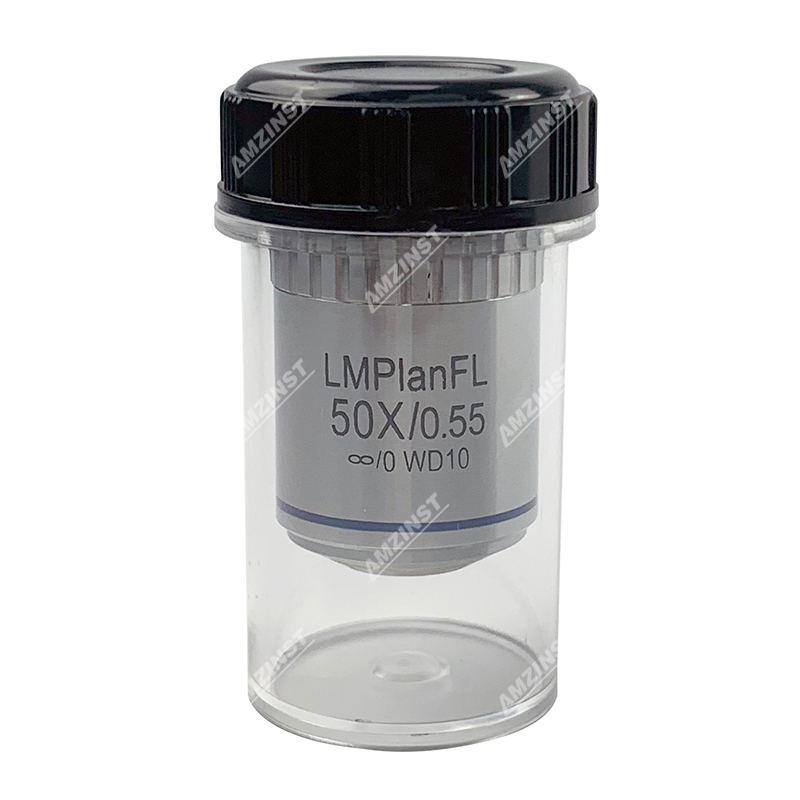

    LMP-X50 50x 0.55 10 3.6 0.61 22 WJ4/5×1/36″
    LMP-X50A 50x 0.75 4.25 3.6 0.45 22 WJ4/5×1/36″
    LMP-X100 100x 0.85 3 1.8 0.39 22 WJ4/5×1/36″

    LMP Series LWD Infinity Plan Semi-Apochromatic Metallurgical Objective for AJX-600
