ME-200APO Series ULWD Semi-APO Infinity Plan Achromatic Metallographic Objective 200mm 2X/ 5X/ 10X/ 20X/ 50X/ 100X
  • Specifications
  • Accessories
  • Products Catalog

  • ● This metallographic objective lens has a long working distance and a corrected field curvature. Its natural observation image is obtained to the periphery of the visual field.
    ● Parfocal distance is 95mm


    Order NO.
    Mag
    Numerical aperture
    W D (mm)
    Focal length (mm)
    Resolution (μm)
    Focal depth (μm)
    Objective field of view (mm)
    Image field of view (mm)
    Screw Size

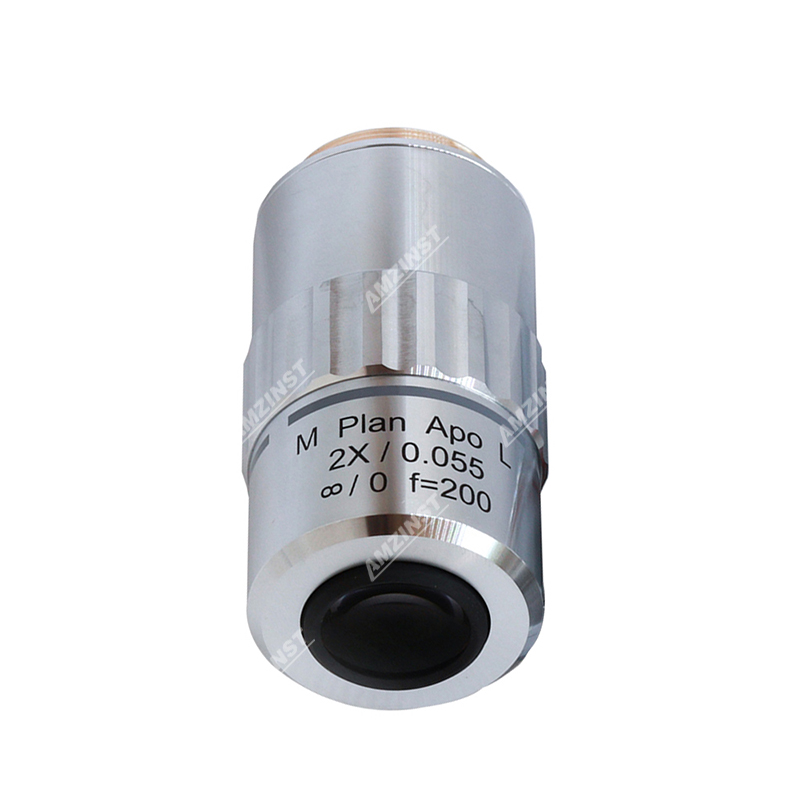

    ME-200APOX2
    2X
    0.055
    33.72
    100
    6.1
    90.9
    12.5
    25
    		M26×0.705

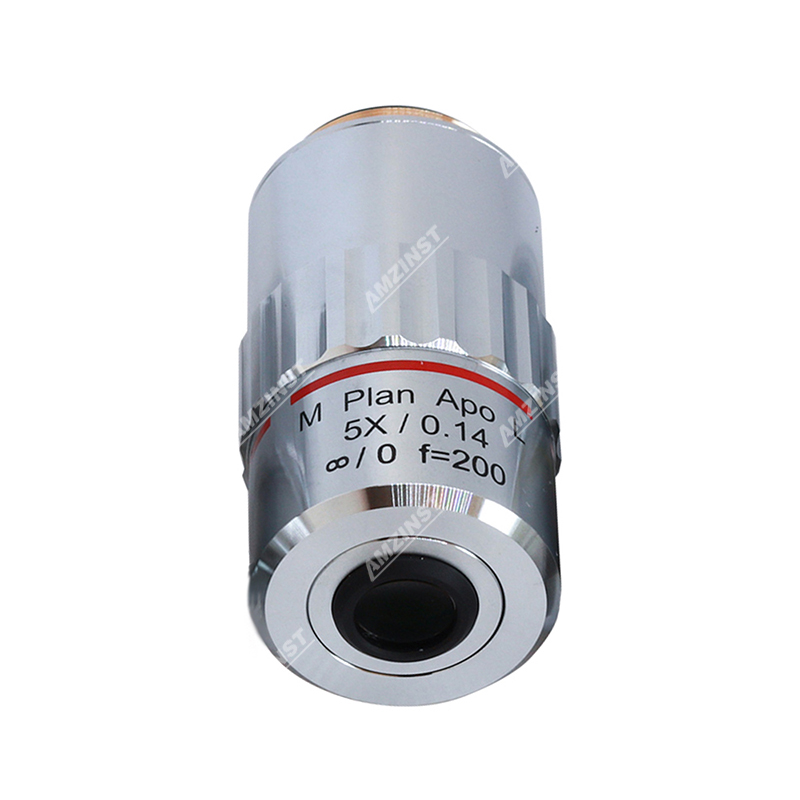

    ME-200APOX5
    5X
    0.14
    33.61/45.3
    40
    2.2
    14.03
    5
    25
    M26×0.705

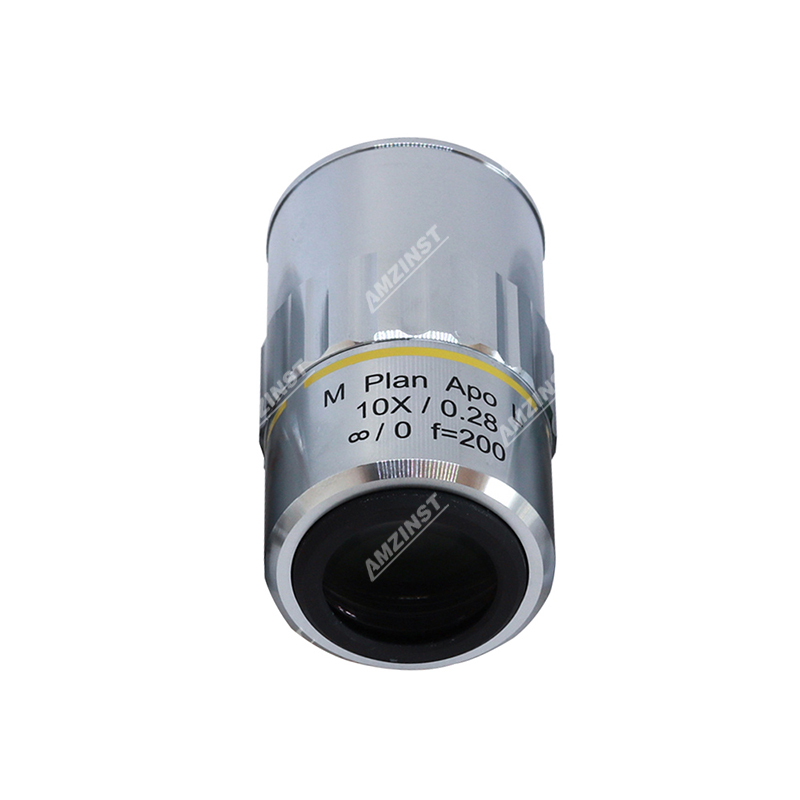

    ME-200APOX10
    10X
    0.28
    33.4
    20
    1.2
    3.5
    2.5
    25
    M26×0.705

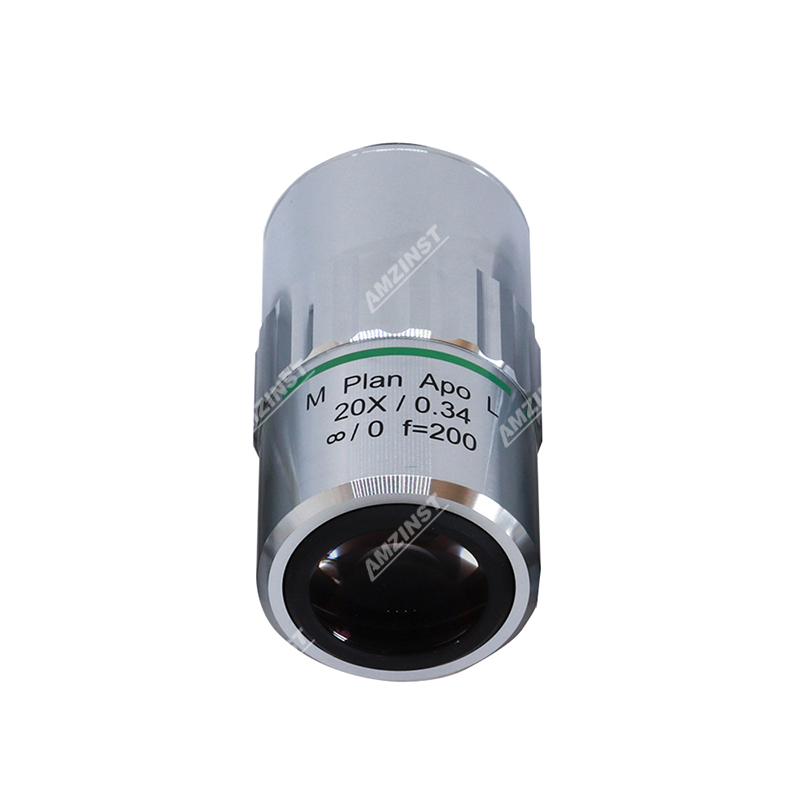

    ME-200APOX20
    20X
    0.34
    29.56
    10
    0.8
    2.68
    1.25
    25
    M26×0.705

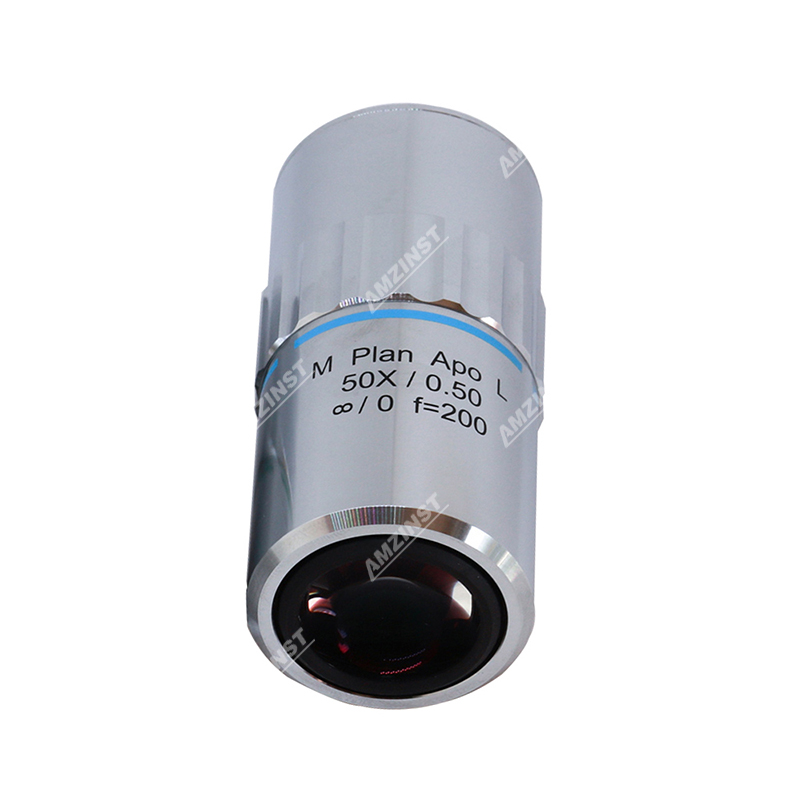

    ME-200APOX50
    50X
    0.5
    18.9
    4
    0.7
    1.19
    0.5
    25
    M26×0.705
    ME-200APOX100
    100X
    0.7
    7.1
    2
    0.5
    0.56
    0.25
    25
    M26×0.705
