ME-200S Series LWD Infinity Plan Achromatic Metallographic Objective 200mm 5X/ 10X/ 20X/ 50X/ 100X
  • Specifications
  • Accessories
  • Products Catalog

  • Order NO.

    		Mag NA

    Work Distance

    (mm)

    Focal length (mm)

    Resolution

    (μm)

    		DF (μm)

    Objective field of view (mm)

    Image field of view (mm)

    		Screw Size

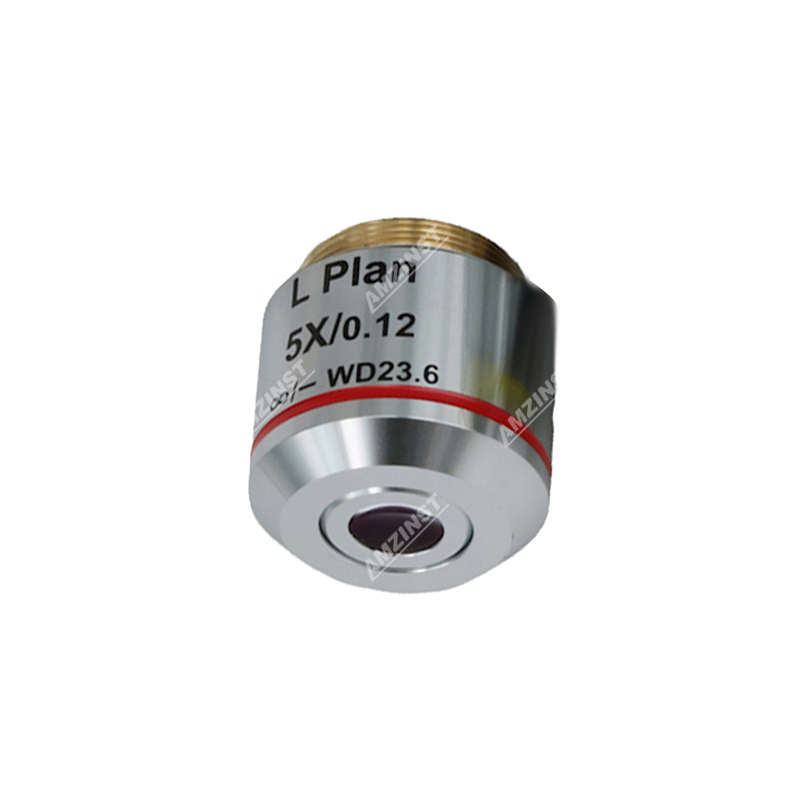

    ME-200SX5 5X 0.12 23.6 40 2.8 19.09 4.4 22 4/5×1/36″

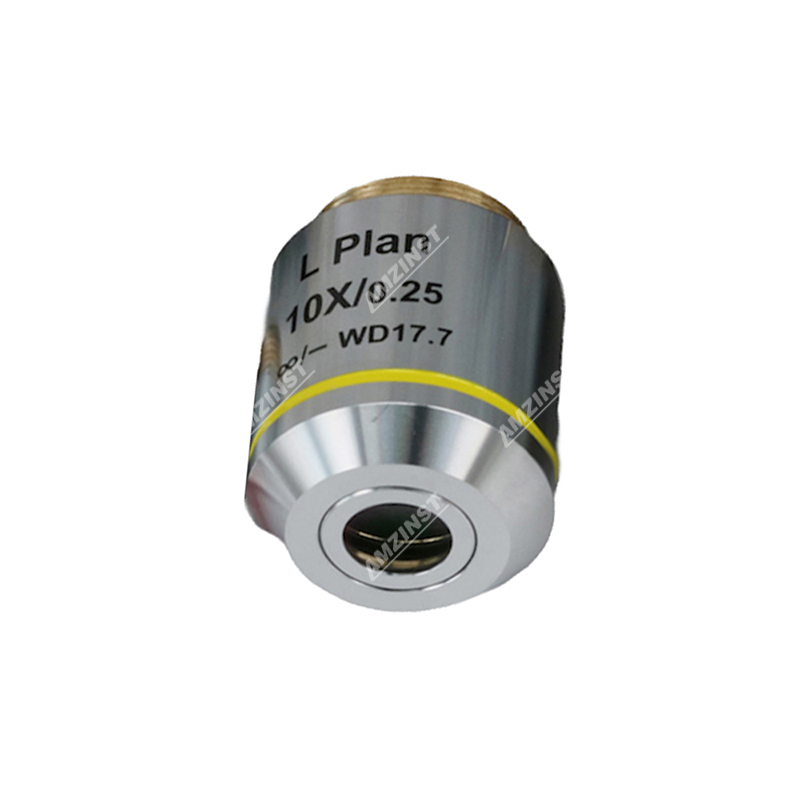

    ME-200SX10 10X 0.25 17.7 20 1.34 4.40 2.2 22 4/5×1/36″

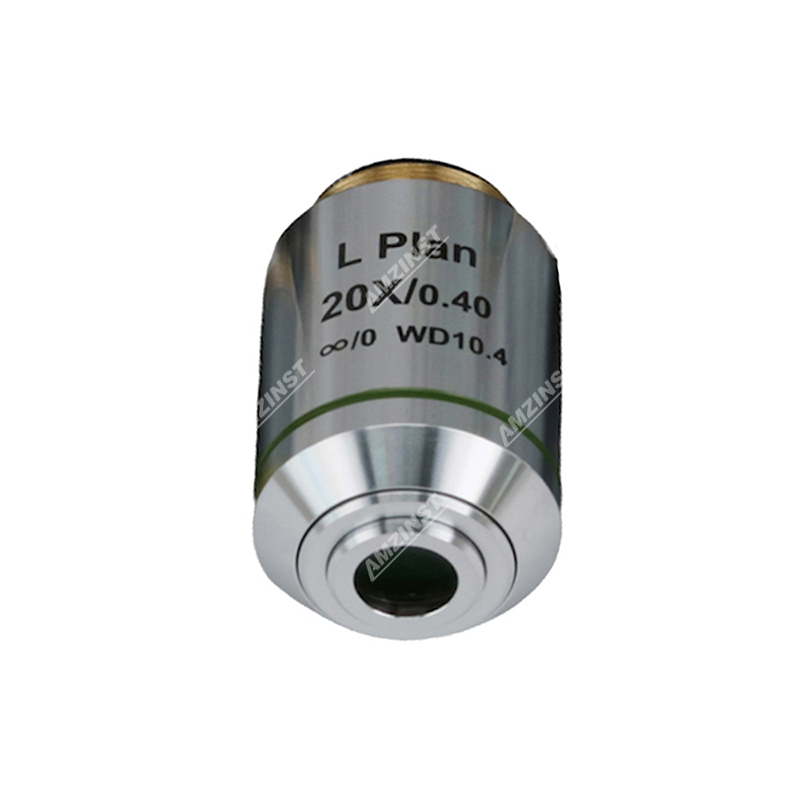

    ME-200SX20 20X 0.40 10.4 10 0.8 1.71 1.1 22 4/5×1/36″

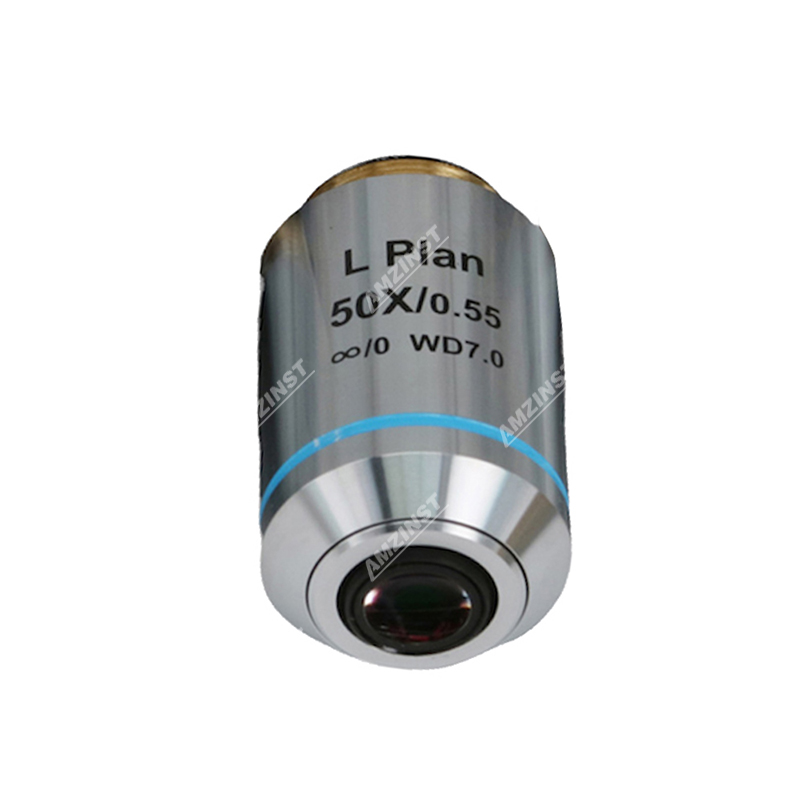

    ME-200SX50 50X 0.55 7.0 4
    		 0.61 0.90 0.44 22 4/5×1/36″

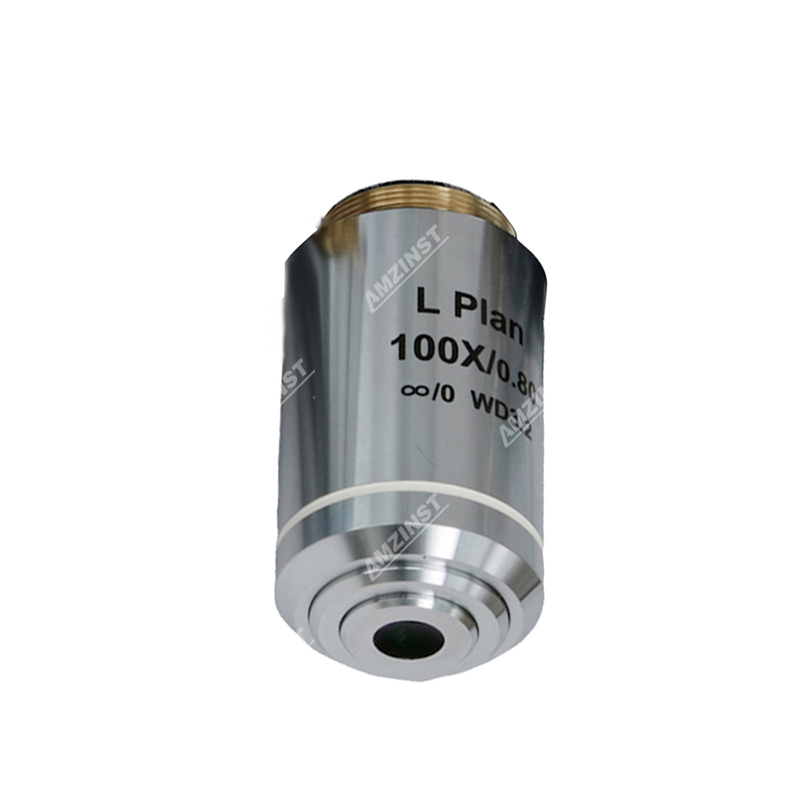

    ME-200SX100 100X 0.8 3.2 2
    		 0.41 0.43 0.22 22 4/5×1/36
