ME-180 Series LWD Infinity Plan Achromatic Metallographic Objective 180mm 2.5X/ 5X/ 10X/ 20X/ 50X/ 100X
  • Specifications
  • Accessories
  • Products Catalog

  • Order

    NO.

    		Mag NA

    Work Distance

    (mm)

    Focal length (mm)

    Resolution

    (μm)

    		DF (μm)

    Objective field of view (mm)

    Image field of view (mm)

    		Screw Size

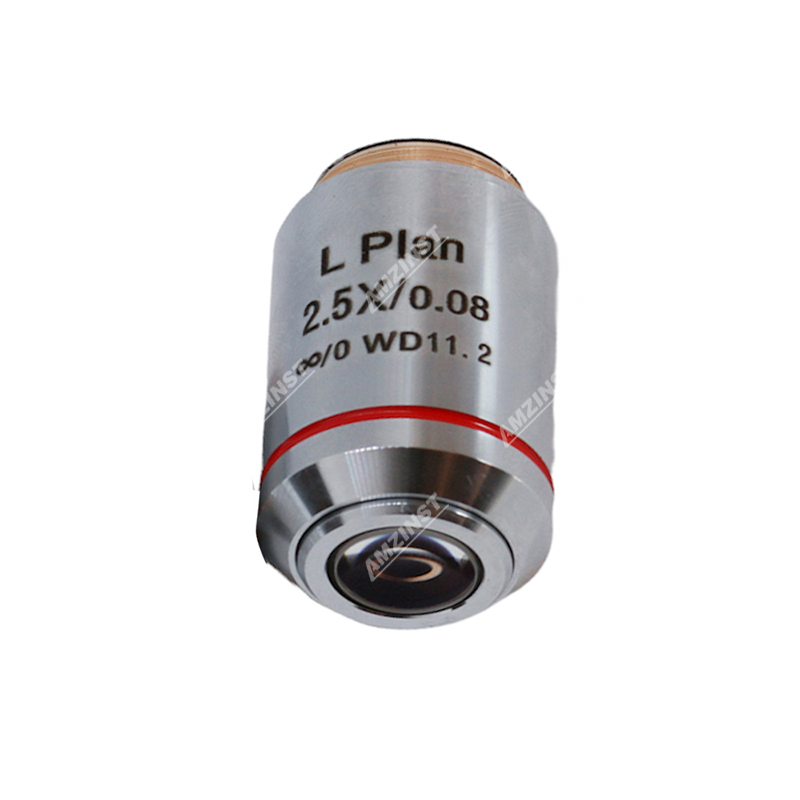

    ME-180X2.5 2.5X 0.08 11.2 72 4.1 42.96 8.8 22 4/5×1/36″

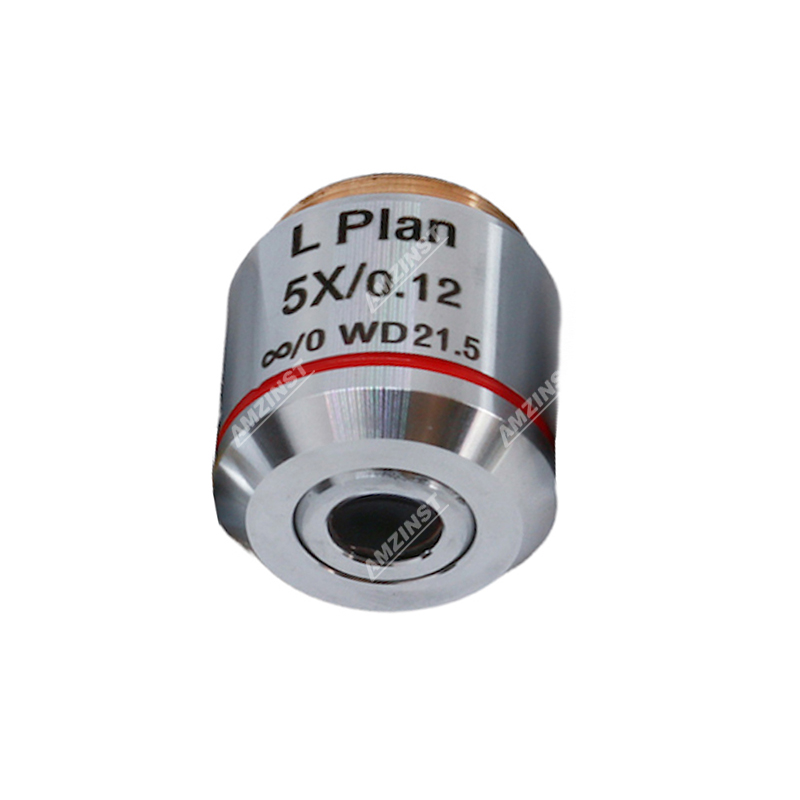

    ME-180X5 5X 0.12 21.5 36 2.8 19.09 4.4 22 4/5×1/36″

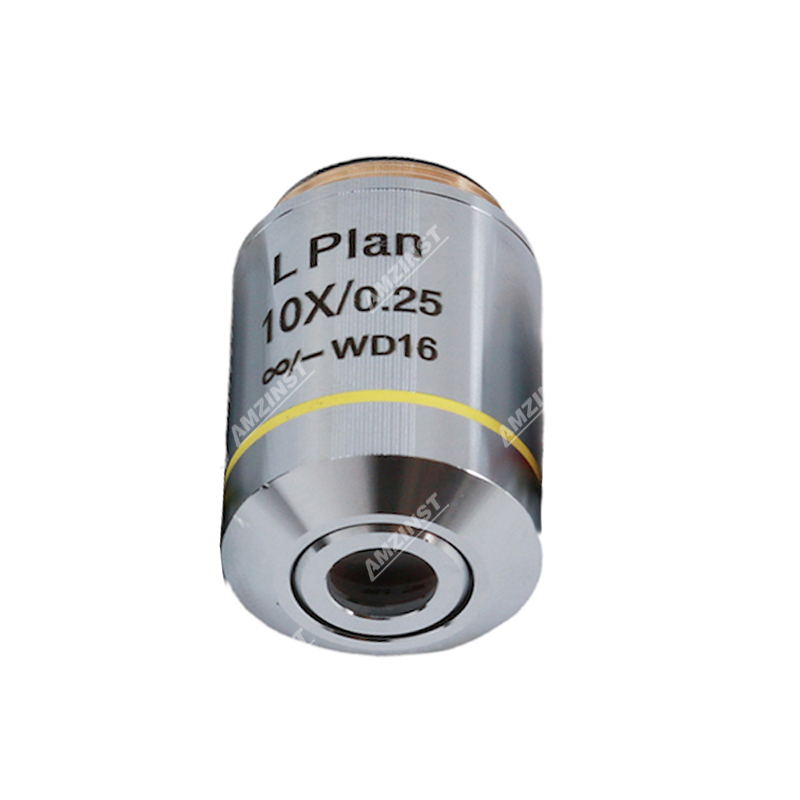

    ME-180X10 10X 0.25 16 18 1.34 4.40 2.2 22 4/5×1/36″

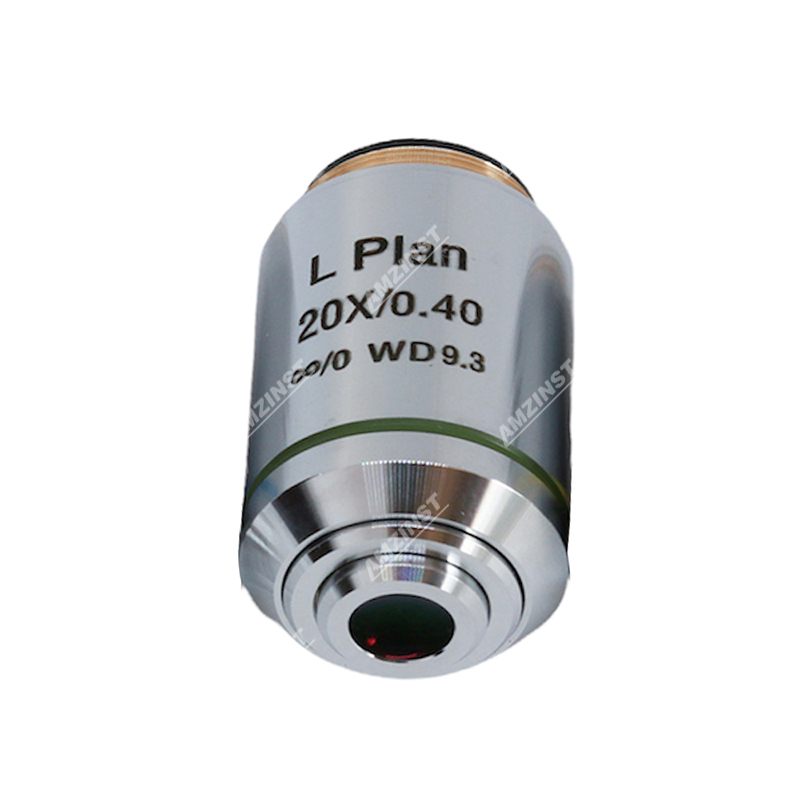

    ME-180X20 20X 0.40 9.3 9 0.8 1.71 1.1 22 4/5×1/36″

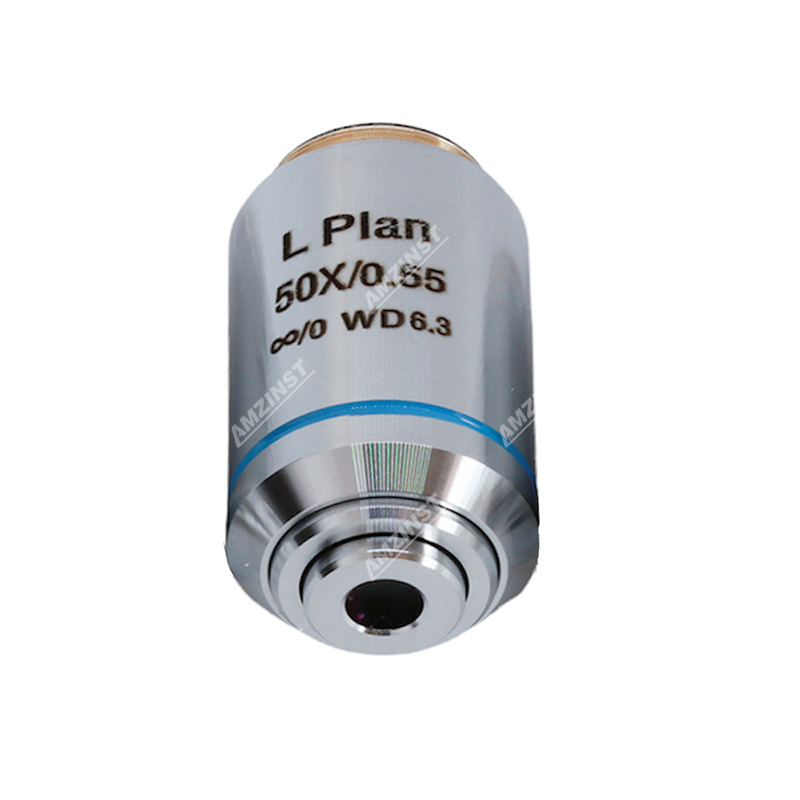

    ME-180X50 50X 0.55 6.3 3.6 0.61 0.9 0.44 22 4/5×1/36″
    ME-180X100 100X 0.8 2.9 1.8 0.41 0.43 0.22 22 4/5×1/36″
