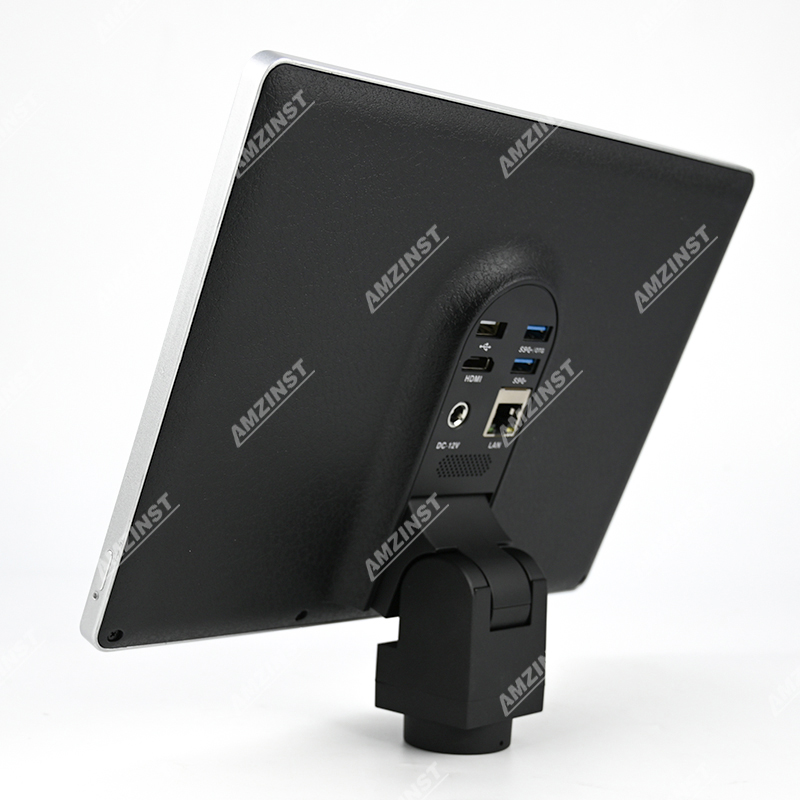

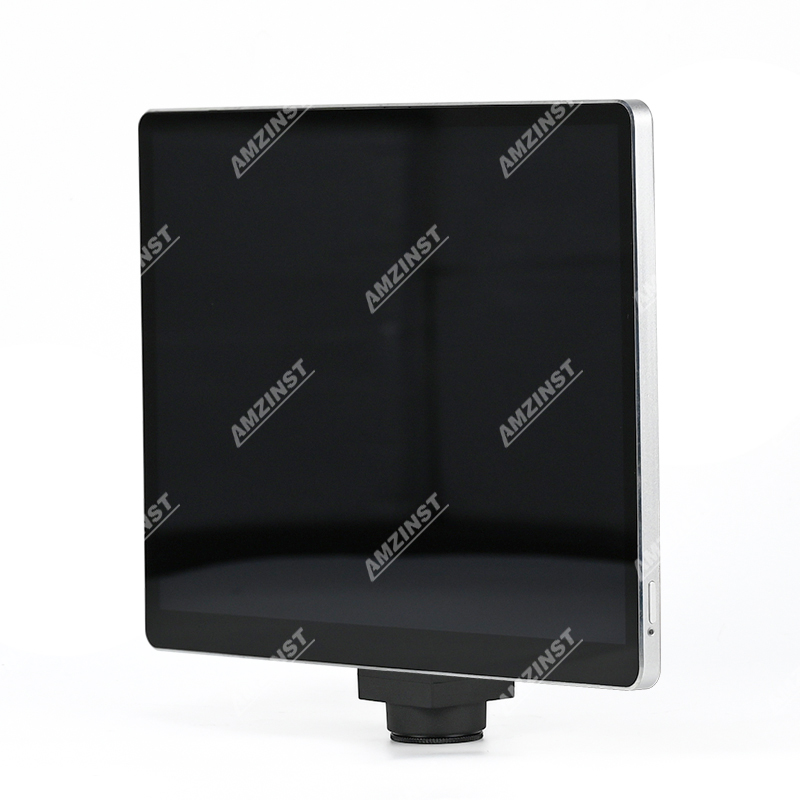

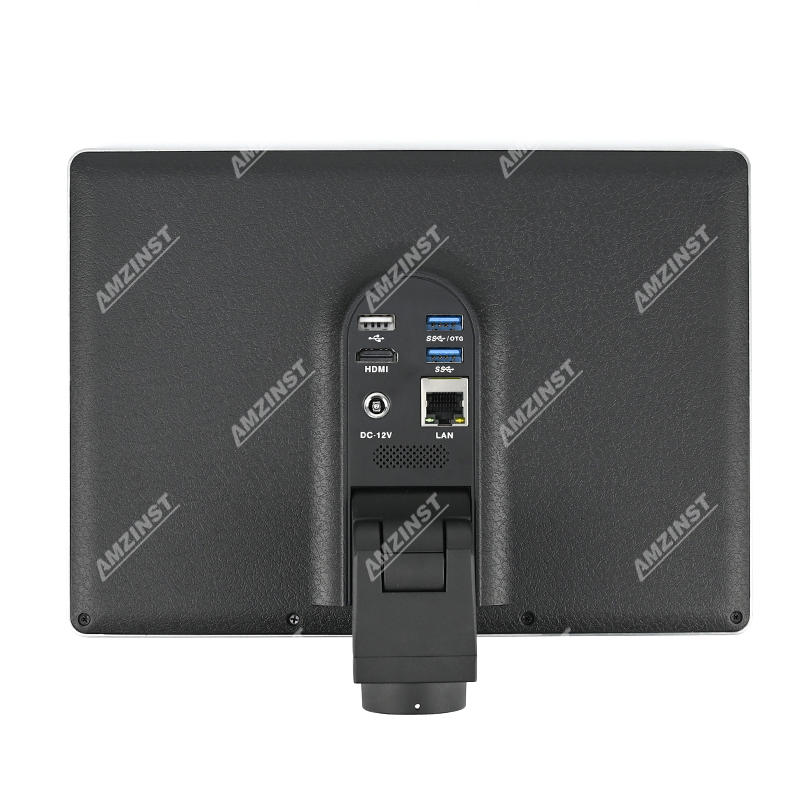

LCD-8M 10.5 Inch TouchPad 8.0MP Microscope Camera Built-In Android System
  • Specifications
  • Accessories
  • Products Catalog
  • Specification:
    ● Model: LCD-8M
    ● Series: Integrated display camera
    ● LCD Screen: 10.5 inch, touch screen
    ● Sensor size: 1/2'' CMOS
    ● Pixel size: 2*2um
    ● Effective pixels: 8 million pixels
    ● Resolution: 3480*2158@30FPS
    ● Random access memory (RAM)): 2G
    ● Storage: 16G
    ● Operating system: Built-in Android System

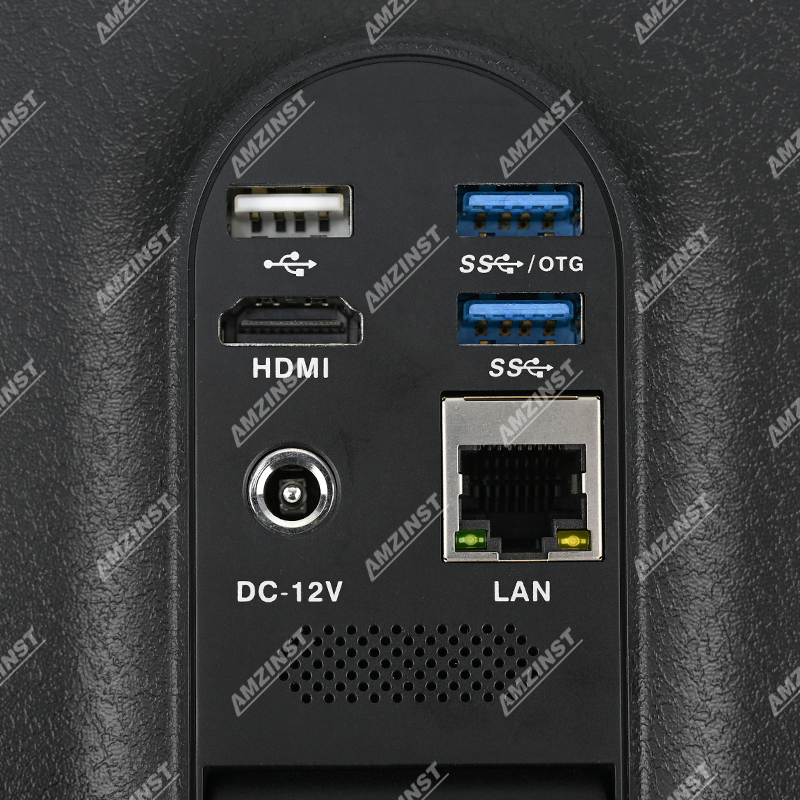

    ● Output port: 2x USB3.0, 1x USB2.0, 1x HDMI, 1x Gigabit Ethernet port
    ● Power: DC-12V/2A
    ● Wi-Fi: 2.4GHz/5GHz dual-band Wi-Fi, support Wi-Fi 6
    ● Bluetooth: Bluetooth 5.0

    Features:
    ● UI: Digital design, mouse operation, humanized setting
    ● Basic function: Brightness, Contrast, Saturation, White Balance
    ● Image quality adjustment: Exposure, Flicker suppression, Sharpness, Gamma, Cb/Cr gain adjustment
    ● Camera function: mirror, flip
    ● Mark function: Point coordinates, cross lines, coordinate systems, text annotations
    ● Length measuring: Line length, line length, length of the curve, parallel line distance, and point line distance
    ● Center distance of circles measuring: Radius fixed circle, two-point circle, three-point fixed circle
    ● Geometry measurement measuring: Line length, radius fixed circle, two-point circle, three-point fixed circle, concentric circle
    ● Geometry area measuring: Polygon and square
    ● Image capture: Support 8MP photos
    ● Video record: Support 1080P video
    ● Storage function: Instant photo, video, picture preview, SD card format
    ● Measuring tool: S-EYE

    Packing list:
    1x LCD-8M 10.5 inch LCD touch screen camera
    1x DC12V power adapter
