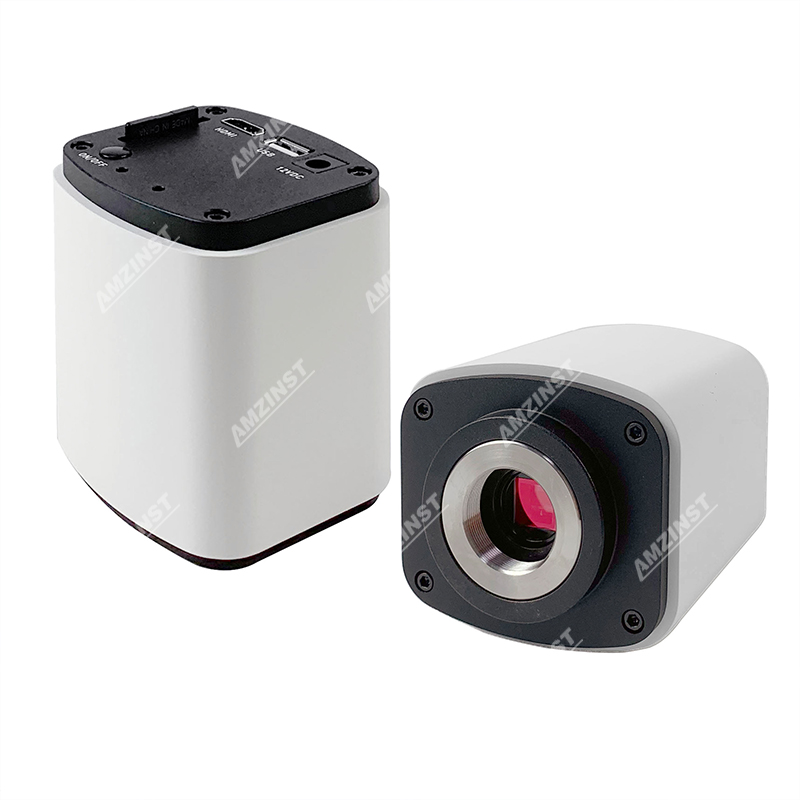

PCA-1080D is an autofocus HDMI CMOS Camera, which can significantly reduce the frequency of focusing during microscopy, also built-in a perfect color restoration algorithm, image acquisition, processing, measurement functions, no computer is required, very easy to use.
Features
-
High-speed Autofocus, data transfer up to 25 frames per second enables users to get clear images with ease.
-
Quick capture and measurement functions, not only provides fast image processing and shooting functions, but also rich measurement tools, including freehand line, rectangle, polygon, circle, angle, point-line distance, and much more with Three different length units of a millimeter, centimeter, and micrometer.
-
Perfect color reproduction, This color processing is capable of a new level of precision, matches the monitor image to the eyepiece view, and produces extremely-high color definition.
Specification
|
Sensor Type
|
CMOS
|
|
Sensor Model
|
SONY IMX307LQR-C 1/2.8"
|
|
Color/Mono
|
Color
|
|
Array Diagonal
|
6.46mm
|
|
Resolution
|
2MP, 1920(H) x 1080(V)
|
|
Pixel size
|
2.9μm x 2.9μm
|
|
Effective area
|
5.6mm x 3.1mm
|
|
Shutter Mode
|
Rolling
|
|
Frame Rate
|
35fps@USB2.0, 25fps@HDMI
|
|
Exposure Time
|
1ms-10s
|
|
SD Format
|
FAT32
|
|
Color Temperature
|
1800-10000K
|
Software
|
HDMI: Cloud 1.0 Ver USB: Mosaic V2
|
HDMI Key Settings
|
Preview: 1920x1080,
Capture: 3264x1840,
Video recording: 25fps@1920x1080
|
Picture Format
|
HDMI: JPG/TIF USB: TIFF/JPG/PNG/DICOM
|
Multiple Cameras
|
Supports 4 Cameras Simultaneously in SDK
|
Optical interface
|
Standard C Mount
|
Power
|
2.4W
|
Camera weight
|
452g
|
Dimensions
|
90.7mm x 78mm x 70.8mm
|

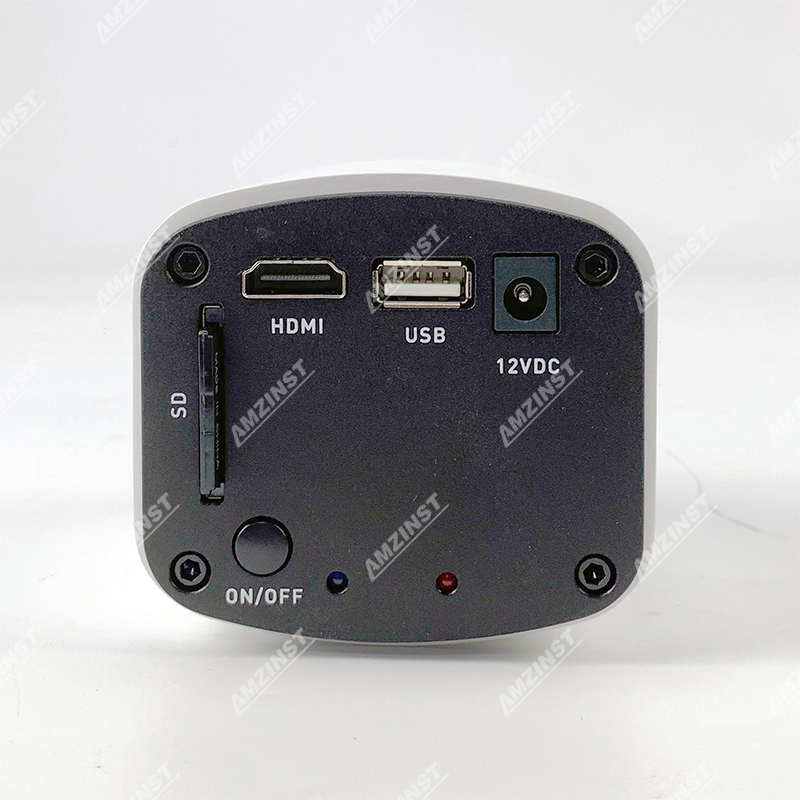

Data Interface
|
HDMI. USB2.0, SD card
|
Operating environment
|
Temperature: -10~45℃<br>Humidity: 10%~85%
|
Operating system
|
Windows 7/10 (32 Bit/64 Bit)/Mac
|
PC configuration:
|
CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more
|
|
Language
|
Simplified Chinese, Traditional Chinese, English, Korean, Dutch, Italian, French, Japanese, Spanish
|
|

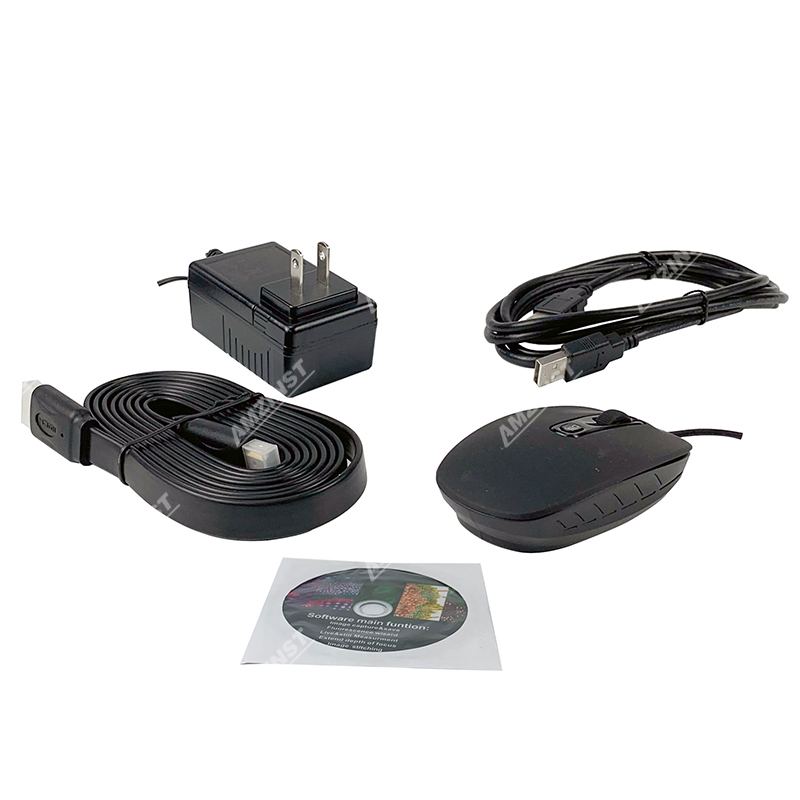

Packing list
|
1x camera
1x CD
1x USD mouse
1x power cable (2.4m)
1x USB cable (2m)
1x HDMI cable (2m)
|
|
