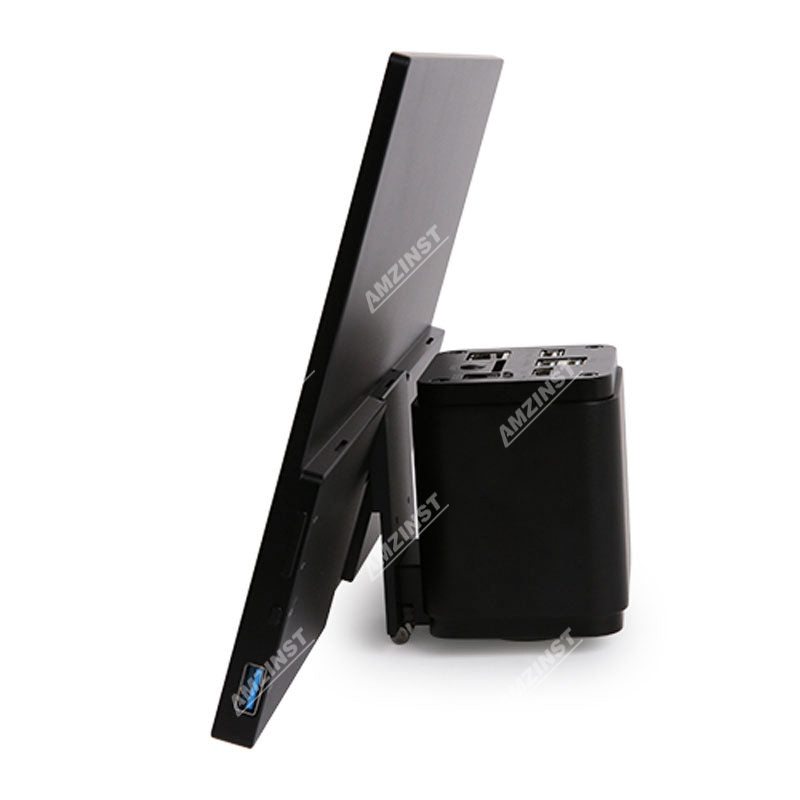

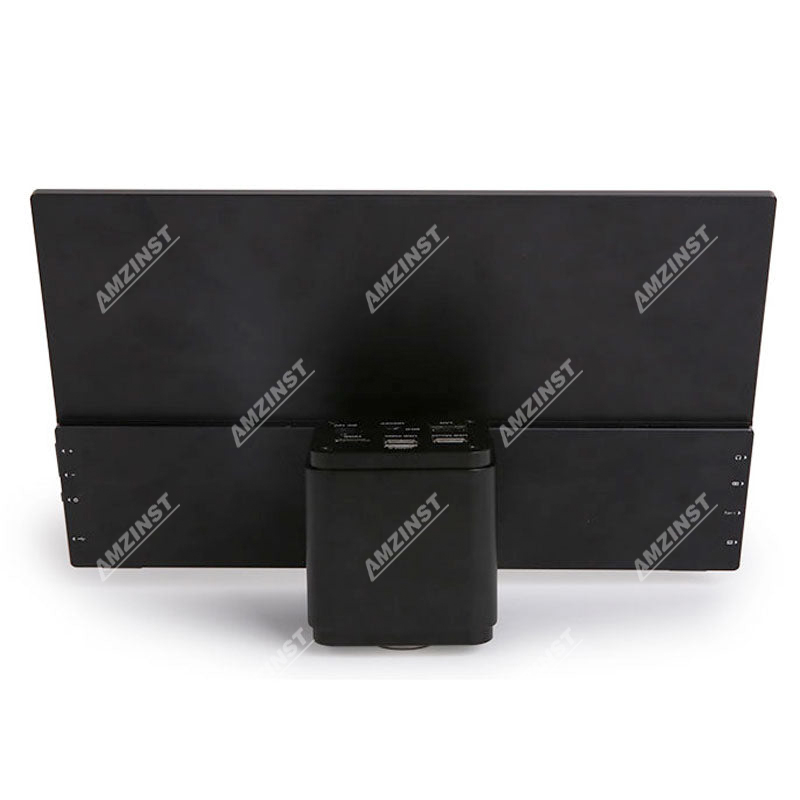

PCT-4KC133LCD 4K 30fps HDMI / USB2.0 CMOS Microscope Camera With 13.3 Inch Monitor For Stand-Alone And PC Imaging
  • Specifications
  • Accessories
  • Products Catalog
  • Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
    Dark Signal
    FPS/Resolution Binning Exposure
    PCT-4KC1 4K/Sony IMX334(C)
    1/1.8"(7.68x4.32)
    2.0x2.0 505 mv with 1/30s
    0.13 mv with 1/30s
    30@3840x2160(HDMI)
    20@3840x2160(USB)
    1x1 0.04ms~1000ms
    PCT-4KC2 Sony IMX485(C)
    1/1.2"(11.14x6.26)
    2.9x2.9 2188mv with 1/30s
    0.39mv with 1/30s
    30@3840*2160(HDMI)
    20@3840*2160(USB)
    1x1 0.04ms~1000ms

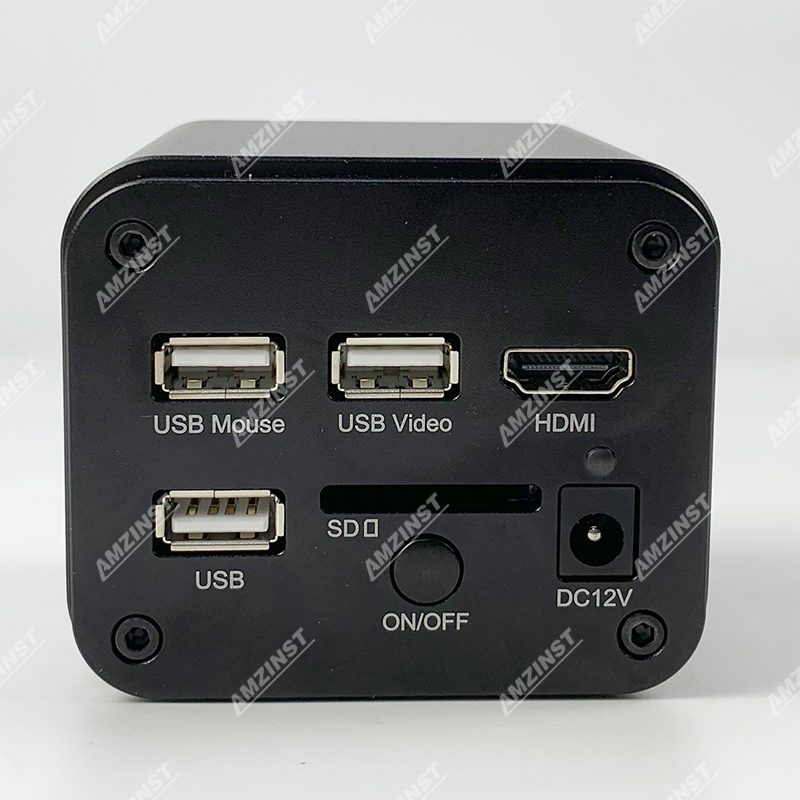

    Physical interface and buttons Function description
    USB Mouse USB mouse interface for control of built-in XCamView software
    USB Video Connect to computer USB2.0 interface to realize video image transmission
    HDMI

    Compliant with HDMI1.4 specification, used for 4K/1080P video image output, supports automatic resolution switching of the display (4K/1080P switching)

    DC12V 12V/1A power jack
    SD Compliant with SDIO3.0 specifications, it is used to capture video and image storage. When SD card and U disk exist at the same time, SD card is preferred
    USB2.0 Connect U disk to realize picture and video storage function
    LED LED status indicator
    ON/OFF Switch


    Video/Data Interface

    Function description

    HDMI Interface

    Support HDMI1.4 protocol; 30fps@4K or 30fps@1080P

    USB Video interface Connect to a computer via the USB Video interface to transmit MJPEG encoded images in real-time


    Other functions Video image recording capture, image processing, and camera control function description
    Video recording Video format: MP4 encapsulated H264/H265 encoded 8M (3840*2160) video file
    Storage frame rate: 30fps
    Image Capture 8M (3840*2160) JPEG or TIFF format, the storage device has an SD card or U disk (SD card priority)
    Measurement information storage Captured images support layered storage and fusion storage of measurement information and image content
    ISP Support exposure time/gain adjustment (auto/manual exposure), white balance (manual/auto/ROI white balance), sharpening, 3D noise reduction, saturation, contrast, brightness, Gamma, and 50HZ/60HZ anti-flicker, color to gray and other functions.
    Image Accessibility Zoom in/out (up to 10 times digital zoom), mirror/flip, freeze, cross line, graphic overlay (Overlay), picture browsing (Browser), recorded video playback, and rich image measurement functions.
    Embedded RTC Precise timing control on board
    Factory settings Restore camera parameters to factory settings
    Multiple Language Support English/Simplified Chinese/Traditional Chinese/Korean/Thai/French/German/Japanese/Italian/Russian etc.


    USB output function
    USB Video Interface Connect to the terminal via a USB cable to transmit MJPEG real-time images
    video recording Still image or video
    White Balance Classic auto, manual, and ROI white balance
    Color Technique Ultra-Fine color engine and technologies such as 3D noise reduction and local dynamic range adjustment
    Capture/Control SDK Windows/Linux/macOS/Android multi-platform (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
    Recording System Still Picture or Movie
    Operating System

    Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)

    OSx(Mac OS X)

    Linux

    PC Requirements

    CPU: Equal to Intel Core2 2.8GHz or Higher

    Memory: 4GB or More

    Ethernet Port: RJ45 Ethernet Port

    Display:19” or Larger

    CD-ROM


    Camera work environment
    Operating temperature (Celsius) -10°~ 50
    Storage temperature (degrees Celsius) -20°~ 60°
    Working humidity 30~80%RH
    save humidity 10~60%RH


    13.3-inch LCD screen specification

    Screen size 13.3 inch
    Ratio 16:9
    Resolution 1920*1080
    Color gamut 72% SRGB
    Screen type LED backlight
    Dot pitch 0.9mm
    Contrast 1000:1
    Average brightness 400cd/m2
    Responding speed 4ms
    Touch function ten-point touch (optional function)
    Panel type IPS TFT LCD
    Port HDMI, USB, Type-C, Earphone
    Power 20W
    LCD Screen size / Weight 306(L)*183(H)*8(T) mm / 530g
    LCD Screen thickness 5mm
    Built-in audio built-in dual speakers
    Adjustable Angle Stand 0-85°
    Material of body and stand Aluminum alloy
    Packing list: 1x 13.3-inch 1080P monitor
    1x Standard HDMI cable
    1x Double-headed type-C cable
    1x USB Type-C cable
    1x Power adapter


    Packing list:

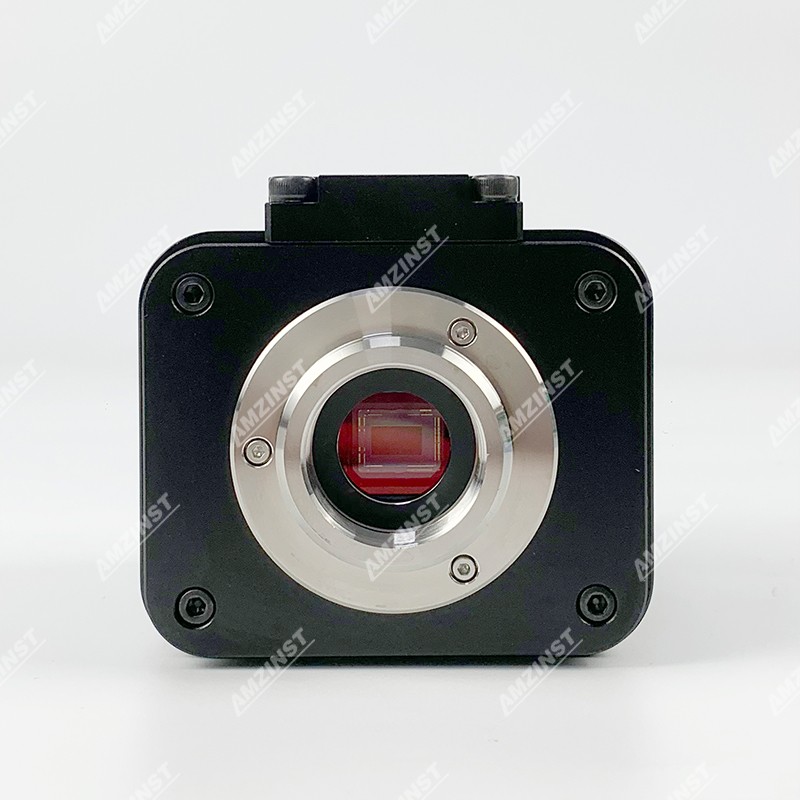

    1x 4K Camera (C-Mount thread)
    1x Power Supply
    1x Mouse
    1x HDMI cable
    1x USB 2.0 Cable
    1x Software (CD-ROM)

    1x 13.3-inch 1080P monitor
    1x Standard HDMI cable
    1x Double-headed type-C cable
    1x USB Type-C cable
    1x Power adapter

    Packing size: 42*22*27cm/2.98kg
