PCT-4KM 4K@60FPS 8.3MP Microscope Camera Built-In Measurement Software With 1/1.8''Sensor
  • Specifications
  • Accessories
  • Products Catalog
  • Advantage:
    ● Built-in newly developed V3 version measurement system to improve the image again Clarity;
    ● 4K output image, real-time frame rate 60FPS;
    ● New: custom interface editing, custom template editing, D × f Import template, file management, measurement data export and other functions;
    ● SONY high-performance photosensitive chip, low noise, high sensitivity, True colors;
    ● Dual core 2 * A73 @ 1.6GHz + 2 * A53 @ 1.2GHz;
    ● 4 GB DDR4 + 8 GB eMMO

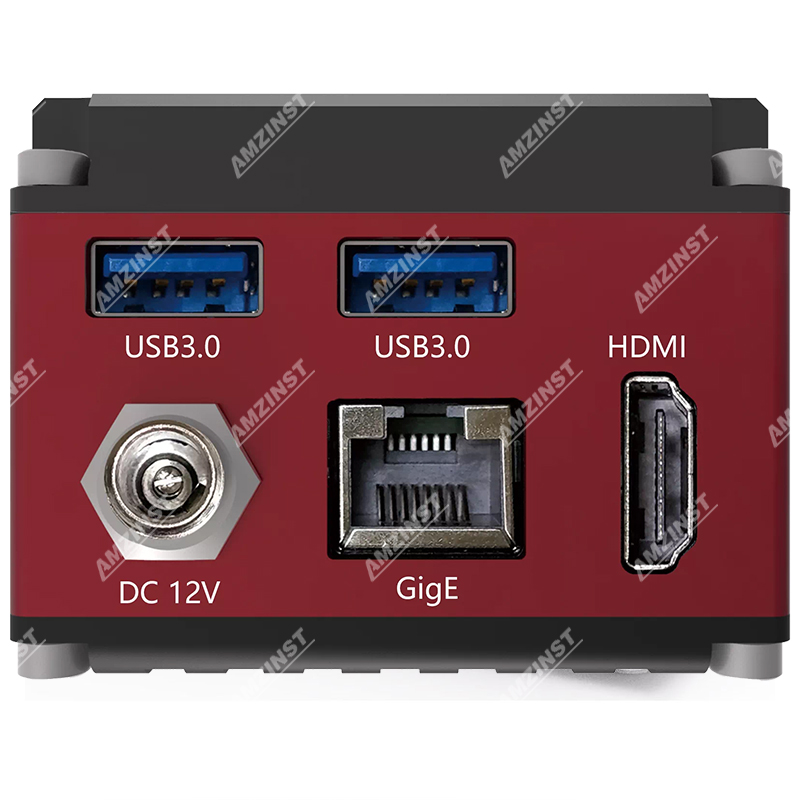

    ● Equipped with USB3.0, Gigabit Ethernet interface
    ● High-definition pictures, videos and preview playback;
    ● Built-in automatic edge search function to improve the measurement effect
    ● Support ∪disk storage function, can be connected with an external mouse


    Feature:
    ● Labeling functions: Point coordinates, cross lines, coordinate systems, text annotations
    ● Length measurement: Line length, line length, curve length, parallel line distance, point line distance
    ● The center distance: The radius fixed circle, two points setting circle, three points setting circle
    ● Geometric measurement: Line length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circles
    ● The geometric area: Polygon, squat
    ● Image fast: Support for 4K static photos
    ● Video video: Support 4K video

    Specification:
    ● Image sensor: FULL HD 4K industrial camera sensor/1.1.8'' inch
    ● Effective pixel: 8.3M
    ● Pixel size: 2.0um x 2.0um
    ● Frame rate: 4K60FPS@3840*2160
    ● Output interface: 4K @60FPS HDMI output,
    ● The storage mode built-in 4GB memory, and support the U disk(supporting FAT32 and NTFS file system)
    ● Power supply: DC-12V/1A
    ● Thread: C mount
