PCT-HMPAS Series USB2.0 Color CMOS C-Mount Microscope Camera Kits
  • Specifications
  • Accessories
  • Products Catalog
  • Order Code
    Sensor & Size(mm)
    Pixel(μm)
    G Sensitivity
    Dark Signal
    FPS/Resolution
    Binning
    Exposure
    PCT-H14MPAS
    14M/MT9F002(C)
    1/2.3"(5.73x4.60)
    1.4x1.4
    0.724v/lux-sec
    65.3dB
    35.5dB
    1.8@4096x3288
    10@2048x1644
    27@1024x822
    1x1,
    2x2,
    4x4
    0.4ms~2000ms
    PCT-H12MPAS
    12M/IMX577(C)
    1/2.1“ (5.95x4.71)
    1.55x1.55
    250mv with 1/30s
    0.25mv with 1/30s
    3@3840x3040
    11@1920x1516
    47@960x758
    1x1
    2x2
    4x4
    0.4ms~2000ms
    PCT-H10MPAS
    10M/IMX577(C)
    1/2.3“ (5.56x4.26)
    1.55x1.55
    250mv with 1/30s
    0.25mv with 1/30s
    3.3@3584x2748
    12@1792x1374
    53@896x684
    1x1,
    2x2,
    4x4
    0.4ms~2000ms
    PCT-H9MPAS
    9.0M/Special(C)
    1/2.4"(5.83x4.37)
    1.55x1.55
    250mv with 1/30s
    0.25mv with 1/30s
    3.5@3488x2616
    13@1744x1308
    55@872x654
    1x1,
    2x2,
    4x4
    0.4ms~2000ms
    PCT-H8MPAS
    8M/Special(C)
    1/2.5“(5.06x3.79)
    1.55x1.55
    250mv with 1/30s
    0.25mv with 1/30s
    4@3264x2448
    15@1600x1200
    62@800x600
    1x1
    2x2
    4x4
    0.4ms~2000ms
    PCT-H5.1MPAS
    5.1M/AR0521(C)
    1/2.5“ (5.70x4.28)
    2.2x2.2
    18.8ke-/lux
    73dB
    40dB
    7.0@2592x1944
    27.7@1296x972
    100.5@648x486
    1x1,
    2x2,
    4x4
    0.2ms~2000ms
    PCT-H3.1MPAS
    3.1M/IMX123(C)
    1/2.8“ (5.12x3.84)
    2.5x2.5
    1.0 V/lux-sec
    61dB
    43dB
    8@2048x1536
    22@1024x768
    43@680x510
    1x1,
    2x2,
    3x3
    0.2ms~2000ms
    PCT-H1.3MPAS
    1.23M/SC1235(C)
    1/3“ (4.80x3.60)
    3.75x3.75
    4.5V/lux-sec
    74dB
    38dB
    15@1280x960
    15@1280x720
    1x1
    1x1
    0.14ms~2000ms
    Spectral Range 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
    White Balance ROI White Balance/ Manual Temp-Tint Adjustment
    Color Rendering Technique Ultra Fine Color Engine
    Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
    Recording System Still Picture and Movie
    Cooling System* Natural
    Operating Temperature -10 °C~ 50 °C
    Storage Temperature -20 °C~ 60 °C
    Operating Humidity 30~80%RH
    Storage Humidity 10~60%RH
    Power Supply DC 5V over PC USB Port
    Operating System Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit)
    OS X (Mac OS X), Linux
    PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
    Memory: 2GB or More
    USB port: USB2.0 High-speed Port
    Display: 17" or Larger
    CD-ROM

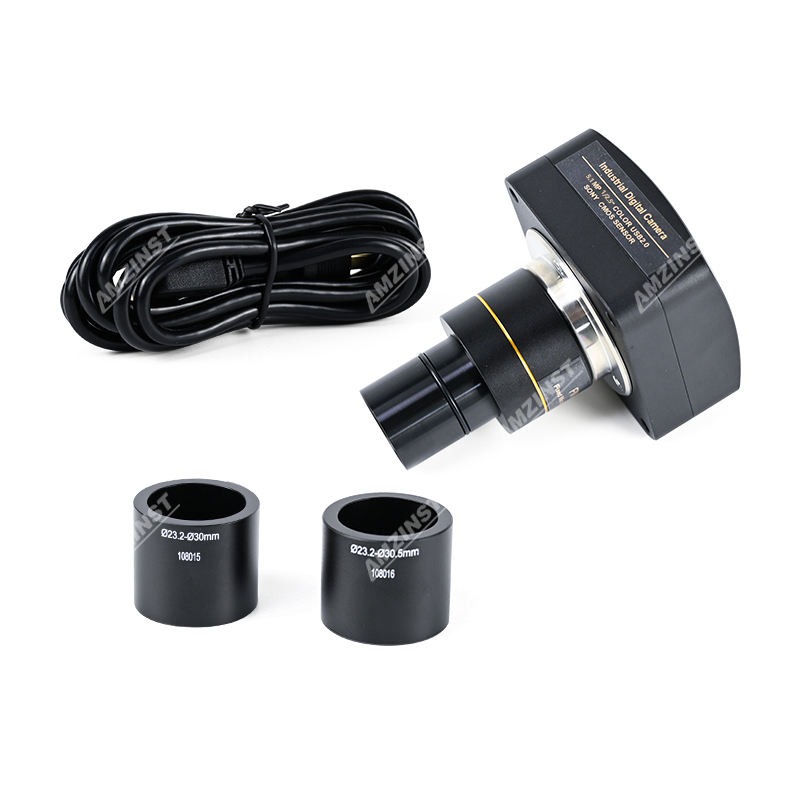

    Standard packing list:
    - 1x PCT-H series camera
    - 1x USB2.0 cable /2.0m
    - 1x CD (Driver & utilities software, Ø12cm)
    - 1x FMA050 0.5X Fixed C-Mount Camera Adapter (For Dia.23.2mm eyepiece tube)
    - 1x Adaptor rings for 30mm eyepiece tube (Dia.23.2mm to 30.0mm Ring)
    - 1x Adaptor rings for 30.5mm eyepiece tube (Dia.23.2mm to 30.5mm Ring)


    Optional accessories:
    - AMA050 Adjustable C-Mount Camera Adapter (For Dia.23.2mm eyepiece tube)
    - Adaptor rings for 31.75mm eyepiece tube (Dia.23.2mm to 31.75mm Ring)
