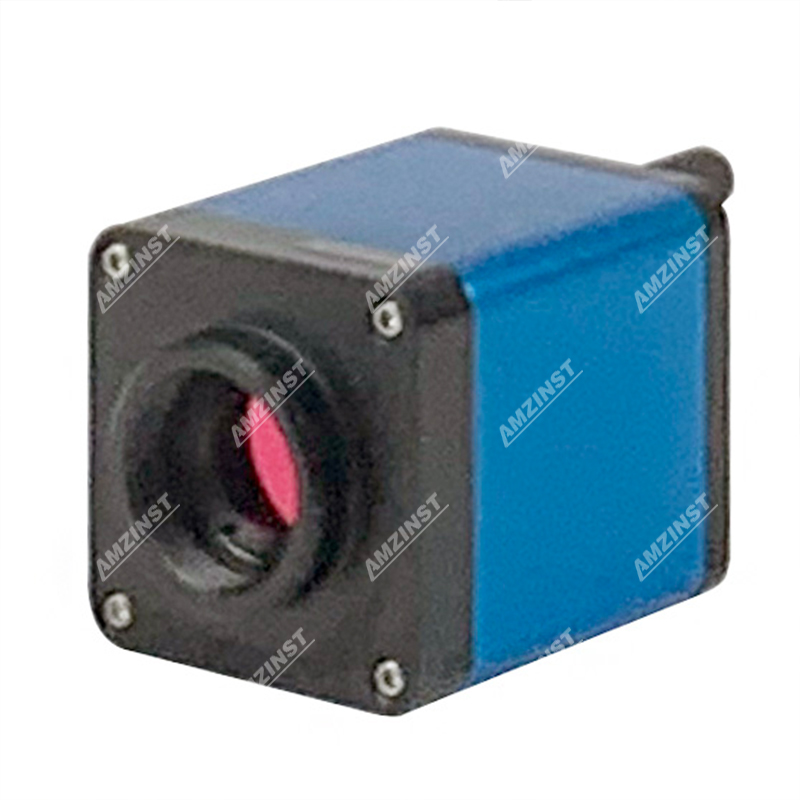

PCT-5WF2 5.0M Wifi Microscope Camera With LAN And WIFI Outputs
  • Specifications

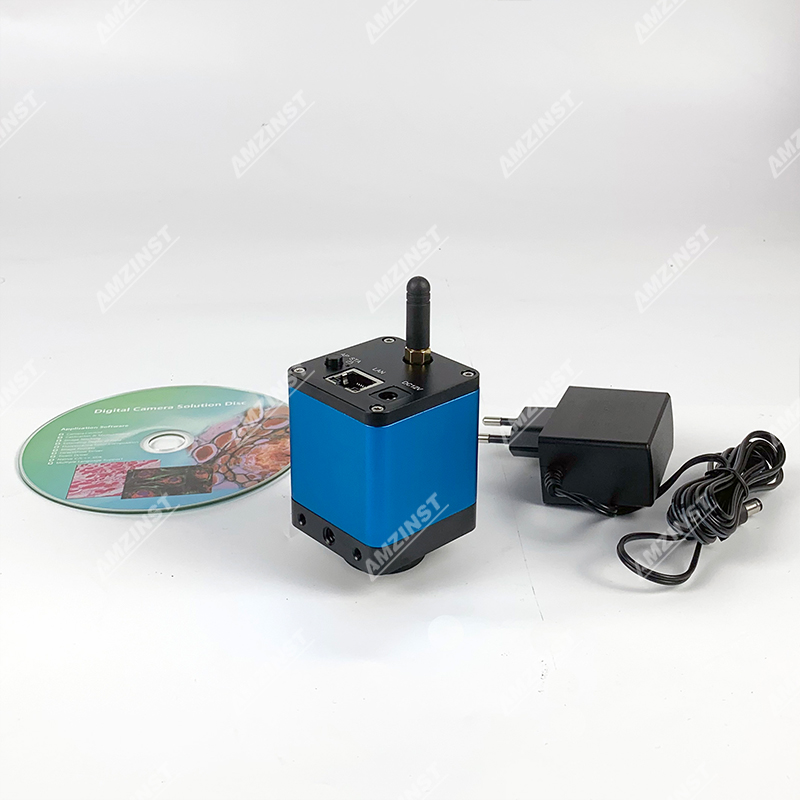

  • Accessories
  • Products Catalog
  • Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
    Dark Signal     		FPS/Resolution Binning Exposure (ms)
    PCT-5WF2 5M/Sony IMX178(C)
    1/1.8"(6.22x4.67)     		2.4x2.4 425mv with 1/30s
    0.15mv with 1/30s     		30@2592*1944 1x1 0.03ms~918ms

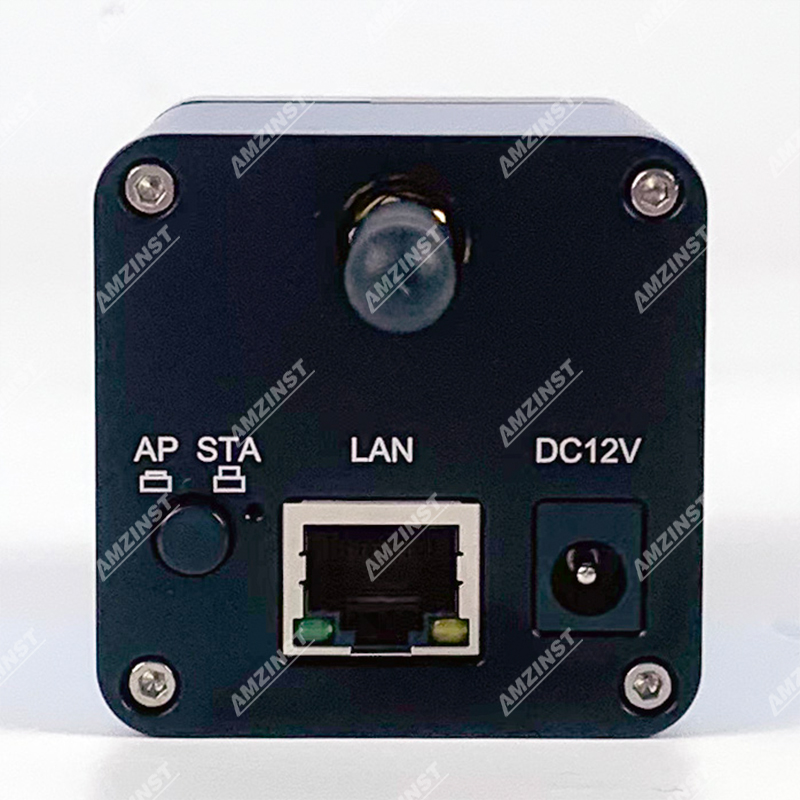

    Interface Function Description
    WiFi Antenna LED status indicator
    When the power adapter is inserted into the power slot, the LED light will be on and the starting process will last about 8 seconds;
    WiFi AP mode: the LED flashes fast;
    WiFi STA mode: the LED flashes slowly;
    LAN mode: the Ethernet indicator and the LED light will be on;
    DC12V Power jack (12V/1A).
    AP/STA Switch Button Press to switch between AP and STA mode;
    LAN 100M Ethernet port to connect to the router or computer to transfer video. Video can be transmitted via LAN or WiFi. LAN and WiFi cannot be used at the same time. The priority of LAN connection is higher than WiFi;
    Video Output Interface Function Description
    LAN Interface 30fps@2592*1944 H264 encoded video and Jpeg image capture
    WiFi Interface Support 802.11ac protocols in AP/STA mode; 30fps@2592*1944 H264 encoded video and Jpeg image capture
    Other Function Function Description
    Software Environment under LAN/WiFi/Output
    White Balance Auto White Balance
    Color Technique Ultra-Fine Color Engine
    ISP Exposure(Automatic/Manual Exposure)/ Gain, White Balance(Manual/One Push), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment，50HZ/60HZ Anti-flicker, Mirror/Flip, Network Bandwidth Adjustment
    Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
    Recording System Still Picture or Movie
    Operating System Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)
    OSx(Mac OS X)
    Linux
    PC Requirements

    CPU: Equal to Intel Core2 2.8GHz or Higher

    Memory: 4GB or More

    Ethernet: RJ45 Interface, 100M bps or more

    WiFi Adaptor: Support 802.11 b/g/n/ac

    Display:19” or Larger

    CD-ROM

    Operating Environment


    Operating Temperature (in Centidegree)

    -10~ 50

    Storage Temperature (in Centidegree)

    -20~ 60

    Operating Humidity

    30~80%RH

    Storage Humidity

    10~60%RH

    Power Supply

    DC 12V/1A Adapter
