PCZ-1080FD 1x-20x 1080P 60fps Autofocus Microscope Camera 1/2.8" Sensor With SD Card Storage
|
- Specifications
- Accessories
- Products Catalog
PCZ-1080FD is a series of electric controlled continuous zoom and autofocus all-in-one digital microscopes with a large field of view. It is integrated with an HDMI camera, Electric Controlled Continuous Zoom Auto-focus Objective, and LED Integrated Illumination Light. it is the abbreviation of Auto-focus Digital Microscope.
PCZ-1080FD can be assembled with various brackets or arms and can offer a continuous zooming ratio from 1X to 20X through digital zoom. it also supports autofocus mode and manual focus mode.
it comes with a high-performance SONY CMOS sensor. It also has an embedded ARM core, allowing the camera to be connected directly to the HDMI monitor. The camera has software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar. Users can directly control the camera and perform various operations through a USB mouse. The images and videos captured by PCZ-1080FD can be saved on an SD card for on-site analysis and follow-up research.
it can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.
Features
-
5 groups 16 elements EMZO with 20X zoom ratio, supports auto and manual focus;
-
195mm standard working distance with 156~196mm depth of field
-
At a standard working distance, the large field of view is 200mm*112.5mm at low magnification
-
the small field of view 10mm*5.6mm at higher magnification
-
Sony 1/2.8” 1080P CMOS with high signal-to-noise ratio
-
Connect to HDMI monitor with 1080P@60FPS video format
-
SD card storage supports 1080P pictures and video streams(asf format)
-
Built-in mouse control software, all functions can be realized with a USB mouse
-
Embedded mouse control panel, Measurement Toolbar, Comprehensive Control Toolbar, AF Control Panel
-
Multi-language support
-
With the adapter bracket of 76mm diameter, an electric controlled continuous zoom camera can be built.
Camera Module Datasheet
|
Order Code
|
Sensor & Size(mm)
|
Pixel(μm)
|
G Sensitivity
Dark Signal
|
FPS/Resolution
|
Binning
|
Exposure
|
|
PCZ-FD
|
Sony IMX462LQR-C
1/2.8"(5.57x3.13)
|
2.9x2.9
|
921 mv with 1/30s
0.15 mv with 1/30s
|
60@1920x1080
(HDMI)
|
1x1
|
0.06ms~918ms
|
Lens Module Datasheet
|
Order Code
|
Working Distance(mm)
|
Zoom Range
|
MTF(lp/mm)
|
Distortion
|
FOV@1.0X(mm)
|
FOV@20X(mm
|
|
ZM2856
|
156-196
|
0.028X~0.56X
|
160
|
0.5%
|
200x112.5
|
10x5.6
|
1X and 20x are defined as the normalized magnification, which is only used to represent the relative relationship between the lowest and highest magnification. Here, the normalized equation 1x = 0.028/0.028; 20X=0.56/0.028;
AFDM Light Module
|
Order Code
|
LED
|
Power
|
Inner Dia.(mm)
|
Out Dia.(mm)
|
|
|
LED5670
|
8 CREE xpes
|
3V/3A
|
50
|
76
|
|
DRL: LED direct ring light with adjustable brightness; NPC: No power cable

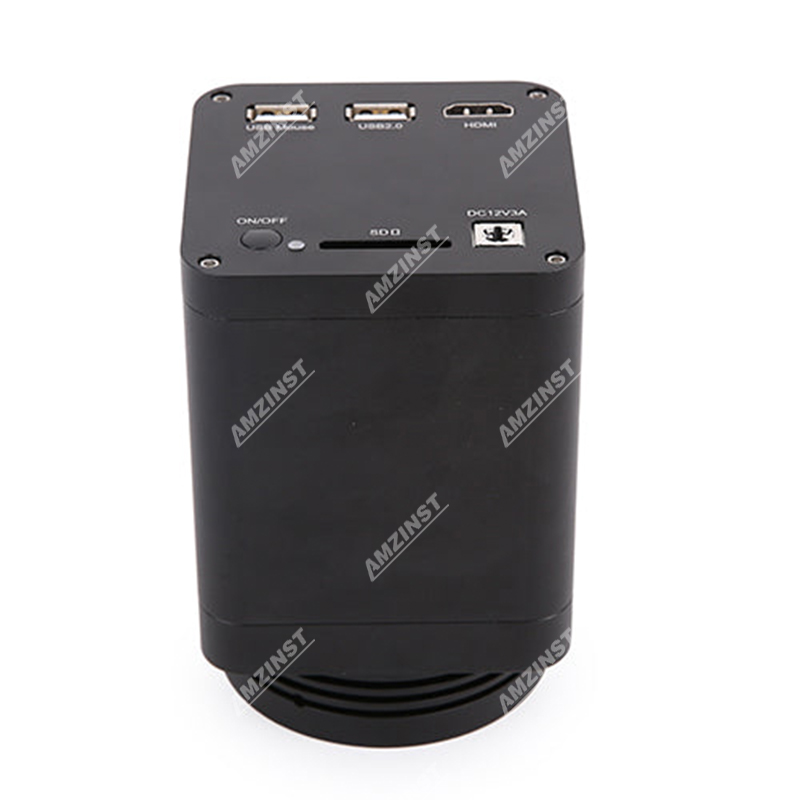

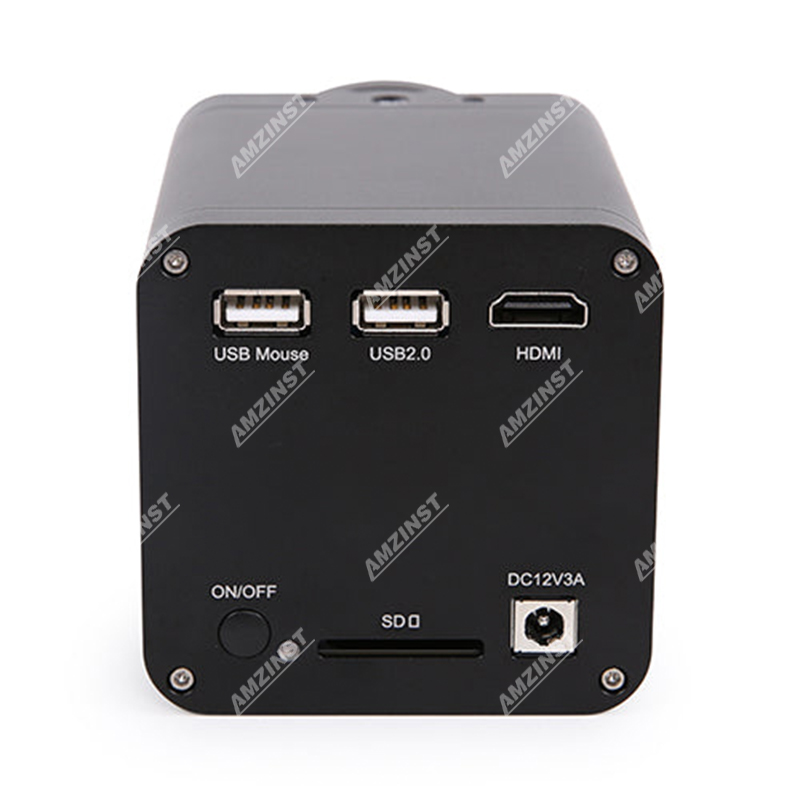

Interface & Button Functions
|
USB Mouse
|
USB mouse for ImageView control
|
|
USB2.0
|
USB keyboard or other USB control device
|
|
HDMI
|
HDMI output12V Power in
|
|
On/OFF
|
Power on/off switch
|
|
LED
|
Power LED indicator
|
|
SD
|
SD card slot
|
|
DC12V3A
|
DC12V3A power input
|
Software Functions
|
UI Operation
|
With USB mouse to operate on the embedded ImageView
|
|
Image Capture
|
JPEG format with 2M Resolution in SD card
|
|
Video Record
|
ASF format 1080P 30fps in SD card
|
|
Camera Control Panel
|
Including Exposure, Gain, White Balance, Color
Adjustment, Sharpness and Denoising Control
|
|
Auto Focus Control Panel
|
Including Zoom, Auto Focus, One Push, Manual Focus,
Reset, and other functions
|
|
Measurement Toolbar
|
Including Calibration, Measurement, and
measurement parameter Export functions
|
|
Synthesis Control Toolbar
|
Including software Zoom, Flip, Freeze, Crosshair, LED Control, Auto-focus, Comparison, Browser, Setting, Version Check function
|
Other Specifications for USB Output
|
White Balance
|
Auto White Balance
|
|
Color Technique
|
Ultra-Fine Color Engine (USB)
|
|
Capture/Control SDK
|
Standard UVC for Windows/Linux/Mac(USB)
|
|
Recording System
|
Still Picture or Movie (USB)
|
Operating Environment
|
Operating Temperature(in Centidegree)
|
-10~ 50
|
|
Storage Temperature(in Centidegree)
|
-10~ 60
|
|
Operating Humidity
|
30~80%RH
|
|
Storage Humidity
|
10~60%RH
|
Overall Dimensions
|
Width x Depth x Height
|
80 mm x 80 mm x 80mm
|
|
Shipping Weight
|
0.75kg
|
|
|
