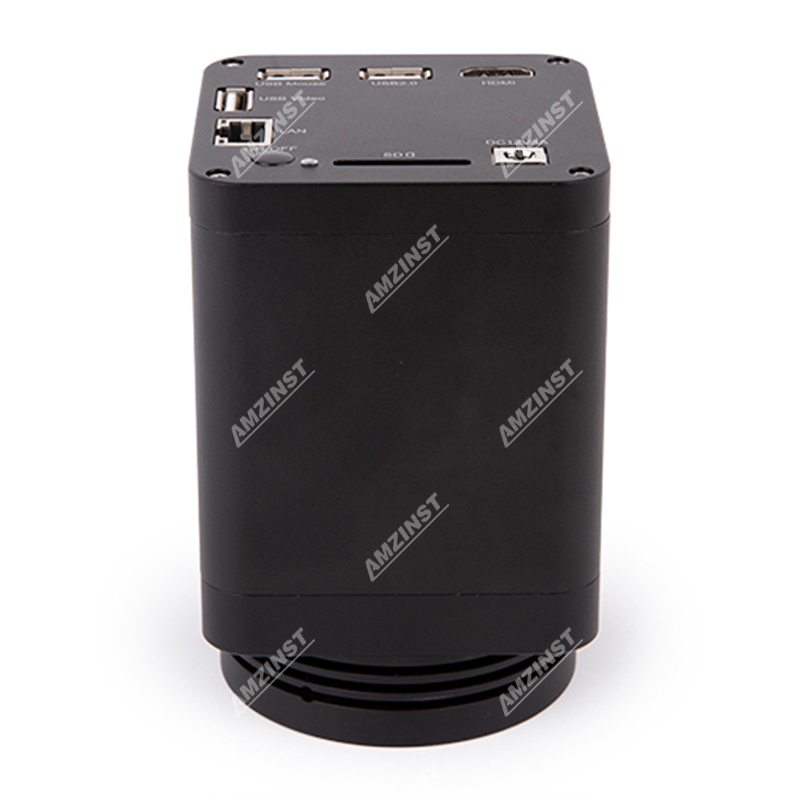

PCZ-4KNFD 1x-20x 4K 30fps Autofocus Microscope Camera 1/2.8" Sensor With With SD Card Storage
|
- Specifications
- Accessories
- Products Catalog
PCZ-4KNFD is a series of electrically controlled continuous zoom and autofocus all-in-one digital microscopes with a large field of view by ToupTek Photonics.
It is integrated with an HDMI camera, Electric Controlled Continuous Zoom Auto-focus Objective, and LED Integrated Illumination Light. PCZ-4KNFD is the abbreviation of Auto-focus Digital Microscope. Different products in the AFDM series can be formed with different parts to satisfy the application requirement.
PCZ-4KNFD can be assembled with various brackets or arms and offer a continuous zooming ratio with a different lens. It also supports autofocus mode and manual focus mode.
PCZ-4KNFD comes with a high-performance SONY CMOS sensor. It also has an embedded ARM core, allowing the camera to be connected directly to the HDMI monitor. The camera has imageview software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar. Users can directly control the camera and perform various operations through a USB mouse. The images and videos captured by APCZ-4KNFD can be saved on an SD card for on-site analysis and follow-up research.
PCZ-4KNFD can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.
PCZ-4KNFD supports 4K30FPS HDMI output and USB/ ETH/WIFI outputs.
Features
-
5 groups 16 elements EMZO with 0.028~0.56X, 20 zoom ratio, supports auto and manual focus
-
192mm standard working distance with 150~195mm depth of field
-
At a standard working distance, the large field of view 200mm*112.5mm at low magnification, helping users to quickly locate the target object, and the small field of view 10mm*5.6mm at higher magnification, helping users to observe microscopically
-
Sony 1/2.8” 4K Starvis CMOS with a high signal-to-noise ratio
-
4K HDMI/USB/ETH/WiFi multiple video outputs
-
4K/1080P auto switching according to monitor resolution
-
SD card/USB flash drive for captured image and video storage, support local preview and playback
-
Built-in mouse control software XFCAMView, all functions can be realized with a USB mouse
-
Embedded mouse Camera Control Panel, Measurement Toolbar, Synthesis Control Toolbar, AF Control Panel
-
Multi-language support
-
Head suction LED ring light, the brightness can be directly controlled by imageView
-
With the adapter bracket of 76mm diameter, an electrically controlled continuous zoom PCZ-4KNFD can be built
Camera Module Datasheet
|
Order Code
|
Sensor & Size(mm)
|
Pixel(μm)
|
G Sensitivity
Dark Signal
|
FPS/Resolution
|
Binning
|
Exposure
|
|
PCZ-4KFD
|
Sony IMX415LQR-C
1/2.8"(5.57x3.13)
|
1.45x1.45
|
300mv/0.13 with 1/30s
|
30@3840*2160(HDMI)
30@3840*2160(NETWORK)
30@3840*2160(USB)
|
1x1
|
0.04~1000
|
Lens Module Datasheet
|
Order Code
|
Working Distance(mm)
|
Zoom Range
|
MTF(lp/mm)
|
Distortion
|
FOV@1.0X(mm)
|
FOV@20X(mm
|
|
ZM2856
|
150-195
|
0.028X~0.56X
|
160
|
0.5%
|
200x112.5
|
10x5.6
|
1X and 20x are defined as the normalized magnification, which is only used to represent the relative relationship between the lowest and highest magnification. Here, the normalized equation 1x = 0.028/0.028; 20X=0.56/0.028;
AFDM Light Module
|
Order Code
|
LED
|
Power
|
Inner Dia.(mm)
|
Out Dia.(mm)
|
|
|
LED5670
|
8 CREE xpes
|
3V/3A
|
50
|
76
|
|
DRL: LED direct ring light with adjustable brightness; NPC: No power cable

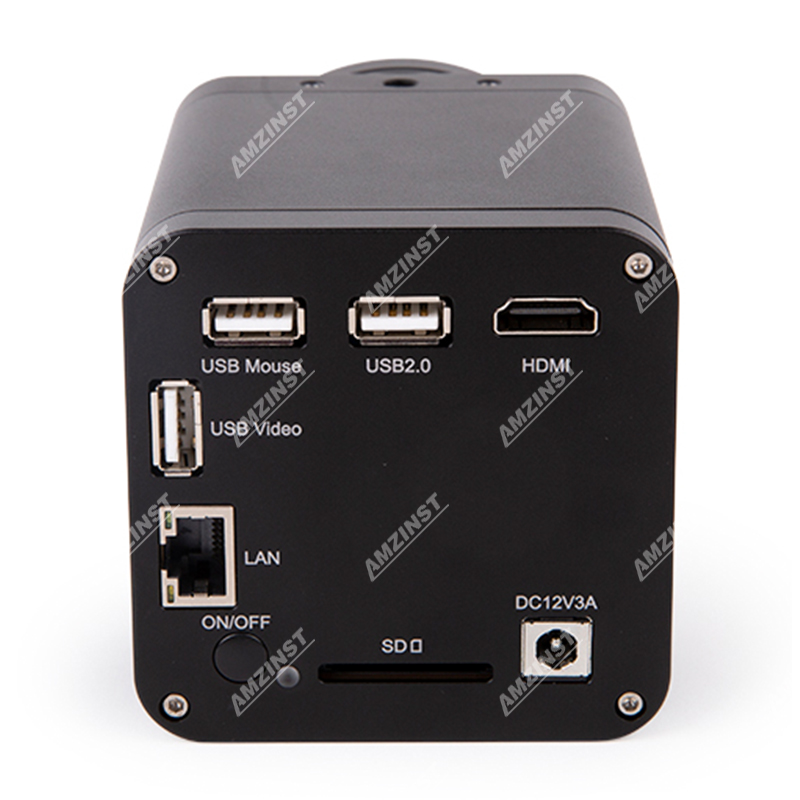

Interface & Button Functions
|
USB Mouse
|
USB mouse for ImageView control
|
|
USB2.0
|
USB keyboard or other USB control device
|
|
HDMI
|
HDMI output12V Power in
|
|
USB Video
|
Connect PC or another host device to realize video image transmission with ImageView
|
|
LAN
|
LAN port to connect router and switch to transfer video with ImageView
|
|
ON/OFF
|
Power on/off switch
|
|
LED
|
Power LED indicator
|
|
SD
|
Comply with SDIO3.0 standard and an SD card could be inserted for video and image saving
|
|
DC12V3A
|
DC12V3A power input
|
Software Functions
|
UI Operation
|
With USB mouse to operate on the embedded ImageView
|
|
Image Capture
|
JPEG format with 2M Resolution in SD card
|
|
Video Record
|
ASF format 1080P 30fps in SD card
|
|
Camera Control Panel
|
Including Exposure, Gain, White Balance, Color
Adjustment, Sharpness and Denoising Control
|
|
Auto Focus Control Panel
|
Including Zoom, Auto Focus, One Push, Manual Focus,
Reset, and other functions
|
|
Measurement Toolbar
|
Including Calibration, Measurement, and
measurement parameter Export functions
|
|
Synthesis Control Toolbar
|
Including software Zoom, Flip, Freeze, Crosshair, LED Control, Auto-focus, Comparison, Browser, Setting, Version Check function
|
Other Specifications for USB Output
|
White Balance
|
Auto White Balance
|
|
Color Technique
|
Ultra-Fine Color Engine (USB)
|
|
Capture/Control SDK
|
Standard UVC for Windows/Linux/Mac(USB)
|
|
Recording System
|
Still Picture or Movie (USB)
|
Operating Environment
|
Operating Temperature(in Centidegree)
|
-10~ 50
|
|
Storage Temperature(in Centidegree)
|
-10~ 60
|
|
Operating Humidity
|
30~80%RH
|
|
Storage Humidity
|
10~60%RH
|
Overall Dimensions
|
Width x Depth x Height
|
80 mm x 80 mm x 80mm
|
|
Shipping Weight
|
0.75kg
|
|
|
