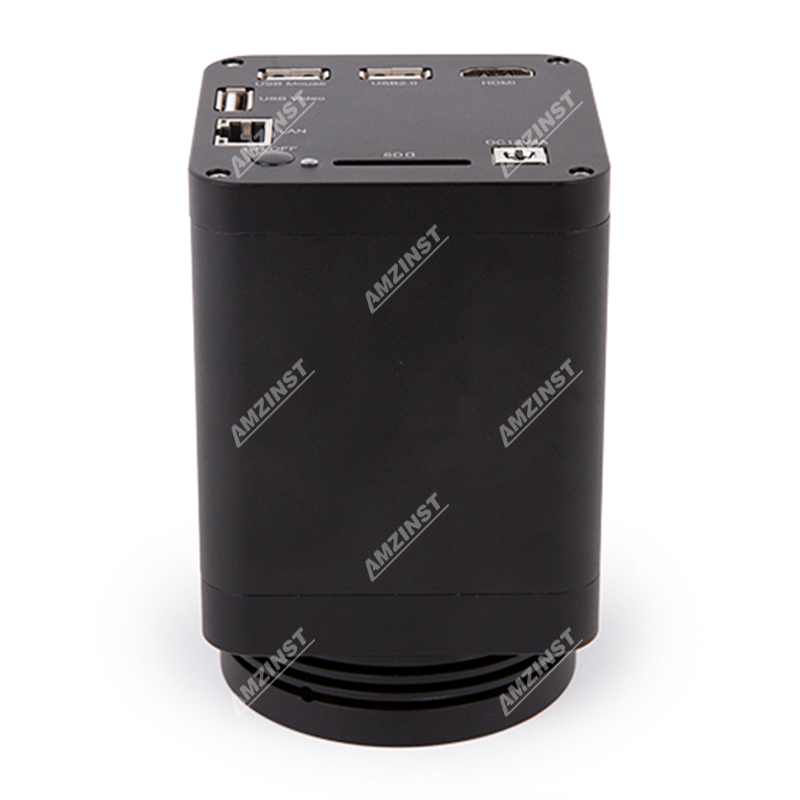

PCZ-4KPFD 1x-18x 4K 30fps Zoom Autofocus Microscope Camera 1/2.8" Sensor With SD Card Storage
|
- Specifications
- Accessories
- Products Catalog
PCZ-4KPFD is a series of electrically controlled continuous zoom and autofocus all-in-one digital microscopes with a large field of view. It is integrated with HDMI/USB/ETH/WiFi camera, Electric Controlled Continuous Zoom Auto-focus Objective, and LED Integrated Illumination Light. AFDM is the abbreviation of Auto-focus Digital Microscope. Different products in the AFDM series can be formed with different parts to satisfy the application requirement.
PCZ-4KPFD can be assembled with various brackets or arms and offer a continuous zooming ratio with a different lens. It also supports autofocus mode and manual focus mode.
PCZ-4KPFD comes with a high-performance SONY CMOS sensor. It also has an embedded ARM core, allowing the camera to be connected directly to the HDMI monitor. The camera has ImageView software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar. Users can directly control the camera and perform various operations through a USB mouse. The images and videos captured by PCZ-4KPFD can be saved on an SD card for on-site analysis and follow-up research.
PCZ-4KPFD can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.
PCZ-4KPFD supports HDMI/USB/ETH/WiFi control and video output (ToupView). The frame rate of the output is 4K/30FPS, and the zoom range is 1X~18X. It also supports electric zoom and autofocusing.
Features
-
5 groups 16 elements EMZO with 0.0218~0.392X, 18X zoom ratio, supports auto and manual focus
-
250mm standard working distance with 205~255mm depth of field
-
At a standard working distance, the large field of view 255mm*145mm at 1X, 14.2mm*8mm 18X
-
Sony 1/2.8” 4K Starvis CMOS with a high signal-to-noise ratio
-
4K HDMI/USB/ETH/WiFi multiple video outputs
-
4K/1080P auto switching according to monitor resolution
-
SD card/USB flash drive for captured image and video storage
-
Built-in mouse control software ImageView
-
Embedded mouse Camera & AF Control Panels, Measurement & Synthesis Control Toolbars
-
Multi-language support
-
Head suction LED ring light, t controlled by ImageView
-
With the adapter bracket of 76mm diameter
Camera Module Datasheet
|
Order Code
|
Sensor & Size(mm)
|
Pixel(μm)
|
G Sensitivity
Dark Signal
|
FPS/Resolution
|
Binning
|
Exposure
|
|
PCZ-4KFD
|
Sony IMX415LQR-C
1/2.8"(5.57x3.13)
|
1.45x1.45
|
300mv/0.13 with 1/30s
|
30@3840*2160(HDMI)
30@3840*2160(NETWORK)
30@3840*2160(USB)
|
1x1
|
0.04~1000
|
Lens Module Datasheet
|
Order Code
|
Working Distance(mm)
|
Zoom Range
|
MTF(lp/mm)
|
Distortion
|
FOV@1.0X(mm)
|
FOV@20X(mm
|
|
ZM2139
|
205-255
|
0.021X~0.39X
|
160
|
0.5%
|
255.0x145.0
|
14.2x8.0
|
1X and 18x are defined as the normalized magnification, which is only used to represent the relative relationship between the lowest and highest magnification. Here, the normalized equations are 1x = 0.021/0.021; 18X=0.39/0.021
AFDM Light Module
|
Order Code
|
LED
|
Power
|
Inner Dia.(mm)
|
Out Dia.(mm)
|
|
|
LED5670
|
8 CREE xpes
|
3V/3A
|
50
|
76
|
|
LED direct ring light with adjustable brightness; NPC: No power cable

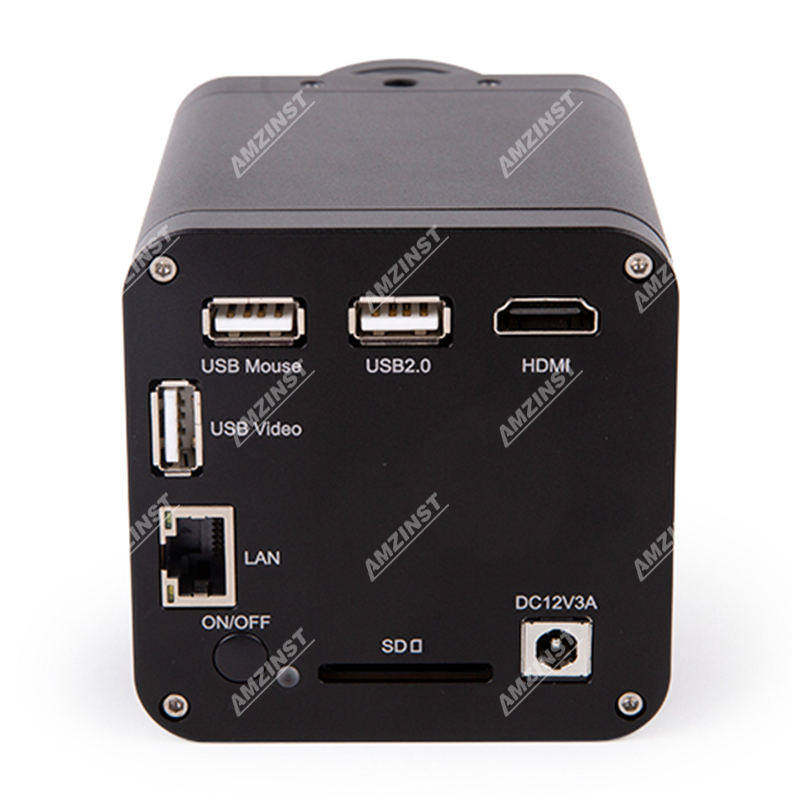

Interface & Button Functions
|
USB Mouse
|
USB mouse for ImageView control
|
|
USB2.0
|
Connect USB flash drive to save pictures and videos
Connect 5G WLAN module to transfer video wirelessly in real time with ImageView
|
|
HDMI
|
Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors
|
|
USB Video
|
Connect PC or another host device to realize video image transmission with ImageView
|
|
LAN
|
LAN port to connect router and switch to transfer video with ImageView
|
|
ON/OFF
|
Power on/off switch
|
|
LED
|
Power LED indicator
|
|
SD
|
Comply with SDIO3.0 standard and an SD card could be inserted for video and image saving
|
|
DC12V3A
|
DC12V3A power input
|
Software Functions
|
UI Operation
|
With USB mouse to operate on the embedded ImageView
|
|
Image Capture
|
JPEG format with 2M Resolution in SD card
|
|
Video Record
|
ASF format 1080P 30fps in SD card
|
|
Camera Control Panel
|
Including Exposure, Gain, White Balance, Color
Adjustment, Sharpness and Denoising Control
|
|
Auto Focus Control Panel
|
Including Zoom, Auto Focus, One Push, Manual Focus,
Reset, and other functions
|
|
Measurement Toolbar
|
Including Calibration, Measurement, and
measurement parameter Export functions
|
|
Synthesis Control Toolbar
|
Including software Zoom, Flip, Freeze, Crosshair, LED Control, Auto-focus, Comparison, Browser, Setting, Version Check function
|
Other Specifications for USB Output
|
White Balance
|
Auto White Balance
|
|
Color Technique
|
Ultra-Fine Color Engine (USB)
|
|
Capture/Control SDK
|
Standard UVC for Windows/Linux/Mac(USB)
|
|
Recording System
|
Still Picture or Movie (USB)
|
Operating Environment
|
Operating Temperature(in Centidegree)
|
-10~ 50
|
|
Storage Temperature(in Centidegree)
|
-10~ 60
|
|
Operating Humidity
|
30~80%RH
|
|
Storage Humidity
|
10~60%RH
|
Overall Dimensions
|
Width x Depth x Height
|
80 mm x 80 mm x 80mm
|
|
Shipping Weight
|
0.75kg
|
|
|
