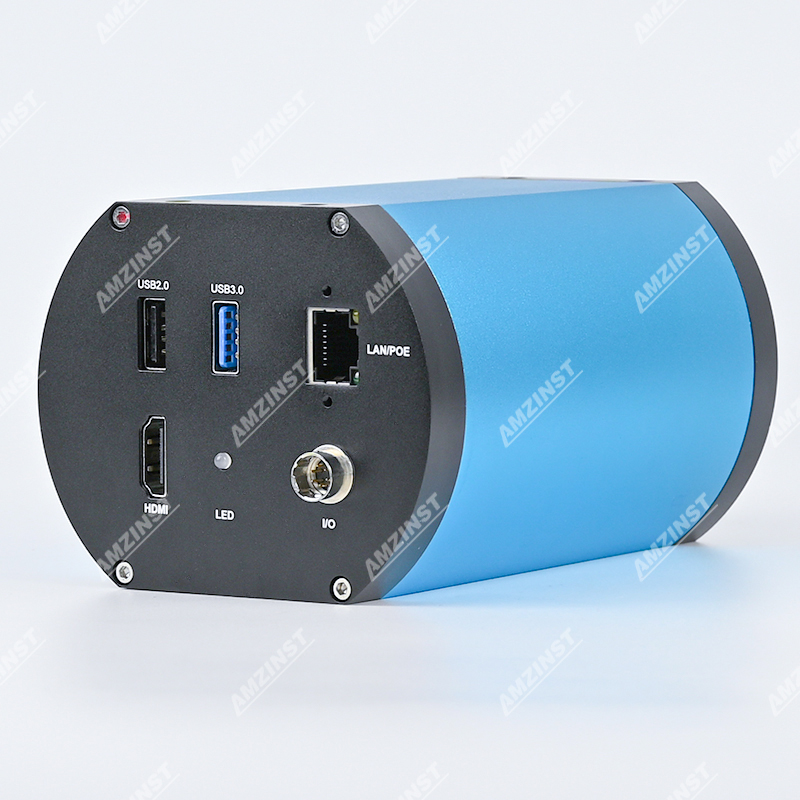

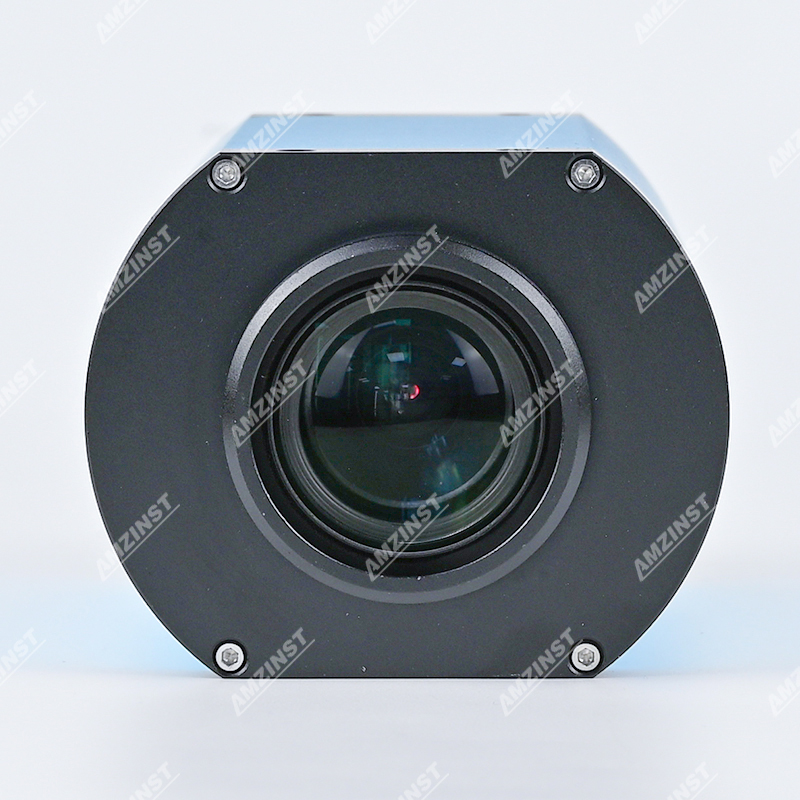

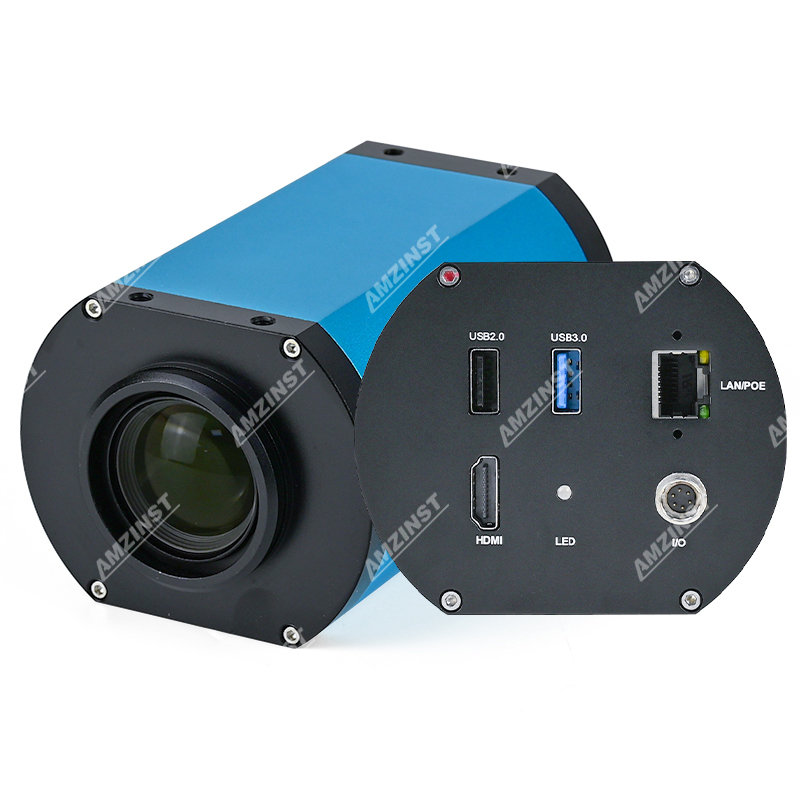

PCZ-8M 1x-28x 8MP 60pfs Zoom Autofocus Microscope Camera 1/2.8" Sensor
  • Specifications
  • Accessories
  • Products Catalog

  • ● Image Sensor: Colour CMOS sensor Sony Exmor
    ● Focus Mode: Auto Focus
    ● Sensor dimensions: 1/2.8”
    ● Effective pixels: 8 MP

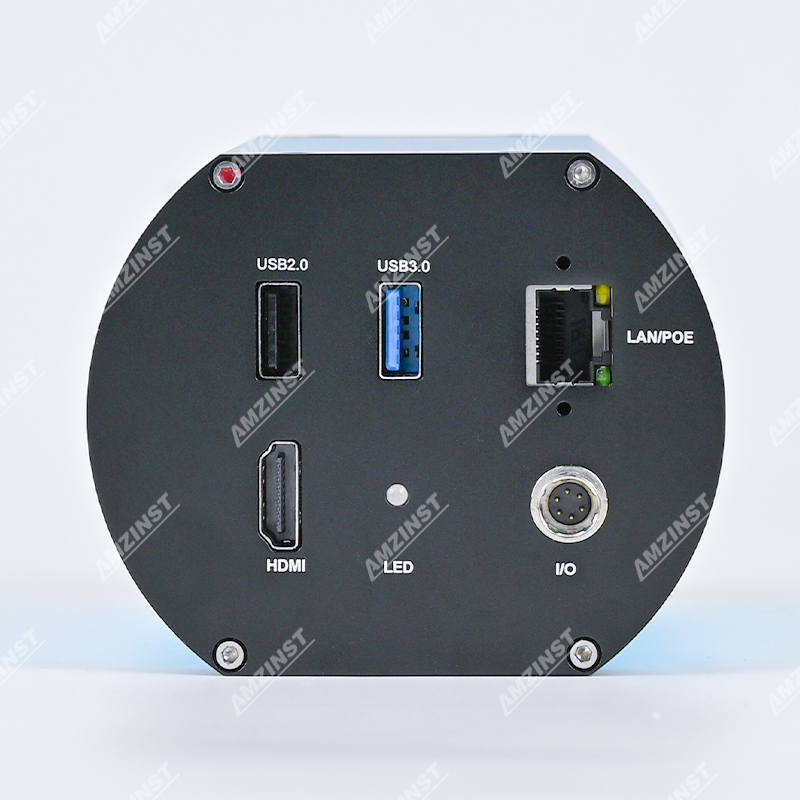

    ● Output: USB/HDMI/ LAN
    ● Power: DC12V
    ● Method of operation: PC
    ● Scanning: line-by-line scanning
    ● White balance: Manual/Auto
    ● Exposure: Manual/Auto
    ● Shutter speed : 1/50s(1/60s)-1/10000s
    ● SNR: >50dB
    ● Angle of view: D: 78.6°(W)-6.16°(T)
    H: 69.2°(W)-5.22°(T)
    H: 45.4°(W)-3.26°(T)
    ● Frame Rate: HDMI:4K@60fps
    LAN:4K@30fps/1080P@60fps
    ● Operating Temp: 0°C – 50°C
    ● Optical magnification: 1x-28x
    ● Digital magnification: 1x-3x
    ● Digital Zoom: Support
    ● Working Distance: 10cm to Infinity
    ● Dimensions (mm): 88 x 72 x 125
    ● Weight (Kg): 0.57


    Other accessories:
    1x HDMI cable
    1x GigE cable
    1x LAN cable
    1x Power adapter
    1x USB mouse


    Magnification FOV (WD:10mm) FOV (WD:300mm)
    1x 171mm*92mm 420mm*230mm
    2x 89mm*50mm 196mm*110mm
    3x 71mm*40mm 150mm*84mm
    4x 60mm*33mm 116mm*65mm
    5x 52mm*29mm 101mm*57mm
    14x 24.3mm*13.5mm 45.5mm*25mm
    28x 12.15mm*6.75mm 22.75mm*13mm
