ZM-08476HE Series Auto-Focus Video Microscope With Real-Time Magnification Display
  • Specifications
  • Accessories
  • Products Catalog

  • - Unique autofocus zoom integration design
    - Measurement without need for calibration, real-time display of magnification

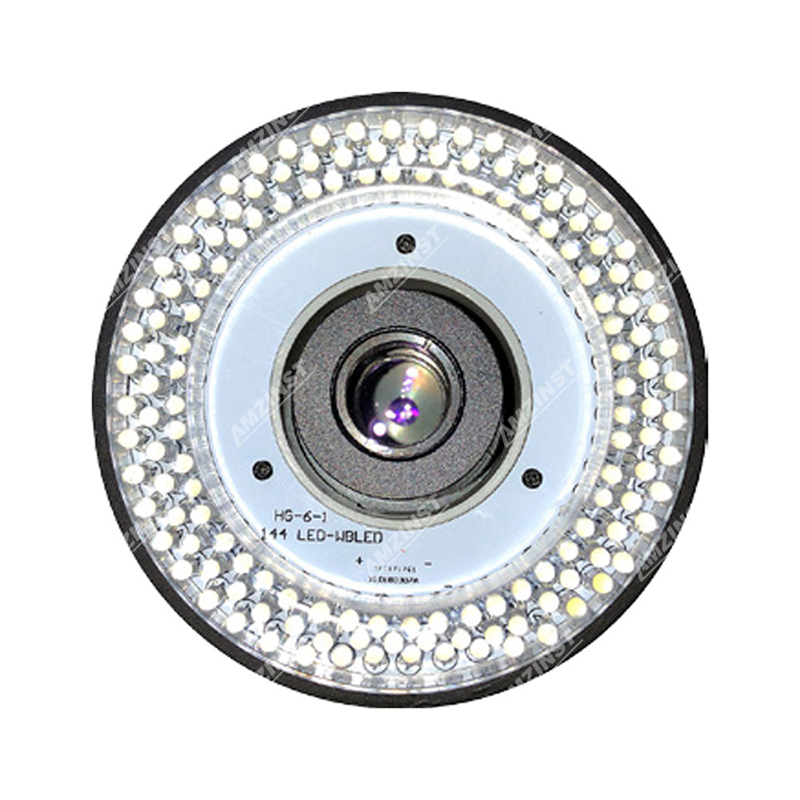

    - Head detachable suction LED ring light with brightness controlled by the camera
    - Sony Exmor/Starvis back-illuminated CMOS sensor
    - Powerful ISP, HDR, noise reduction, and digital zoom function
    - Support preview and playback of images or videos saved in USB flash drive
    - HDMI/USB multi-port output
    - Support hard trigger, mouse, pedal, keyboard, and other control interfaces
    - Support secondary development, and provide professional intelligent analysis software

    Specification:

    ZM-08476HE ZM-08476HE2 ZM-08476HE3

    Focus

    Auto

    Manual

    ●

    /

    /

    ●

    ●

    /

    Sensor

    CMOS

    ●

    ●

    ●

    Sensor Size 1/2.8" ● ● ●
    Pixel Size 2.9μm ● ● ●
    Shutter Rolling ● ● ●
    Resolution 1920x1080 ● ● ●
    FPS

    60fps

    HDMI:1080P@60fps

    USB:1080P@30fps

    ●

    /

    /

    ●

    /

    /

    /

    ●

    ●

    Power DC12V ● ● ●
    Interface

    HDMI

    HDMI/USB

    ●

    /

    ●

    /

    /

    ●

    Storage

    U disk

    PC

    ●

    /

    ●

    /

    /

    ●

    Aux lens

    		Optional ໐ ໐ ໐


    Magnification specification

    Magnification FOV (WD=10.8cm) FOV (WD=11.2cm)
    0.8x 17.5mmx9.8mm 17.7mmx9.9mm
    1x

    13.9mmx7.9mm

    		14.0mmx7.9mm
    2x

    6.9mmx3.9mm

    		7.0mmx4.0mm
    3x 4.7mmx2.6mm 4.8mmx2.7mm
    4x 3.3mmx2.0mm 3.4mmx2.1mm
    4.76x 2.9mmx1.7mm 3.0mmx1.8mm

    Note:
    The object distance after parfocalization is about 110mm.
