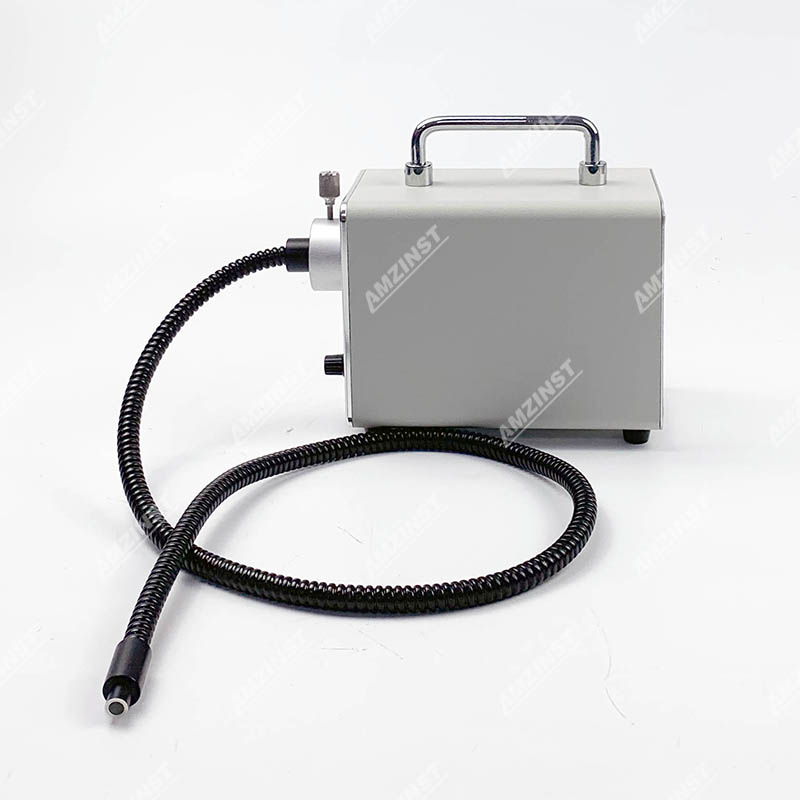

OFL-L20FLB1M 20W LED Cold Light Box With 1m Flexible Fiber Optic Light Guide UL & CE Approval
  • Specifications
  • Accessories
  • Products Catalog
  • 20W LED Light Source box specification:
    ● Power: 20W
    ● Working voltage: 100-240V, AC 50-60HZ
    ● Color temperature: 6400K or Customized
    ● Connection Diameter: Φ6mm, Φ8mm
    ● Lumens: ≥160LM, ≥260LM
    ● LED Lumens: ≥1250LM
    ● Dimension (mm): 270X100X138
    ● length of the fiber arms: 50cm
    ● Lamp House Material: Aluminium

    1m Flexible Fiber Optic Light Guide Specification:
    ● Length of the fiber cable: 1000mm (It is possible to OEM other lengths)
    ● Fiber cable diameter: 10mm
    ● Fiber Front Port Dimensions: 8x8mm (Diameter * Length)
    ● Fiber back Port Dimensions: 15x18mm (Diameter * Length) ( Connect cold light box)
    ● Color: Balck

    SKU for accessories:
    EU power supply unit: S-LED
    UK power supply unit: FL-ADUK
    Dual fiber arm: FL-B
    O-Ring fiber arm: FL-CR
    The lens on the top dual fiber arm: FL-L
    Cooling Fan: FL-FAC
    PCB with a cooling element: FL-RCE
    Rubber feet including screw: FL-RFS
    Spare 20WLED: S20-LED
