ZMR-0745APO10X Zoom 0.7x-4.5x Single Lens With 10x Semi-APO Infinity Plan Achromatic Metallographic Objective
  • Specifications
  • Accessories
  • Products Catalog

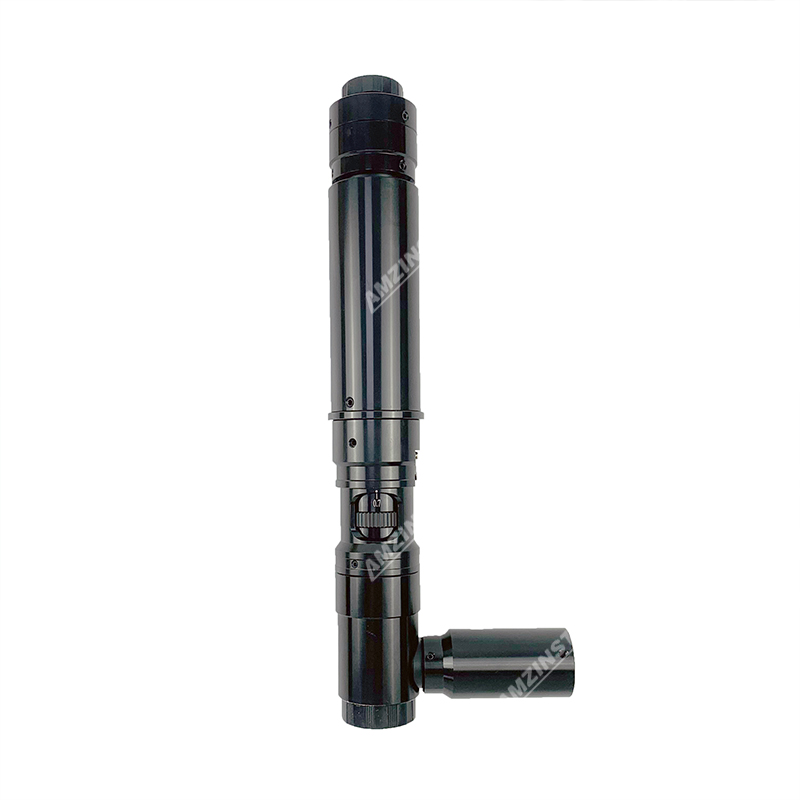

  • Lens specification:
    ● Magnification: zoom 0.7x-4.5x
    ● Eyepieces: 1x
    ● Working distance: 90mm
    ● Zoom lens length: 267.7mm
    ● NA: 0.031-0.086
    ● Focal depth: 0.11-1.4mm
    ● Resolution: 3.75-10.4μm
    ● Distortion: ＜0.02%(high magnification)， ＜0.01% (low magnification)
    ● Field of view: 1.3-8.6mm

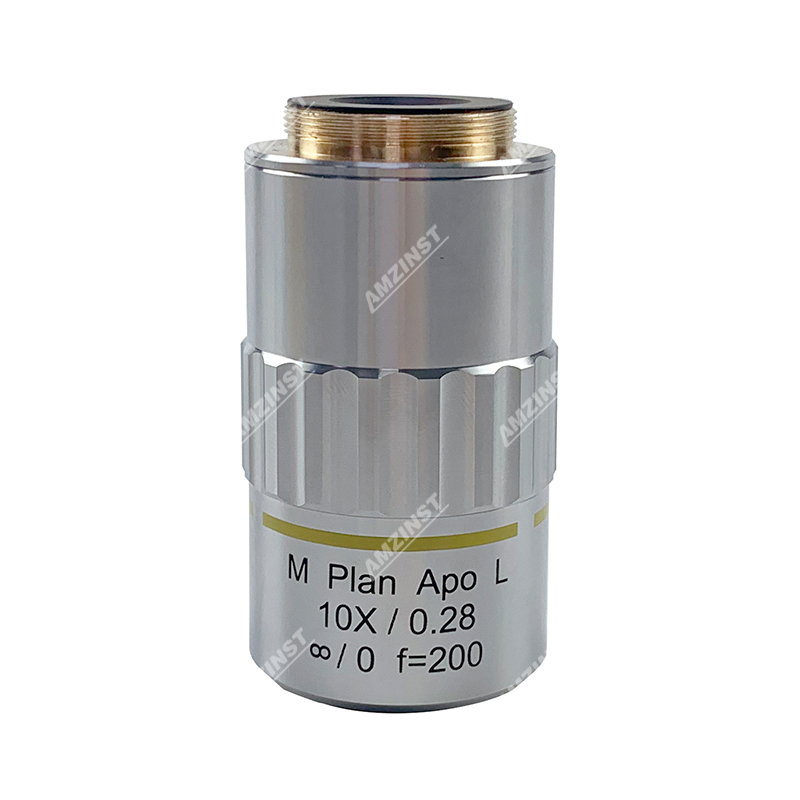

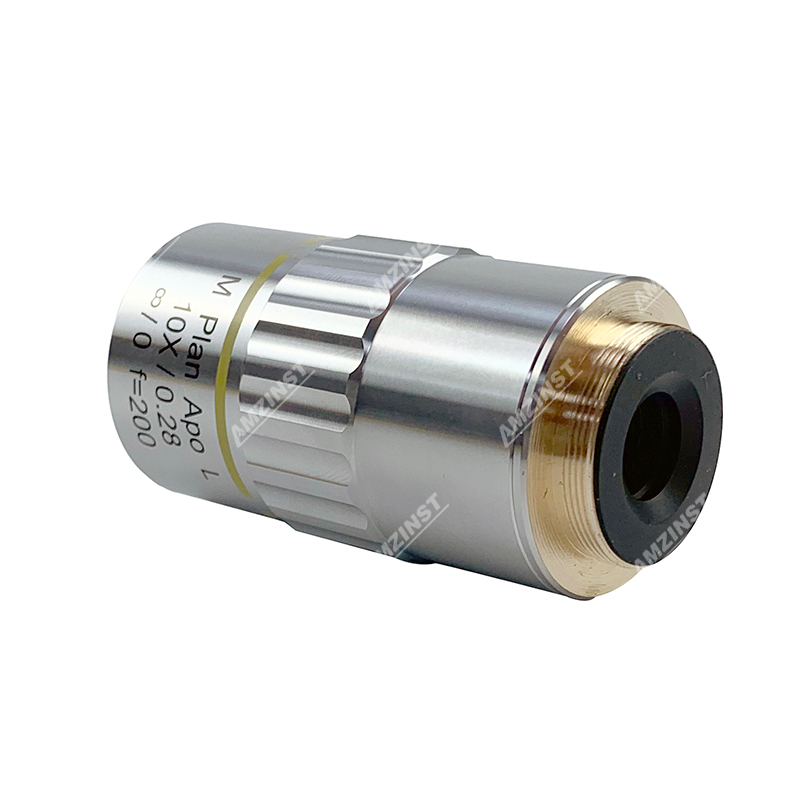

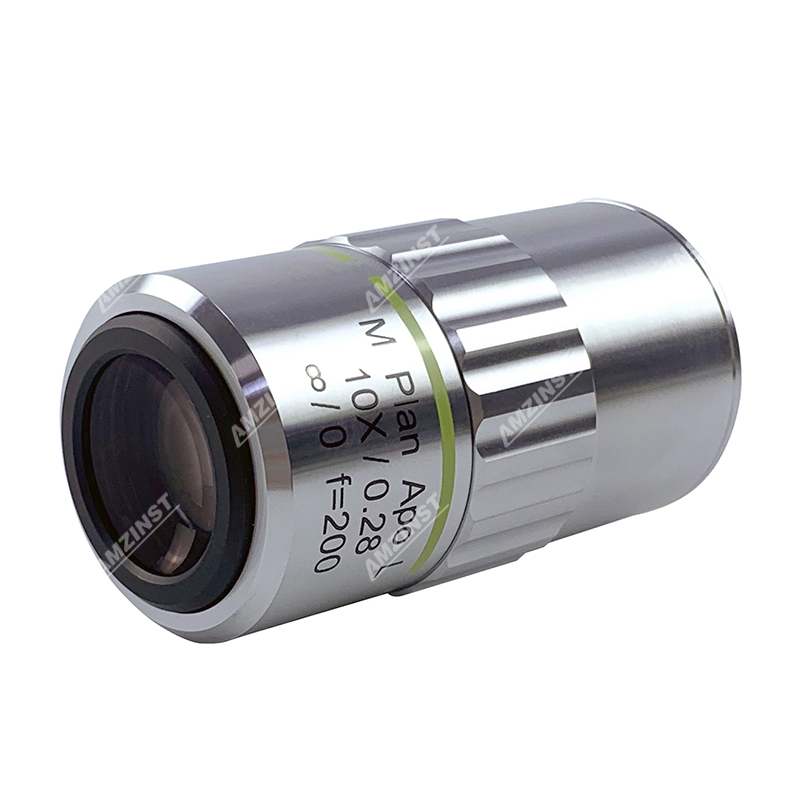

    10x Semi-APO Infinity Plan Achromatic Metallographic Objective specification:
    ● Order NO.: ME-200APOX10
    ● Magnification: 10x
    ● Numerical aperture: 0.28
    ● WD: 33.4mm
    ● Focal length: 20mm
    ● Resolution: 1.2μm
    ● Focal depth: 3.5μm
    ● Screw Size: M26×0.705



    ● Illumination:
    Point LED light
