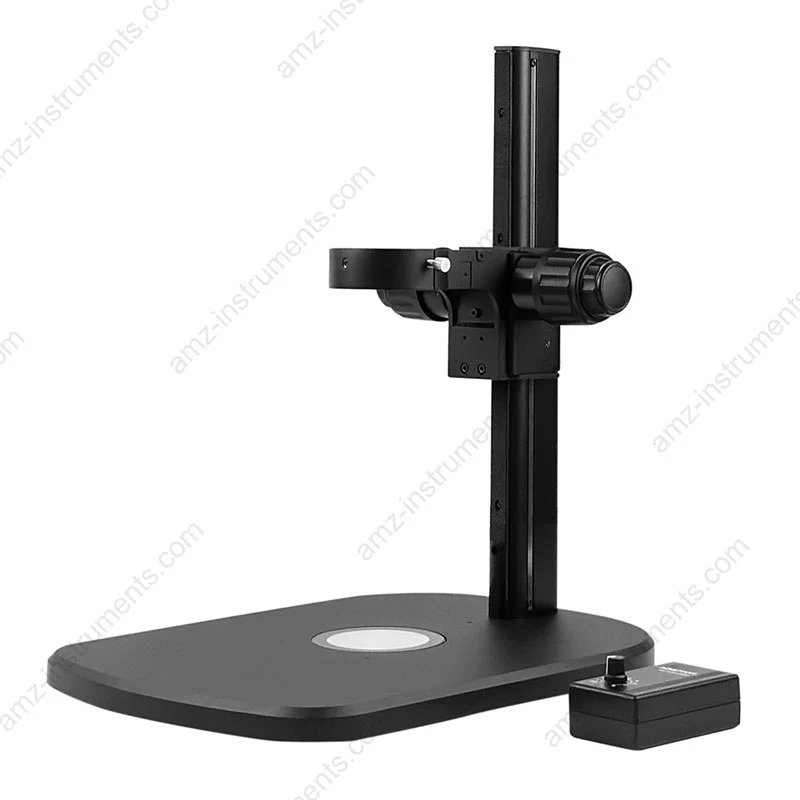

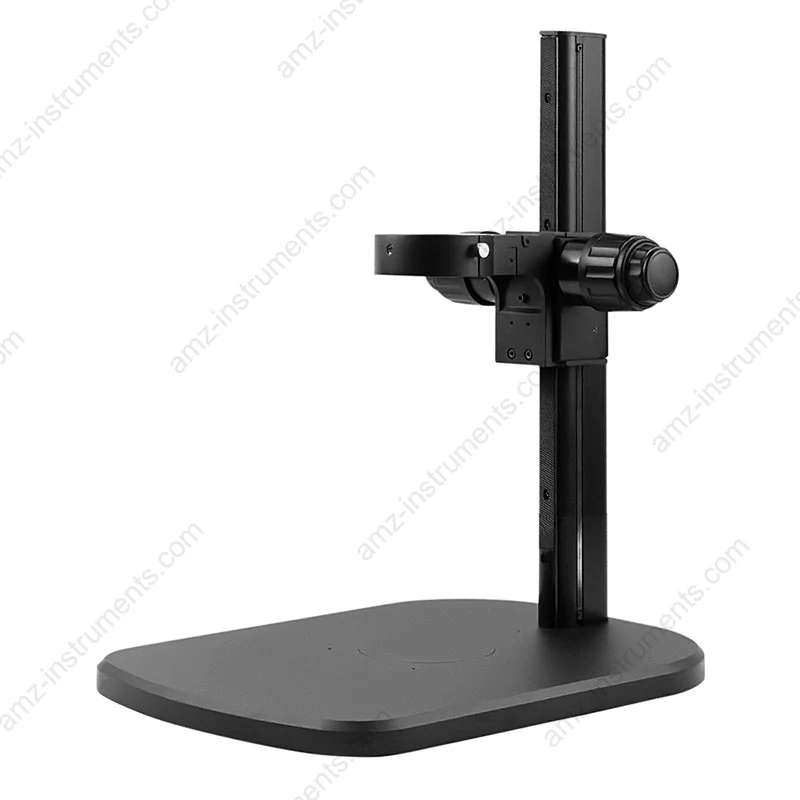

M3-R326CLED Heavy Base Microscope Track Stand With Base Light And Coarse And Fine Focus & 76mm Focus Block
  • Specifications
  • Accessories
  • Products Catalog
  • ● Vertical Track height: 326mm
    ● Focus distance: 160mm
    ● Microscope body holder: φ76mm
    ● Focus: Coaxial Coarse & Fine
    ● Coarse Focus Distance per Rotation: 23mm
    ● Fine Focus Distance per Rotation: 0.56mm
    ● Focusing Knob Tightness Adjustable
    ● Vertical post Material: Metal
    ● Base Material: Alloy
    ● Base Size: 300x400mm
    ● Base height: 20mm
    ● Base weight: around 6-7kg
    ● Base Color: Black
    ● Base Surface: Anodized
    ● Base Parallelism: 0.05

    Base Light:
    ● LED Type: Side Illumination SMT
    ● LED color temperature: 6400K
    ● LED Qty: 42pcs SMT LED
    ● Power: 6W
    ● Surface brightness: > 8000lx
    ● Surface brightness unevenness: < 5%
    ● Base size: Φ95*5mm
    ● Luminous surface diameter: Φ72mm
    ● Power input: AC100V-240V 50/60Hzo 60Hz

    Accessories:
    ● Metal work plate: Φ95x5mm (SKU: M3- BWP95)
