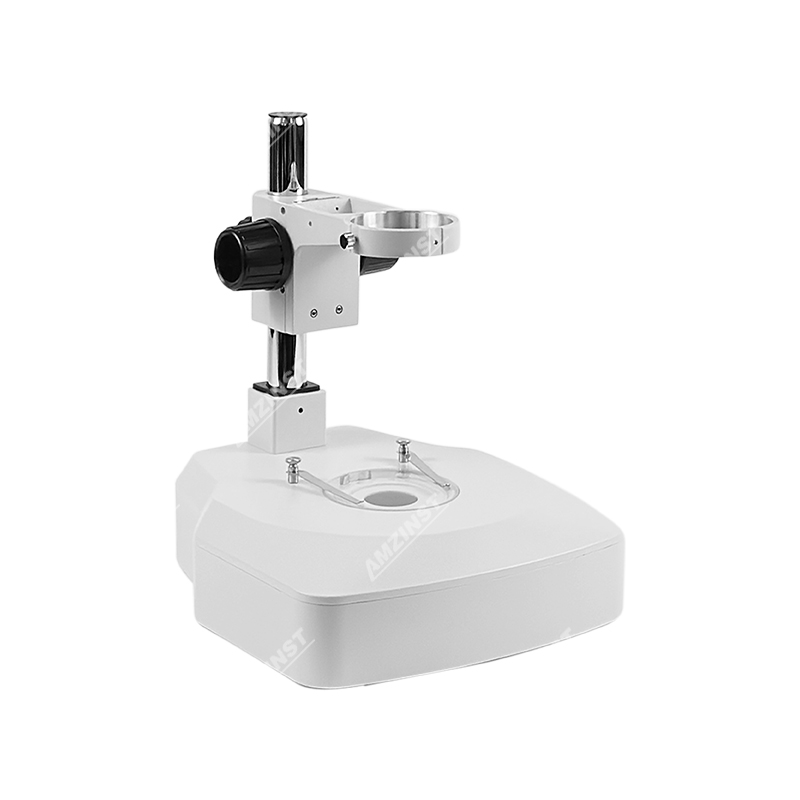

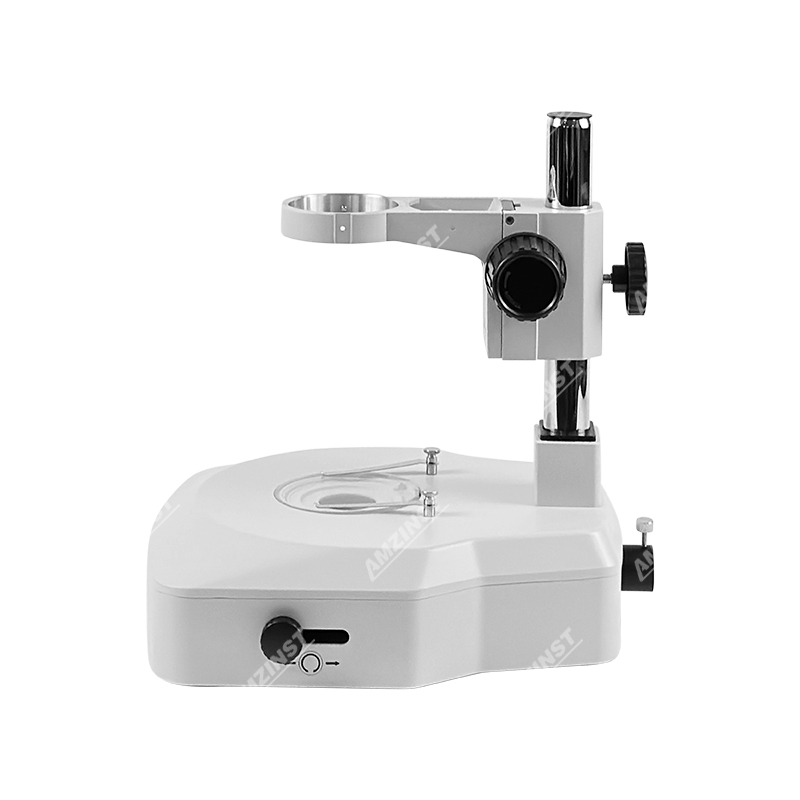

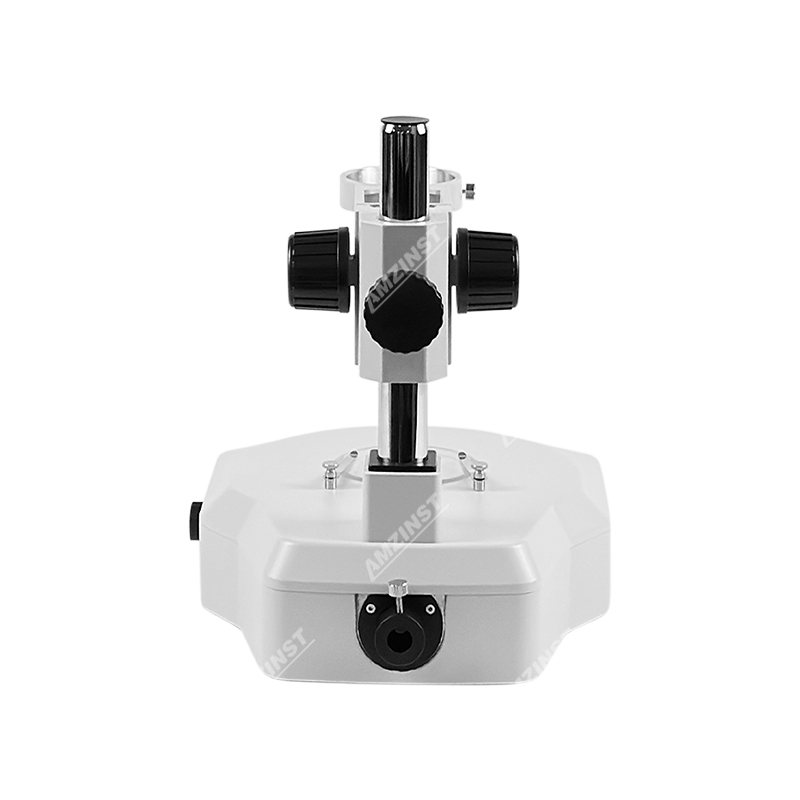

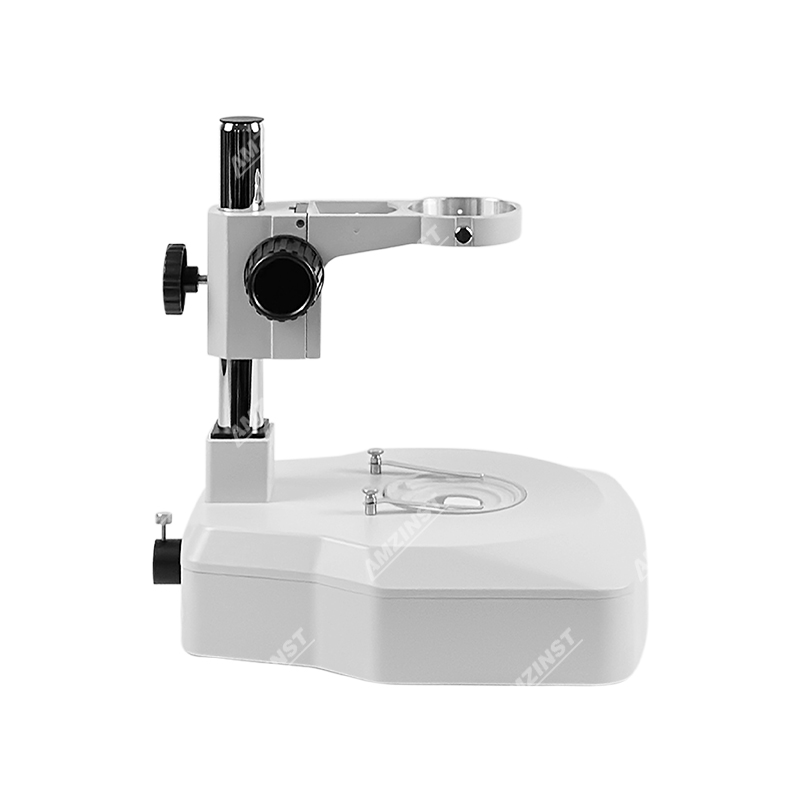

DL-2FLS Brightfield & Darkfield Diascopic Microscope Stand With 5W Fiber Light Source
  • Specifications
  • Accessories
  • Products Catalog

  • ● Contrast methods: Oblique; 360° rotating and sliding mirror; polished mirror on one side, silver metallic frosted on one side
    ● Working plate: 100mm glass plate
    ● Focus mount diameter: 76mm
    ● Coarse focus travel: 100mm
    ● Input Power: 100V-240V 50/60Hz
    ● Base size: 322 x 295 x 350mm
    ● Base weight: 6kg (without illuminator)

    5W Fiber Light Source specification,
    ● Power: 5W
    ● Working voltage: 100-240V, AC 50-60HZ
    ● Color temperature: 6400K or Customized
    ● Connection Diameter: Φ6mm, Φ8mm
    ● Lumens: ≥160LM
                      ≥260LM
    ● LED Lumens: ≥1250LM
    ● Dimension (mm): 270X100X138
    ● length of the fiber arms: 50cm
    ● Lamp House Material: Aluminium
