AIM-PT 40x-1600x Trinocular Biological Microscope

AIM-PT

AIM-PTPA

AIM-PTIP

Viewing head

Articulated free binocular head, 30° inclined, interpupillary distance 50-75mm

໐

Articulated free trinocular head, 30° inclined, interpupillary distance 50-75mm

●

Eyepiece

PL10X/22mm high eyepoint eyepiece, diopter adjustment ±5, tube Ø30mm

●

Achromatic objective

4X/0.1, 160/0.17

●

10X/0.25, 160/0.17

●

40X/0.65(S), 160/0.17

●

100Xs/0.1(S, Oil), 160/0.17

●

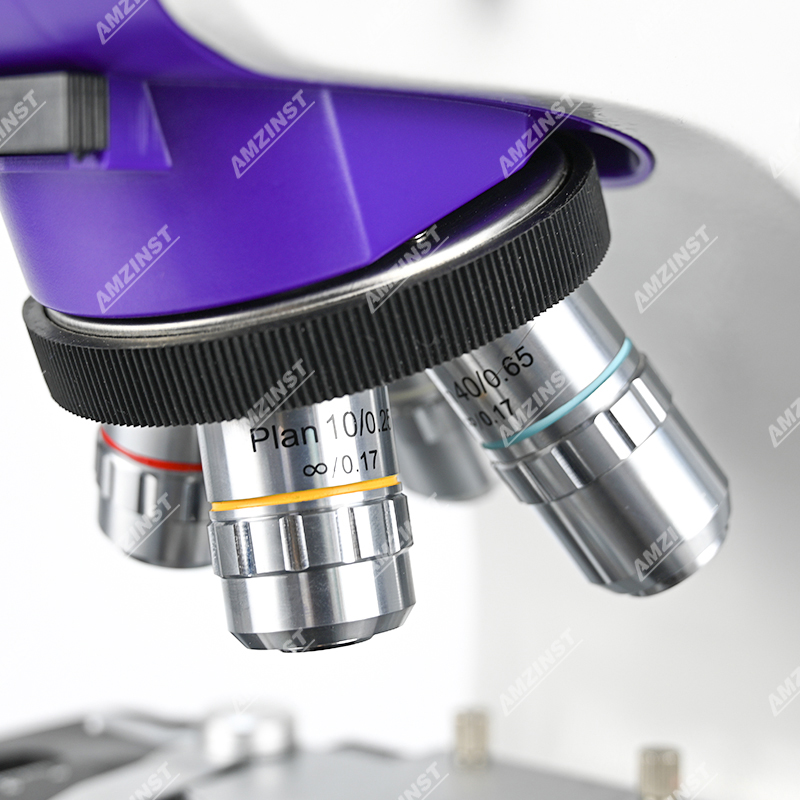

Plan achromatic objectives

4X/0.10, 160/0.17

●

10X/0.25, 160/0.17

●

40X/0.65(S), 160/0.17

●

100X/1.25(S, Oil), 160/0.17

●

Infinity plan achromatic objectives

4X/0.10, ∞/0.17

●

10X/0.25, ∞/0.17

●

40X/0.65(S), ∞/0.17

●

100X/1.25(S, Oil), ∞/0.17

●

Nosepiece

Backward quintuple or quadruple objective nosepiece

●

Condenser

Abbe condenser set

●

Dry darkfield condenser

໐

Oil-darkfield condenser

໐

Swing abbe condenser

໐

Stage

220*148mm X-aris low hand position double mechanical stage(steel wire transmission): 76*50mm, precision 0.1mm, damped double slide clamp

●

Focusing system

Coaxial coarse and fine focus knobs, precision 0.002mm

●

Illumination

3W LED lamp with kohler illumination system

●

5W LED

໐

Optional

Insert phase contrast apparatus

໐

Polarizing device

໐
