AIM-B3 40X-1600X Binocular Biological Microscope With Infinity Plan Achromatic Objective
1, Using infinite optical system
2, New designed high contrust full plan objective, indicate excellent images.
3, Configured with wide field eyepieces, Each eyepieces allows diopter adjustment to suit different uesers.
4. The overall design of main body is ergonomic design, it makes user more comfortable.
5. New large stage with graphite coating on surface.
6, Standard kohler illumination, using LED light, has long using life. 7, Optional parts: Dark filed, phase contrast, fluorescence, and polarization can be fitted
  • Specifications
  • Accessories
  • Products Catalog
  • ● Head: binocular, inclined at 30° interpupillary 48mm-75mm
    ● Eyepiece: WF10x/F.N.22mm

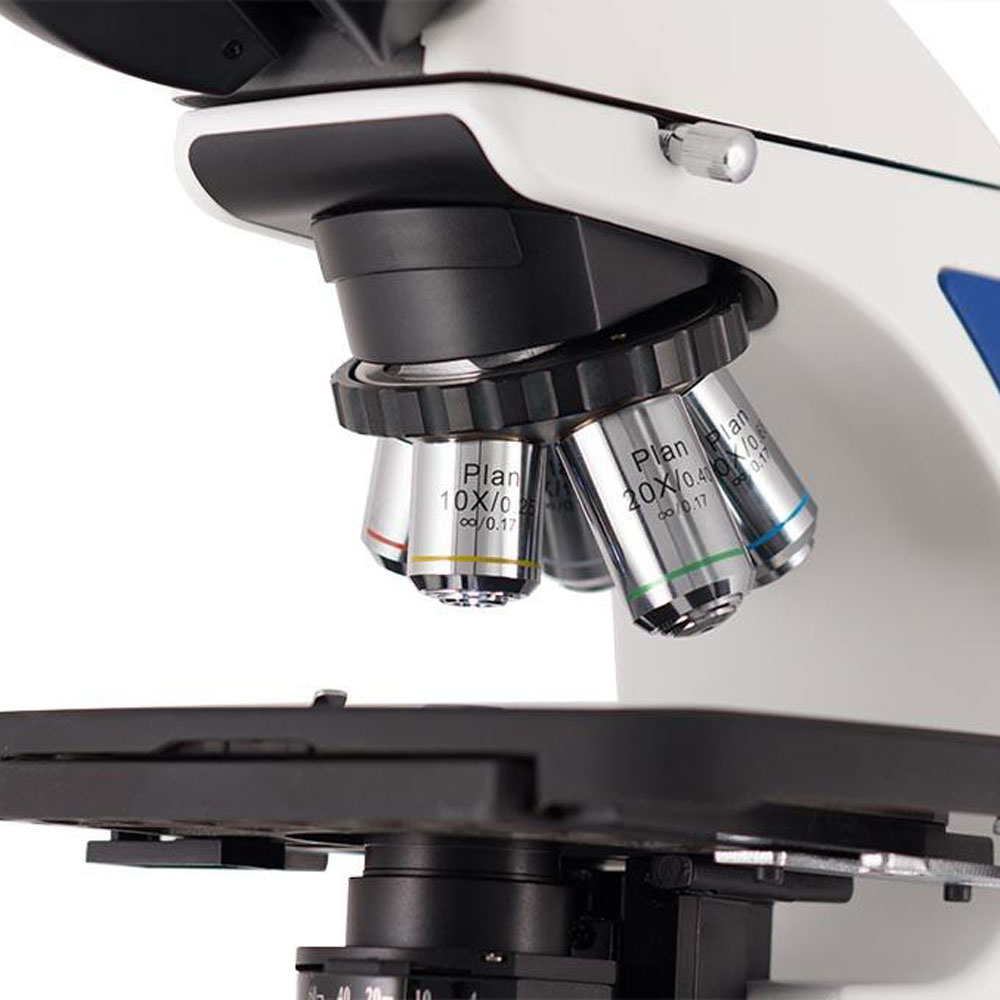

    ● Infinity plan achromatic objective: 4x, 10x, 40x, 100x
    ● Nosepiece: backward quadruple nosepiece
    ● Condenser: NA1.25
    ● Focusing: coaxial coarse and fine adjustment, fine division 0.001mm, coarse stroke 37.7mm/rotation, fine division 0.1mm/rotation, coarse stroke 24mm

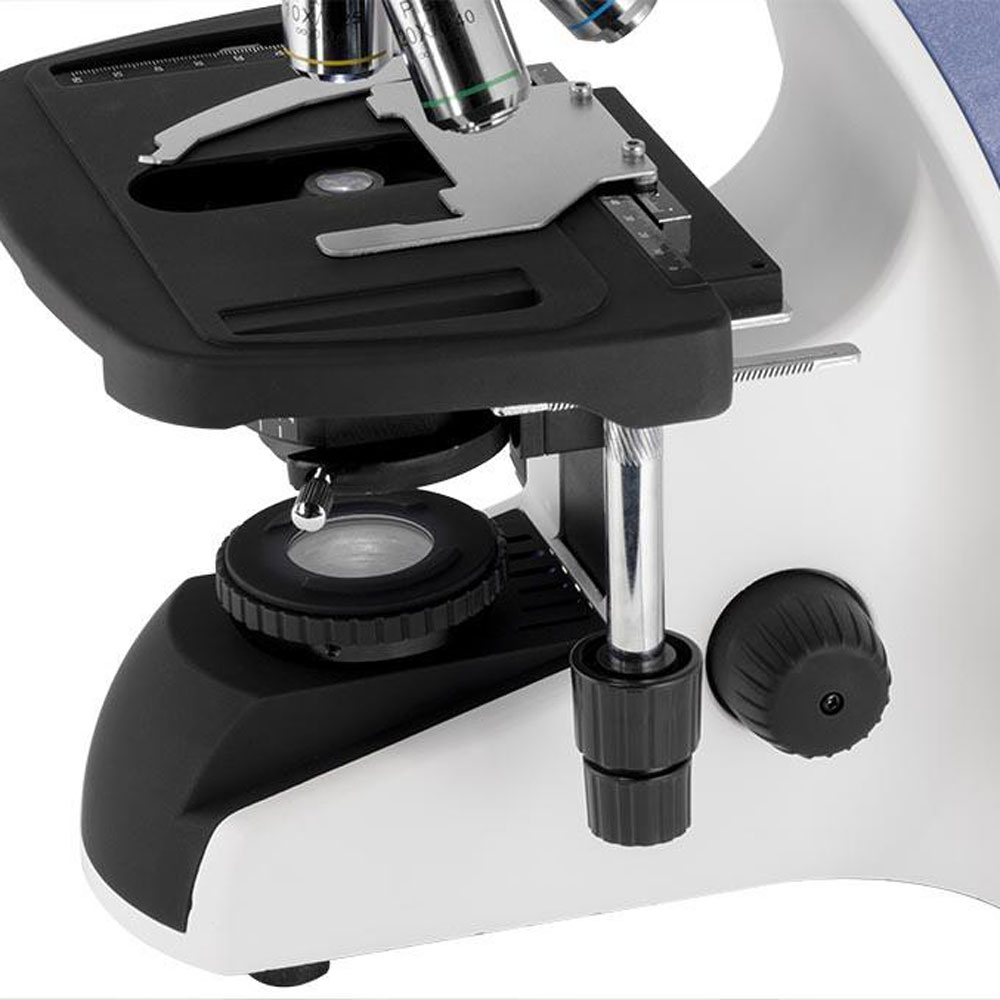

    ● Stage: double layer mechanical stage 216x150mm, graphite surface, moving range 75mmx55mm

  • 1, Eyepiece:

    Wide Field Eyepiece WF16X/F.N.15mm
    Wide Field Eyepiece WF20X/F.N.12mm

    2, Objective,

    Finite High Contrast Chromatic-free Full Plan  Objectives 4X 10X 40X 100X

    3, Simple  Polarizing Attachment

    4, Phase Contrast Attachment
