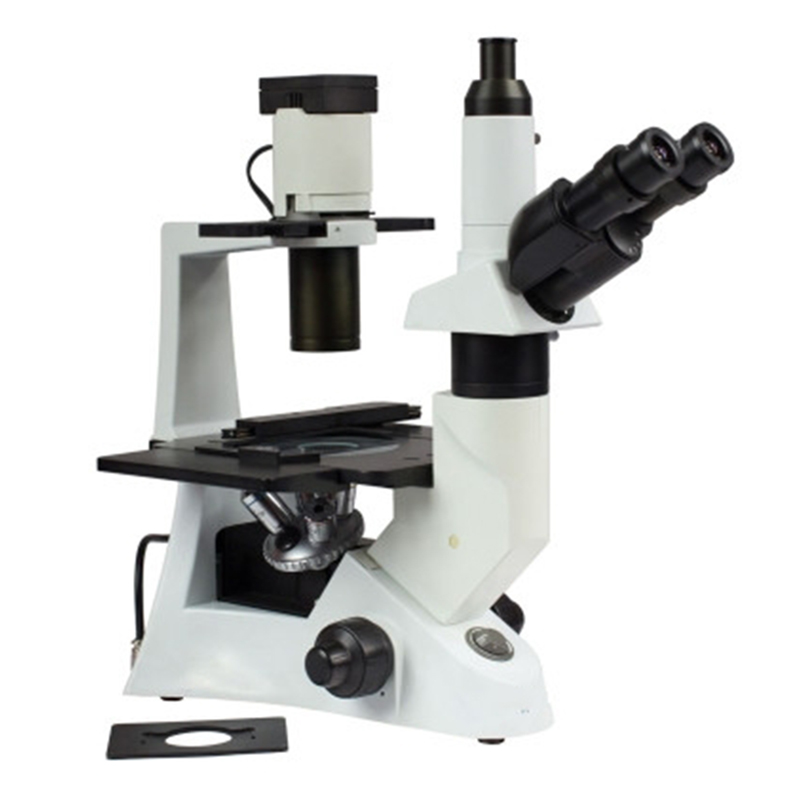

ABM-100 Inverted Biological Microscope For Laboratory Research
1, Excellent Optical Function with Infinitive Optical System.
2, Innovative Stand structure, Sharp Image Display, Convenient and Special for Viewing Incubating Cell Tissue.
  • Specifications
  • Accessories
  • Products Catalog
  • Optical system
    		 Infinite optical system
    		 ABM-100
    Viewing head
    		 Trinocular head inclined at 30°, interpupillary distance 48-75mm
    		 ●
    Eyepiece
    		 Extra wide field eyepiece EW10X/22mm
    		 ●
    LWD infinite plan objective
    		 4X/0.13, WD= 16.3mm
    		 ໐
    10X/0.3, WD=12.4mm
    		 ໐
    20X/0.4, WD= 1.5mm
    		 ໐
    40X/0.6, WD= 2.2mm
    		 ໐
    Infinite plan phase objective
    		 PH10X/0.25, WD= 10 mm
    		 ●
    PH20X/0.4, WD= 5.1mm
    		 ●
    PH40X/0.6, WD= 2.1mm
    		 ●
    Nosepiece
    		 Quintuple nosepiece
    		 ●
    Condenser
    		 ELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm)
    		 ●
    Centering telescope
    		 Centering telescope (Φ30MM)
    		 ໐
    Phase annulus
    		 10X-20X、40X Phase annulus plate（fixed）
    		 ●
    10X-20X、40X Phase annulus plate（adjustable）
    		 ໐
    Stage
    		 Plain stage 160X250mm
    		 ●
    Glass insert
    		 ●
    Attachable mechanical stage, X-Y coaxial control, moving rang120x78mm
    		 ໐
    Auxiliary stage 70X180mm
    		 ●
    Terasaki holder
    		 ໐
    Petri dish holder Φ35mm
    		 ໐
    Slide glass holder Φ54mm
    		 ໐
    Petri dish holder Φ90mm
    		 ໐

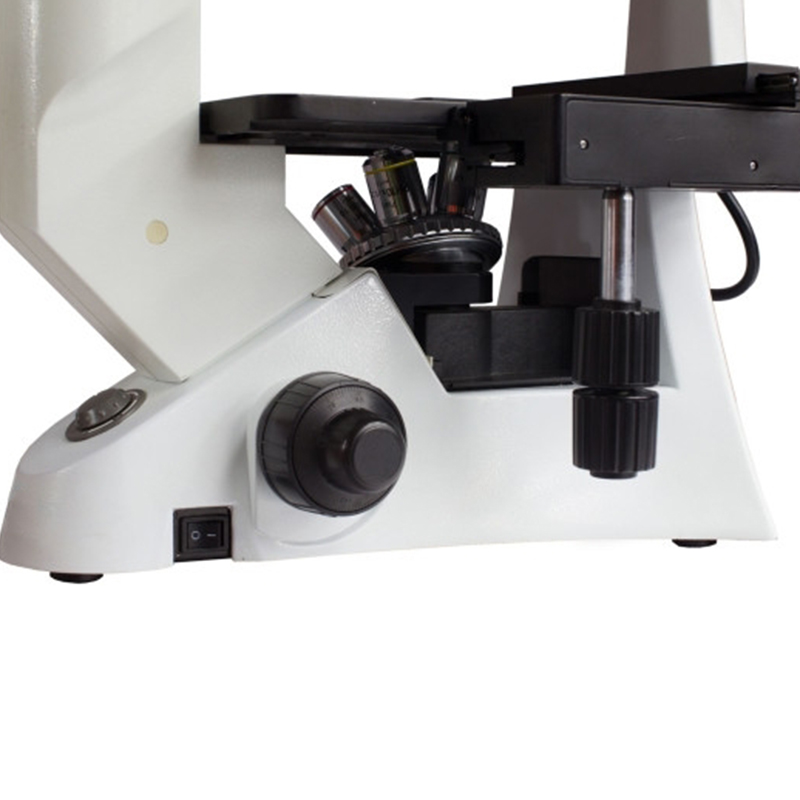

    Focusing
    		 Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range up 8mm, down 3mm
    		 ●
    Illumination
    		 Halogen lamp 6V/30W
    		 ●
    3W LED
    		 ໐
    Filter
    		 Blue、Green and Ground Glass, Diameter 45mm
    		 ●
    Accessories
    		 Inverted fluorescent attachment FI-100
    		 ໐
    Photo attachment
    		 ໐
    Video adapter with C-Mount
    		 ໐
    ''●'' = Standard configuration ''○''= Option

  		• With LWD Infinitive Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier

    		Advanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable

    		Different Holders for Various Observations

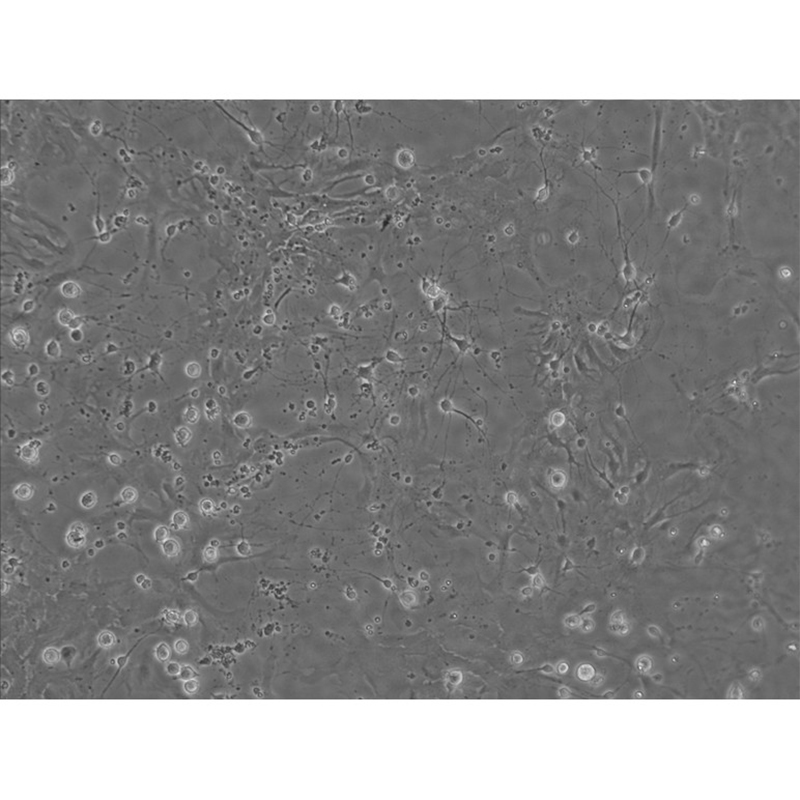

    		With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimen
