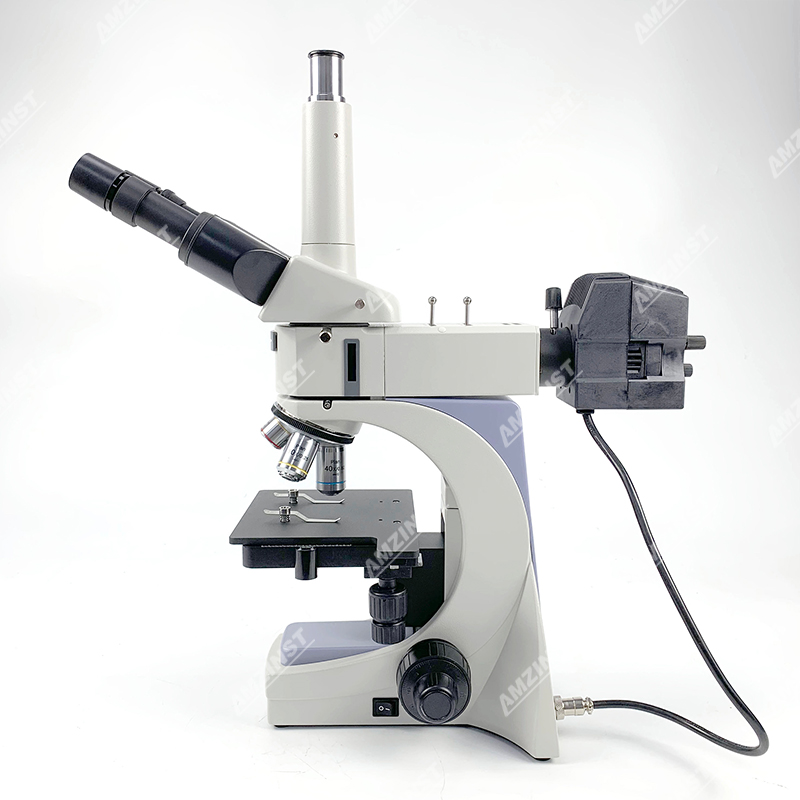

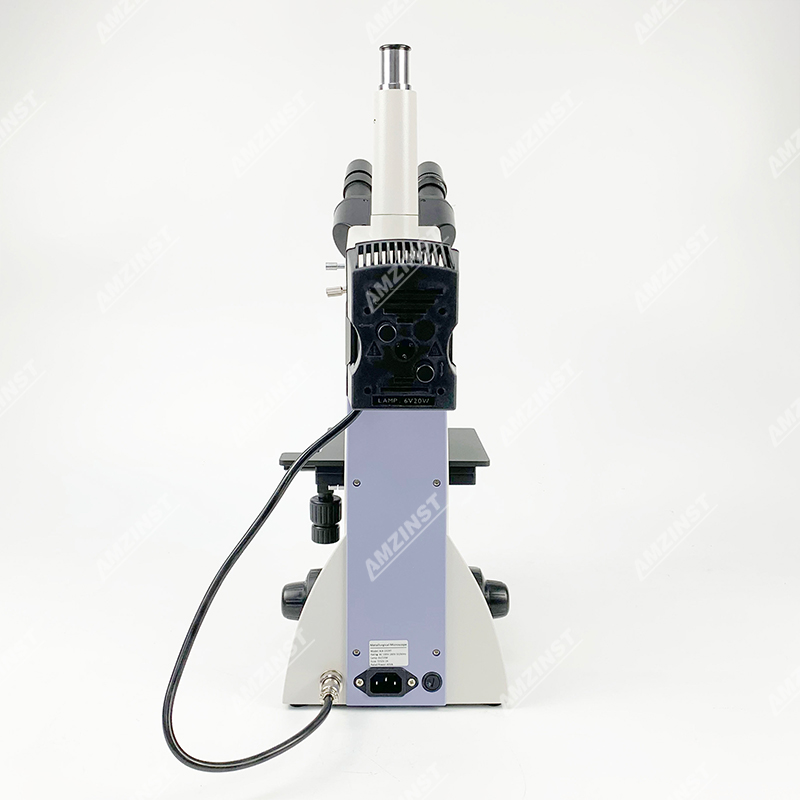

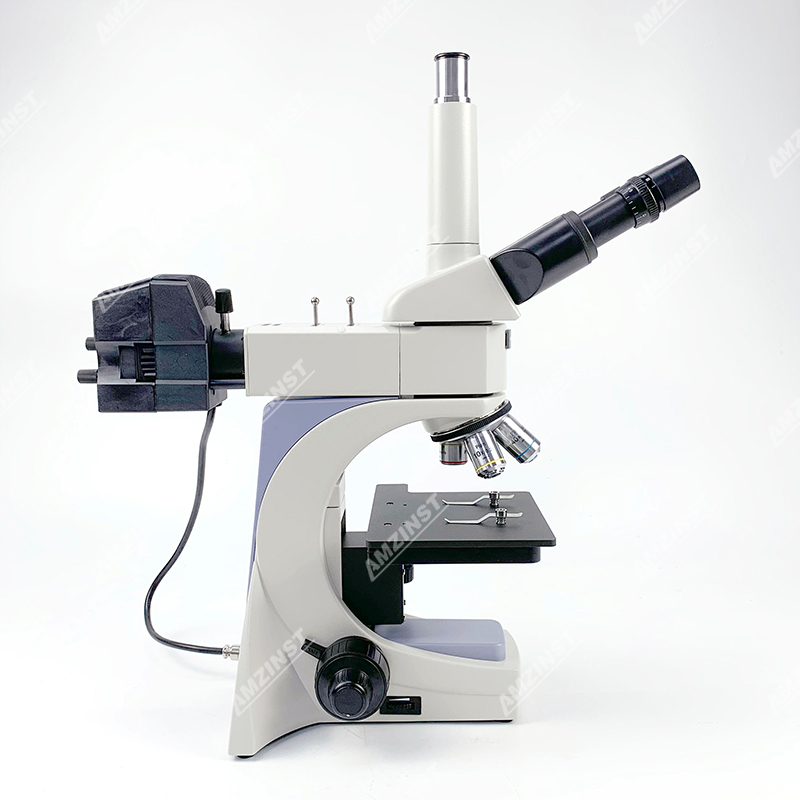

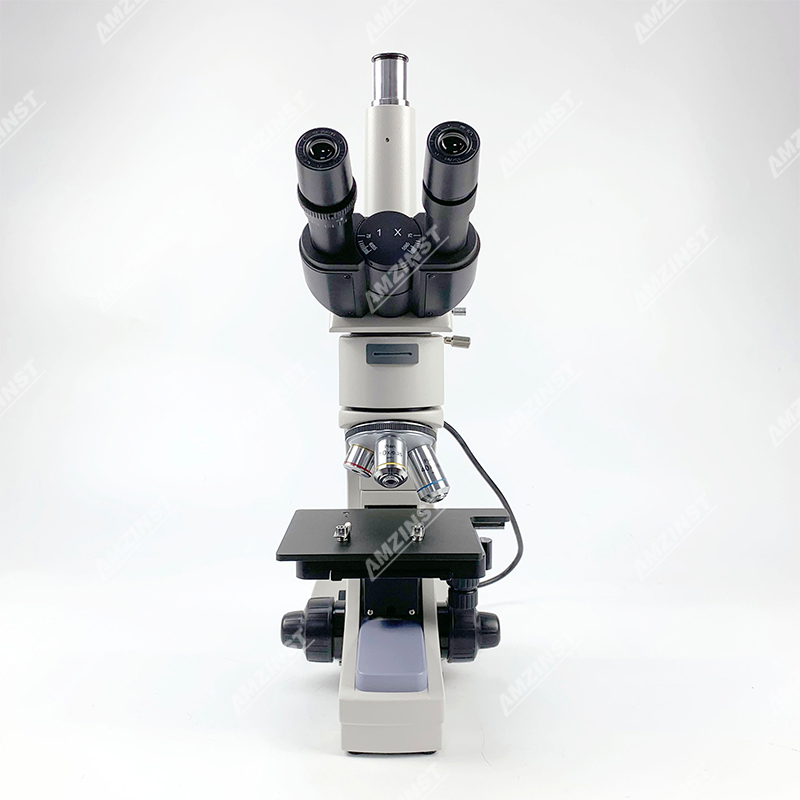

AJX-102RT Metallurgical Microscope With Reflected Illumination

The Microscope is widely used for PCB board, LCD display and metal structure observation and inspection. With Ingenious stand and convenient operation, it will be your best choice.

inquire

Specifications
Accessories
Products Catalog

Excellent infinite Optical System.
High Magnification Objective with Long Working Distance.
Comfortable and Enjoyable Operation with low and Repetitive Position Control knob.
Easy, Safe, and Reliable Lamp Replacement Device.
The Microscope is widely used for PCB board, LCD display, and metal structure observation and inspection.
With an Ingenious stand and convenient operation, it will be your best choice.

		AJX-102RT	AJX-102RTH	AJX-102RTY	AJX-102RTG
Viewing Head	Seidentopf type binocular head, 30° inclined, interpupillary distance 50-75mm	๐	๐	๐	๐
Viewing Head	Seidentopf type trinocular head, 30° inclined, interpupillary distance 50-75mm	●	●	●	●
Eyepiece	WF10X /18mm	●	●	●	●
	WF10X /18mm with 0.1mm micrometer & crosshair	๐	๐	๐	๐
	WF8X /18mm	๐	๐	๐	๐
	WF12.5X /15mm	๐	๐	๐	๐
Infinitive plan achromatic objectives	2.5X/0.08/∞/- WD=11.7mm	๐	๐	๐	๐
	4X/0.10/∞/- WD=17.3mm	●	●	๐	●
	5X/0.12/∞/- WD=15.5mm	๐	๐	●	๐
	10X/0.25/∞/- WD=10.0mm	●	●	●	●
	20X/0.40/∞/- WD=5.80mm	๐	●	●	●
	40X/0.60/∞/0 WD=2.90mm	●	●	๐	๐
	40X/0.65/∞/- WD=0.52mm	๐	๐	๐	๐
	50X/0.75/∞/- WD=0.32mm	๐	๐	●	●
	100X/0.80/∞/- WD=2.00mm	๐	๐	๐	๐
Nosepiece	Quadruple Nosepiece	●	●	●	●
Stage	Double layer mechanical metal stage150x140mm/75x50mm	●	●	●	●
Focusing	Coaxial Fine & Coarse Adjustment	●	●	●	●
Reflected Illumination	Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable	●	●	●	●
	Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 3W LED illumination, Brightness adjustable	๐	๐	๐	๐
	Diascopic Illumination, 6V/20W Halogen lamp, Brightness adjustable	๐	๐	๐	๐
Filters	Blue, Green, Yellow & Ground Glass	●	●	●	●
Polarization Set	Polarizer, Analyzer	๐	๐	๐	๐
Specimen Presser	For metallurgical specimen preparation	๐	๐	๐	๐
Other accessories	1x Dust cover	●	●	●	●
	1x Hexagonal wrench	●	●	●	●
	2x 6V/20W Halogen bulb	●	●	●	●

● Packing size: 40.5*36.5*47cm/9.485kg

	Excellent infinite Optical System. High Magnification Objective with Long Working Distance (up to 3.7mm for40X Objective)
	Comfortable and Enjoyable Operation With low and Repetitive Position Control knob
	Triangle Structure Make it much steadier and less working Space Occupation
	Easy, Safe and Reliable Lamp Replacement Device
