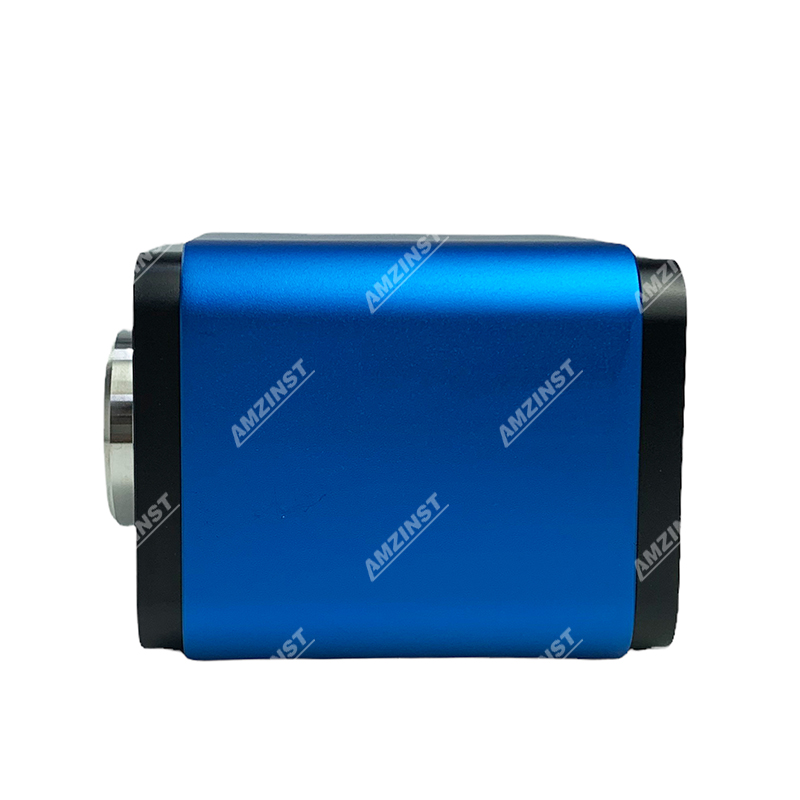

PCT-1080P C-Mount HDMI+USB CMOS 60fps Microscope Camera
● PCT-1080P camera is a multiple interfaces (HDMI+USB2.0+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.
● For HDMI output, a camera control panel and toolbar are overlayed on the HDMI screen, in this case, the USB mouse can be used to set the camera,browse and compare the captured image, play the video etal.
● For USB2.0 output, unplug the mouse and plug in the USB2.0 cable, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek's other camera series.
● PCT-1080P camera can be used for microscope, industrial stereo microscope, on-line inspection et al.
|
- Specifications
- Accessories
- Products Catalog
PCT-1080P series camera is a multiple interface (HDMI+USB2.0+SD card, so X here means multiple interfaces) CMOS camera. It adopts an ultra-high performance Sony IMX385 or 415 CMOS sensor as the image-picking device. HDMI+USB2.0 is used as the data transfer interface to HDMI display or computer.
For HDMI output, The PCT-1080P will be loaded and a camera control panel and toolbar are overlaid on the HDMI displayer, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.
For USB2.0 output, unplug the mouse and plug in the USB2.0 cable to the camera and computer, then the video stream can be transferred to the computer with the advanced software View/Lite.
The included Windows software View offers image-development and measurement tools and advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Its lite version is Lite.
For Mac and Linux, there is a lite version of the software Lite which can capture video and still images, and includes limited processing features.
Features
-

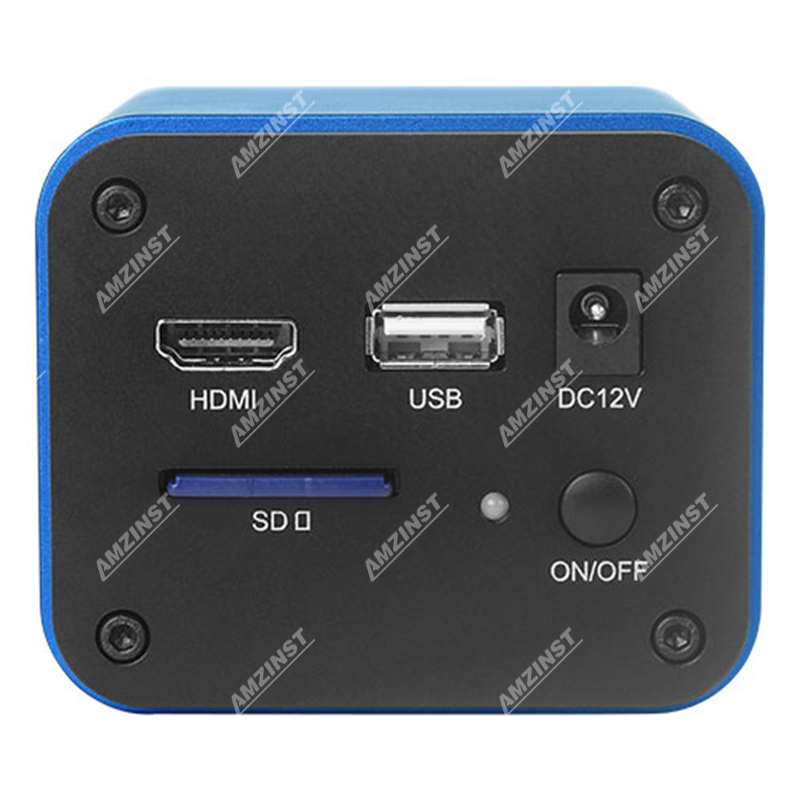

All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor
-
Simultaneous HDMI & USB output
-
Built-in mouse control
-
Built-in image capture & video record to SD card
-
Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness and denoising control
-
Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions
-
Built-in image & video browsing, display & play
-
Ultra-Fine color engine with perfect color reproduction capability(USB2.0);
-
Support standard UVC for Windows/Linux/Mac(USB)
-
With advanced video & image processing application View, which includes professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB). Lite for the control of the camera and simple image processing and video playback
-
With Lite to control the camera and capture video or still images, which includes limited processing features
-
CNC precision machining shell
Specification
|
Order Code
|
Sensor & Size(mm)
|
Pixel(μm)
|
G Sensitivity
Dark Signal
|
FPS/Resolution
|
Binning
|
Exposure
|
|
PCT-1080P
|
Sony IMX385(C)
1/2"(7.2x4.05)
|
3.75x3.75
|
1175mv with 1/30s
0.15mv with 1/30s
|
60@1920x1080 (HDMI)
30@1920x1080 (USB)
|
1x1
|
0.04~1000
|
Other Specifications for HDMI Output
|
UI Operation
|
With USB Mouse
|
|
Image Capture
|
High Speed in SD Card
|
|
Video Record
|
1080P 30fps in SD Card
|
|
Camera Control Panel
|
Including Exposure, Gain, White Balance, Color
Adjustment, Sharpness and Denoising Control
|
|
Toolbar
|
Including Zoom, Mirror, Comparison, Freeze,
Cross, Browser Function
|
Other Specifications for USB Output
|
White Balance
|
Auto White Balance
|
|
Color Technique
|
Ultra-Fine Color Engine (USB)
|
|
Capture/Control API
|
Standard UVC for Windows/Linux/Mac(USB)
|
|
Recording System
|
Still Picture or Movie (USB)
|
Software Environment (for USB2.0 Connection)
|
Operating System
|
Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit)
OSx(Mac OS X)
Linux
|
|
PC Requirements
|
CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 4GB or More
USB Port: USB2.0 High-speed Port
Display: 19” or Larger
CD-ROM
|
Operating Environment
|
Operating Temperature(in Centidegree)
|
-10~ 50
|
|
Storage Temperature(in Centidegree)
|
-20~ 60
|
|
Operating Humidity
|
30~80%RH
|
|
Storage Humidity
|
10~60%RH
|
|
Power Supply
|
DC 12V/2A Adaptor
|

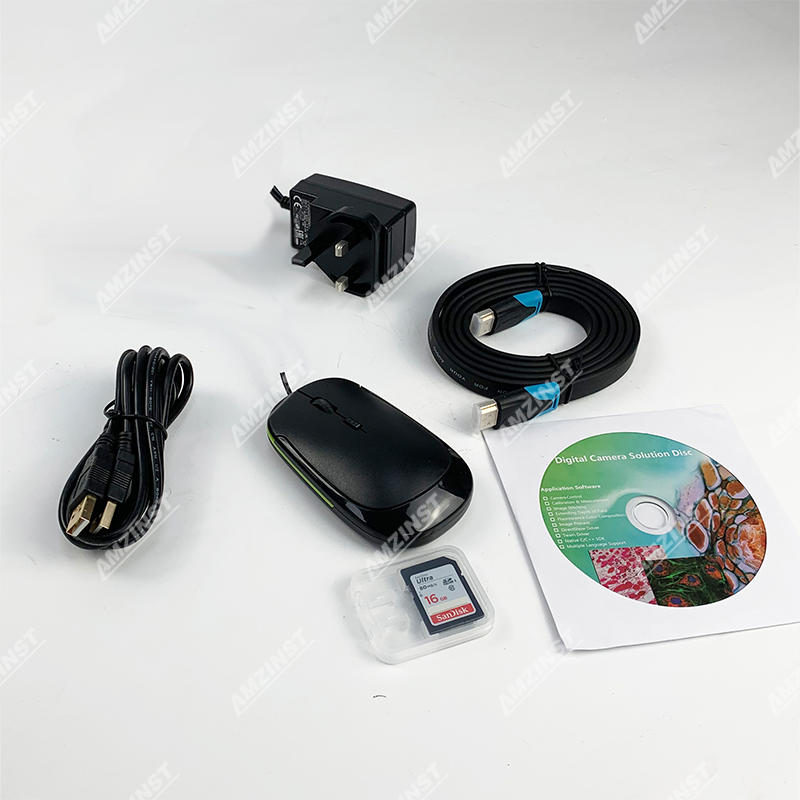

Packing list:
1x HDMI camera
1x HDMI cable
1x USB cable
1x Mouse
1x 16G SD card
1x CD
1x Power adapter
|
|
