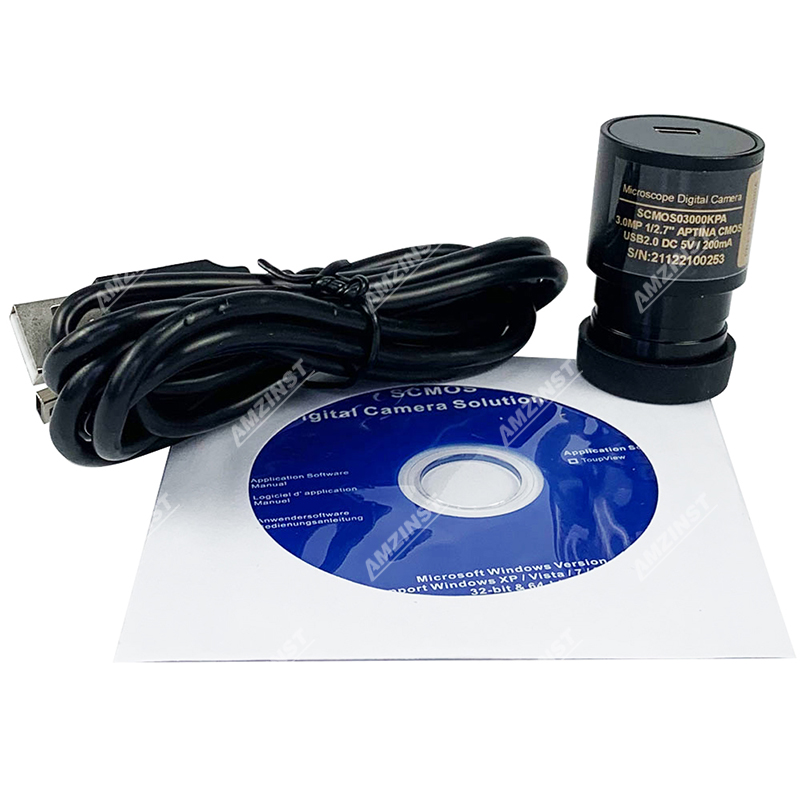

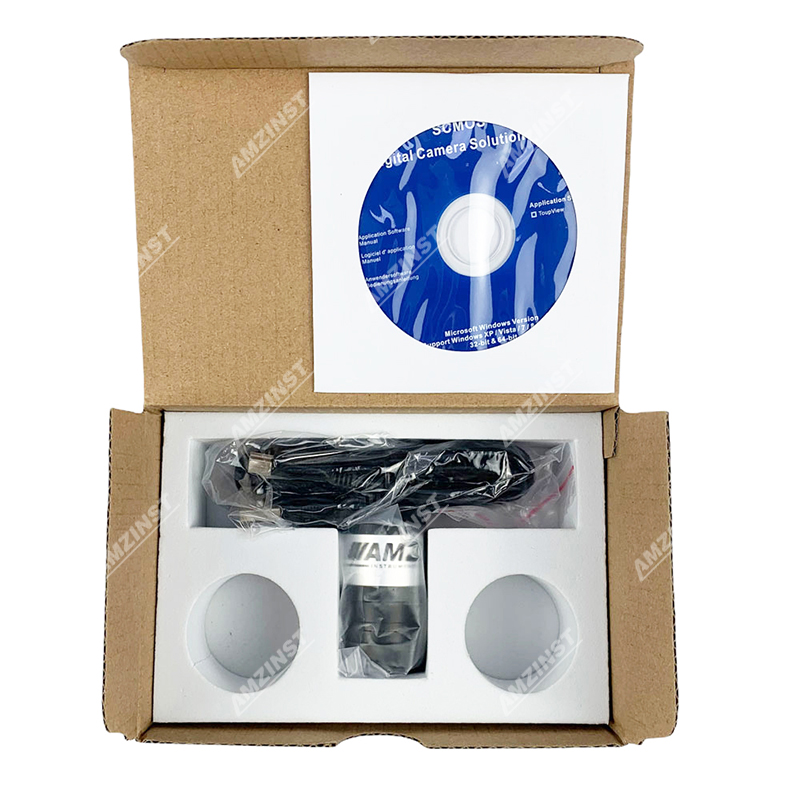

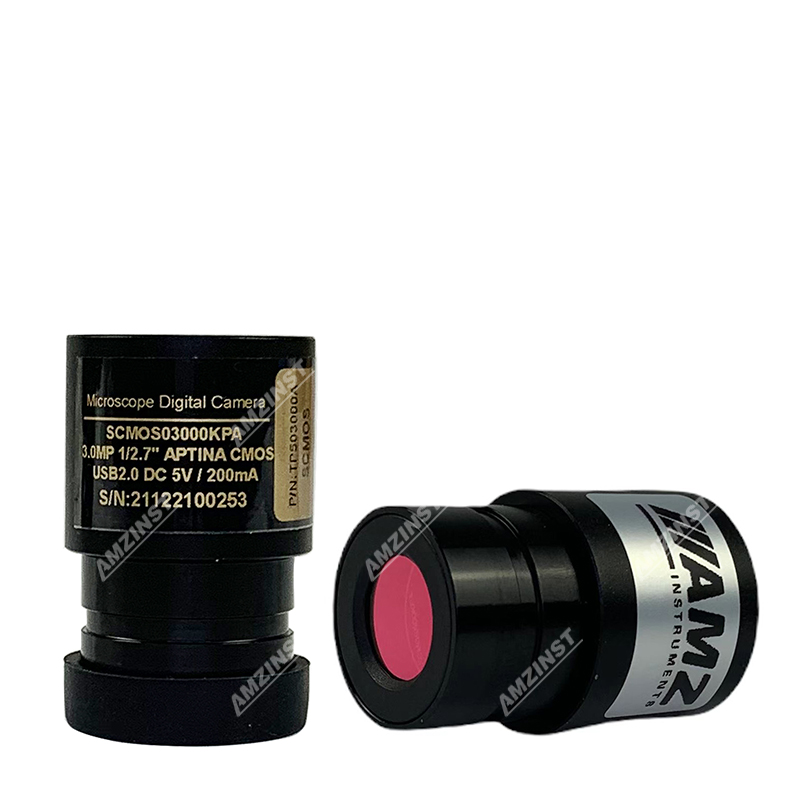

PCT-S Series USB 2.0 Color CMOS Digital Eyepiece Microscope Camera
● PCT-S is an economic version with simple and compact structure CMOS eyepiece camera. So here, the S means simple and compact. USB2.0 is used as the data transfer interface.
● Microscope eyepiece camera with 23.2 diameter and compact size;
● The SCMOS eyepiece camera comes with high-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
● Also the SCMOS comes with advanced video & image processing application AMZView;
● The SCMOS can be widely used to transfer the mono or binocular student microscops to digital microscope.
● With 23.2 to 30mm or 23.2 to 30.75 convert ring, the SCMOS camera can also change the stereo microscope to digital stereo microscope.
  • Specifications
  • Accessories
  • Products Catalog
  • Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
    Dark Signal     		FPS/Resolution Binning Exposure
    PCT-S12MP 12M/IMX577(C)
    1/2.3"(5.95x4.71)     		1.55x1.55 250LSB
    70dB
    43dB         		20@3840x3040
    20@1920x1520
    20@960x760         		1x1
    1x1
    1x1         		0.1~2000ms
    PCT-S8.3MP 8.3M/IMX274(C)
    1/2.5"(6.22x3.50)     		1.62x1.62 236mV
    70dB
    43dB     		30@3840x2160
    30@1920x1080
    30@1280x720
    30@960x540     		1x1
    1x1
    1x1     		0.1~2000ms
    PCT-S5.1MP 5.1M/AR0521(C)
    1/2.5"(5.70x4.28)     		2.2x2.2 18.8ke-/lus
    73dB
    40dB     		30@2592x1944
    30@1280x960
    30@640x480     		1x1
    1x1
    1x1     		0.1~1000ms
    PCT-S3.1MP 3.1M/Aptina(C)
    1/2.5"(5.73x4.30)     		2.8x2.8 18.8ke-/lus
    73dB
    40dB     		30@2048x1536
    30@1024x768     		1x1
    1x1
    1x1     		0.1~1000ms
    PCT-S2.1MP 2.1M/IMX307(C)
    1/2.8"(5.73x4.30)     		2.9x2.9 1300mV
    73dB
    43dB     		38@1920x1080
    38@960x540     		1x1
    1x1
    1x1     		0.1~2000ms
    PCT-S1.3MP 1.3M/Special (C)
    1/3“ (5.18x2.92)     		3.41x3.41 4510mV/lux-s
    74dB
    38.5dB     		30@1520x856 30@760x428 1x1
    1x1     		0.1-2000 ms
    PCT-S0.92MP 0.92M/OV9732(C)
    1/4" (3.888x2.208)     		3x3 2.066V/lux-sec
    72dB@8x gain
    39dB     		30@1280x720
    30@640x360     		1x1
    1x1     		0.1~650ms


    OTHER HARDWARE CONFIGURATION

    Spectral Range 380-650nm (with IR-filter)
    White balance Auto/ROI/Manual White Balance(New Model)
    Auto(Products before 2020)
    Color Rendering Technique NA
    Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
    Recording System Still Picture and Movie
    Cooling System* Natural


    OPERATING ENVIRONMENT

    Operating Temperature -10℃~ 50℃
    Storage Temperature -20℃~ 60℃
    Operating Humidity 30~80%RH
    Storage Humidity 10~60%RH
    Power Supply DC 5V over PC USB Port


    SOFTWARE ENVIRONMENT

    Operating System Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit)
    OS X (Mac OS X), Linux
    PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
    Memory: 2GB or More
    USB port: USB2.0 High-speed Port
    Display: 17" or Larger
    CD-ROM
