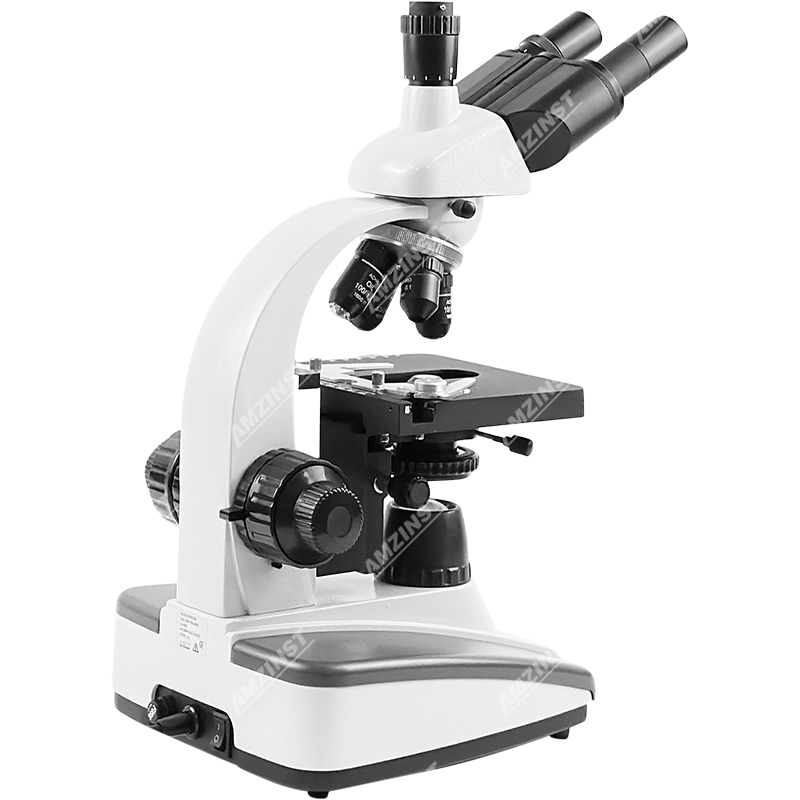

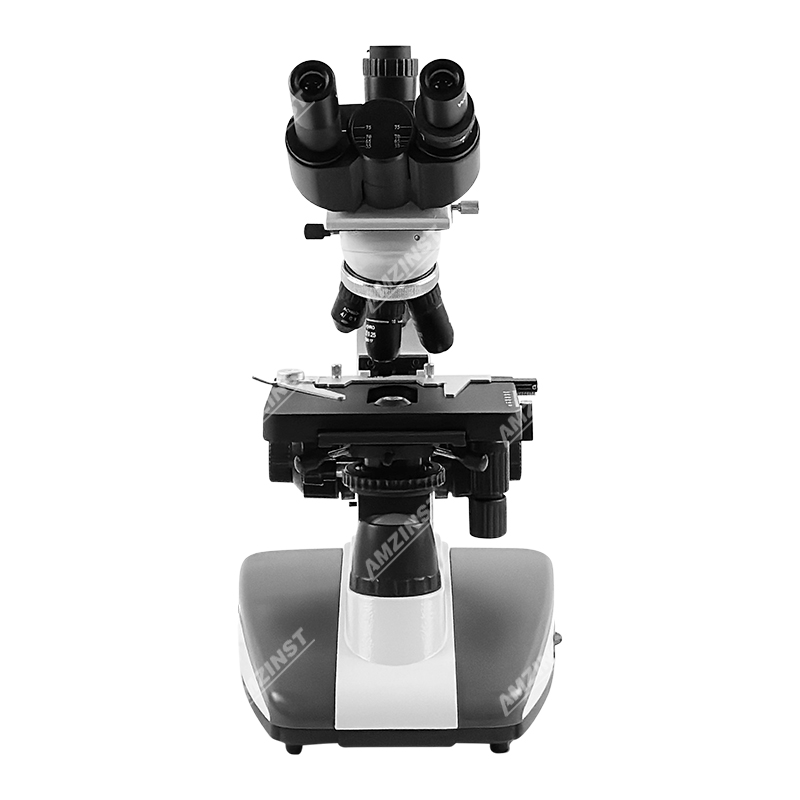

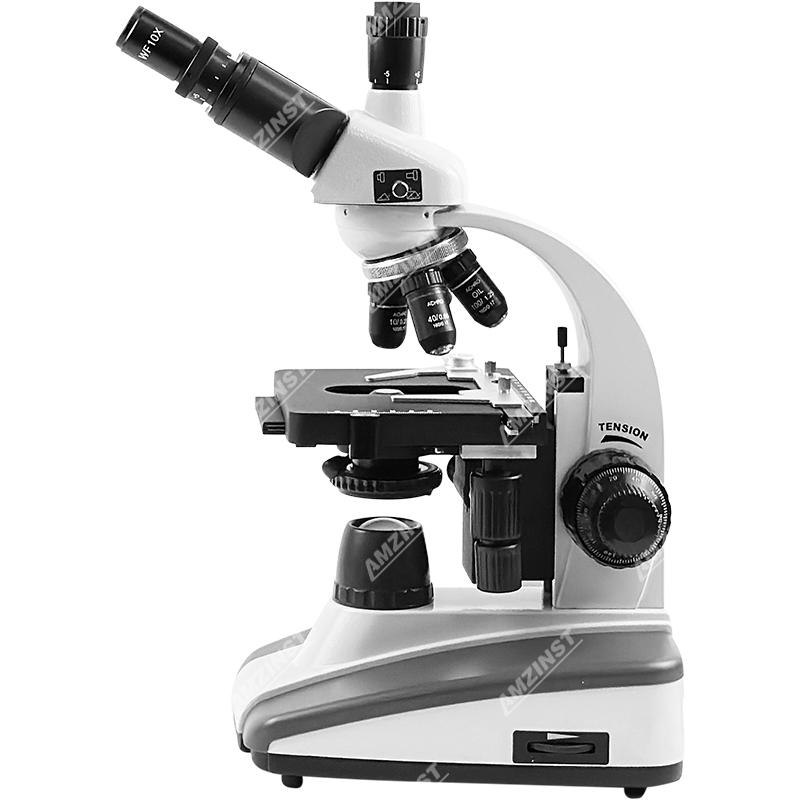

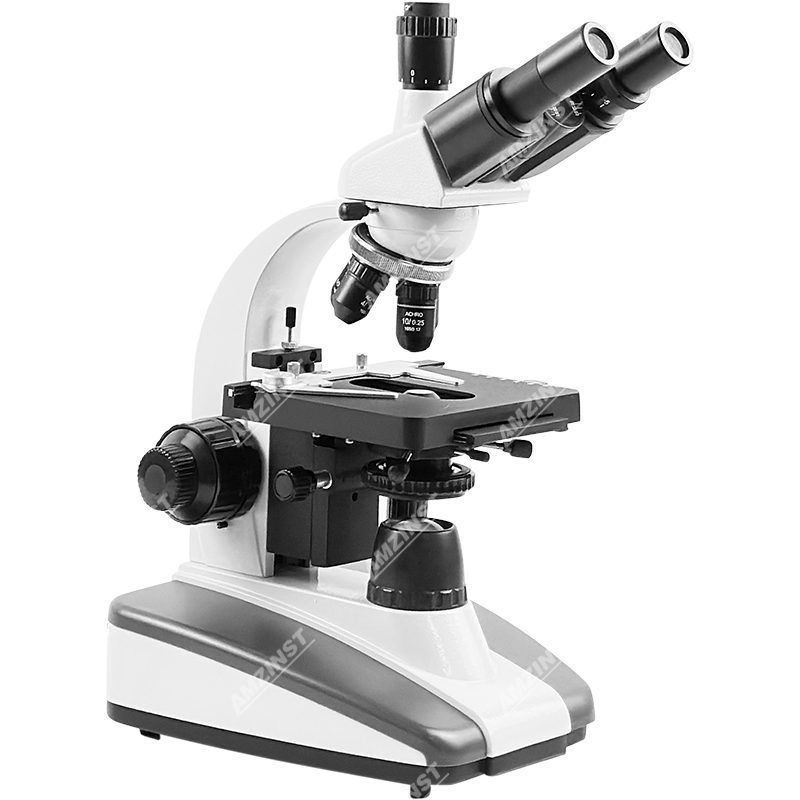

NK-203C 40X-1600X Trinocular Biological Microscope
  • Specifications
  • Accessories
  • Products Catalog

  		•
    		NK-203C
    Head
    		 30° inclined trinocular head, 360° rotatable, interpupillary distance: 55-75mm, Right tube diopter adjustment: ±5dp
    		 ●
    Eyepiece
    		 WF10x/18mm
    		 ●●
    WF5X
    		 ໐
    WF6X
    		 ໐
    WF12.5X
    		 ໐
    WF15X
    		 ໐
    WF16X
    		 ໐
    WF20X
    		 ໐
    DIN achromatic objective
    		 4x/0.10, W.D=37.5mm
    		 ●
    10x/0.25, W.D=7.316mm
    		 ●
    40x/0.65(S),W.D=0.632mm
    		 ●
    100x/1.25(S, Oil), W.D=0.198mm
    		 ●
    Condenser
    		 ABBE N.A. 1.25
    		 ●
    Focusing
    		 Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 25mm
    		 ●
    Stage
    		 Double layers mechanical stage: 140(L)X155(W)mm, moving range X-Y 70X50mm
    		 ●
    Illumination
    		 Halogen lamp 6V/20W, brightness adjustable
    		 ●
    Incandescent lamp 20W, brightness adjustable
    		 ໐
    Fluorescent lamp 5W LED lamp, brightness adjustable
    		 ໐
    1W LED lamp with a rechargeable device, brightness adjustable
    		 ໐
    Iris diaphragm
    		 Ø2-Ø30mm adjustment
    		 ●
    Filter
    		 Ø32 blue filter
    		 ●
    Ø32 green filter
    		 ●
    Ø32 yellow filter
    		 ●
    Camera adapter
    		 1x adapter
    		 ●
    Power supply
    		 100V-240V, 50/60Hz
    		 ●
