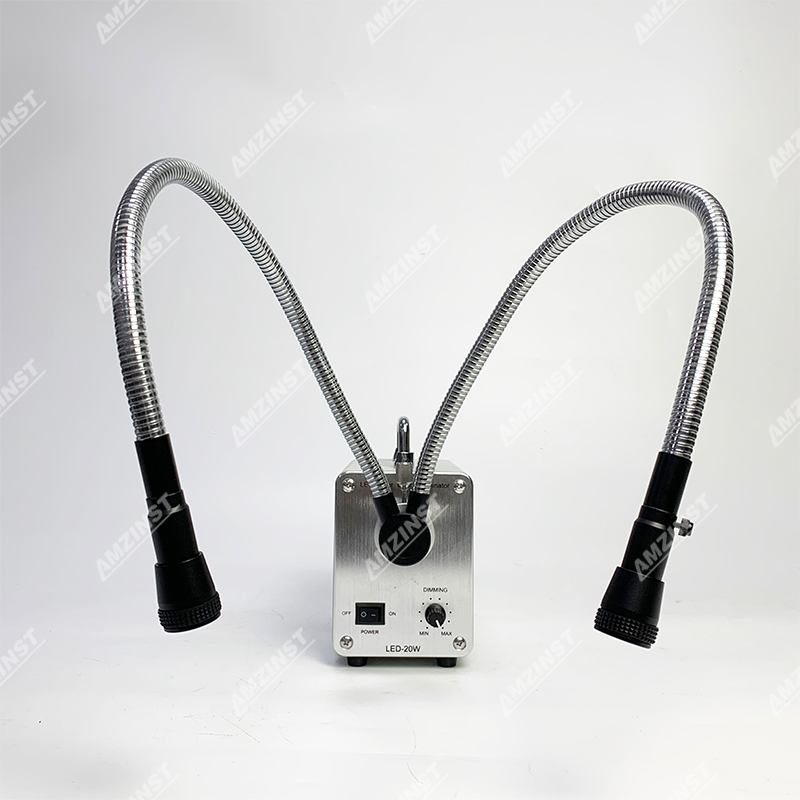

OFL-L20 20W LED Fiber Optic Dual Gooseneck Lights UL & CE Approval
1. 20W cool light fiber optic LED illuminator
2. long metal-sheathed fiber optic bifurcated lights
3. Radiator and Cooling space allows no cooling off time after use
4. Inside fan design design allows the illuminator to work with low noise
  • Specifications
  • Accessories
  • Products Catalog
  • ● Power: 20W
    ● Working voltage: 100-240V, AC 50-60HZ
    ● Color temperature: 6500K
    ● Color temperature changed during dimming: 6500K±500
    ● Connection Diameter: Φ6mm, Φ8mm
    ● Lumens: ≥160LM
                      ≥260LM
    ● LED Lumens: ≥1250LM
    ● Fiber Lumens: ≥480LM
    ● Brightness: Left fiber 50,000 lx @100 mm (The brightness is set to its brightest)
                          Right fiber 68,000 lx @100 mm (The brightness is set to its brightest)
    ● Brightness: Left fiber 38,400 lx @100 mm (The brightness is set to the lowest level)
                          Right fiber 56,000 lx @100 mm (The brightness is set to the lowest level)

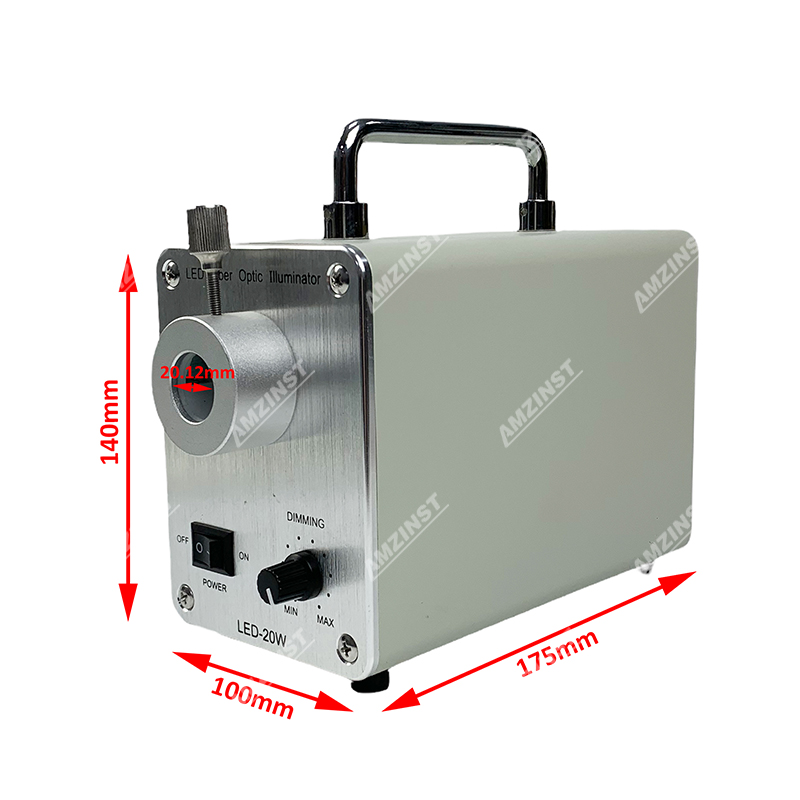

    ● Dimension (mm): 270X100X138
    ● length of the fiber arms: 50cm
    ● Lamp House Material: Aluminium

    SKU for accessories:
    20W Cold Light Box: OFL-20W
    EU power supply unit: S-LED
    UK power supply unit: FL-ADUK

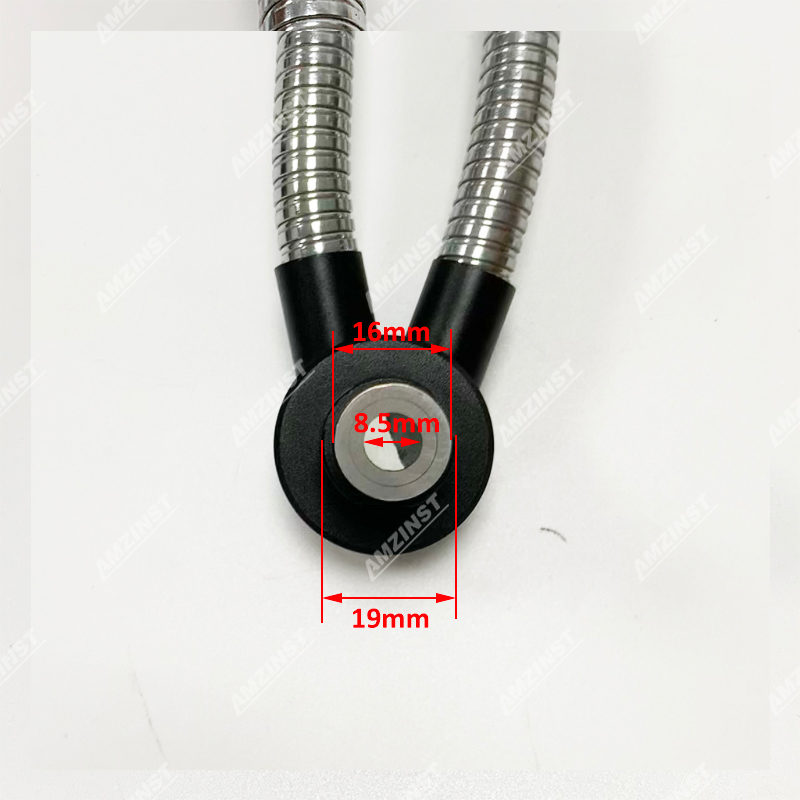

    Dual fiber arm: FL-B
    O-Ring fiber arm: FL-CR

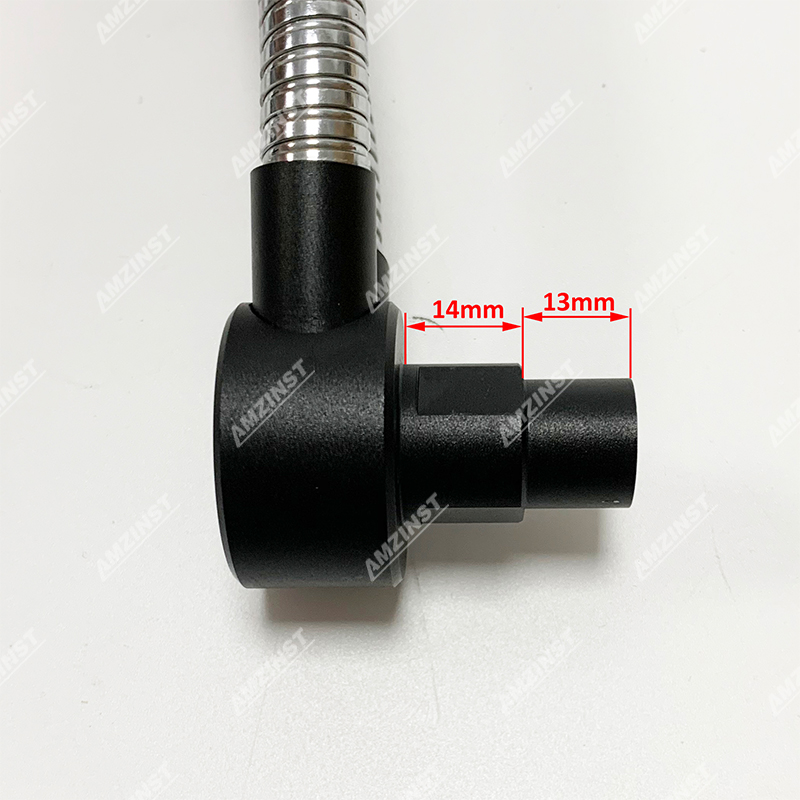

    The lens on the top dual fiber arm: FL-L

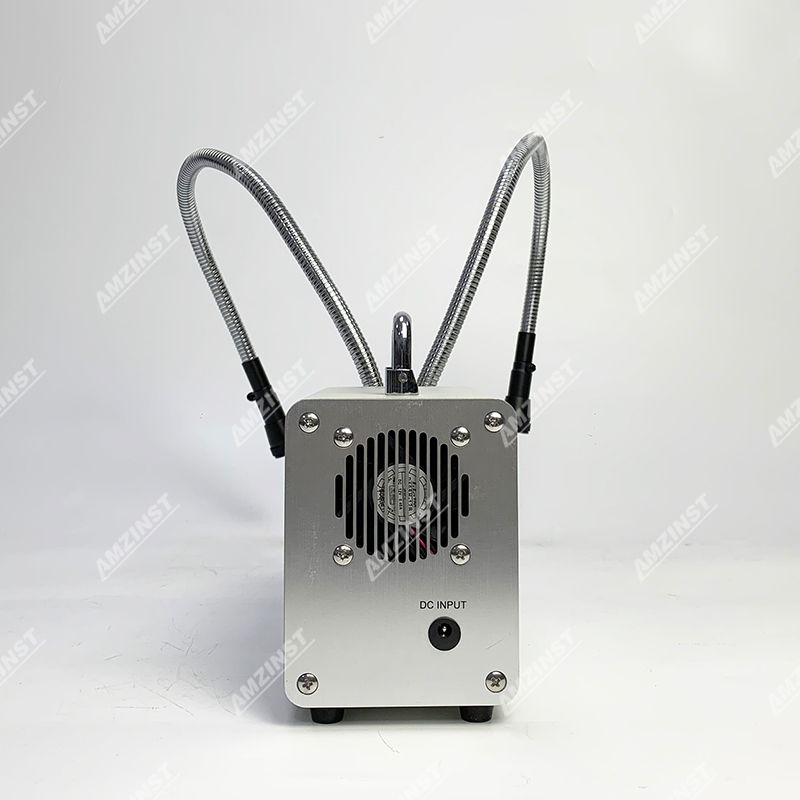

    Cooling Fan: FL-FAC
    PCB with a cooling element: FL-RCE
    Rubber feet including screw: FL-RFS
    Spare 20WLED: S20-LED
    Potentiometer and circuit board: FL-PCB
