NK-300B
|
NK-300T
|
Head
|
Seidentopf Binocular Head, Inclined 30°, rotatable 360°, Interpupillary distance:48mm-76mm
|
●
|
໐
|
Seidentopf Trinocular Head: Inclined 30°, rotatable 360°, Interpupillary distance:48mm-76mm,
Light distribution (both): 100: 0 (100% for eyepiece) 80:20 (80% for trinocular head and 20% for eyepiece)(Only choose one)
|
໐
|
●
|
Eyepiece
|
WF10x/20mm (23.2mm) (Diopter can't adjustable)
|
●●
|
●●
|
WF10x/20mm with reticle (Diopter can't adjustable)
|
໐
|
໐
|
WF10x/20mm with reticle (Diopter adjustable)
|
໐
|
໐
|
WF15x/13mm
|
໐
|
໐
|
WF16x/13mm
|
໐
|
໐
|
WF16x/11mm (Huygoens)
|
໐
|
໐
|
Infinity plan objectives
|
PLAN 4×/0.10, W.D.=12.10mm
|
●
|
●
|
PLAN 10×/0.25, W.D.=4.64mm
|
●
|
●
|
PLAN 20×/0.40(S), W.D.=2.41mm
|
●
|
●
|
PLAN 40×/0.66(S), W.D.=0.65mm
|
●
|
●
|
PLAN 100×/1.25(S, Oil), W.D.=0.12mm
|
●
|
●
|
PLAN 2.5×/0.07, W.D.=8.47mm
|
໐
|
໐
|
PLAN 60×/0.80(S), W.D.=0.33mm
|
໐
|
໐
|
PLAN 100×/1.15(S, W), W.D.=0.19mm
|
໐
|
໐
|
Nosepiece
|
Quintuple
|
●
|
●
|
Mechanical stage
|
Stage size: 175mmx145mm, travel: 78mmx55mm, coaxial coarse and fine focusing knobs, two slide holder
|
●
|
●
|
Integrated stage size: 182 mmx140mm, travel range: 77mm×52mm with two-slide holder
|
໐
|
໐
|
Condenser
|
Abbe N.A. 1.25 with iris diaphragm
|
●
|
●
|
N.A. 0.9/0.13, Swing out with iris diaphragm
|
໐
|
໐
|
Koehler illumination
|
12V/20W halogen lamp
|
໐
|
໐
|
Wide voltage input: 100V～240V
|
6V/30W halogen lamp
|
໐
|
໐
|
Field diaphragm, center adjustable
|
3W-LED illumination
|
●
|
●
|
Filter
|
Blue
|
●
|
●
|
Green/Amber/Grey
|
໐
|
໐
|
C-mount
|
1x C-Mount Adapter (Focus adjustable)
|
໐
|
໐
|
0.5x C-Mount Adapter (Focus adjustable)
|
໐
|
໐
|
0.75x C-Mount Adapter (Focus adjustable)
|
໐
|
໐
|
Fluorescence attachment
|
Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filter),100W mercury lamp
|
໐
|
໐
|
Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp
|
໐
|
໐
|

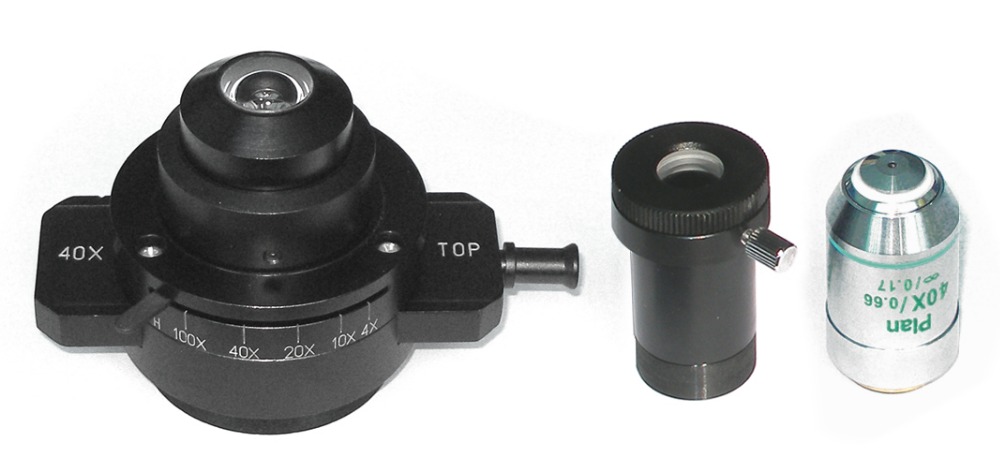

Phase contrast unit
|
Quintuple hole turret 10X /20X /40X /100X phase contrast objective
|
໐
|
໐
|
Independent slot 10X /20X /40X /100X phase contrast objective
|
໐
|
໐
|

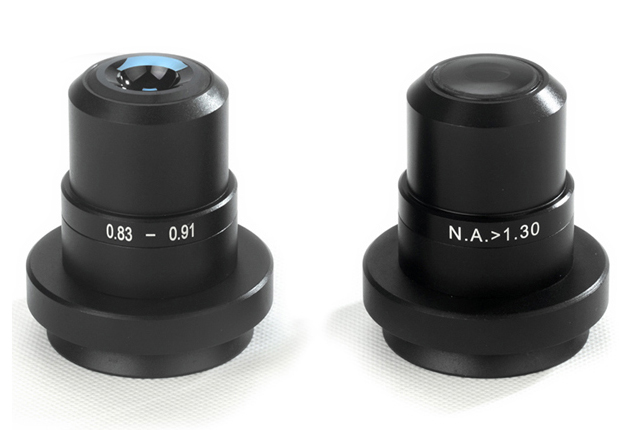

Dark field unit
|
Darkfield condenser (dry), apply to 4X- 40X objective
|
໐
|
໐
|
Darkfield condenser (wet), apply to 100X objective
|
໐
|
໐
|

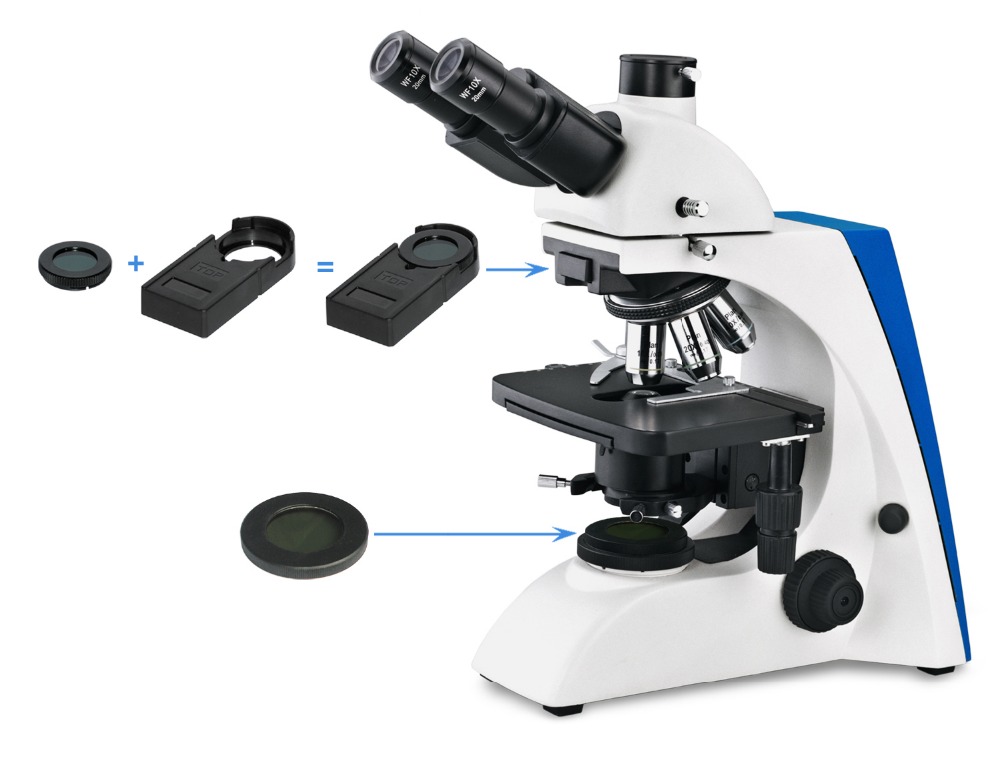

Polarizing attachment
|
Analyzer / Polarizer
|
໐
|
໐
|
