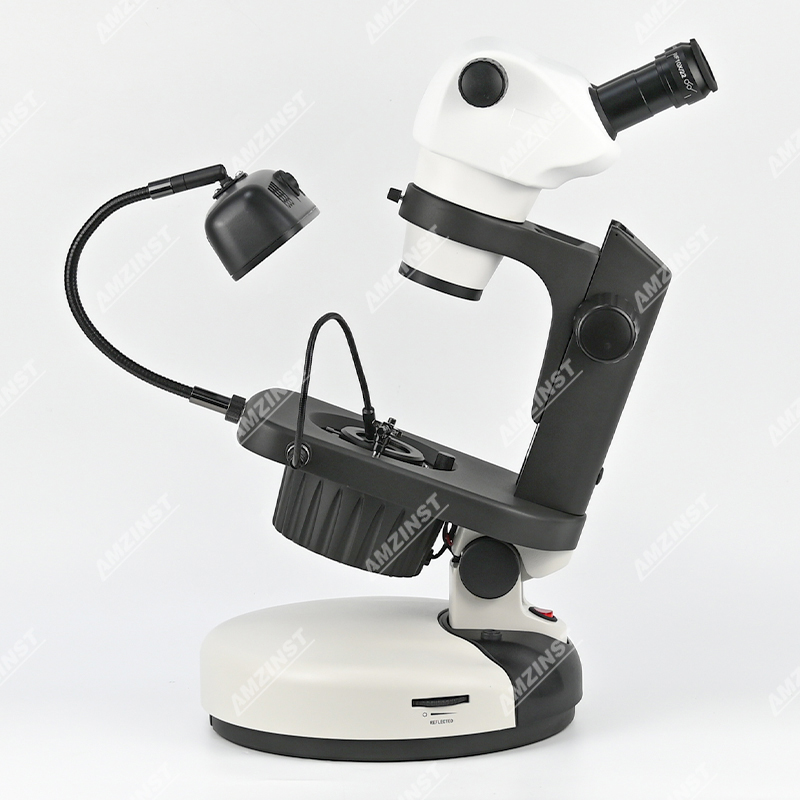

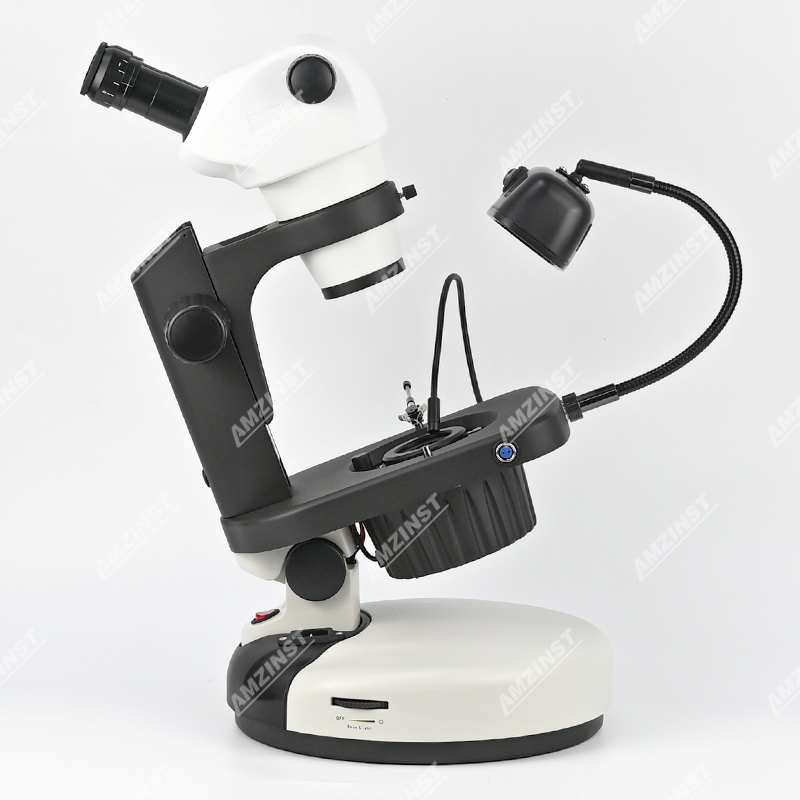

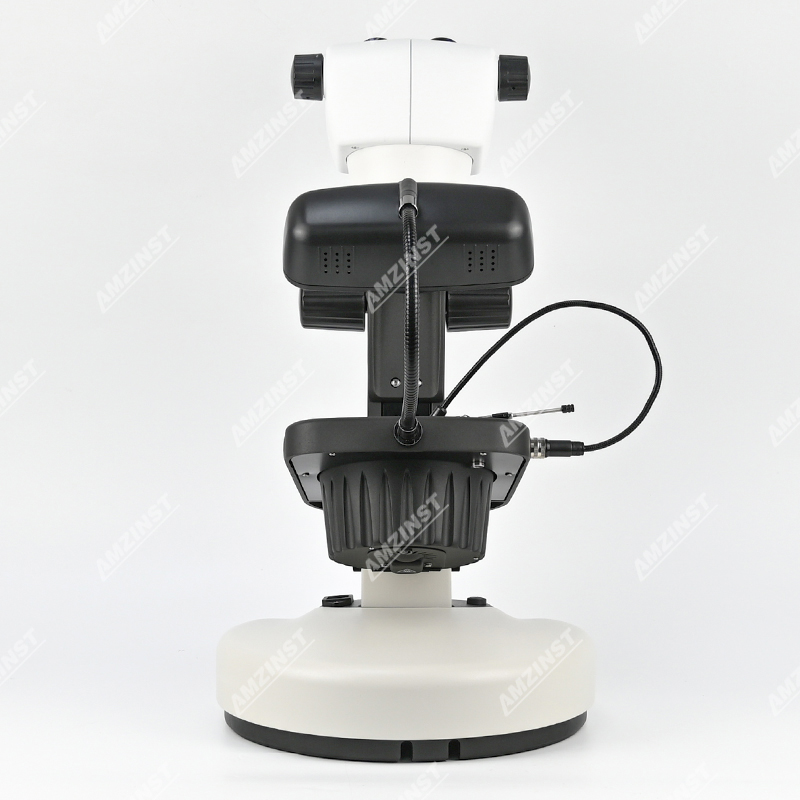

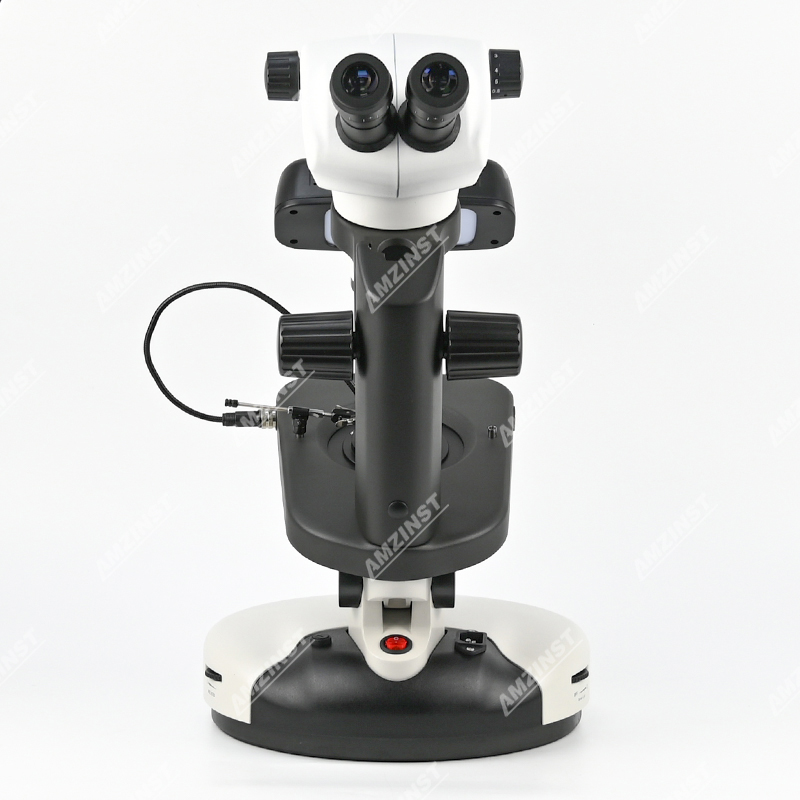

ASZ-ZB4 Zoom 8X-50X Trinocular Professional Gem Jewelry Darkfield Stereo Microscopes
1,Offering crisp sharp and high resolution image with High brightness LED point light￡?dark field illumination and even fluorescent light source,it is a high level professional Gem Microscope.
2,Updated and ergonomic design, it makes operators feel more comfortable
  • Specifications
  • Accessories
  • Products Catalog


  		•
    		ASZ-ZB4
    		 ASZ-ZT4
    Viewing head

    Binocular viewing head, Inclined 45°. Interpupillary distance adjustment 54-76mm, diopter adjustment +/- 5.

    ●


    Trinocular viewing head, Inclined 45°. Interpupillary distance adjustment 54-76mm, diopter adjustment +/- 5.
    		●
    Stereo zoom body
    		 Zoom objective 0.8X-5X, zoom ratio 1:6.3, working distance 115mm
    		 ●
    		 ●
    Eyepiece
    		 Extra wide field eyepiece W10X/22mm  with diopter adjustment
    		 ●
    		 ●
    W15X/16mm
    		 ໐
    		 ໐
    W20X/12mm
    		 ໐
    		 ໐
    Auxiliary objective
    		 0.5X/WD 211mm
    		 ໐
    		 ໐
    0.75X/WD 137mm
    		 ໐
    		 ໐
    2X/WD 43.5mm
    		 ໐
    		 ໐
    Bright & dark
    viewing field
    illumination
    		 Iris diaphragm 2mm-41mm, Bright and dark viewing field illumination adjustable
    		 ●
    		 ●
    Illumination
    		 7W Fluorescent lamp
    		 ●
    		 ●
    LED Point light
    		 ●
    		 ●
    6V/20W Halogen illumination
    		 ●
    		 ●
    Focusing
    		 Focusing range: 110mm, Suitable for observing different size gems and sample
    		 ●
    		 ●
    Gem Clamp
    		 GT-236 high-quality steel clamp to hold the gem for all direction observations of gems
    		 ●
    		 ●
    Stage
    		 Two gem clamp fixing holds for you to choose
    		 ●
    		 ●
    Stand
    		 0-38°Rotatable, eyepoint height and angle adjustable
    		 ●
    		 ●
    Base
    		 0°-325°Rotatable
    		 ●
    		 ●
    C-mount
    		 0.5x C-mount
    		●
    ''●'' = Standard configuration ''○''= Option
