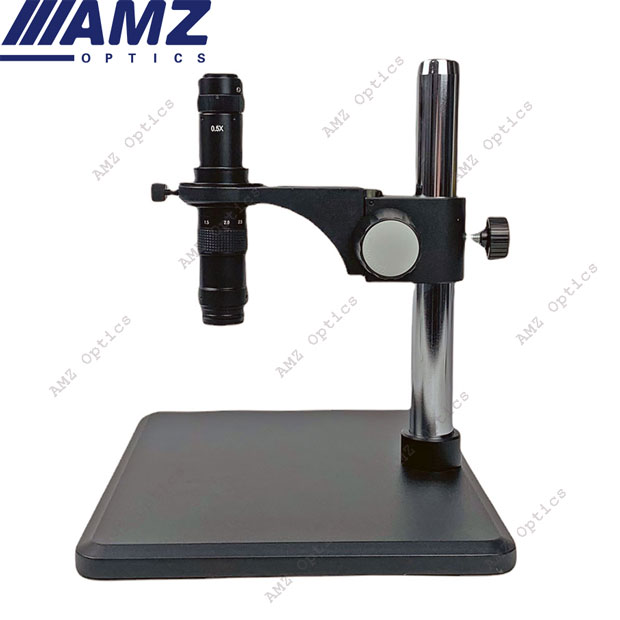

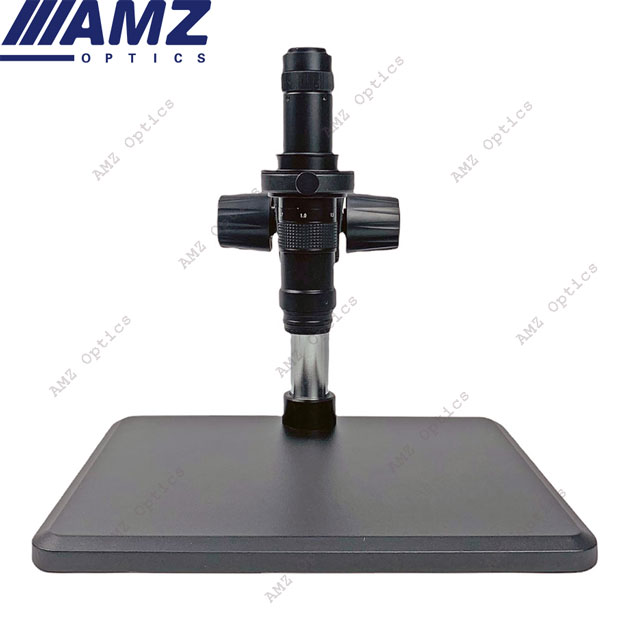

ZMZ45-B3 0.7x-4.5x Infinity Parallel Light Path Zoom Monocular Stereo Microscope
  • Specifications
  • Accessories
  • Products Catalog
  • ZMZ45-B3 Monocular zoom stereo microscope, Parallel optical system, clear imaging, widely used in modern production in the field of machine vision, industrial inspection fields, science research applications.


    ● Zoom Ratio: 1: 6.5
    ● Zoom objective: 0.7X-4.5X
    ● Eyepiece: 0.5X, IR Coating, Corrected the image effect of the field of view edge
    ● Working Distance: 100mm
    ● Click stop for 0.7x, 1.0x, 1.5x, 2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x


    Base:
    ● Vertical post height: 240mm
    ● Vertical post diameter: φ32mm
    ● Microscope body holder: φ50mm
    ● Focus travel: 50mm
    ● Base size: 320x260x16mm
    ● Material: Metal


    ● Optional eyepieces: 0.5X or 1X
    ● Optional auxiliary lens:  0.3X,0.5X,0.75X,1.5X,2.0X


    ● Packing list: 37*31*14cm/3.585kg(1 Set)
                         39*33*30cm/7.615kg(2 Sets)


    Technical parameters

    objective
    Project
    CCD eyepiece
    0.5X
    0.5X
    optical magnification
    0.175 ~ 1.125
    market coverage
    35 ~ 5
    Working Distance
    198
    1X
    optical magnification
    0.35 ~ 2.25
    market coverage
    17.6 ~ 2.7
    Working Distance
    96
    2X
    optical magnification
    0.7 ~ 4.5
    market coverage
    8.8 ~ 1.3
    Working Distance
    46
