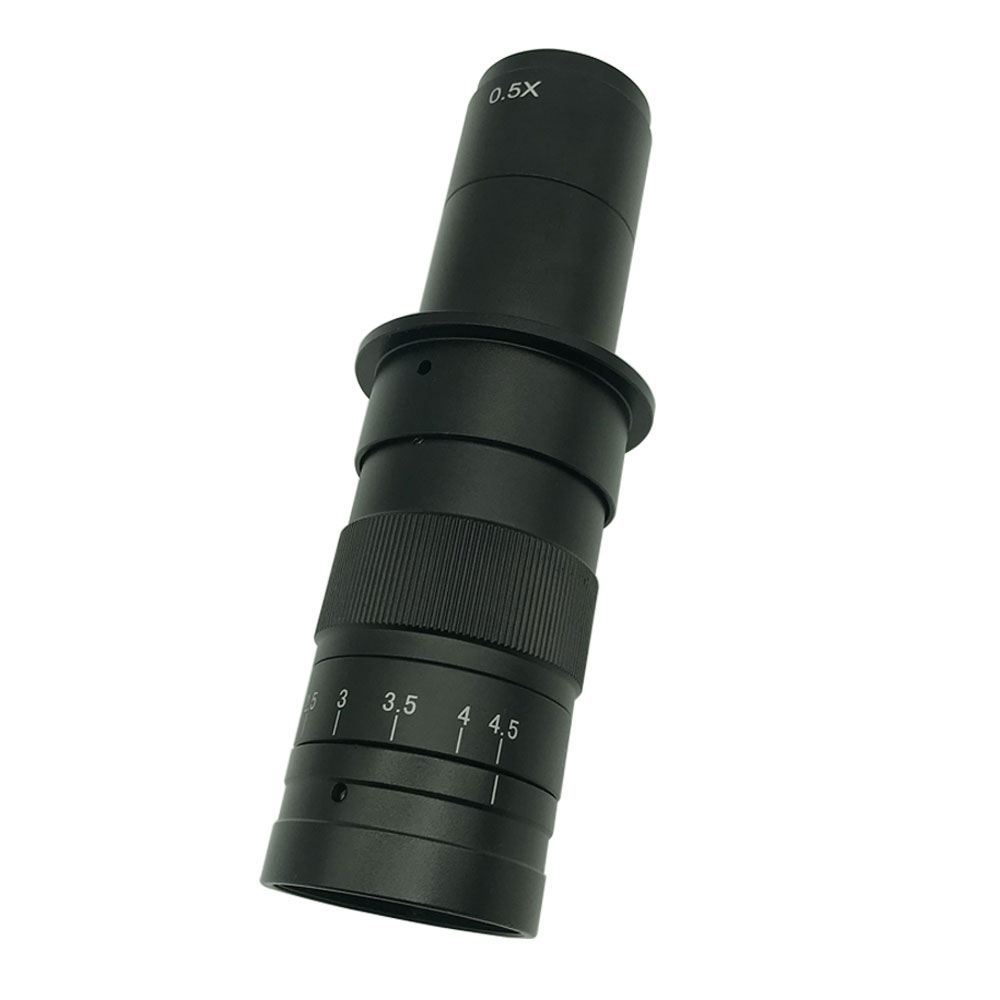

ZML45-B2 0.7x-4.5x Zoom Monocular Stereo Microscope
  • Specifications
  • Accessories
  • Products Catalog


  •

    ZML45-B3 Monocular zoom stereo microscope, Parallel optical system, clear imaging, widely used in modern production in the field of machine vision, industrial inspection fields, science research applications.


    ● Zoom Ratio: 1: 6.5
    ● Zoom objective: 0.7x-4.5x
    ● Eyepiece: 0.5X
    ● Working Distance: 100mm

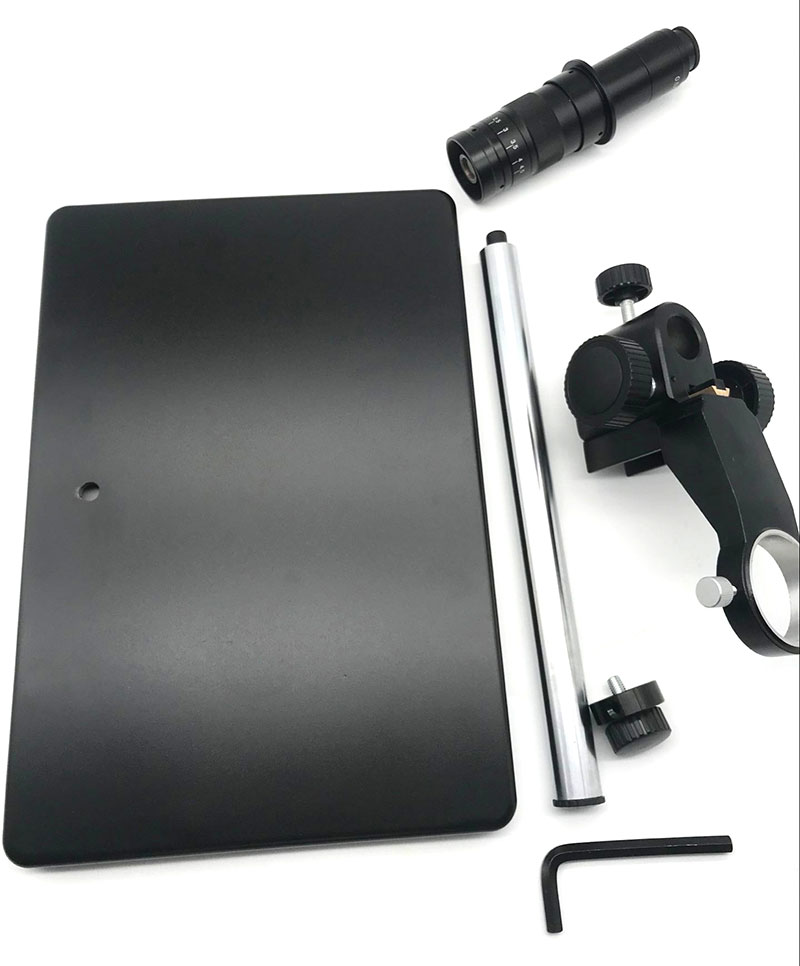

    Base:
    ● Vertical post height: 240mm
    ● Vertical post diameter: φ32mm
    ● Microscope body holder: φ50mm
    ● Focus travel: 50mm

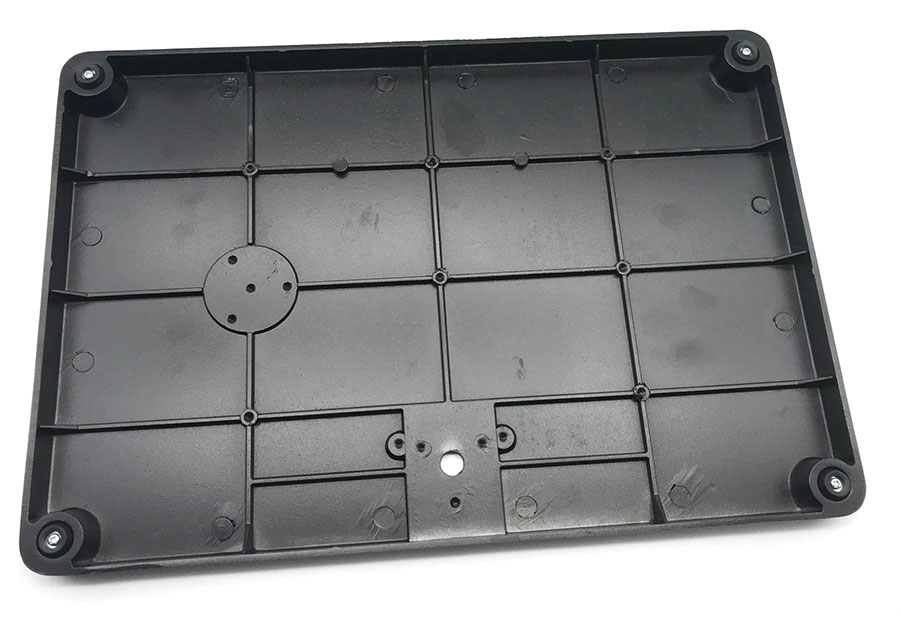

    ● Base size: 320x260x16mm
    ● Material: Metal



    Packing list:
    43x30x19cm/3.32kg/1set per CTN
    45x35x32cm/ 7.15kg/ 2sets per CTN

    With ZML45 Focusing Mount


    Eyepiece
    		 Standard
    		 Auxiliary Lens 0.5X
    		 Auxiliary Lens 2.0X
    W.D. 100mm
    		 W.D. 165mm
    		 W.D. 30mm
    Mag.
    		 F.O.V
    		 Mag.
    		 F.O.V
    		 Mag.
    		 F.O.V
    0.35X
    		 0.245X
    		 23mm
    		 0.1225X
    		 46mm
    		 0.49X
    		 11.6mm
    1.575X
    		 3mm
    		 0.7875X
    		 7mm
    		 3.15X
    		 1.7mm
    0.5X
    		 0.35X
    		 17.6mm
    		 0.175X
    		 35mm
    		 0.7X
    		 8.8mm
    2.25X
    		 2.7mm
    		 1.125X
    		 5mm
    		 4.5X
    		 1.3mm
    1X
    		 0.7X
    		 9mm
    		 0.35X
    		 17.6mm
    		 1.4X
    		 4mm
    4.5X
    		 1.6mm
    		 2.25X
    		 3mm
    		 9X
    		 0.71mm
