NK-X40T Laboratory Biological Microscope
● Biological microscopes are compound microscopes that are primarily used to observe and study organisms and microorganisms.
● Biological microscopes were the earliest type of microscopes to be invented and the most widely used compound microscope today.
● Conventionally, we usually refer to microscopes that include various accessories such as phase contrast, fluorescence, and polarized light etc. as compound microscopes, to distinguish them from stereo microscopes.
● The most basic biological microscope consists of an eyepiece, an objective lens, a microscope stage, and light source. Both the eyepiece and the objective lens are convex lenses. The objective lens first enlarges the object into a real image. The eyepiece then magnifies the real image again into a virtual image, and finally becomes an inverted magnified virtual image on the retina of the human eye.
  • Specifications
  • Accessories
  • Products Catalog
  • - Infinity color corrected optical system, new upgraded Koehler illumination system, presents a clear & bright micro-image

    under each magnification.

    - Fire-new ergonomic design, steady system structure, easy operation, is suitable for various working environments.

    - "Building blocks" design for combining multiple functions, fluorescence, phase contrast, polarizing, dark field attachments

    can be assembled on the   basis of bright field observation.

    - Widely apply to clinical diagnosis, teaching experiment, pathological test and other micro-fields

    RDER NUMBER
    ITEM
    SPECIFICATION
    NK-X40T
    X40-HB30
    Viewing head
    30° inclined gemel binocular head, 360° rotatable, interpupillary adjustable distance: 54-75mm, diopter ±5 adjustable

    X40-HT30

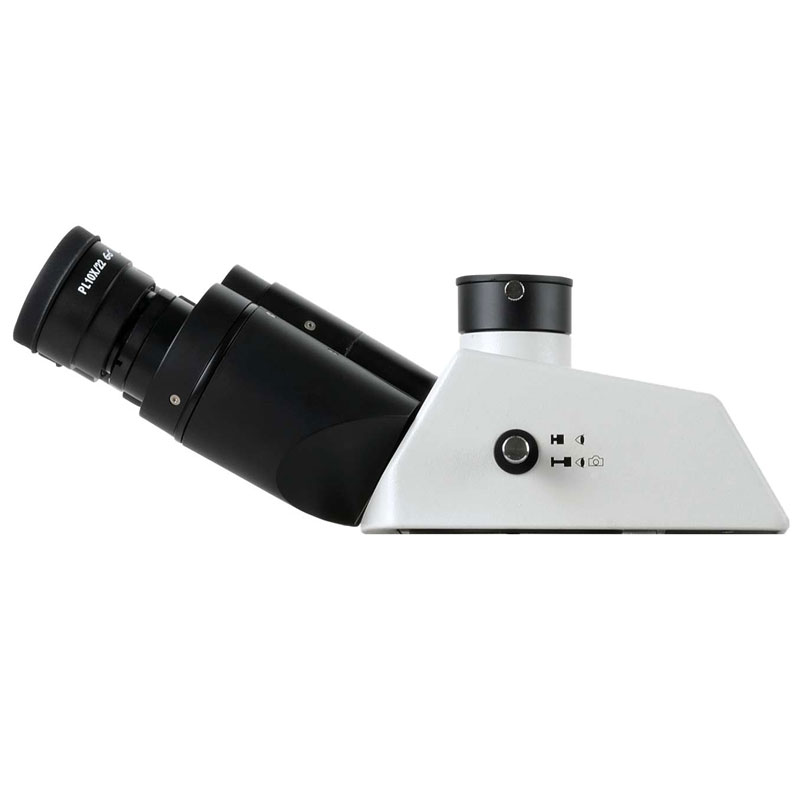

    30° inclined gemel trinocular head, 360° rotatable, interpupillary adjustable distance: 54-75mm, diopter ±5 adjustable, splitting ratio R:T=0:100 or 50:50

    X40-HT30F
    30° inclined gemel trinocular head (for fluorescence), 360°rotatable; interpupillary adjustable distance: 54-75mm, diopter ±5 adjustable, splitting ratio R:T=100:0 or 0:100

    X40-HT535R
    Infinity hinged three-way observation head, erect image, 5-35° tilt angle adjustable, fixed observation tube, interpupillary adjustable distance: 50-75mm, splitting ratio R:T=100:0 or 0:100

    X40-HB3060
    Efficient infinity gemel binocular head, 30°-60° tilt angle adjustable, 360° rotatable, interpupillary adjustable distance: 54-75mm,  diopter ±5 adjustable

    X40-10X22
    High eye-point wide-field plan eyepiece
    PL10X/22mm

    X40-10X22TR
    PL10X/22mm& with micrometer

    X40-15X16
    PL15X/16mm

    X40-IPA2X
    Infinity plan achromatic objective
    2X/0.06 WD=5.00mm (Must purchase glass group for condenser)

    X40-IPA4X
    4X/0.10 WD=15.0mm

    X40-IPA10X
    10X/0.25 WD=10.80mm

    X40-IPA20X
    20X/0.40 WD=1.50mm

    X40-IPA40X
    40X/0.65 WD=0.80mm

    X40-IPA60X
    60X/0.85 WD=0.30mm

    X40-IPA100X
    100X/1.25 WD=0.21mm

    X40-PH10X
    Infinity plan achromatic phase contrast objective
    10X/0.25 WD=10.8mm

    X40-PH20X
    20X/0.40 WD=1.50mm

    X40-PH40X
    40X/0.65 WD=0.80mm

    X40-PH100X
    100X/1.25 WD=0.21mm

    X40-FCTE

    Fluorescence centering objective

    X40-NQ5
    Nosepiece
    Inwardly inclined, backward quintuple nosepiece

    /
    Focusing
    Coarse range: 30mm, fine precision: 0.002mm, Coaxial focus system with upper limited and tension adjustment, work stage height adjustable

    X40-175145
    Stage

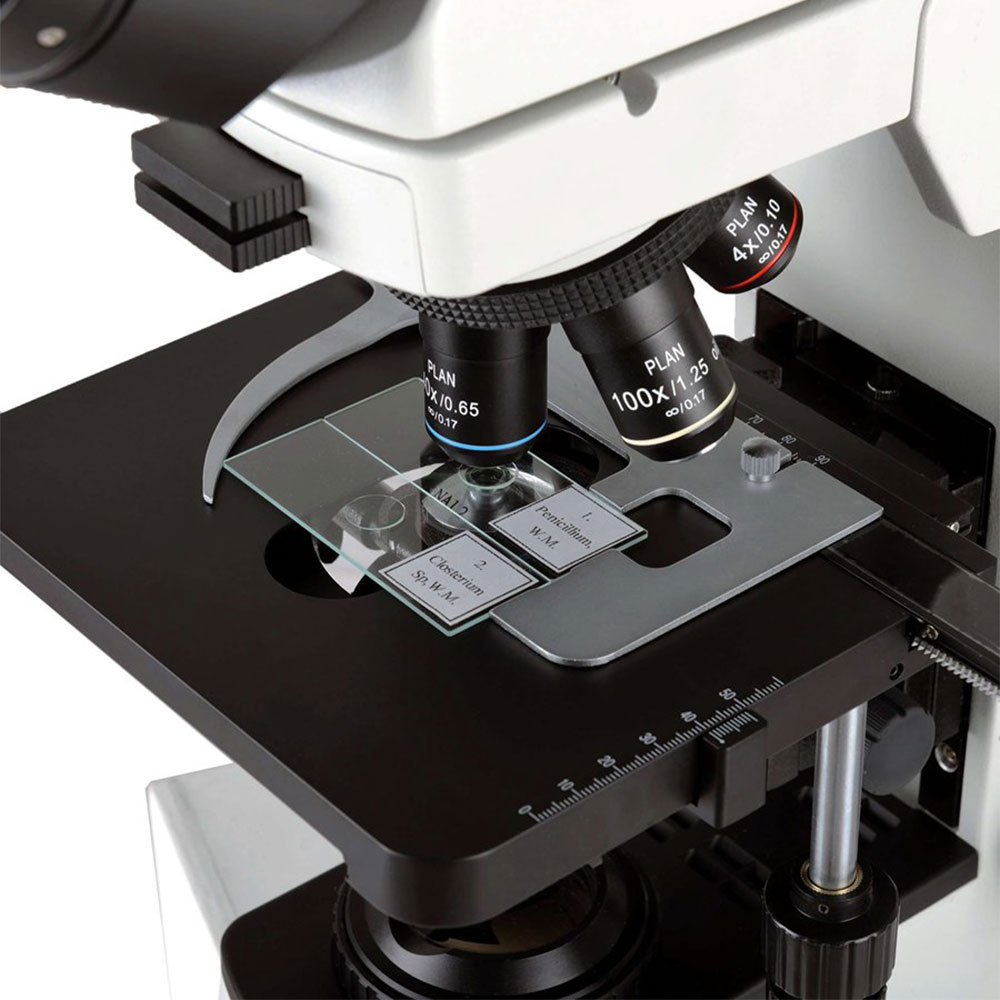

    175x145mm double layer mechanical stage, with special fabrication processing, anti-corrosive and anti-friction. X,Y moving hand wheel in right or left hand, moving range: 76x50mm, precision : 0.1mm

    X40-150162
    150x162mm double layer mechanical stage, moving range 76x50mm, precision 0.1mm, X single-spool movement, upper platform ceramic painting

    X40-187166
    187x166mm double layer mechanical stage, moving range: 80x50mm, precision: 0.1mm, two-way spool movement, optional left and right hand position, adjustable torque

    X40-NA1.2S
    Condenser
    NA.1.2/0.22 swing-out type achromatic condenser, Iris diaphragm with scale indication

    X40-PHCI
    NA.1.25 Five-hole phase contrast condenser (infinity), for 10x, 20x, 40x, 100x phase contrast objective

    X40-PHCID
    NA.1.25 Five hole phase contrast condenser (infinity)+ dark field condenser, for 10x, 40x, 100x phase contrast objective, and 4x-40x dark field

    X40-DC
    NA.0.9 dry dark field condenser

    X40-DCW
    NA.1.25 oil dark field condenser

    X40-CTE

    Centering Telescope

    X40-6V30H
    Illuminator
    6V/30W halogen lamp house, preset filament center

    X40-6V30BU
    6V/30W halogen lamp

    X40-LED3W
    Single 3W LED lamp, Standard cool color temperature 4750K-5500K (optional warm color temperature 2850K-3250K)

    X40-FY
    Filter
    Yellow filter (Φ 45)

    X40-FG
    Green contrast filter (Φ 45)

    X40-FCC
    Color temperature conversion filter (Φ 45)  (only for Holagen lamp)

    X40-FN
    Neutral filter (Φ 45)

    X40-ND25

    Attenuation filter (passing rate 25%)

    X40-ND50

    Attenuation filter (passing rate 50%)

    X40-035CT
    Camera adapter
    accessories
    0.35X camera adapter, C-type interface, adjustable

    X40-05CT
    0.5X camera adapter, C-type interface, adjustable

    X40-065CT
    0.65X camera adapter, C-type interface, adjustable

    X40-1CT
    1X camera adapter, C-type interface, adjustable

    X40-MR1
    Other options
    accessories
    High-precision micrometer, grid value 0.01mm

    X40-MR2
    Standard micrometer, grid value 0.01mm

    X40-PRF
    Polarizer (Φ 45)

    X40-PR360
    360° rotating analyzer insert

    X40-XYPS
    Color sensitive film (λ wave insert)

    X40-CD1.2-1
    Clear glass for 2x objective

    ''●'' = Standard configuration         ''○''= Option
