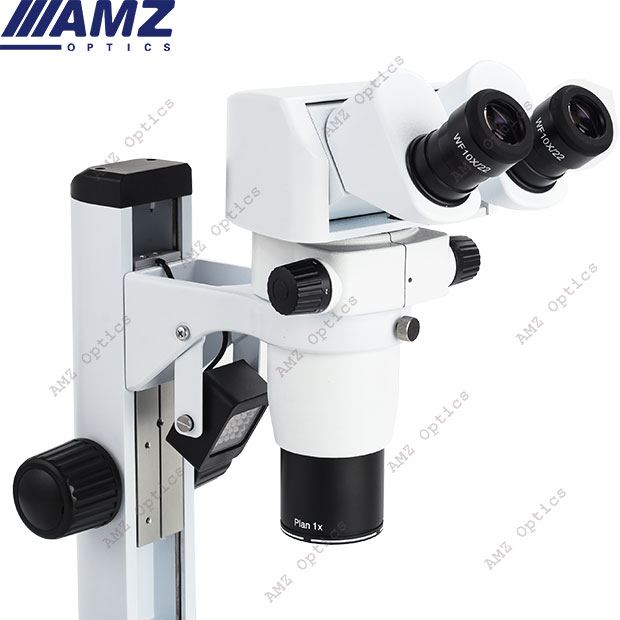

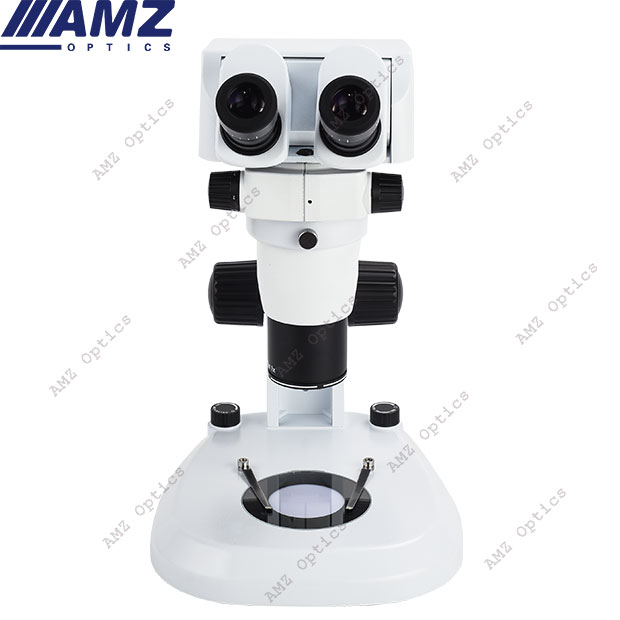

ZM-80N Ergonomic Tilting Binocular Zoom Stereo Microscope With Galilean Infinity Parallel Light Path
1. Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
2. Comfortable Operation with Ergonomic Design Principle.
3. With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.
4.A Wide Range of Accessories to be Equipped with the Microscope for Multi-purposeIt is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.
  • Specifications
  • Accessories
  • Products Catalog
  • Specification:



    ZM-850N

    ZM-864N

    ZM-880N

    Drawing Tube

    Binocular Head, 20°Inclination
    Interpupilary distangce 55-75mm

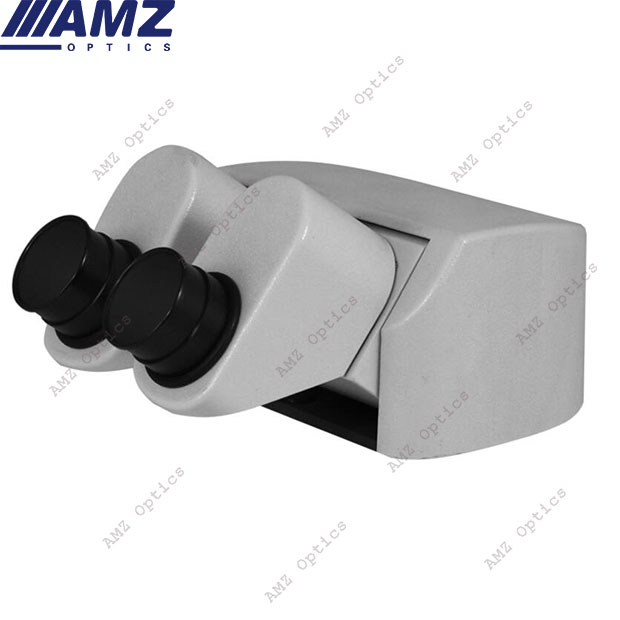

    Tilting Binocular Head, 0°-35° Inclination

    Photo Attachment(one photo tube)




    Photo Attachment(two photo tube)

    Eyepiece

    EW10x/22

    WF15x/16

    WF20x/12

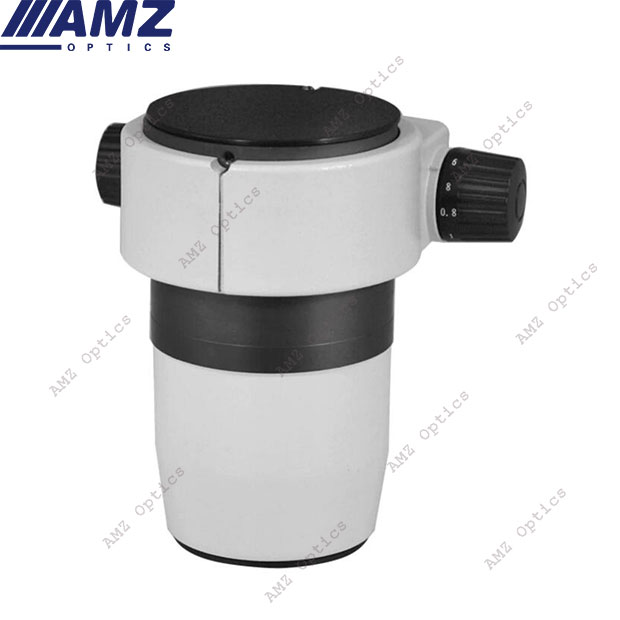

    Zoom Objective

    0.8x-5x



    0.8x-6.4x



    0.8x-8x



    Objective

    Plan Achromatic Objective 1x,

    WD: 78mm

    Plan Apochromatic Objective 0.5x

    WD: 186mm


    Plan Achromatic Objective2x

    WD:32.5mm

    Achromatic Objective 0.3x

    Zoom Ratio

    1: 6



    1: 8



    1: 10



    Working Distance

    78mm

    Focusing

    Focusing Range 105mm

    Illumination

    Transmission or Reflection LED Illumination, Brightness Adjustable

    Coaxial Illumination

    Fluorescent Attachment


    Dark Field Attachment


    Photo/ Video Attachment


    Simple
    Polarization Set


    Iris Diaphragm


    Mechanical Stage


    Temperature Stage

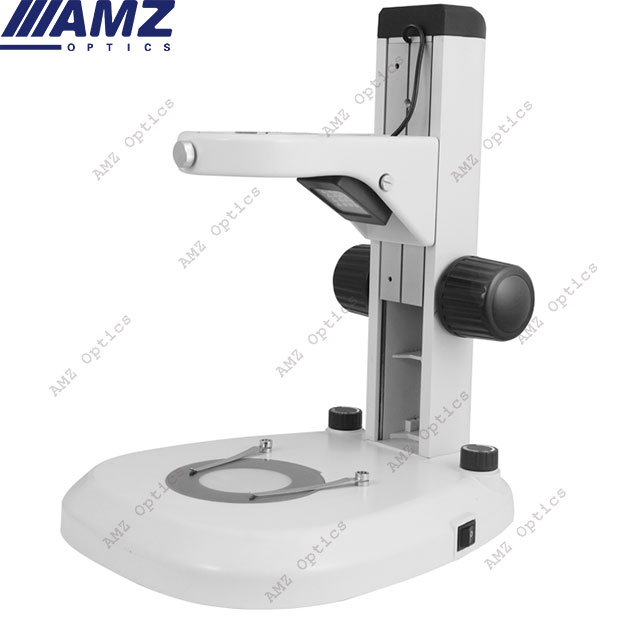

    Universal Table Stand


    D Stand


    Coaxial Coarse & Fine Focusing Unit


    Note: Standard Outfit,   ○ Optional
