ZM-X12 0.63X~8X Galileo Parallel Ergonomic Tilting Trinocular Stereo Microscope With Adjustable Color Temperature
1. The new ZM-X12 zoom stereo microscope from UNITRON features a Common Main Objective design, a 12.5:1 zoom ratio and a massive 8X to 400X magnification range.
2. The ZM-X12 includes many features typically found in higher priced microscopes. Three new stands suit the most demanding applications: plain focusing stand, transmitted light base with sliding/tilting mirror, and a slim profile LED transmitted light base. The color-balanced LED light sources give bright illumination to the specimen, and are highly cost effective (low energy consumption and long lifespans). A 5°-45° tilting trinocular observation head offers ergonomic viewing comfort that is customizable to the observer. Its apochromatic objectives deliver crisp color reproduction and high resolution of fine structures, and the trinocular port is ready to accept a digital microscopy camera for imaging. Click-stop zoom positions allow the observer to quickly return to a specific magnification setting, thus saving time and increasing reproducibility.
3.The ZM-X12 addresses a wide variety of applications from assembly and quality control in the industrial markets, to stem cell and embryo selection in the life sciences. The new microscope delivers both performance and high-end features at a value-conscious price point
|
- Specifications
- Accessories
- Products Catalog

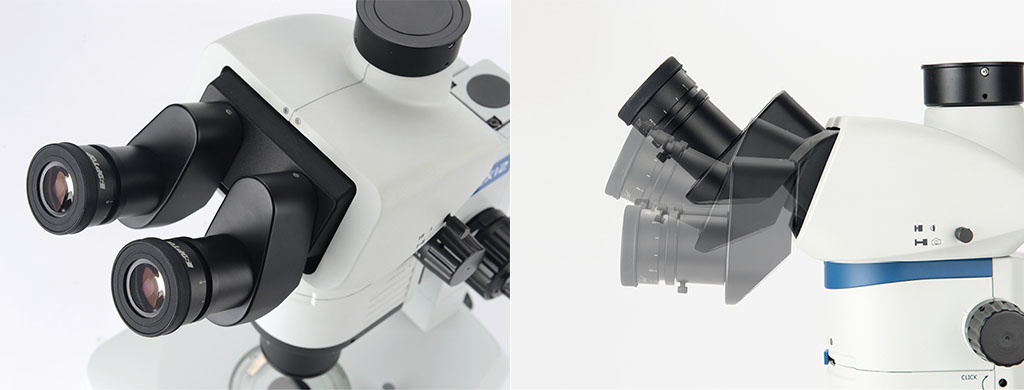

- ● Tilting viewing head for comfortable operation
ZM-X12 with tilting viewing head from 5 to 45 degree, can be flexibly adjusted for different operators with different posture.
● Large zoom ratio 12.5:1
SZX12 has large zoom ratio from 0.8X to 10X, with click stop for every main time, which can be manually unbind for zoom magnifying smoothly.

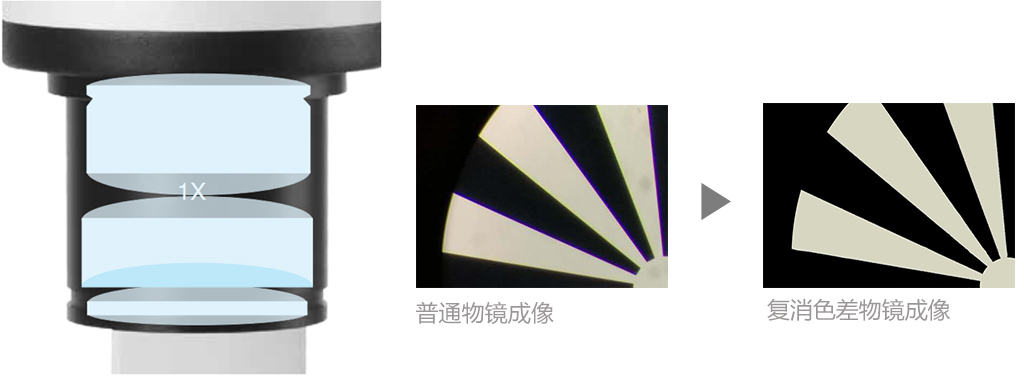

● Apochromatic objective
Apochromatic design significantly improves the lens performanceof color rendition. Correcting the axial chromatic aberration of red/green/blue/purple, and converge them on a focal plane, the objective is able to present the real color of the samples.
● Aperture diaphragm adjustment
Shift the aperture diaphragm in front to adjust depth of field for high-quality image.

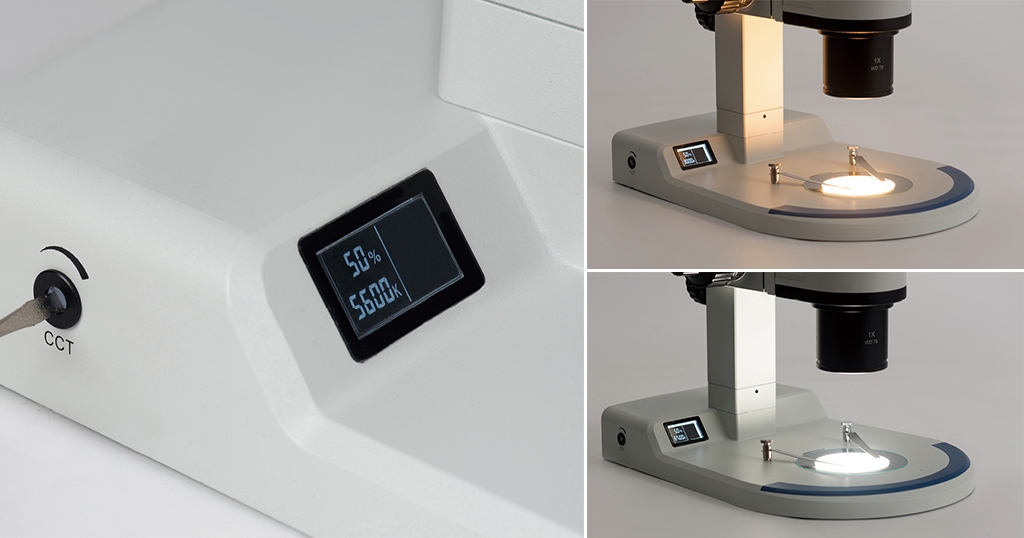

● Humanized light intensity
Rotate the dimmer to adjust light intensity, the detailed percent of brightness will be displayed from the LCD on the base. It is helpful to record data of the best back light for sample observation.
● Optional color temperature
Adjust the color temperature to create a perfect imaging background for different samples in different work environment.
● Life Science
Support for life science research, meet the demands of biological experiment, chemical analysis and cell culture.
● Industry Detection
Indispensable testing tool, widely applied for surface detection of PCB, SMT, semiconductor chip, metal material and precision components.
|
Specification
|
ZM-X12
|
Viewing head
|
Tilting trinocular viewing head, 5~45 degree adjustable; binocular: trinocular= 100:0 or 0:100; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw
|
●
|
30 degree inclined trinocular head; binocular: trinocular=50: 50; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw
|
○
|
Eyepiece
|
High eye-point wide field plan eyepiece PL10X23mm, diopter adjustable
|
●
|
High eye-point wide field plan eyepiece PL15X16mm, diopter adjustable
|
○
|
High eye-point wide field plan eyepiece PL20X12.5mm, diopter adjustable
|
○
|
Zoom range
|
Zoom range: 0.8X~10X
Zoom ratio: 12.5 : 1
Built-in aperture diaphragm
Click stop for 0.8X, 1X, 1.5X, 2X, 3X, 4X, 5X, 6X, 8X, 10X
|
●
|
Main objective
|
1X main objective, working distance 78mm
|
●
|
2X main objective, working distance 20mm
|
○
|
Body
|
Coarse and fine coaxial focus system, integrated body with focus holder, coarse range: 50mm, fine precision 0.002mm
|
●
|
Base
|
Plan base without illumination, with black & white plate (dia.100mm)
|
○
|
Plan base with transmitted illumination (work with external 5W LED fiber); built-in 360 degree rotatable mirror, location adjustable
|
○
|
Ultra-thin base, multi-LED (5W), with digital readout of light intensity and color temperature (3200~5600K)
|
●
|
Camera adapter
|
0.35X C-mount focus
|
○
|
0.5X C-mount focus
|
○
|
0.65X C-mount focus
|
○
|
1X C-mount focus
|
○
|
Note: ''●'' Standard Outfit, ''○'' Optional
|
|
