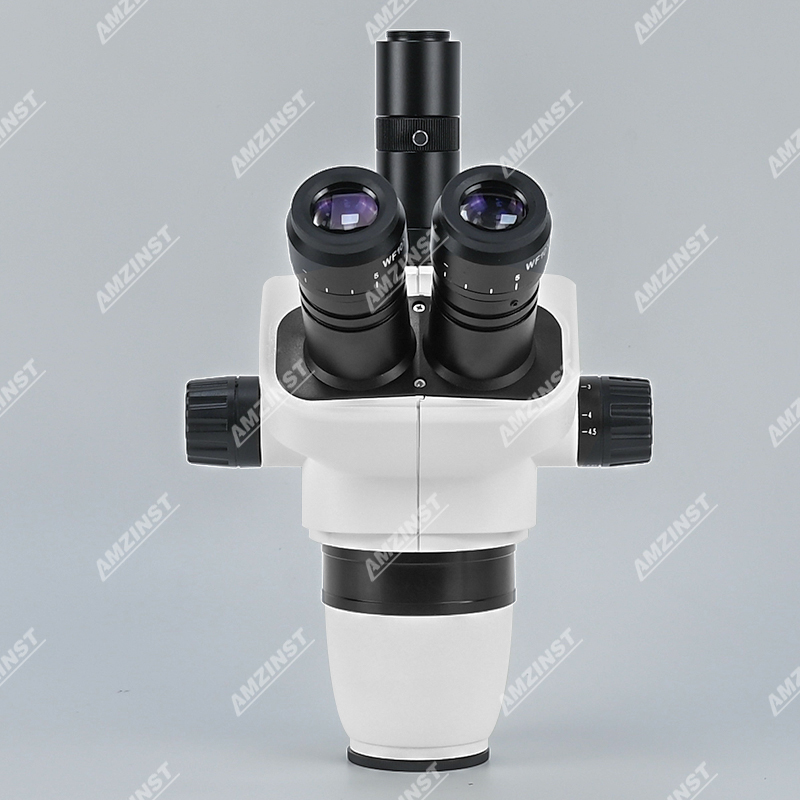

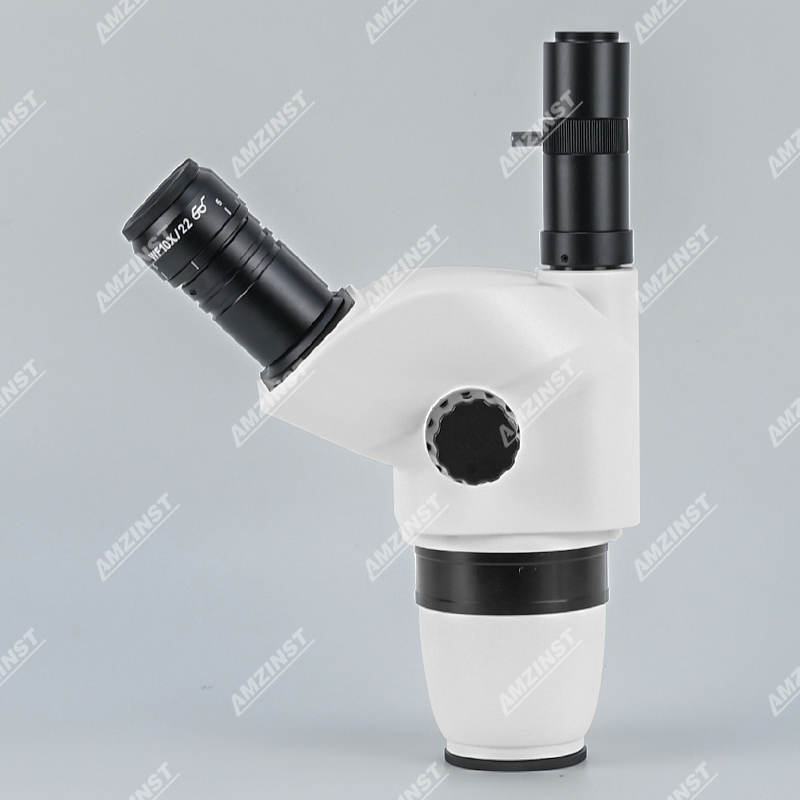

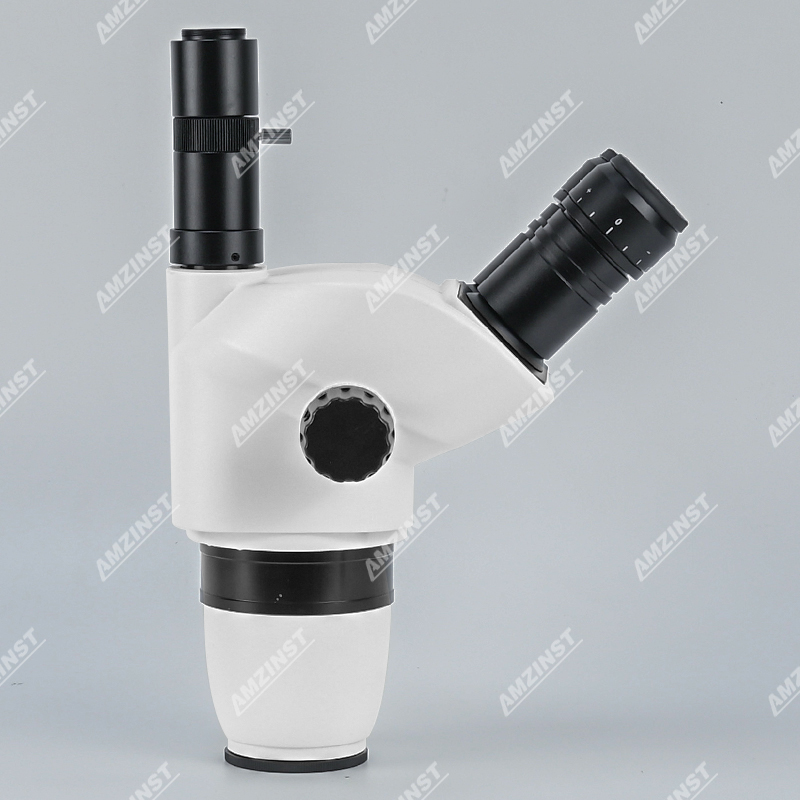

ZM-6745TH 6.7x-45x Ultimate Trinocular Stereo Zoom Microscope Head

- 6.7x-45x extreme widefield continuous zoom magnification power
- Ultimate sharp clear stereo erect images over an extreme wide field view
- Trinocular port for adding photo or video capability
- Extreme widefield high-eyepoint WH10X/22 eyepieces with foldable eye-guards
- (145mm) 5-3/4" extremely large field view and 14" (350mm) working distance
- 48mm (in diameter) female thread for adding Barlow lenses or lights
- Mounting Size:(76mm) 3" in diameter
  • Specifications
  • Accessories
  • Products Catalog
  • ● Optical system: Greenough.
    ● Viewing head: Trinocular viewing head, Inclined 45°. Interpupillary distance adjustment 54-76mm, Diopter adjustment +/- 5.
    ● Eyepieces: WF10x/22mm focusable eyepieces, Eyeguards included
    ● Zoom objectives: 0.67x – 4.5x.
    ● Zoom ratio: 6.7: 1
    ● Working distance: 110mm
    ● Head mounting size: 76mm in diameter
    ● C-Mount Adapter: 1X (Included)
    ● Dust cover: Yes (Included)

      Optional Accessories:
    - 1x Focusable C-Mount Camera Adapter (SKU: ZM6745-1CT)
    - 0.5x Focusable C-Mount Camera Adapter (SKU: ZM6745-05CT)
    - 0.35x C-Mount Camera Adapter (SKU: ZM6745-035CT)
    - 0.3x Auxiliary lens (SKU: AU6745-03X)
    - 0.4x Auxiliary lens (SKU: AU6745-04X)
    - 0.5x Auxiliary lens (SKU: AU6745-05X)
    - 0.75x Auxiliary lens (SKU: AU6745-075X)
    - 1.5x Auxiliary lens (SKU: AU6745-15X)
    - 2x Auxiliary lens (SKU: AU6745-20X)
    - 10x/22mm eyepieces (SKU: ZM6745-10EX)
    - 15x/16mm eyepieces (SKU: ZM6745-15EX)
    - 20x/12mm eyepieces (SKU: ZM6745-20EX)
    - Microscope Light Source
