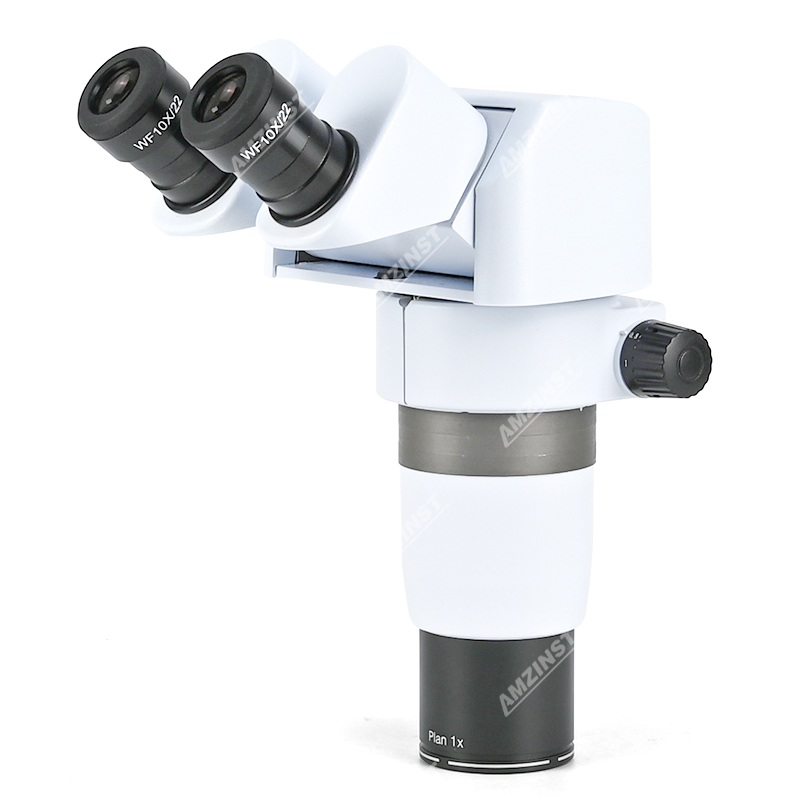

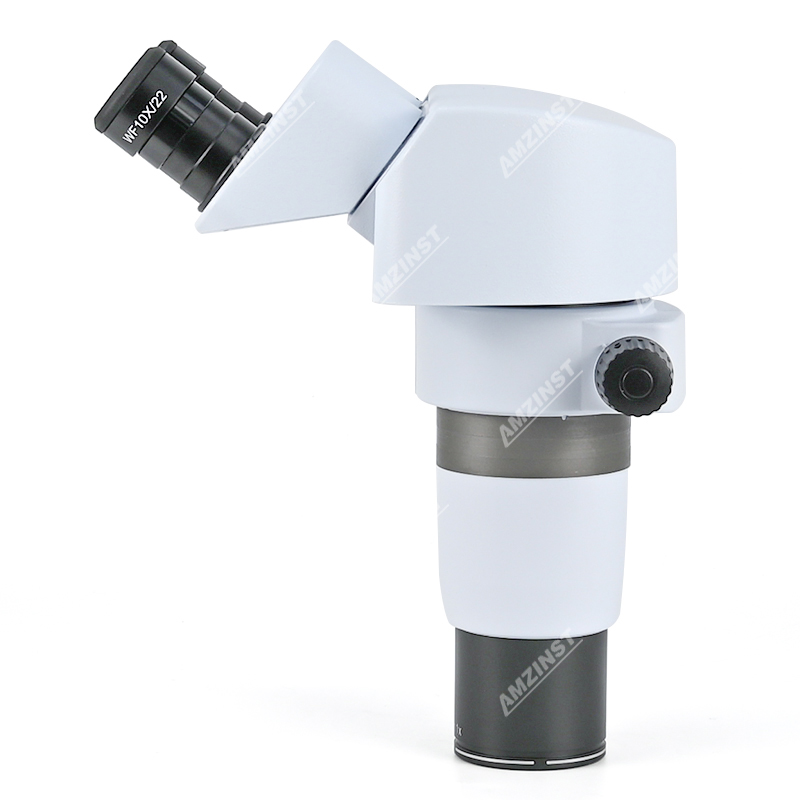

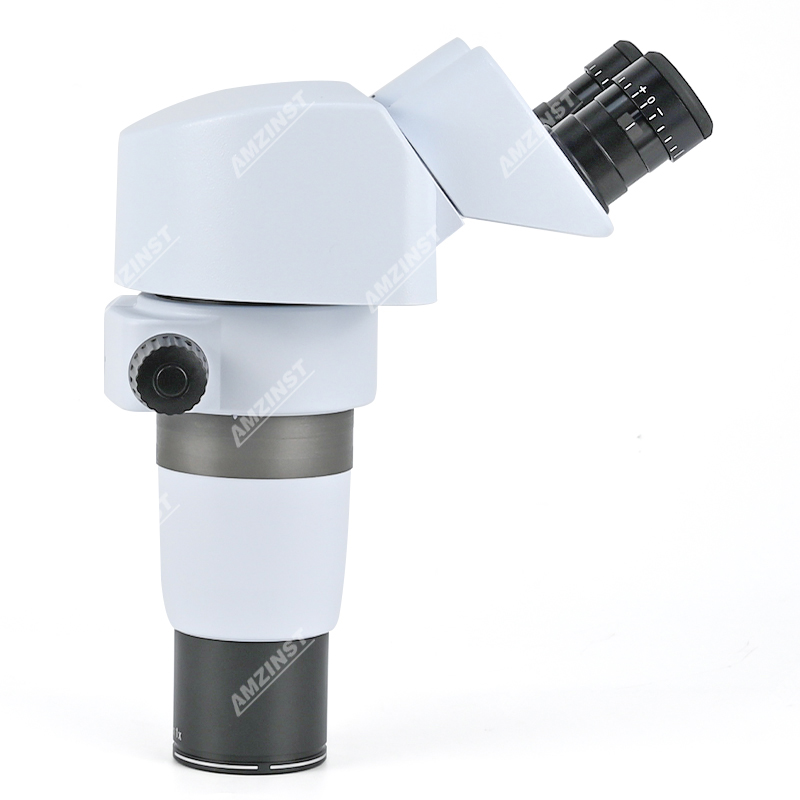

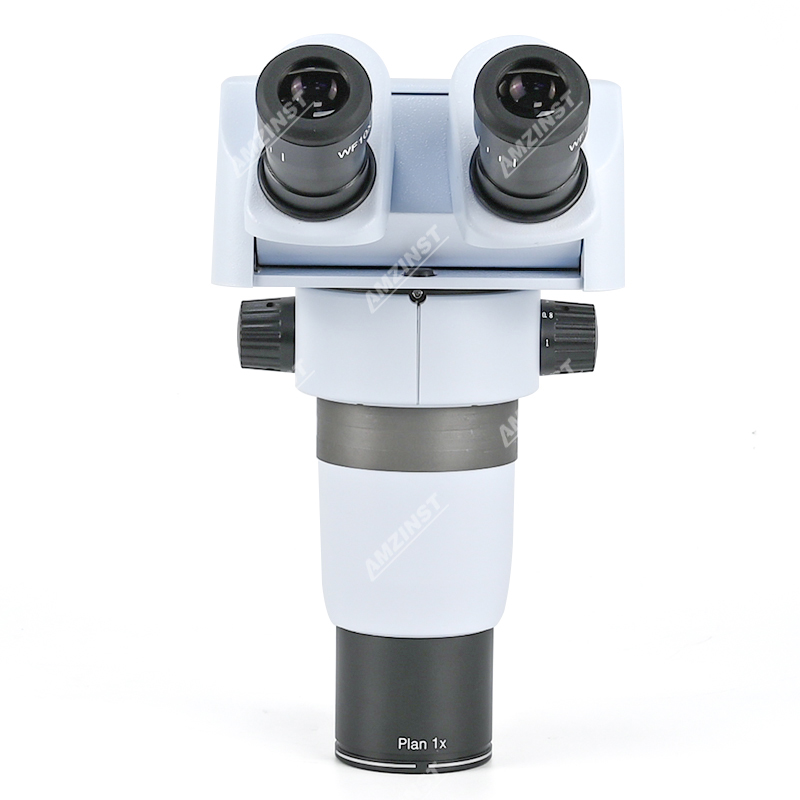

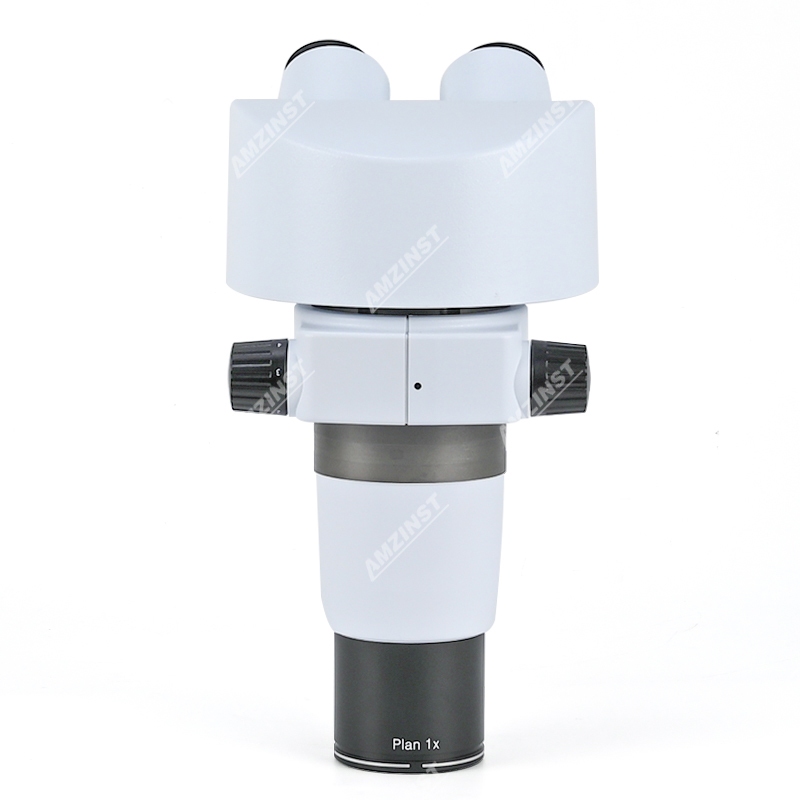

ZM-850EG Ergonomic Zoom 0.8x-5x Infinity Parallel Galilean Optical System Binocular Stereo Microscope Head
- The ZM-80 Series is a modular system designed to deliver exceptional ergonomic and optical performance. The ZM-80 Series is an ideal choice for medical device manufacturer’s, industrial inspection and assembly, quality control, OEM integration and research applications.
- Users can select either an ergo tilting binocular head with an adjustable viewing angle of 0°– 45° for true fatigue-free viewing, or a binocular head with a 20° angle and extended eyetubes for maximum viewing comfort. All systems can easily add a photo port/beam splitter for attaching a camera to enable image capture or output to a video monitor.
- The ZM-80 Series offers a high depth of focus and resolution up to 289 lpm. Systems can be configured with a 10:1, 8:1 or a 6.3:1 zoom ratio providing flexibility and value.
  • Specifications
  • Accessories
  • Products Catalog
  • ● Optical system: Galilean
    ● Drawing Tube: Tilting binocular head 0°-35°, Inclination interpupilary distangce 51-75mm
    ● Eyepiece: EW10x/22mm
    ● Zoom Objective: 0.8x-5x
    ● Zoom ratio: 6.3 : 1
    ● Click-stops at: 0.8,1, 1.5, 2, 3, 4, 5x positions
    ● Objective: Plan achromatic objective 1X (N.A. 0.09)
    ● Working Distance: 78mm
