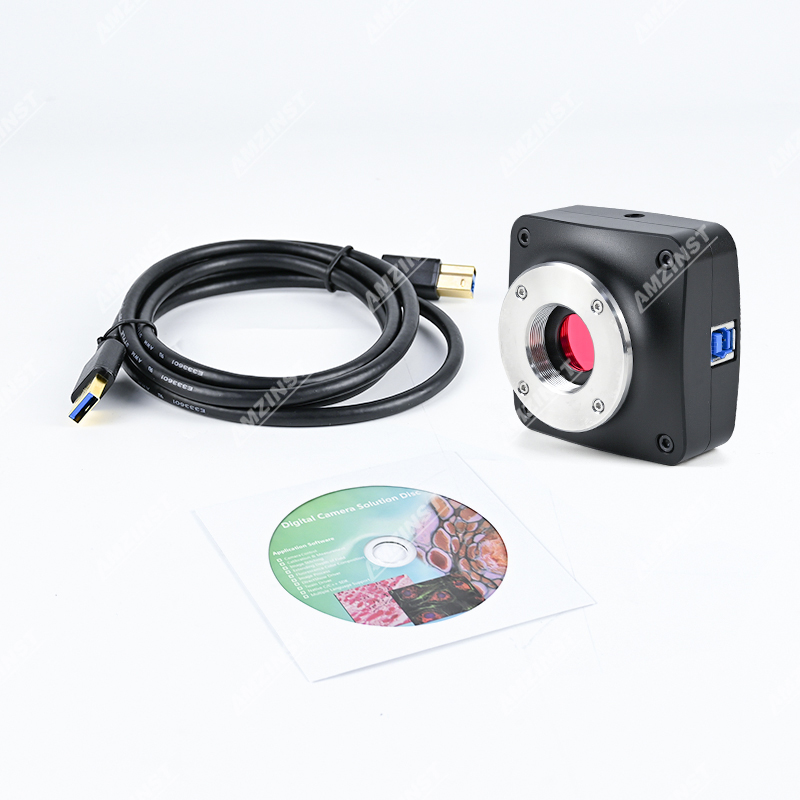

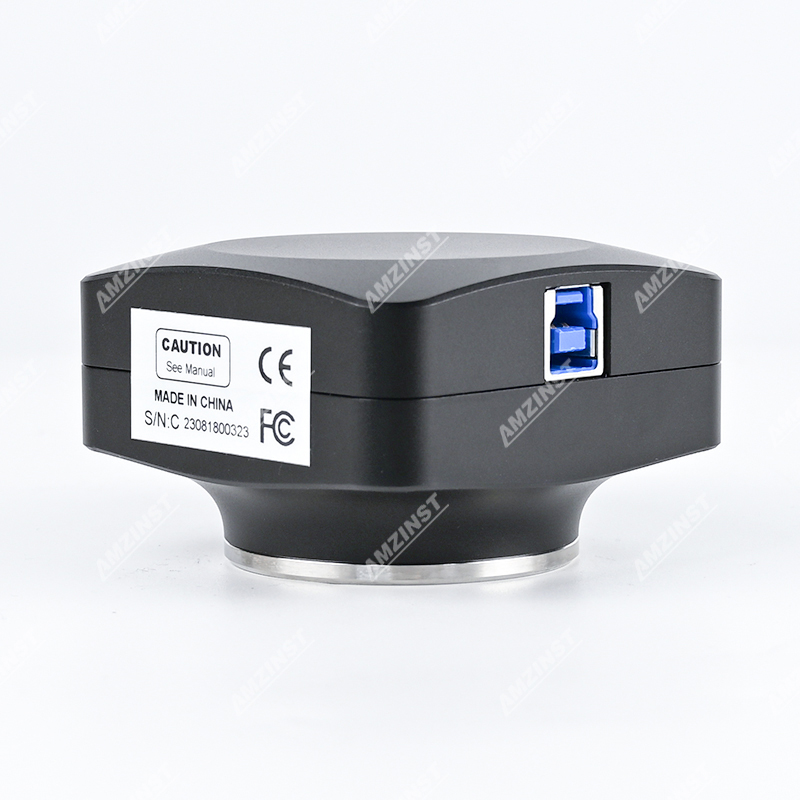

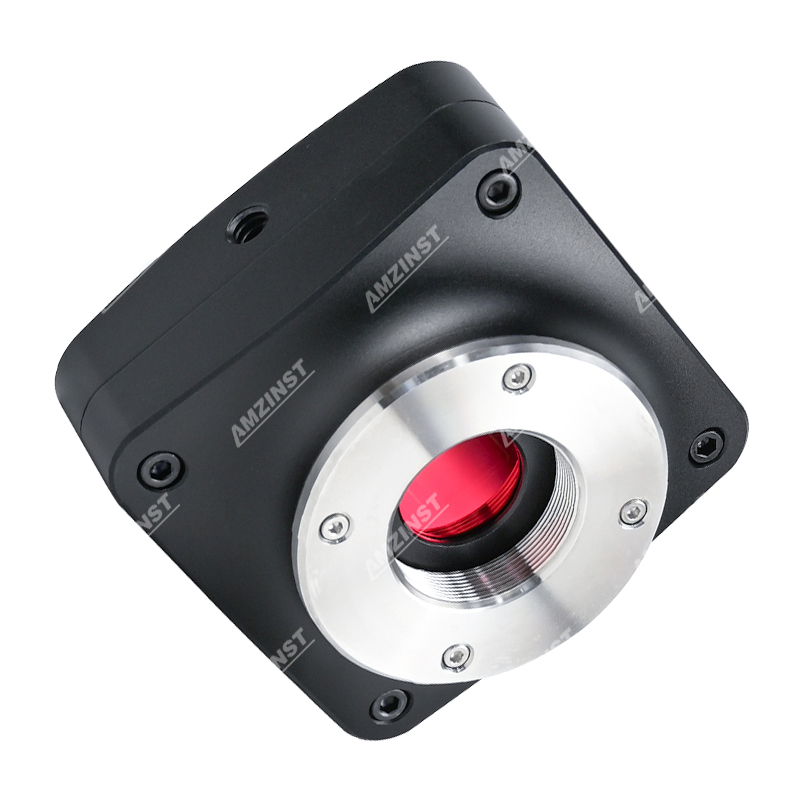

PC3-HI USB 3.0 High-Speed Back-Illuminated Color CMOS C-Mount Microscope Camera

● SONY Exmor Back-illuminated CMOS sensor with USB3.0 interface;
● Real-time 8/12/14/16bit depth switch(depending on sensor);
● Super high sensitivity up to 2350mV(IMX385);
● Ultra low noise and low power dissipation;
● With hardware resolution among1.5M to 20M;
● Rolling Shutter or Global Shutter; Standard C-Mount camera; CNC aluminum alloy housing;
● With advanced video & image processing application ToupView;
● Ultra-fine Color hardware Color Enginne ensuring high frame rates(Up to 15 frames for 20M Resolution);
● Windows/Linux/macOS/Android multiple platform SDK;

inquire

Specifications
Accessories
Products Catalog

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
PC3-HI45MA	45M/IMX294(C) 1.4“ (18.93x13.00)	2.315x2.315	108mv with 1/30s 0.03mv with 1/30s	8.1@8176x5616 30.0@4088x2808 8.1@7408x5556 33.0@4088x2808 10.4@8176x4320 34.7@4096x2160 62.5@2048x1080 86.5@1344x720	1x1(3:2) 2x2(3:2) 1x1(4:3) 2x2(4:3) 1x1(17:9) 2x2(17:9) 3x3(17:9) 4x4(17:9)	0.1ms~15s
PC3-HI45MB	45M/IMX492(C) 1.4“ (18.93x13.00)	2.315x2.315	108mv with 1/30s 0.03mv with 1/30s	8.1@8176x5616(C) 30.0@4080x2808(M) 8.1@7408x5556(C) 33.0@3696x2778(M) 10.4@8176x4320(C) 34.7@4096x2160(M) 62.5@2048x1080(M) 86.5@1344x720(M)	1x1(3:2) 2x2(3:2) 1x1(4:3) 2x2(4:3) 1x1(17:9) 2x2(17:9) 3x3(17:9) 4x4(17:9)	0.1ms~15s
PC3-HI32M	32M/IMX294(C) 1.15“ (12.96x12.96)	2.315x2.315	108mv with 1/30s 0.03mv with 1/30s	8.1@5600x5600 30.0@2800x2800 30.0@1400x1400	1x1 2x2 4x4	0.1ms~15s
PC3-HI25M	25M/IMX511(C) 1/2.3 “ (5.519x5.519)	1.12x1.12	96.3mv with 1/30s 0.1mv with 1/30s	12@4928x4928 46@2464x2464 100@1648x1648	1x1 2x2 3x3	0.013ms~15s
PC3-HI21M	21M/IMX269(C) 4/3"(17.40x13.00)	3.3x3.3	399mv with 1/30s 0.1mv with 1/30s	17@5280x3954 17@3952x3952 56 @2640x1976 67@1760x1316 192@584x438	1x1 1x1 2x2 3x3 9x9	0.1ms~15s
PC3-HI20.4M	20.4M/IMX541 (C) 1.1 “(12.32x12.32)	2.74 x2.74	1574mv with 1/30s 0.15mv with 1/30s	17.5@4496x4496 64.4@2240x2240 64.4@1120x1120	1x1 2x2 4x4	0.03ms~15s
PC3-HI20M	20M/IMX183(C) 1 “(13.06x8.76)	2.4 x2.4	462mv with 1/30s 0.21mv with 1/30s	15@5440x3648 50@2736x1824 60@1824x1216	1x1 2x2 3x3	0.1ms~15s
PC3-HI20MA	20M/IMX183(C) 1"(13.06x8.76)	2.4x2.4	462mv with 1/30s 0.21mv with 1/30s	20@5440x3648 48@2736x1824 58@1824x1216	1x1 2x2 3x3	0.1ms~15s
PC3-HI18M	18M/Sony Special(C) 1/2.2"(5.86x4.46)	1.2x1.2	130mv with 1/30s 0.10mv with 1/30s	17@4880x3720 40@2448x1836 50@1728x1296	1x1 2x2 3x3	0.1ms~15s
PC3-HI15.6M	15.6M/Sony Special(C) 1.1"(13.0x13.0)	3.3x3.3	399mv with 1/30s 0.10mv with 1/30s	17@3592x3592 56@1796x1796 67@1316x1316	1x1 2x2 3x3	0.1ms~15s
PC3-HI12.4MC	12.4M/IMX545 (C,GS) 1/1.1“(11.22x8.22)	2.74 x2.74	1337mv with 1/30s 0.15mv with 1/30s	28.2@4096x3000 100.9@2048x1500 100.9@1024x750	1x1 2x2 4x4	0.03ms~15s
PC3-HI12.3MC	12.3M/IMX304(C,GS) 1.1”(14.13x10.35)	3.45x3.45	1146mv with 1/30s 0.1mv with 1/30s	23.4@4096x3000 46.3@2048x1500	1x1 1x1	0.244ms~15s
PC3-HI12M	12M/IMX226(C) 1/1.7“(7.40x5.55)	1.85x1.85	280mv with 1/30s 0.1mv with 1/30s	25@4000x3000 50@2048x1080	1x1 2x2	0.1ms~5s
PC3-HI12MA	12M/IMX577(C) 1/2“(6.29x4.71)	1.55x1.55	250mv with 1/30s 0.25mv with 1/30s	30@4056x3040 60@2028x1520 120@1014x760	1x1 2x2 4x4	0.1ms~5s
PC3-HI9.0MC	9M/IMX305(C,GS) 1"(14.13x7.45)	3.45x3.45	1146mv with 1/30s 0.15mv with 1/30s	34@4096x2160 60@2048x1080	1x1 2x2 3x3	0.1ms~15s
PC3-HI9.0M	9.0M/IMX533(C) 1“ (11.31x11.28)	3.76x3.76	535mv with 1/30s 0.04mv with 1/30s	40@3008x3000 123@1488x1500 186@992x998	1x1 2x2 3x3	0.1ms~15s
PC3-HI8.3M	8.3M/IMX274(C) 1/2.5"(6.22x3.50)	1.62x1.62	236mv with 1/30s 0.15mv with 1/30s	32@ 3840x2160 65@ 1920x1080	1x1 2x2	0.244ms~15s
PC3-HI8.3MB	8.3M/IMX334(C) 1/1.8”(7.68x4.32)	2.0x2.0	505mv with 1/30s 0.1mv with 1/30s	35@3840x2160 60@1920x1080	1x1 2x2	0.02ms~15s
PC3-HI8.3MC	8.3M/IMX485(C) 1/1.2”(11.14x6.26)	2.9x2.9	2188mv with 1/30s 0.15mv with 1/30s	45@3840x2160 70@1920x1080	1x1 2x2	0.02ms~15s
PC3-HI8.3MD	8.3M/IMX585(C) 1/1.2”(11.14x6.26)	2.9x2.9	5970(mV/lx/s) 0.13mv with 1/30s	45@3840x2160 70@1920x1080	1x1 2x2	0.02ms~15s
PC3-HI8.0M	8.0M/IMX294(C) 1.15 “(13.00x13.00)	4.63 x4.63	419mv with 1/30s 0.12mv with 1/30s	30@2808x2808(14bit) 139@1392x1392 139@696x696	1x1 2x2 4x4	0.1ms~15s
PC3-HI6.3M	6.3M/IMX178(C) 1/1.8"(7.37x4.92)	2.4x2.4	425mv with 1/30s 0.15mv with 1/30s	30 @3072x2048 38 @1536x1024	1x1 2x2,	0.1ms~15s
PC3-HI6.3MA	6.3M/IMX178(C) 1/1.8“ (7.37x4.92)	2.4x2.4	425mv with 1/30s 0.15mv with 1/30s	59@3072 x2048 59@1536x 1024	1x1 2x2	0.02ms~15s
PC3-HI5.0MC	5.0M/IMX264(C, GS) 2/3” (8.45x7.07)	3.45x3.45	1146mv with 1/30s 0.15mv with 1/30s	35 @2448x2048 50 @1224x1024	1x1 1x1	0.1ms~15s
PC3-HI3.1MC	3.1M/IMX265(C,GS) 1/1.8"(7.07x5.30)	3.45x3.45	1146mv with 1/30s 0.15mv with 1/30s	53 @2048x1536 85 @1024x768	1x1	0.1ms~15s
PC3-HI3.1M	3.1M/IMX123(C) 1/2.8“ (5.12x3.84)	2.5x2.5	600mv with 1/30s 0.15mv with 1/30s	50@2048x1536 50@1920x1080	1x1 1x1	0.1ms~15s
PC3-HI2.1M	2.1M/IMX482(C) 1/1.2”(11.14x6.26)	5.8x5.8	8935mv with 1/30s 0.6mv with 1/30s	96@1920x1080	1x1	14us~15s
PC3-HI2.0M	2.0M/IMX385(C) 1/2"(7.20x4.05)	3.75x3.75	2350mv with 1/30s 0.15mv with 1/30s	125 @1920x1080	1x1	0.1ms~15s
PC3-HI1.5M	1.5M/IMX273(C,GS) 1/2.9"(4.968x3.726)	3.45x3.45	1145mv with 1/30s 0.15mv with 1/30s	164 @1440x1080 320 @720x540	1x1 2x2	0.1ms~15s

OTHER HARDWARE CONFIGURATION

Spectral Range	380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
White balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
Recording System	Still Picture and Movie
Cooling System*	Natural

OPERATING ENVIRONMENT

Operating Temperature	-10℃~ 50℃
Storage Temperature	-20℃~ 60℃
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port

SOFTWARE ENVIRONMENT

Operating System	Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) OS X (Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 2GB or More USB port: USB2.0 High-speed Port Display: 17" or Larger CD-ROM
