NK-80B

NK-80BPA

NK-80BIP

Eyepiece

WF10X/18mm

●●

WF16X/13mm

໐

WF20X/11mm

໐

WF10X/18mm with pointer

໐

Viewing head

Monocular viewing head, inclined at 30º, 360º rotatable

໐

Seidentopf binocular head, inclined at 30°, 360° rotatable, interpupillary adjustable distance: 55-75mm

●

Seidentopf trinocular head, inclined at 30°, 360° rotatable, interpupillary adjustable distance: 55-75mm

໐

Finite achromatic objectives

4X/0.1, W.D= 37.5mm

●

/

10X/0.25, W.D= 6.54mm

●

/

40X/0.65(S), W.D= 0.63mm

●

/

100X/1.25(S, Oil), W.D= 0.195mm

●

/

Finite plan achromatic objectives

4X 10X 40Xs 100Xs(oil)

/

●

/

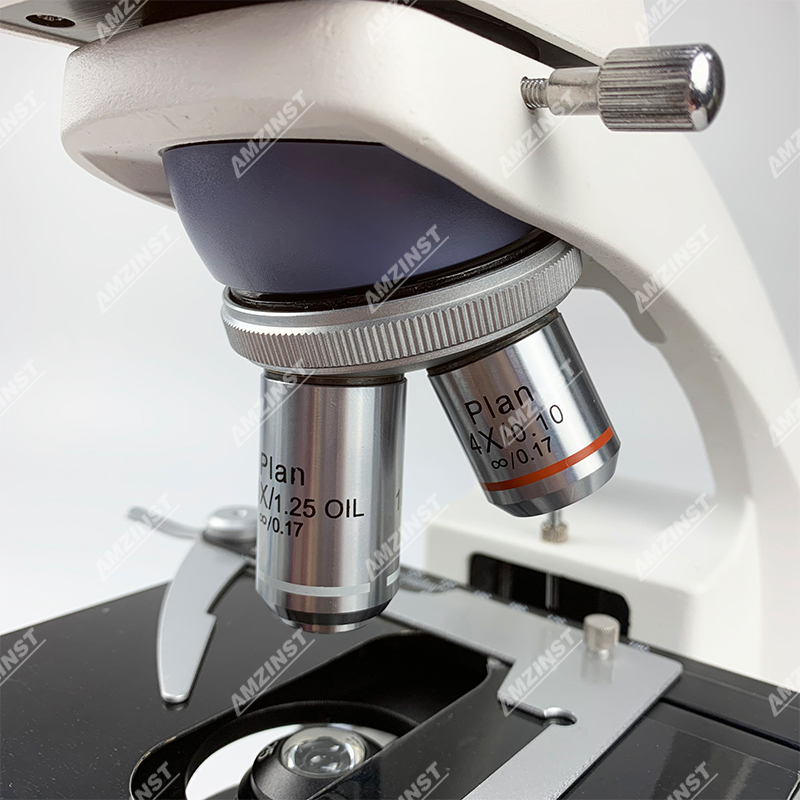

Infinity plan achromatic objectives

4X/0.10, ∞/0.17

/

●

10X/0.25, ∞/0.17

/

●

40X/0.65(S), ∞/0.17

/

●

100X/1.25(S, Oil), ∞/0.17

/

●

Nosepiece

Quadruple nosepiece

●

Quintuple Nosepiece

໐

Condenser

Abbe condenser NA1.25 with iris diaphragm & filter

●

Stage

Double layer mechanical stage 142x132mm, moving range75mmx50mm

●

Focusing system

Coaxial coarse and fine adjustment with rack and pinion mechanism, fine division 0.002mm, coarse stroke 36mm

●

Illumination

3W/4V LED, brightness adjustment

●

6V/20W halogen lamp, brightness adjustment

໐

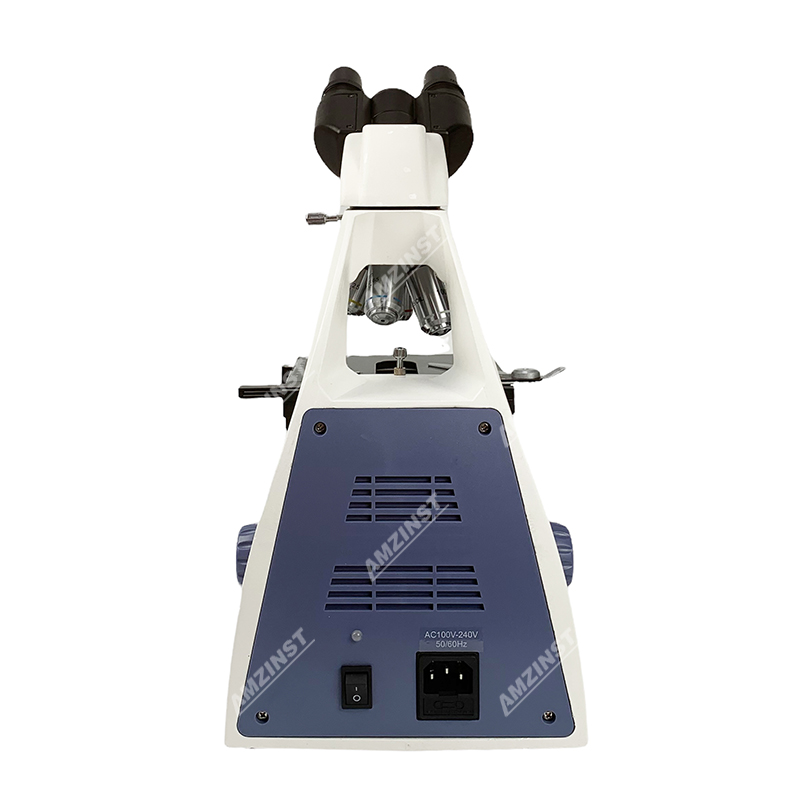

Power supply

100V-240V 50/60Hz

●

Power by 3pcs AA 1.5V battery box (Battery not included)

●

Microscope dimension

340x240x420mm (L*W*H)

●

Packing list

1x Binocular microscope head
1x Microscope body
1x achromatic objectives 4x/10x/40x/100x
1x Bule filter
1x Power cable
1x Oil
1x Dust cover
1x User manual

/
