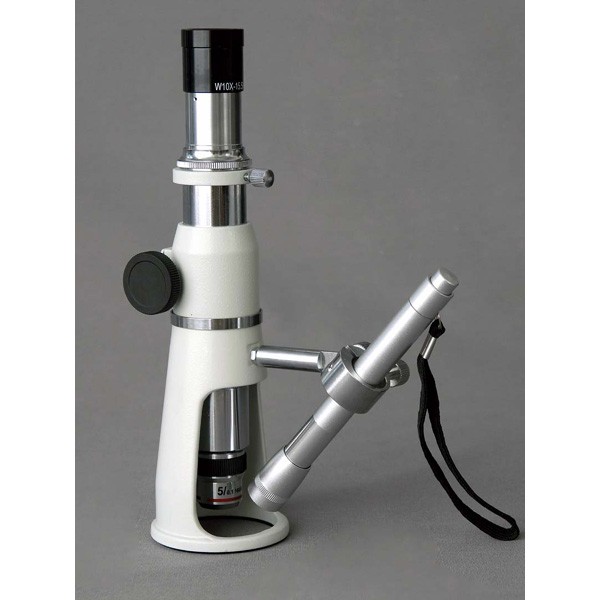

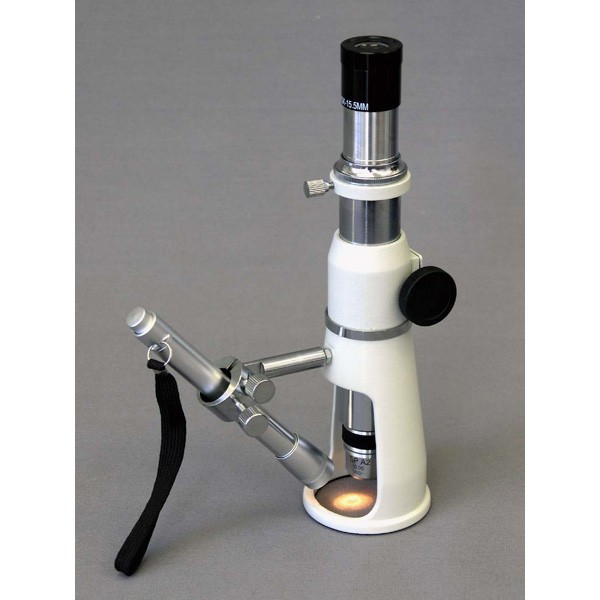

This is a brand new advanced shop measuring microscope that offers 20X, 50X and 100X magnification settings. Combining compact design and precision optics, it is an ideal shop tool. This microscope has exceptional lens and gives clear images with flat field of view. WF10X eyepiece with direct reading reticle (no calibration required) shows metric scales and allows for precise measurement. Adjustable penlight makes it versatile. This microscope system offers high quality clear images and unbeatable low price.
Features :
● An advanced shop measuring microscope offering three magnification settings
● 20X, 50X and 100X magnification settings.
● Built-in scale showing millimeters (0.1mm Graduation).
● Adjustable pen light.
● Full metal body.
● Manufactured under ISO 9001 Quality Control Standard.
● Excellent Five (5) Year Factory Warranty.
Specifications :
● Total Magnification: 20X, 40X, 50X & 100X
● Power of Eyepiece: 10X
● Power of Objectives: 2X, 5X & 10X
● Reading Graduation: 0.05mm, 0.02mm & 0.01mm under 20X, 50X & 100X, respectively
● Field of View: 9mm (under 20X)
● Focusing Range: 30mm
● Diameter of Viewing Field: 17mm
● Reticle of Eyepiece: 0.1 micrometer
● Illumination System: pen lamp with two AA batteries
● Overall Size: 65mm (2-1/2") base diameter x 250mm (9-7/8") height
● Shipping Weight: 8 lbs
Shipping List :
● One Shop Microscope Body
● One Widefield 10X Eyepiece with Reticle Graduated in 100
● One 2X Achromatic
● One 5X Achromatic Objective
● One 10X Achromatic
● One Pen
|
|
MP-100L
|
MP-50L
|
MP-40L
|
MP-20L
|
|
Total Magnification
|
100x
|
50x
|
40x
|
20x
|
|
Mechanical Tube Length
|
160mm
|
|
Eyepiece
|
10x
|
|
Objective
|
10x
|
5x
|
4x
|
2x
|
|
Numerical Aperture
|
0.25
|
0.12
|
0.1
|
0.05
|
|
Diameter of Viewing field in Eyepiece
|
18mm
|
|
Eyepiece Reticle
|
0.1mm
|
|
Fine Division
|
0.01mm
|
0.02mm
|
0.025mm
|
0.05mm
|
|
Working Distance
|
6.93mm
|
17.6mm
|
18mm
|
17.2mm
|
|
Focus Range
|
30mm
|
|
Diameter of Bearing Plane
|
63mm
|
|
Height of Microscope
|
210mm
|
|
Mass of Microscope
|
650g
|
|
Illumination
|
Pen light, No.7 battery
|
|
|
MP-100L
|
MP-50L
|
MP-40L
|
MP-20L
|
|
Eyepiece10x
Cross with Reticle
|
●
|
●
|
●
|
●
|
|
Objective10x
|
●
|
|
|
|
|
Objective5x
|
|
●
|
|
|
|
Objective4x
|
|
|
●
|
|
|
Objective2x
|
|
|
|
●
|
|
Pen Light Illumination
(with holder)
|
●
|
●
|
●
|
●
|
|
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
|
