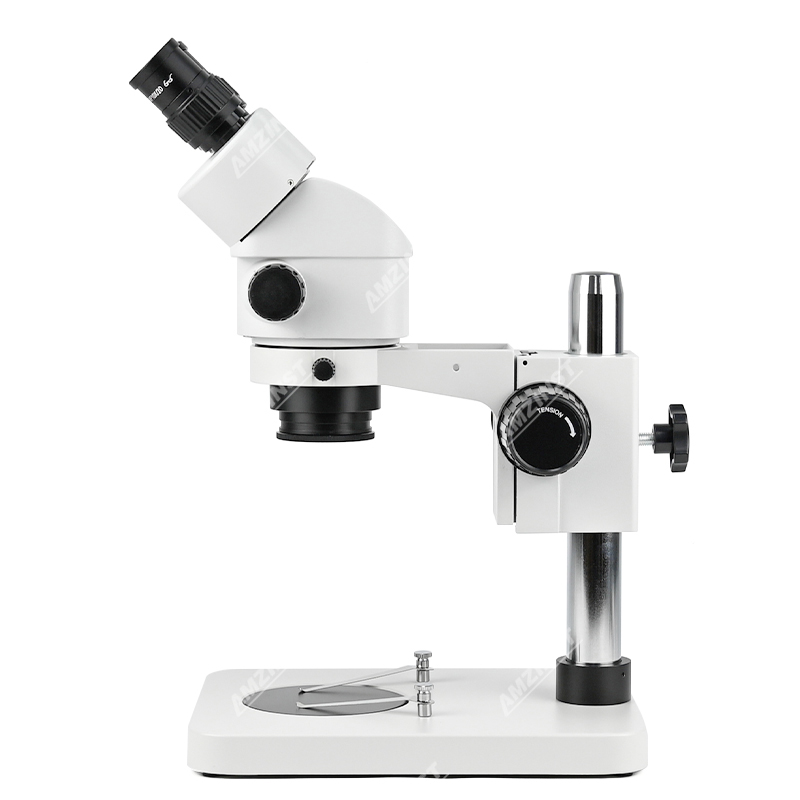

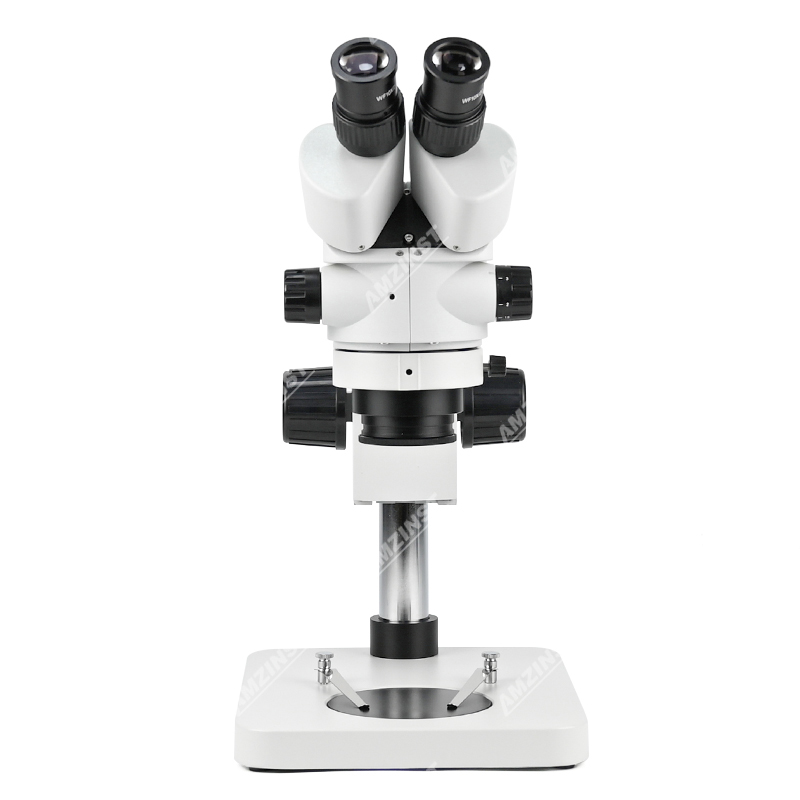

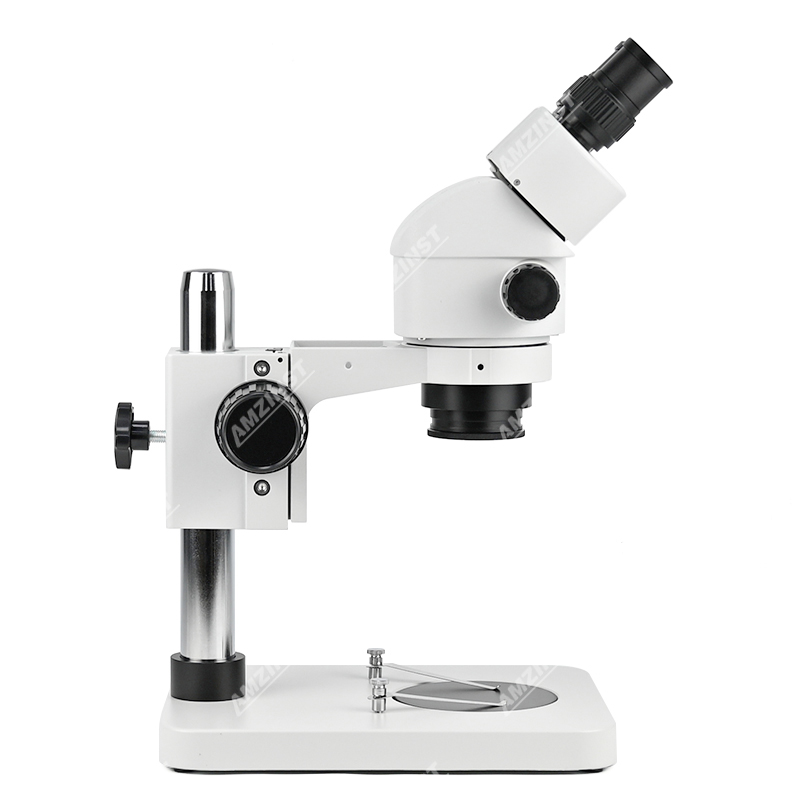

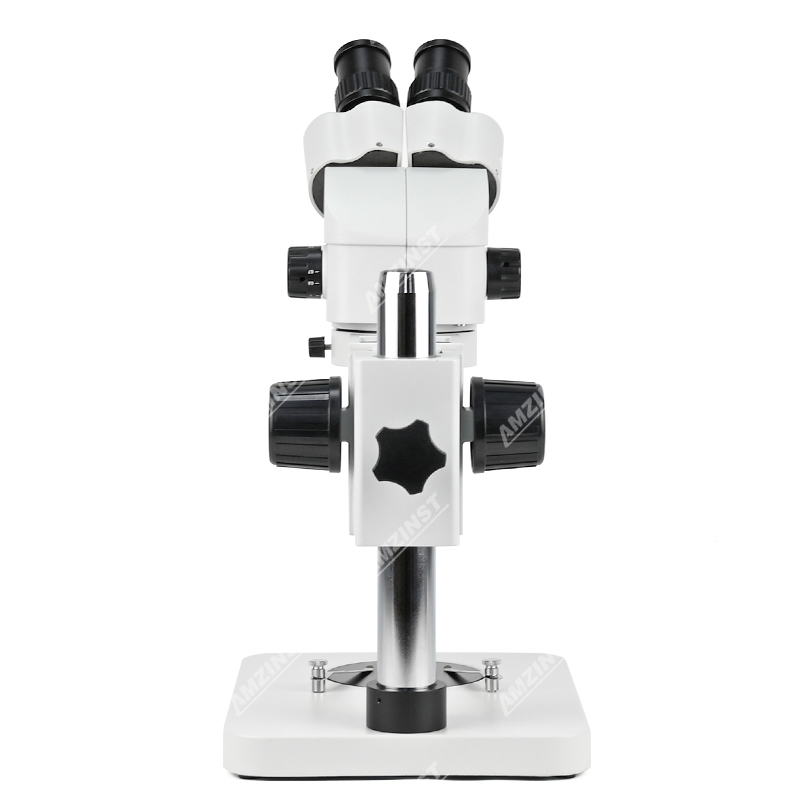

NZM0745B-D1 0.7X-4.5X Zoom Binocular Stereo Microscope
1,NZM0745B-D1 / NZM0745T-D1 Series Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view.
2, Once brought in focus, images remains clear and sharp throughout the whole zoom range.
3, It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.
  • Specifications
  • Accessories
  • Products Catalog

  • ● Binocular Head: 45 degree inclined 360° rotatable
    ● Interpupillary Distance Adjustment: 55-75mm
    ● Diopter Adjustment: ±5dp
    ● Eyepiece: WF10x/20mm
    ● Zoom Objective: 0.7x-4.5x
    ● Zoom Ratio: 1:6.4
    ● Magnification: 7x-45x
    ● Working Distance: 100mm
    Base:
    ● Vertical Post Height: 240mm
    ● Vertical Post Diameter: φ32mm
    ● Microscope Body Holder: φ76mm
    ● Focus Travel: 50mm
    ● Stage Plate: φ95mm black white contrast plate
    ● Base Size: 200x255x22mm
    ● Material: Metal



    Eyepieces Standard
         		Auxiliary lens 0.5X
         		Auxiliary lens 1.5X
    Working distance 100mm
         		Working distance 165mm
         		Working distance 45mm
    Magnification view field
         		Field of view
         		Magnification view field
         		Field of view
         		Magnification view field
         		Field of video
    10X/20mm
         		7.0X
         		28.6mm
         		3.5X
         		57.1mm
         		10.5X
         		19mm
    45.0X
         		4.4mm
         		22.5X
         		8.9mm
         		67.5X
         		3mm
    15X/15mm
         		10.5X
         		21.1mm
         		5.25X
         		42.8mm
         		15.75X
         		14.3mm
    67.5X
         		3.3mm
         		33.75X
         		6.7mm
         		101.25X
         		2.2mm
    20X/10mm
         		14.0X
         		14.3mm
         		7.0X
         		28.6mm
         		21.0X
         		9.5mm
    90.0X
         		2.2mm
         		45.0X
         		4.4mm
         		135.0X
         		1.5mm
    25X/9mm
    		 17.5X
    		 12.9mm
    		 8.85X
    		 25.4mm
    		 26.2X
    		 8.6mm
    112.5X
    		 2.0mm
    		 56.3X
    		 4.0mm
    		 168.8X
    		 1.3mm
    30X/8mm
    		 21.0X
    		 11.4mm
    		 10.5X
    		 22.9mm
    		 31.5X
    		 7.6mm
    135.0X
    		 1.8mm
    		 67.5X
    		 3.6mm
    		 202.5X
    		 1.2mm
