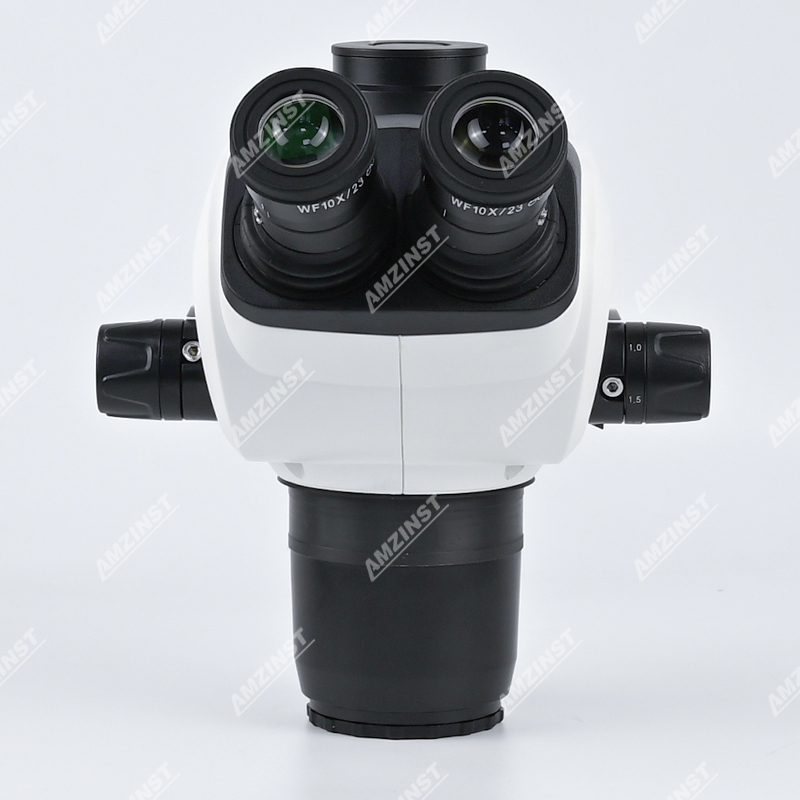

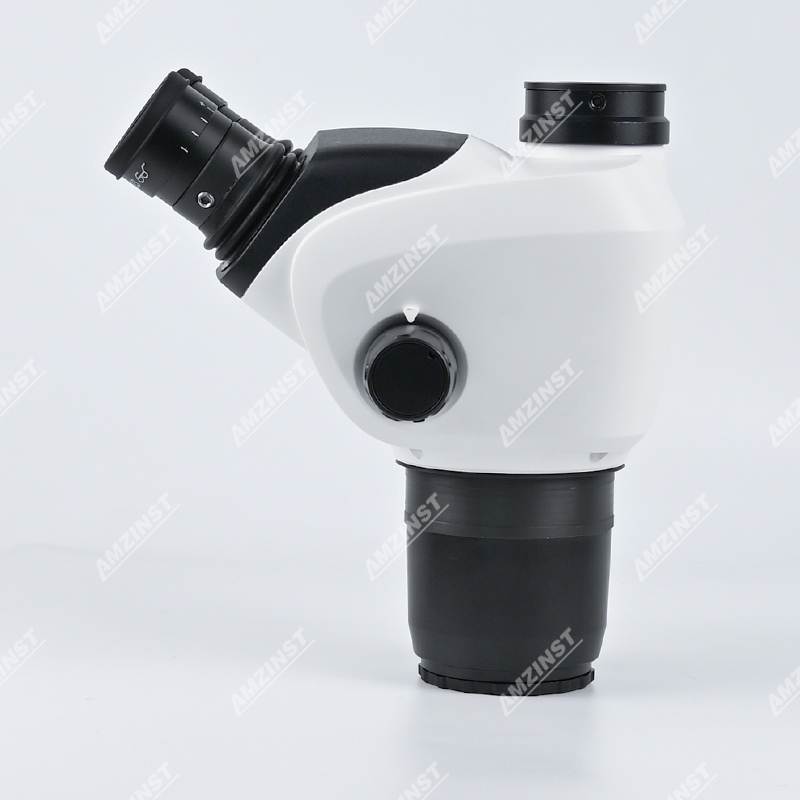

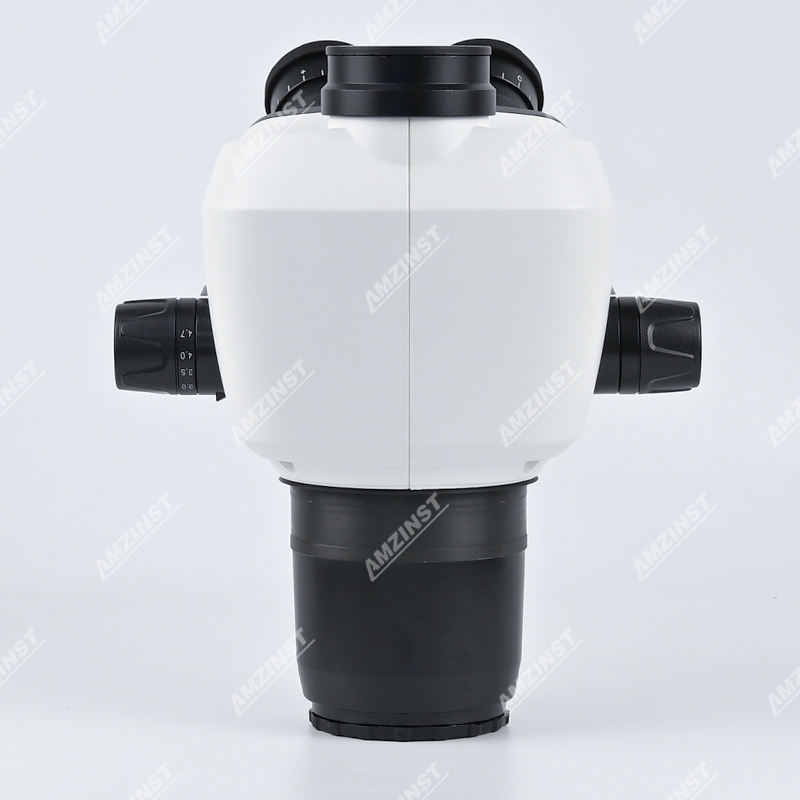

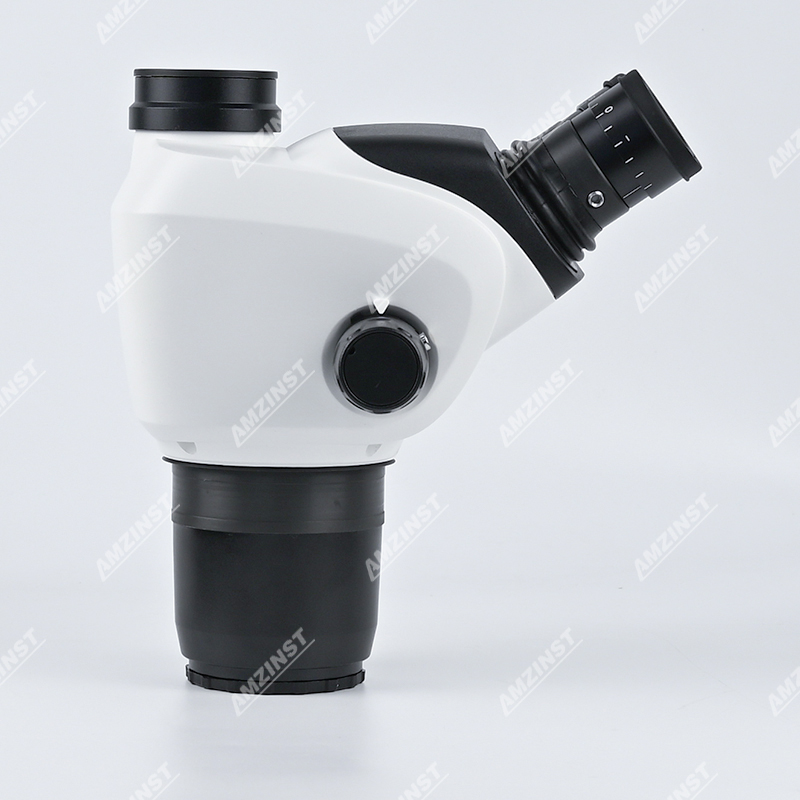

ZM6847BHE 0.68X-4.7X Greenough Optical Binocular Stereo Microscope Head
1. Outstanding Ergonomic Design
2. Greenough optical system, built-in rotating shaft zoom system.
3. High resolution, large depth of field, excellent color restoration and contrast.
4. Elegant shape , high-end and integrated appearance design￡? comfortable operation.
  • Specifications
  • Accessories
  • Products Catalog

  • ● Optical system: Greenough
    ● Viewing head: Binocualr head, Inclined 35° Interpupillary distance adjustment 50-75mm, Diopter adjustment +/- 5.
    ● Eyepieces: WF10X/23mm, Eyeguards included
    ● Zoom Objective: 0.68X-4.7X
    ● Click stop: 0.68X, 1.0X, 1.5X, 2.5X, 3.0X, 3.5X, 4.0X, 4.7X
    ● Zoom Ratio: 6.8:1
    ● Working Distance: 110mm
    ● Head mounting size: 76mm in diameter
    ● Dust cover: Yes (Included)

    Optional Accessories:
    - 0.5x Auxiliary lens (SKU: AUM-05X)
    - 0.75x Auxiliary lens (SKU: AUM-075X)
    - 2x Auxiliary lens (SKU: AUM-2X)
    - 10x/23mm eyepieces (SKU: ZM6847-10EXP)
    - 15x/17mm eyepieces (SKU: ZM6847-15EXP)
    - 20x/13mm eyepieces (SKU: ZM6847-20EXP)
    - Microscope Light Source

    Optical Specification
    Additional objective 0.5x
    		 0.75x
    		 1x (built-in)
    		 1.5x 2x
    Eyepieces Working distance 189mm 122mm 115mm 42mm 36mm
    10x/23mm Magnification 3.4-23.5x 5.1-35.3x 6.8-47x 10.2-70.5x 13.6-94x
    10x/23mm Filed of view (mm) 67.65-9.75 45.1-6.52
    		 33.82-4.89 25.55-3.26 16.91-2.45
    15x/16mm
    		 Magnification 5.1-35.3x 7.65-52.9x 10.2-70.5x 15.3-105.8x 20.4-141x
    15x/16mm Filed of view (mm) 47.06-6.81
    		 31.37-4.53
    		 23.53-3.4 15.69-2.27 11.76-1.7
    20x/12mm Magnification 6.8-47x
    		 10.2-70.5x
    		 13.6-94x 20.4-141x 27.2-188x
    20x/12mm Filed of view (mm) 35.29-5.11 23.53-3.4 17.65-2.55 11.76-1.7 8.82-1.28
