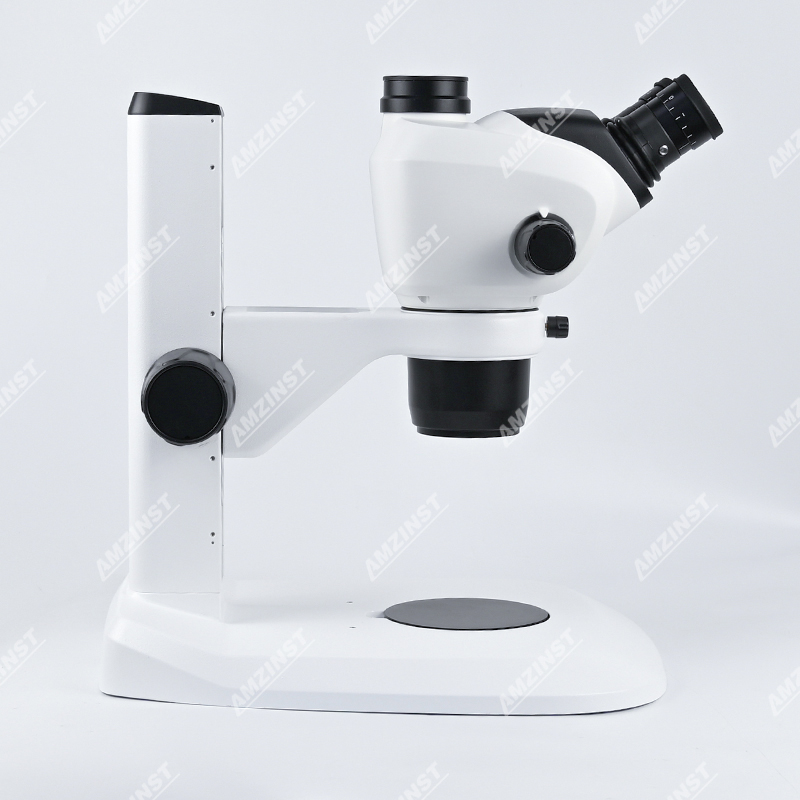

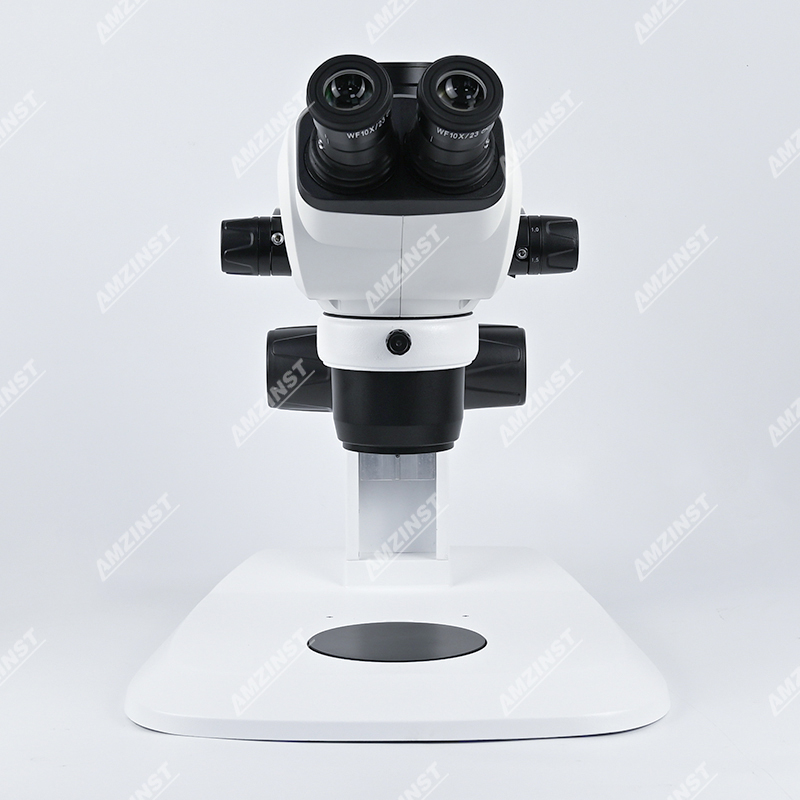

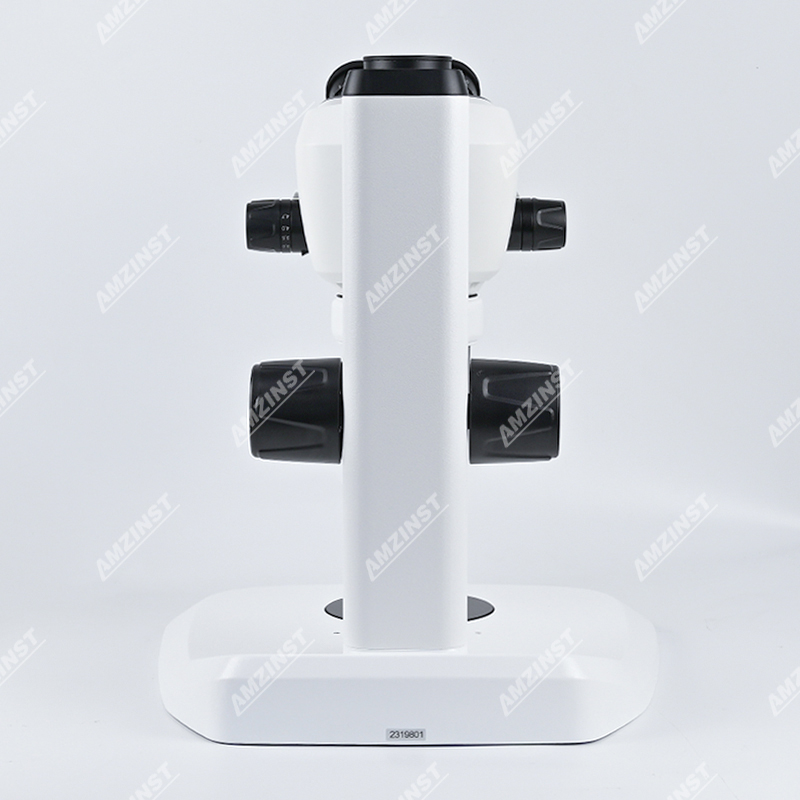

ZM6847B-E1 0.68X-4.7X Greenough Optical System Stereo Microscope
1. Outstanding Ergonomic Design
2. Greenough optical system, built-in rotating shaft zoom system.
3. High resolution, large depth of field, excellent color restoration and contrast.
4. Elegant shape , high-end and integrated appearance design￡? comfortable operation.
  • Specifications
  • Accessories
  • Products Catalog

  • ● Binocular Head: 35° inclined 360° rotatable
    ● Interpupillary Distance Adjustment: 50-75mm
    ● Diopter Adjustment: ±5dp
    ● Eyepieces: WF10X/23mm
    ● Objective: 0.68X-4.7X
    ● Click stop: 0.68X, 1.0X, 1.5X, 2.5X, 3.0X, 3.5X, 4.0X, 4.7X
    ● Zoom Ratio: 1:6.8
    ● Working Distance: 115mm

    E1 Base:
    ● Vertical Arm Height: 320mm
    ● Microscope Body Holder: φ76mm
    ● Focus Distance: 115mm
    ● Stage Plate: ø100mm White & Black Plate
    ● Base: 330x300x45mm
    ● Material: Metal

    Optional Accessories:
    - 0.5x Auxiliary lens (SKU: AUM-05X)
    - 0.75x Auxiliary lens (SKU: AUM-075X)
    - 2x Auxiliary lens (SKU: AUM-2X)
    - 10x/23mm eyepieces (SKU: ZM6847-10EXP)
    - 15x/17mm eyepieces (SKU: ZM6847-15EXP)
    - 20x/13mm eyepieces (SKU: ZM6847-20EXP)
    - Microscope Light Source



    Additional Objective
         		0.5X
         		1X(built-in)
         		2X
    W.D
         		189mm
         		110mm
         		36mm
    Eyepiece 10X/ Φ23mm
         		Magnification
         		3.4~23.5x
         		6.8~47x
         		13.6~94x
    Field dia. (mm)
         		67.65~9.79mm
         		33.82~4.89mm
         		16.91~2.46mm
    Eyepiece 15X/ Φ16mm
         		Magnification
         		5.1~35.25x
         		10.2~70.5x
         		20.4~141x
    Field dia. (mm)
         		47.06~6.81mm
         		23.53~3.40mm
         		11.76~1.70mm
    Eyepiece 20X/ Φ12mm
         		Magnification
         		6.8~47x
         		13.6~94x
         		27.2~188x
    Field dia. (mm)
         		35.294~5.11mm
         		17.65~2.55mm
         		8.82~1.28mm
